Introduction
This instruction manual provides detailed guidance for the installation, maintenance, and replacement of the KarmoP accessory kit components designed for the Xiaomi Lydsto G1 Robot Vacuum Cleaner. Regular replacement and proper maintenance of these parts are crucial for ensuring the optimal performance and longevity of your robot vacuum.
The kit includes essential components such as main brushes, side brushes, HEPA filters, and mop cloths, all designed to maintain your vacuum's cleaning efficiency.
Product Overview
The KarmoP accessory kit provides a comprehensive set of replacement parts to keep your Xiaomi Lydsto G1 robot vacuum operating effectively. Each component plays a vital role in the cleaning process.
Image 1: Overview of the KarmoP accessory kit, showing main brushes, side brushes, HEPA filters, mop cloths, and a cleaning tool.
Components Included:
- Main Brushes: Designed to agitate and lift debris from various floor types. The main brush body is lightweight, reducing the burden on the robot vacuum's motor and battery. It is fully disassemblable for thorough cleaning.
- Side Brushes: Sweep debris from edges and corners into the main cleaning path.
- HEPA Filters: Capture fine dust particles and allergens, maintaining the robot's cleaning performance and reducing air infiltration of dust. These filters are washable.
- Mop Cloths: Provide strong and lasting cleaning power for wet mopping, effectively addressing stains like footprints, juice residue, and oil. They feature strong water absorption and are reusable.
- Dust Bag: (If included in your specific kit variant) Serves as the dust storage device, accommodating a large amount of dust and debris for easy disposal and replacement.
- Cleaning Tool: A small brush for removing hair and debris from brushes and filters.
Installation Guide
Follow these steps to correctly install or replace the accessory components in your Xiaomi Lydsto G1 robot vacuum cleaner.
1. Main Brush Installation
- Turn off the robot vacuum and place it upside down on a flat surface.
- Locate the main brush cover, usually secured by latches or screws. Open or remove the cover.
- Remove the old main brush.
- Insert the new main brush, ensuring the ends align with the slots in the vacuum.
- Close or re-secure the main brush cover.

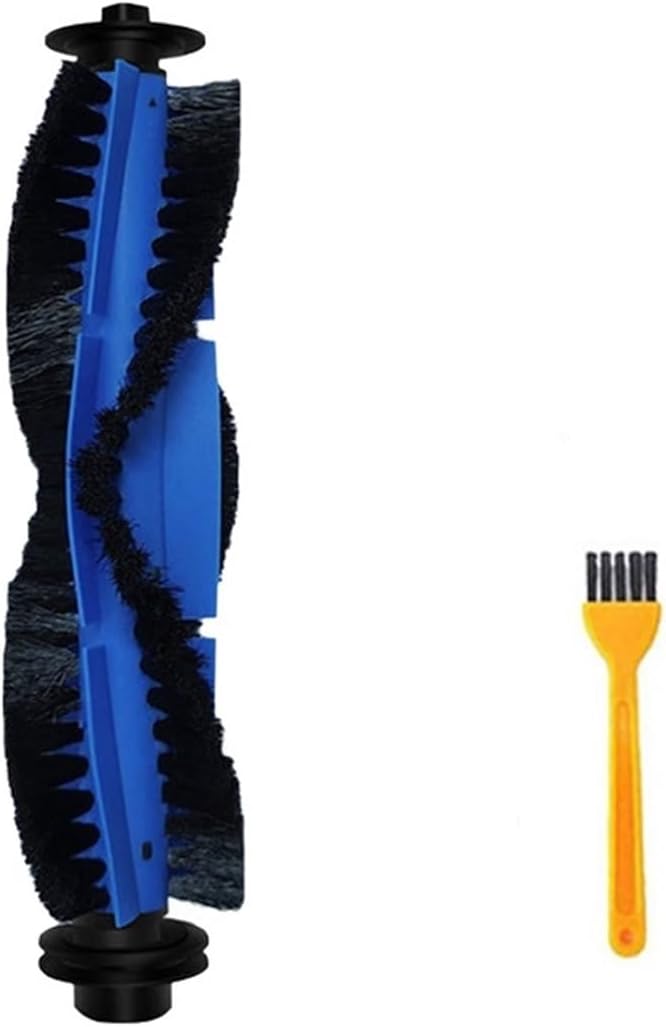

Image 2: A main brush and the accompanying cleaning tool, ready for installation or maintenance.
2. Side Brush Installation
- Turn off the robot vacuum and place it upside down.
- Locate the side brushes. They are typically held in place by a single screw.
- Unscrew and remove the old side brush.
- Place the new side brush into position and secure it with the screw.
Image 3: Two side brushes, showing their three-arm design, ready for attachment to the robot vacuum.
3. HEPA Filter Installation
- Open the dustbin compartment of your robot vacuum.
- Remove the dustbin.
- Locate the filter within the dustbin. Remove the old filter.
- Insert the new HEPA filter into the designated slot in the dustbin, ensuring it fits snugly.
- Reinsert the dustbin into the robot vacuum and close the compartment.

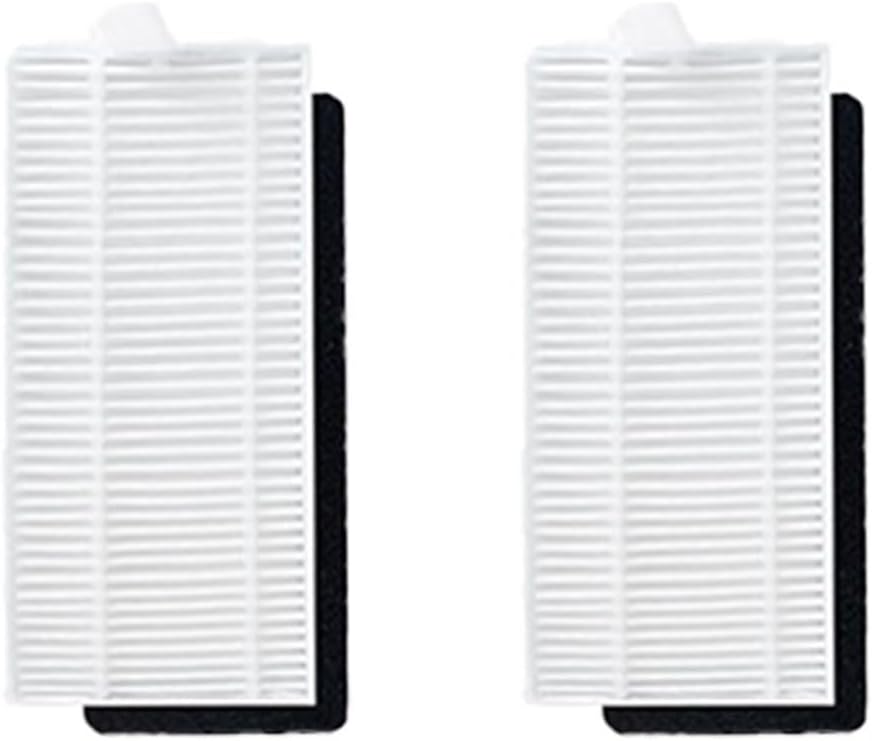

Image 4: Two rectangular HEPA filters with white pleated material and black frames, designed to capture fine particles.
4. Mop Cloth Installation
- Locate the mopping module or water tank on your robot vacuum.
- Remove the old mop cloth, typically attached via Velcro or a sliding mechanism.
- Attach the new mop cloth to the mopping module, ensuring it is securely fastened.
- Reattach the mopping module to the robot vacuum.

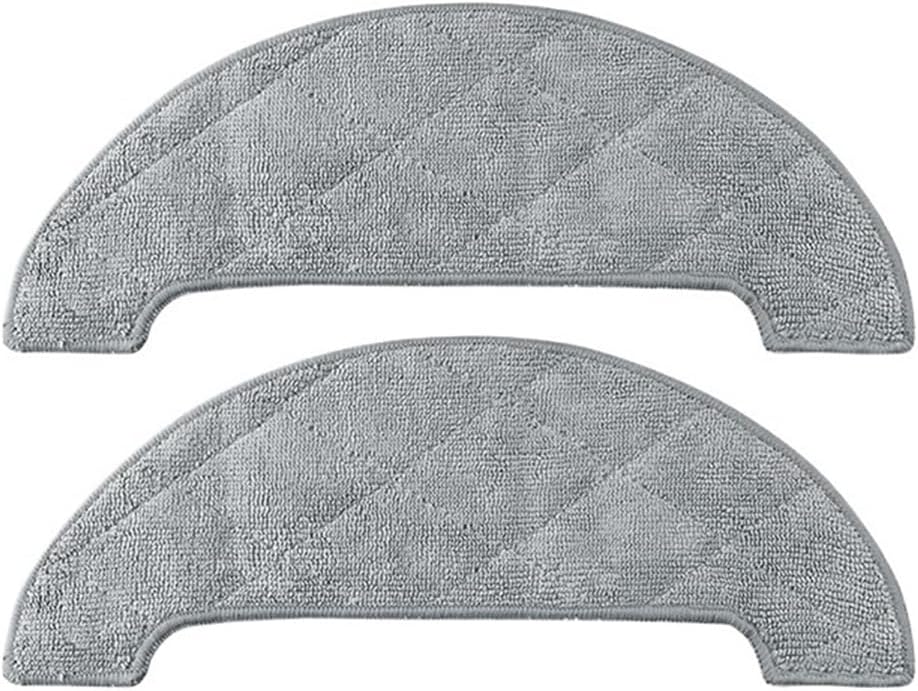

Image 5: Two grey, semi-circular mop cloths with textured surfaces, designed for wet cleaning.
Maintenance
Regular cleaning and timely replacement of these accessories are essential for maintaining your robot vacuum's cleaning efficiency and extending its lifespan.
- Main Brushes:
Clean the main brush weekly. Use the provided cleaning tool to remove tangled hair and debris. The main brush can be fully disassembled for deep cleaning. Replace every 6-12 months, or sooner if visibly worn or damaged.
- Side Brushes:
Inspect side brushes weekly for tangled hair or bent bristles. Clean as needed. Replace every 3-6 months, or if bristles are significantly worn or deformed.
- HEPA Filters:
Tap out dust from the filter after each use. The filters are washable; rinse them under running water and allow them to air dry completely before reinstallation. Do not use a brush or harsh detergents. Replace every 2-3 months, or if cleaning performance decreases significantly.
- Mop Cloths:
Wash mop cloths after each use. They are reusable and can be hand-washed or machine-washed on a gentle cycle. Allow to air dry. Replace every 1-3 months, depending on usage and wear.
- Dust Bag:
Replace the dust bag when full. The frequency depends on usage and household dust levels. Refer to your robot vacuum's main manual for specific dust bag replacement instructions.
Troubleshooting
If you experience issues after replacing accessories, consider the following:
- Reduced Cleaning Performance: Ensure all brushes are free of tangles and debris. Check if filters are clean and properly seated. If parts are old, consider replacing them.
- Unusual Noises: Verify that brushes are installed correctly and not obstructed. Remove any foreign objects.
- Water Leakage (Mop Cloth): Ensure the mop cloth is correctly attached to the mopping module and the module is properly installed in the vacuum.
For further troubleshooting specific to your Xiaomi Lydsto G1 robot vacuum, please refer to its original user manual or contact the manufacturer's support.
Specifications
| Attribute | Detail |
|---|---|
| Brand | KarmoP |
| Compatible Model | Xiaomi Lydsto G1 Robot Vacuum Cleaner |
| Accessory Kit Model Number | zhangbingz |
| Special Feature | HEPA Filtration (for filters) |
| Item Weight | 1.76 ounces (total kit, approximate) |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches (approximate, for individual components) |
| Date First Available | December 15, 2023 |
Warranty and Support
This accessory kit is provided by KarmoP. For any questions regarding the product, installation, or potential defects, please contact the seller directly through your purchase platform. Specific warranty details, if any, would be provided at the point of purchase or by the seller.
Please note that this kit is designed for compatibility with the Xiaomi Lydsto G1. For issues related to the robot vacuum itself, please refer to the Xiaomi Lydsto G1 manufacturer's support.
