STRONG REPEATERAX1800 Wi-Fi 6 Repeater

1. Introduction

The STRONG REPEATERAX1800 Wi-Fi 6 Repeater is designed to extend the coverage of your existing wireless network, eliminating Wi-Fi dead zones and providing a stronger, more reliable internet connection throughout your home or office. This device supports the latest Wi-Fi 6 standard, offering faster speeds and improved efficiency for multiple connected devices. Please read this manual carefully before using the product to ensure proper installation and operation.

2. Package Contents

Verify that all items are present in your package. If any item is missing or damaged, please contact your retailer.

• 1x STRONG REPEATERAX1800 Wi-Fi 6 Repeater
• 1x Installation Instructions
• 1x Warranty Card

Image: The STRONG REPEATERAX1800 Wi-Fi 6 Repeater and its packaging, illustrating the included items: the repeater unit and installation instructions.

3. Product Overview

Key Features

• Wi-Fi 6 (802.11ax) Support: For faster speeds and improved network efficiency.
• Dual Band Operation: Simultaneous 2.4 GHz and 5 GHz connections for flexible network expansion.
• Gigabit Ethernet Port: For wired connections to devices like PCs, gaming consoles, or smart TVs.
• Universal Compatibility: Works with any standard Wi-Fi modem or router.

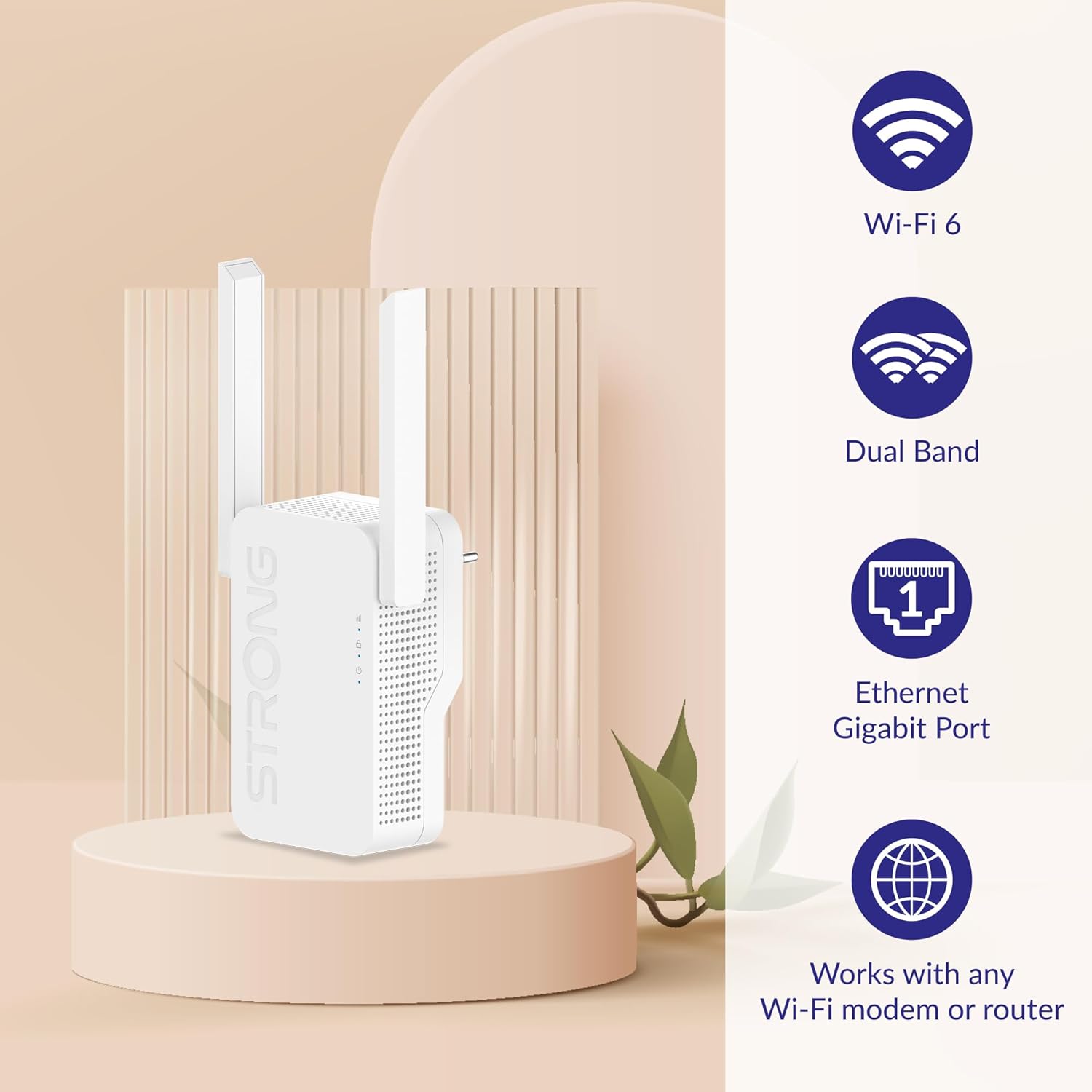

Image: Visual representation of the repeater highlighting its key features: Wi-Fi 6, Dual Band, Ethernet Gigabit Port, and compatibility with any Wi-Fi modem or router.

Device Layout and Indicators

Familiarize yourself with the repeater's ports and LED indicators:

• Wi-Fi LED: Indicates the status of the Wi-Fi connection.
• WPS LED: Shows the status of the Wi-Fi Protected Setup (WPS) function.
• Power LED: Indicates if the device is powered on.
• Gigabit Ethernet Port: For connecting a wired device.

Image: A close-up view of the STRONG REPEATERAX1800, with numbered labels pointing to the Wi-Fi LED, WPS LED, Power LED, and Gigabit Ethernet Port.

4. Setup

Follow these steps for a quick and easy installation of your Wi-Fi repeater:

1. Power On: Plug the REPEATERAX1800 into an electrical outlet near your existing Wi-Fi router. Wait for the Power LED to turn solid.
2. Connect to Router:
   • WPS Method (Recommended): Press the WPS button on your router, then within two minutes, press the WPS button on the REPEATERAX1800. The WPS LED will indicate a successful connection.
   • Manual Method: Connect your computer or mobile device to the repeater's default Wi-Fi network (usually printed on the device or in the quick start guide). Open a web browser and follow the on-screen instructions to connect the repeater to your home Wi-Fi network.
3. Optimal Placement: Once connected, unplug the repeater and move it to a location halfway between your router and the Wi-Fi dead zone. Ensure the Wi-Fi LED indicates a strong signal from your router.
4. Extend Signal: The repeater will now broadcast an extended Wi-Fi signal. You can connect your devices to this new network (often with '_EXT' appended to your original network name).

Image: A visual guide demonstrating the quick and easy installation process, showing the repeater connecting to a modem/router and then extending the Wi-Fi signal to cover a larger area.

5. Operating

Wi-Fi Bands

The REPEATERAX1800 operates on both 2.4 GHz and 5 GHz frequency bands simultaneously:

• 2.4 GHz Band: Offers wider coverage and better penetration through walls, suitable for general internet use and older devices. Supports up to 574 Mbps.
• 5 GHz Band: Provides faster speeds and lower latency, ideal for streaming HD video, online gaming, and bandwidth-intensive applications. Supports up to 1201 Mbps.

Image: Illustration showing the 2.4 GHz and 5 GHz Wi-Fi signals emanating from the repeater, with their respective maximum data rates of 574 Mbps and 1201 Mbps.

Data Transfer Rate

The REPEATERAX1800 provides a combined data transfer rate of up to 1800 Megabits Per Second (Mbps), leveraging the capabilities of Wi-Fi 6 across both frequency bands.

6. Maintenance

To ensure optimal performance and longevity of your REPEATERAX1800:

• Placement: Avoid placing the repeater near large metal objects, concrete walls, or devices that emit strong electromagnetic interference (e.g., microwaves, cordless phones).
• Firmware Updates: Periodically check the manufacturer's website for firmware updates. Keeping your device's firmware up-to-date can improve performance, security, and add new features.
• Cleaning: Use a soft, dry cloth to clean the device. Do not use liquid cleaners or aerosols.

7. Troubleshooting

If you encounter issues with your REPEATERAX1800, try the following steps:

• No Power: Ensure the repeater is securely plugged into a working electrical outlet. Check if the Power LED is illuminated.
• No Internet Connection: Verify that your main router has an active internet connection. Check the Wi-Fi LED on the repeater to ensure it's properly connected to your router.
• Weak Signal: Relocate the repeater to a position closer to your main router, ensuring it is still within a good signal range of the area you want to cover.
• Cannot Access Setup Page: Ensure your device is connected to the repeater's Wi-Fi network. Try clearing your browser's cache or using a different browser.
• Factory Reset: If problems persist, you may need to perform a factory reset. Locate the reset button (usually a small pinhole) on the device, press and hold it for 5-10 seconds until the LEDs flash, then release. This will restore the repeater to its default settings.

8. Specifications

Image: Diagram illustrating the physical dimensions of the STRONG REPEATERAX1800, showing its height (222.8 cm), width (77.8 cm), and depth (49 cm).

9. Warranty and Support

The STRONG REPEATERAX1800 comes with a 4-year warranty, ensuring peace of mind regarding your purchase. Please refer to the included Warranty Card for detailed terms and conditions.

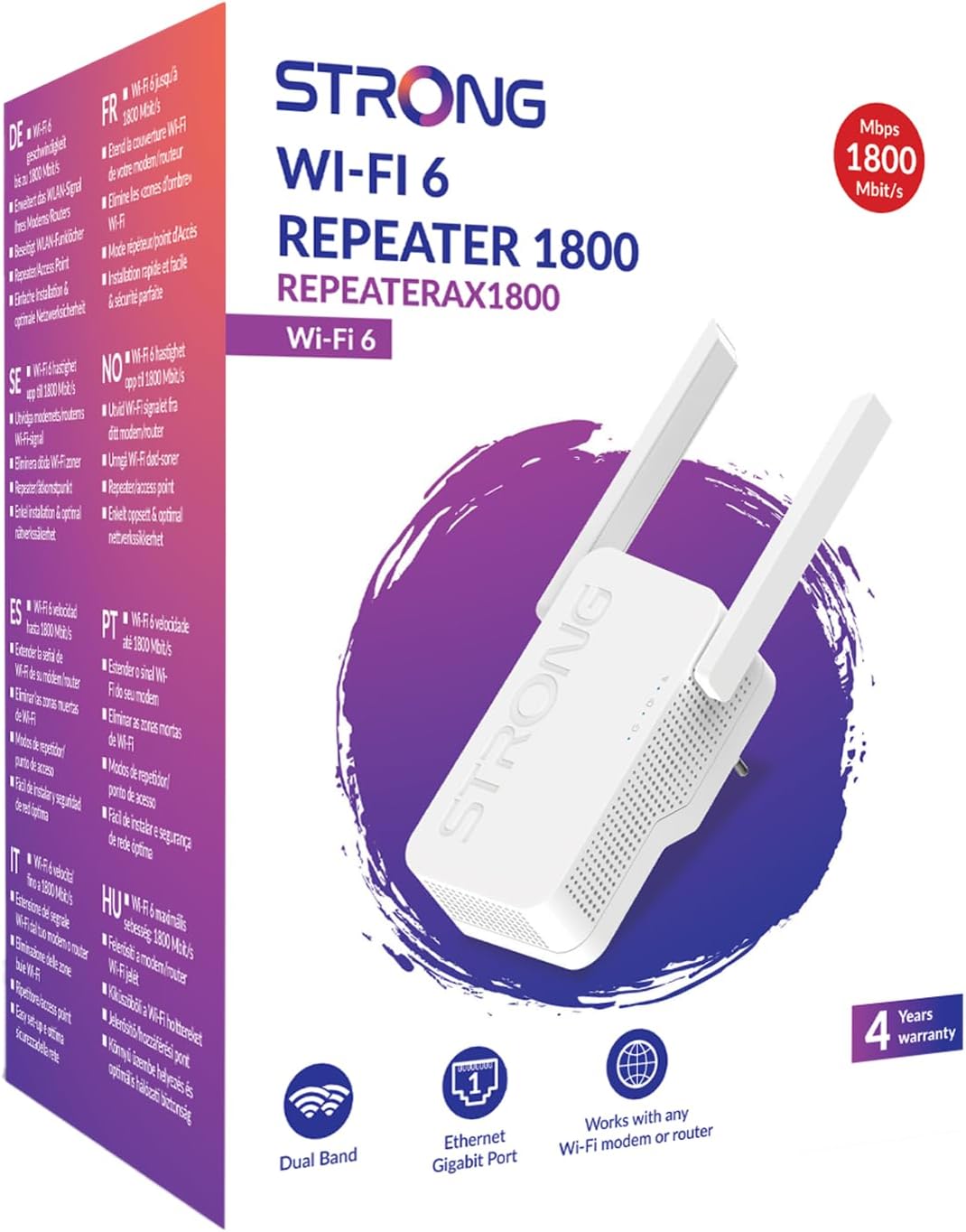

Image: The product packaging for the STRONG REPEATERAX1800, prominently displaying a '4 Years warranty' badge.

For technical support, troubleshooting assistance, or warranty claims, please visit the official Strong website or contact their customer service department. Contact information can typically be found on the manufacturer's website or on the product packaging.
