SECURA Trailer Hitch Instruction Manual

1. Introduction

This manual provides essential information for the safe and correct installation, operation, and maintenance of your SECURA trailer hitch. This product is designed for use with the solo by AL-KO T6200 Li- 105.2E Lawn Tractor. Please read these instructions thoroughly before installation and use, and retain them for future reference.

2. Safety Information

• Always ensure the lawn tractor is turned off and the engine is cool before attempting installation or maintenance.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection, during installation.
• Verify that all fasteners are securely tightened before operating the lawn tractor with the trailer hitch attached.
• Do not exceed the maximum towing capacity specified by the lawn tractor manufacturer.
• Regularly inspect the trailer hitch for any signs of wear, damage, or corrosion. Replace damaged parts immediately.
• Ensure the trailer being towed is properly balanced and secured to prevent instability.

3. Package Contents

Please check the package contents against the list below. If any parts are missing or damaged, contact your supplier immediately.

• 1 x SECURA Trailer Hitch assembly
• Mounting hardware (bolts, nuts, washers)
• Instruction Manual

4. Setup and Installation

Follow these steps to install the trailer hitch on your solo by AL-KO T6200 Li- 105.2E Lawn Tractor.

1. Prepare the Tractor: Park the lawn tractor on a flat, stable surface. Turn off the engine, remove the ignition key, and engage the parking brake.
2. Locate Mounting Points: Identify the designated mounting points on the rear frame of your solo by AL-KO T6200 Li- 105.2E Lawn Tractor. These are typically pre-drilled holes.
3. Position the Hitch: Align the SECURA trailer hitch with the mounting points on the tractor's frame.
4. Secure with Hardware: Insert the provided bolts through the hitch and the tractor's frame. Secure them with washers and nuts. Hand-tighten all fasteners initially.
5. Tighten Fasteners: Using appropriate tools, progressively tighten all bolts and nuts until they are secure. Do not overtighten.
6. Final Check: Visually inspect the installed hitch to ensure it is firmly attached and there is no wobble or play.

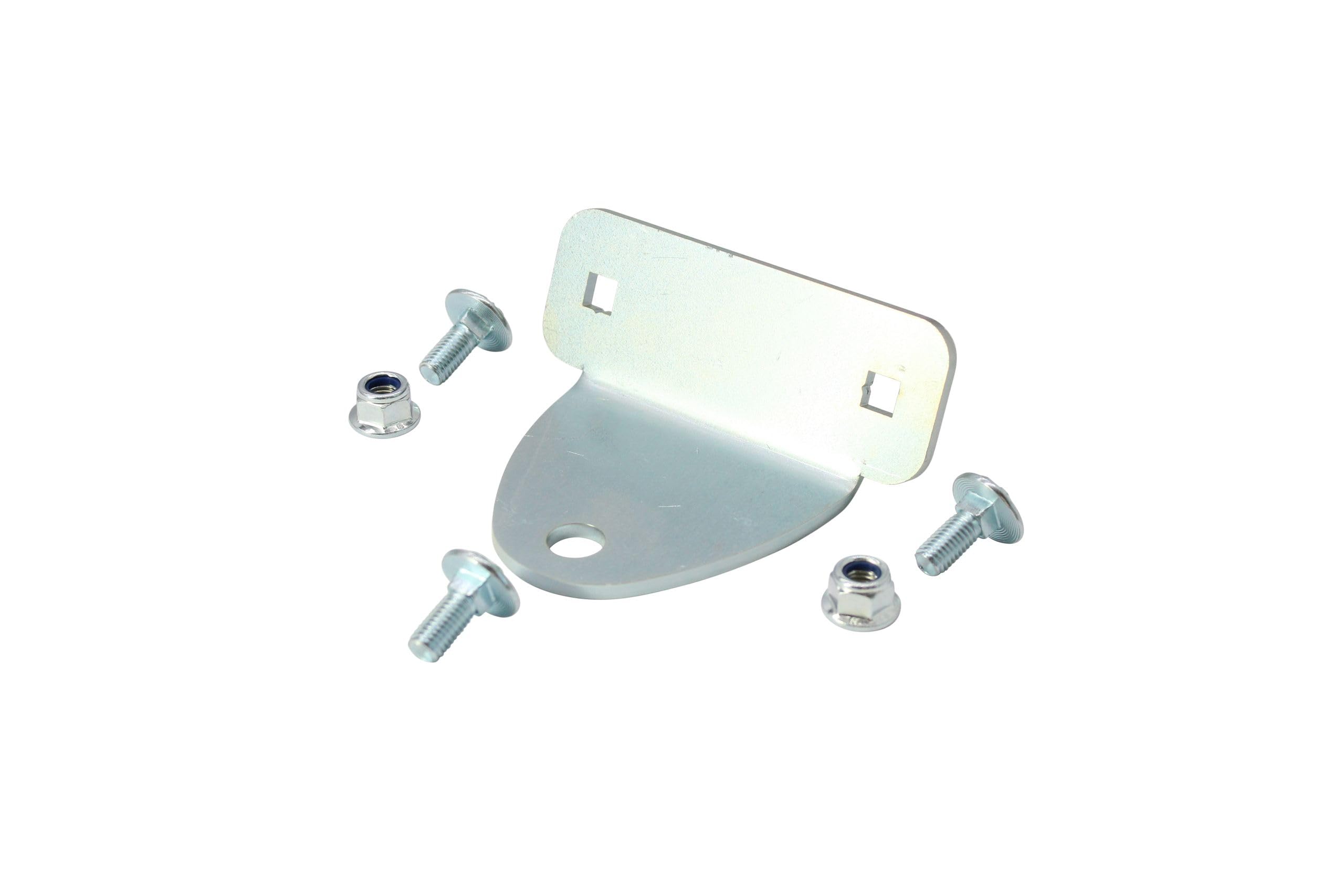

Figure 1: SECURA Trailer Hitch. This image shows the general appearance of the trailer hitch, which is designed for robust attachment to the rear of a lawn tractor, facilitating towing operations.

5. Operating Instructions

Once the trailer hitch is securely installed, you can attach compatible towing accessories.

• Attaching a Trailer: Connect the tongue of your trailer or accessory to the hitch point. Ensure the connection is secure and the trailer's safety chains (if applicable) are properly attached.
• Towing: Operate the lawn tractor at a safe speed, especially when towing. Avoid sudden starts, stops, or turns, as these can cause instability.
• Weight Distribution: Distribute the load evenly in the trailer to maintain balance and control.
• Detaching a Trailer: Park the lawn tractor on a level surface, engage the parking brake, and turn off the engine before detaching the trailer.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your trailer hitch.

• Cleaning: Clean the hitch regularly to remove dirt, grass, and debris.
• Inspection: Periodically inspect all components for wear, cracks, bends, or corrosion. Pay close attention to welds and connection points.
• Fastener Check: Re-tighten all bolts and nuts as needed, especially after the first few hours of use and periodically thereafter.
• Lubrication: Apply a light coat of grease or rust-inhibiting spray to moving parts or exposed metal surfaces to prevent corrosion.

7. Troubleshooting

If you encounter issues with your trailer hitch, consider the following:

• Hitch is Loose: Check all mounting bolts and nuts. Tighten them securely. Ensure the hitch is correctly aligned with the tractor's frame.
• Difficulty Attaching Trailer: Ensure the hitch point is clear of obstructions. Verify that the trailer's tongue or accessory is compatible with the hitch design.
• Excessive Noise During Towing: Inspect the hitch and trailer connection for any loose components or excessive wear. Lubricate as necessary.

8. Specifications

9. Warranty and Support

Information regarding specific warranty terms and spare parts availability for this SECURA trailer hitch is currently unavailable. For product support or inquiries, please contact your point of purchase or the manufacturer directly.
