Kyglaring Light Kit for Lego Elsa's Magical Ice Palace 43172 - Instruction Manual

Product Overview

This instruction manual provides detailed guidance for installing and operating your Kyglaring Light Kit, designed specifically for the Lego Elsa's Magical Ice Palace 43172 building block set. This kit enhances your model with integrated LED lighting, transforming it into a vibrant display piece. Please note that the Lego model set is not included with this light kit.

Safety Information

• Ensure all power sources are 5V. Do not exceed 6V.
• Keep small parts away from children under 3 years old to prevent choking hazards.
• Do not pull wires excessively during installation to avoid damage.
• Test each light component before assembly to ensure proper function.
• Use only recommended power sources (USB cable or battery box with 6 AA batteries, not included).

What's in the Box

Your Kyglaring Light Kit package includes:

• LED Light Kit components (various lights, connecting cables, expansion boards).
• USB Power Cable.
• Battery Box (batteries not included).

Image showing the Kyglaring Light Kit components alongside the Lego Elsa's Magical Ice Palace model, illustrating the transformation from unlit to lit.

Installation Guide

Follow these steps carefully to install your Kyglaring Light Kit. Detailed video and PDF instructions are available online. The kit features a hidden cable design and snap-on connectors for ease of installation.

Step 1: Preparation

Before beginning, ensure your Lego Elsa's Magical Ice Palace 43172 model is fully assembled. Unpack all light kit components and identify the different light bags, which are numbered for step-by-step installation.

Important: Test each light part before assembling to confirm functionality.

Step 2: Integrating Lights

The light kit is designed with preset spacing and hidden cable routes. Carefully integrate the LED lights into your Lego model according to the online instructions. The lamp holders feature a hidden cable design to maintain the aesthetic of your model.

Use the provided snap-on connectors to link light components. Avoid pulling wires too hard to prevent damage.

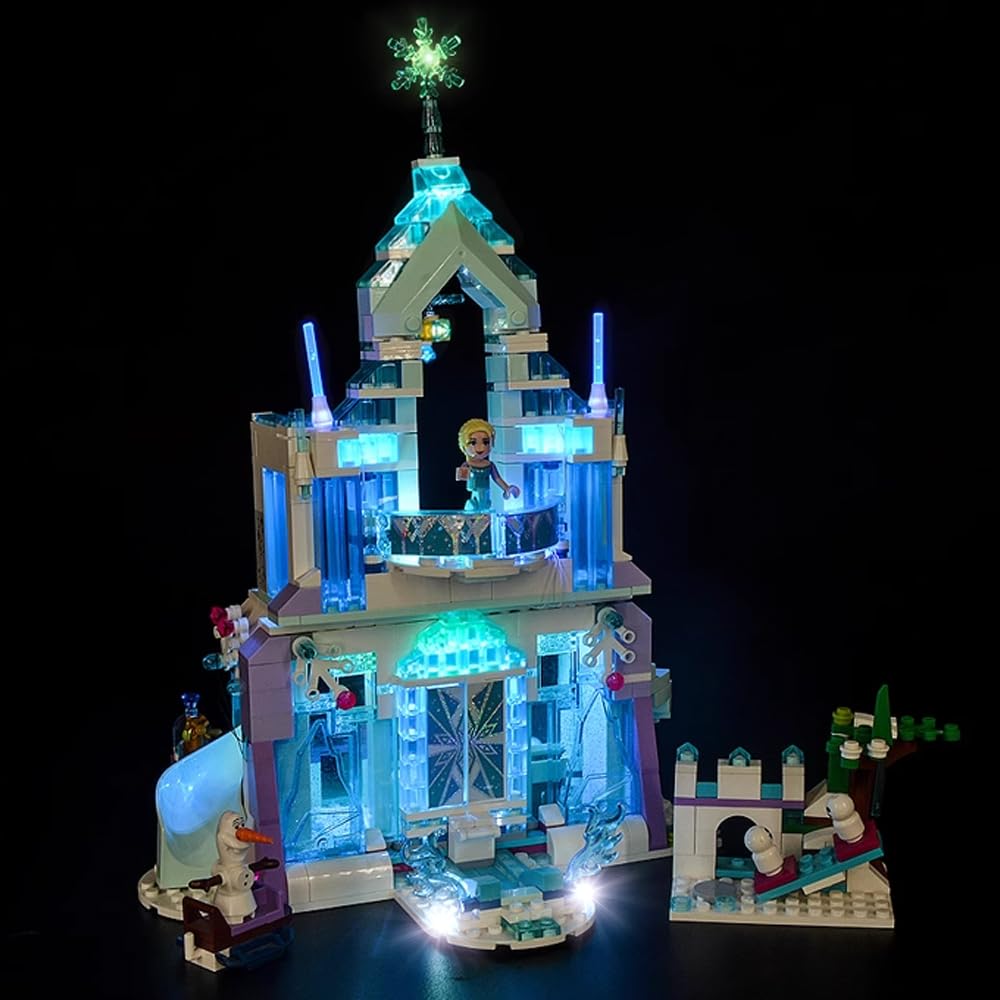

Image demonstrating the illuminated Lego Elsa's Magical Ice Palace model after the Kyglaring Light Kit installation, highlighting the overall effect.

Close-up images showcasing detailed lighting effects on various sections of the Lego Elsa's Magical Ice Palace, including the snowflake, interior, and entrance.

The illuminated Lego Elsa's Magical Ice Palace model with the Kyglaring Light Kit, set against a scenic background, emphasizing its display potential.

Operating Instructions

Once the light kit is fully installed, connect it to a power source.

• USB Power: Connect the provided USB cable to the light kit and then to a 5V USB power adapter (e.g., wall charger, power bank, computer USB port). Ensure the maximum power output does not exceed 6V.
• Battery Box Power: Insert 6 AA batteries (not included) into the battery box. Connect the battery box to the light kit.

Flick the switch on your chosen power source to illuminate your Lego model.

Maintenance

• Keep the light kit and model clean by gently dusting with a soft, dry cloth.
• Avoid exposing the kit to excessive moisture or extreme temperatures.
• If using the battery box, remove batteries during long periods of non-use to prevent leakage.
• Do not attempt to modify the wiring or components of the light kit, as this may void the warranty and cause damage.

Troubleshooting

• Lights not turning on:
  • Check all connections to ensure they are secure.
  • Verify the power source is functioning correctly (e.g., USB adapter is plugged in, batteries are fresh and correctly inserted).
  • Ensure the power switch is in the "ON" position.
  • Re-test individual light components if possible.
• Some lights are dim or flickering:
  • Check for loose connections to the affected lights.
  • If using batteries, replace them with fresh ones.
  • Ensure the power source provides stable 5V output.
• Wires are visible:
  • Refer to the online installation guide for proper cable routing techniques. The kit is designed for hidden wiring.
  • Gently tuck wires into crevices or under blocks where possible without excessive force.

Specifications

Warranty and Support

Kyglaring provides a reliable warranty and 24/7 customer support for this product. If you encounter any difficulties or have questions regarding your light kit, please contact Kyglaring customer service for assistance.

For detailed video/PDF installation instructions and further support, please visit the official Kyglaring website or refer to the online resources provided with your purchase.

Contact: Refer to your product packaging or the Kyglaring store page for specific contact information.
