Introduction
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Cuifati 1080P Indoor Security Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety.
Package Contents
Upon opening the package, verify that all the following items are included:
- 1 x Cuifati Home Camera
- 1 x Reset Pin
- 1 x Power Adapter (US Plug)
- 1 x Power Cord
- 1 x Instruction Manual (this document)

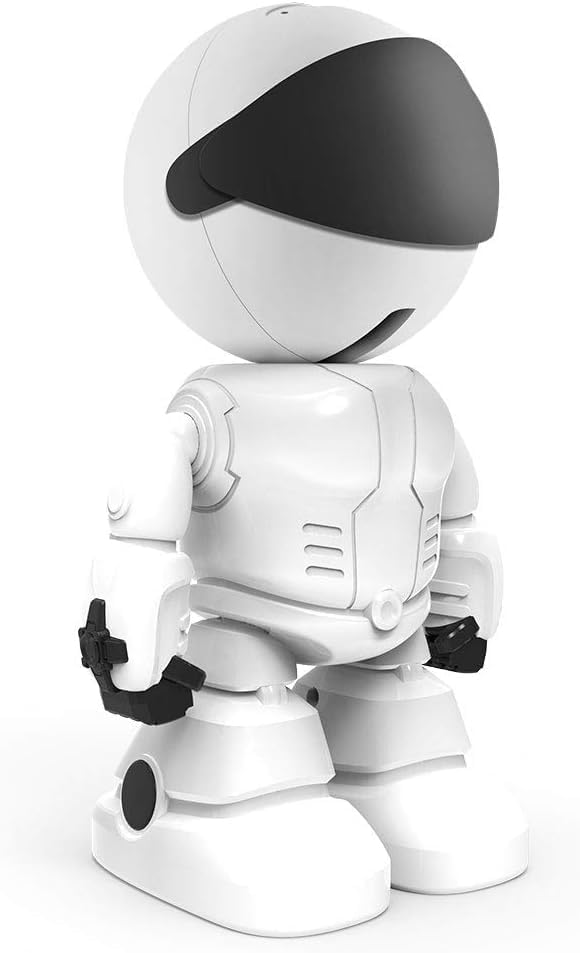

Image: The Cuifati 1080P Indoor Security Camera, a compact white robot-shaped device with a black visor.
Product Overview
The Cuifati 1080P Indoor Security Camera is designed for home surveillance, offering high-definition video, two-way audio, motion detection, and flexible storage options. Its compact design allows for discreet placement.
Image: Detailed diagram showing the camera's dimensions and component locations including TF Card Slot, Reset Button, Photosensitive sensor, IR Light, Lens, Microphone, Speaker, and Power Port.
Key Features:
- 1080P High Definition: Provides clear and crisp video streaming.
- 360-Degree Coverage: 355-degree horizontal and 60-degree vertical rotation for comprehensive monitoring.
- Enhanced Night Vision: Clear images in low-light conditions with a range of 5-10 meters.
- Two-Way Audio: Built-in microphone and speaker for real-time communication.
- Motion Detection Alerts: Instant notifications and automatic video recording upon detecting movement.
- Flexible Storage: Supports local storage via Micro SD card (up to 128GB, not included) and cloud storage options.
Setup Guide
- Unpack the Camera: Carefully remove all components from the packaging.
- Power Connection: Connect the provided power cord to the camera's power port and plug the power adapter into a standard electrical outlet. The camera will power on and initiate its startup sequence.
- Micro SD Card Installation (Optional): If using local storage, gently insert a Micro SD card (up to 128GB, not included) into the TF Card Slot. Ensure the card is inserted correctly.
- App Download: Download the compatible mobile application for your device. The product description mentions "for IOS, for Android 5.0 or Higher Version". Search for the specific app name (e.g., "Home C200" or similar, if available, otherwise a generic app name) in your device's app store.
- Account Registration: Open the app and follow the on-screen instructions to register a new account or log in if you already have one.
- Add Device: Within the app, select the option to "Add Device" or "Add Camera". Follow the app's prompts to connect the camera to your Wi-Fi network. This typically involves scanning a QR code on the camera or entering Wi-Fi credentials.
- Placement: Position the camera in your desired indoor location. The camera supports wall mounting. Ensure it has a clear line of sight to the area you wish to monitor.
Image: The camera shown with a Wi-Fi connection icon, indicating its wireless connectivity feature.
Operating Instructions
Once the camera is set up and connected to the app, you can begin monitoring and utilizing its features.
- Live View: Open the mobile application and select your camera from the device list to access the live video feed.
- Pan/Tilt Control: Use the controls within the app to remotely rotate the camera horizontally (355 degrees) and vertically (60 degrees) to adjust the viewing angle.
- Two-Way Audio: Tap the microphone icon in the app to speak through the camera's speaker, and listen to audio from the camera's built-in microphone.
- Motion Detection: Enable motion detection in the app settings. You will receive push notifications on your phone when motion is detected, and the camera will automatically record video.
- Night Vision: The camera automatically switches to IR (infrared) mode in low-light conditions to provide clear night vision up to 10 meters.
- Video Playback: Access recorded videos from your Micro SD card or cloud storage through the app's playback feature.
Image: Illustration of the two-way audio function, showing a child near the camera and a parent communicating via a smartphone.
Image: A split image demonstrating the clarity of the camera's 1080P day vision compared to its infrared night vision.
Image: A visual representation of how the camera supports 64GB TF card storage and allows for video playback from recorded timelines.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the camera lens and body. Avoid using liquid cleaners or abrasive materials.
- Firmware Updates: Regularly check the mobile application for available firmware updates. Keeping the camera's firmware updated ensures optimal performance and security.
- Storage Management: If using a Micro SD card, periodically review and manage stored footage to prevent the card from becoming full. Cloud storage typically manages this automatically.
- Resetting the Camera: If the camera experiences issues, you may need to perform a factory reset using the provided reset pin. Insert the pin into the reset hole and hold for several seconds until the camera resets. Refer to the app for specific reset procedures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Camera not powering on | Loose power connection; Faulty power adapter/cord. | Ensure power cord is securely connected. Try a different power outlet. Verify power adapter is functioning. |
| Cannot connect to Wi-Fi | Incorrect Wi-Fi password; Camera too far from router; Router issues; Unsupported Wi-Fi band (e.g., 5GHz only). | Double-check Wi-Fi password. Move camera closer to router. Restart router. Ensure your Wi-Fi is 2.4GHz (most security cameras do not support 5GHz). |
| No video feed/Offline | Internet connection issue; Camera disconnected; App glitch. | Check your home internet connection. Restart the camera. Close and reopen the app. If persistent, try re-pairing the camera. |
| Motion detection not working | Feature disabled in app; Sensitivity too low; Obstructions. | Enable motion detection in the app settings. Adjust sensitivity. Ensure no objects are blocking the camera's view. |
| Two-way audio unclear | Poor network connection; Microphone/speaker obstruction. | Ensure stable Wi-Fi connection. Check for any physical obstructions around the microphone or speaker. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | CUIFATIn6i25dwb1r-12 |
| Resolution | 1920x1080 (1080P) |
| Night Vision Range | Approx. 5-10m (16.4-32.8ft) |
| Head Angle (Horizontal) | 355 Degrees |
| Head Angle (Vertical) | 60 Degrees |
| Supported Systems | iOS, Android 5.0 or Higher |
| Storage Function | Supports Micro SD Card (up to 128GB, not included), Cloud Storage |
| Audio | Built-in Microphone, Speaker (Two-Way Intercom) |
| Power Specifications | 5V |
| Network | Wi-Fi (2.4GHz) |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Item Weight | Approx. 12.3 ounces (0.35 kg) |
| Dimensions | Approx. 7.87 x 4.96 x 3.27 inches (20 x 12.6 x 8.3 cm) |
Warranty and Support
For warranty information and technical support, please refer to the contact details provided on the product packaging or the official Cuifati website. Keep your purchase receipt as proof of purchase for warranty claims.
Manufacturer: CUIFATI
