Product Overview
The TANYO FD12S Portable Tire Inflator is a compact and powerful air compressor designed for inflating car tires, motorcycle tires, bicycle tires, and various balls. It delivers 17 cylinders/18 minutes of inflation, capable of inflating tires from 29 PSI to 36 PSI in less than 1 minute. It can inflate up to four 195/55/R15 car tires on a single full charge. Measuring only 8.38 x 2.08 x 2.08 inches and weighing 1.1 pounds, it is highly portable and can be easily stored.

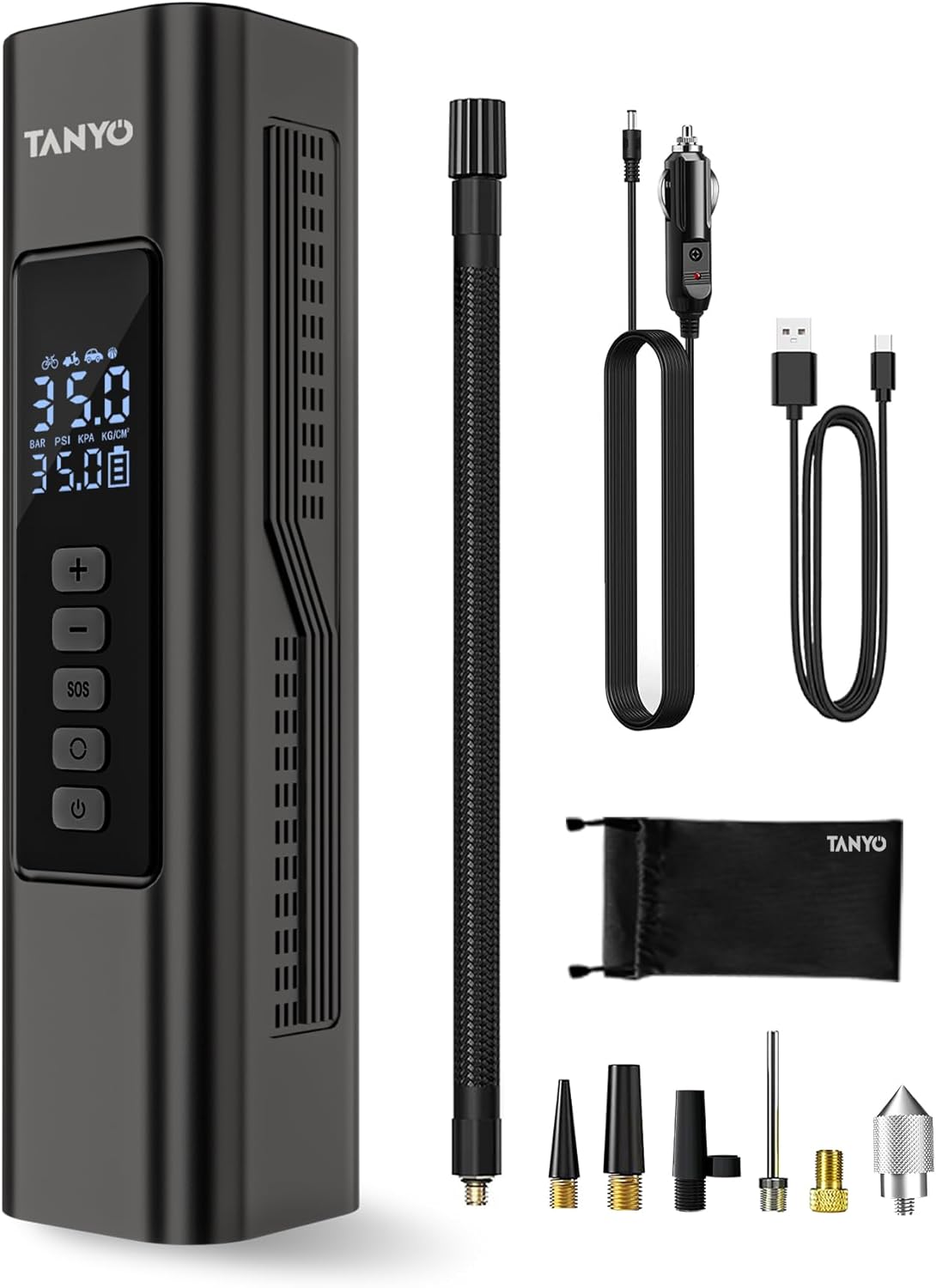

Image: TANYO FD12S Portable Tire Inflator and included accessories.
Package Contents
Please check the package contents upon opening to ensure all items are present:
- FD12S Car Tire Inflator x1
- USB Charging Cable x1
- 12V Car Power Cord x1
- Air Tube x1
- Storage Bag x1
- User Manual x1
- Valve Adapter x1
- Safety Hammer x1
Image: Layout of all items included in the TANYO FD12S package.
Product Features
- Small but Powerful: The air pump delivers 17 cylinders/18 minutes of inflation and can inflate tires from 29 PSI to 36 PSI in less than 1 minute. Inflate up to four 195/55/R15 car tires with just one full charge (0-36psi). Measuring only 8.38*2.08*2.08 inches and weighing 1.1 pounds, the tire inflator can be stored in the side door of your car for an attractive and space-saving solution. A storage bag helps you carry it better when traveling.
- Freedom of Choice: Portable tire inflator for car has four pressure units to choose from, which can be switched between PSI, KPA, BAR, KG/CM² in real time. Suitable for four preset inflation modes: car, motorcycle, bicycle and ball. You can preset the desired value, and the electric air pump will stop inflating tires automatically after reaching it, eliminating worries about over-inflation.
- Two Inflatable Modes: Equipped with USB charging cable and 12V car power cable, the air compressor can provide two inflating modes. You don't have to worry about the battery running out during the trip, it's a good helper for emergencies on the road. Connect the tire inflator to your car's 12V cigarette lighter and inflate your tires directly. There is also an additional USB output port on the cordless tire inflator, which serves as an emergency power source for mobile phones.
- Digital Display and LED Lighting: The dual digital display screen can intelligently detect real-time tire pressure, allowing you to quickly read real-time and preset pressure values. The LED light on the top of the air pump has 3 lighting modes: normal, SOS, and flash, which can become an emergency power source in the dark. The air pump can also work with a safety hammer to break through thick car windows. This multifunctional tire pump increases the chances of survival.
Image: The compact and portable design of the TANYO FD12S, shown next to a water bottle for size comparison.
Image: Close-up of the LED digital display showing real-time pressure, pressure unit, and battery indicator.
Setup
- Charge the Device: Before first use, fully charge the tire inflator using the provided USB charging cable or the 12V car power cord. The battery indicator on the digital display will show charging progress.
- Connect Air Tube: Screw the air tube securely into the air outlet port on the top of the inflator.
- Select Appropriate Adapter: Choose the correct valve adapter for the item you wish to inflate (e.g., valve adapter for car tires, needle valve adapter for balls, air nozzle cones for swimming rings).
- Attach to Item: Connect the air tube with the selected adapter to the valve stem of the item to be inflated. Ensure a tight seal to prevent air leakage.
Image: The two power supply methods for the TANYO FD12S: battery power for cordless use and 12V DC car power for direct operation.
Operating Instructions
- Power On: Long press the power button to turn on the device. The digital display will illuminate.
- Select Mode: Press the 'Mode' button to cycle through the four preset inflation modes: bicycle, motorcycle, car, and ball. Each mode has a default pressure setting.
- Adjust Pressure (Optional): Use the '+' and '-' buttons to adjust the desired target pressure. The real-time pressure and preset pressure values will be displayed.
- Start Inflation: Press the 'On/Off' button to begin inflation. The pump will automatically stop once the preset pressure is reached.
- LED Light Function:
- Press the 'LED/SOS' button once for normal illumination.
- Press again for SOS flashing mode.
- Press a third time for flash mode.
- Press a fourth time to turn off the LED light.
- USB Output (Power Bank): To use as a power bank, connect your mobile device to the USB output port on the inflator.
Image: Visual representation of the four preset inflation modes: Car, Bike, Ball, and Swimming Ring.
Image: Demonstration of the three LED lighting modes: normal, SOS, and flash.
Maintenance
- Cleaning: Wipe the exterior of the inflator with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the device and its accessories in the provided storage bag in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: For optimal battery life, charge the device regularly, even if not in frequent use. Avoid completely draining the battery for extended periods.
- Air Tube Inspection: Periodically check the air tube and adapters for any signs of wear, cracks, or damage. Replace if necessary to ensure proper sealing and performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on. | Low battery or no charge. | Charge the device fully using the USB cable or 12V car power cord. |
| Air leakage during inflation. | Air tube or adapter not securely connected. | Ensure the air tube is tightly screwed into the inflator and the adapter is firmly attached to the valve stem. |
| Inflator stops before reaching preset pressure. | Battery is low. | Recharge the device. If using 12V car power, ensure the connection is stable. |
| Inaccurate pressure reading. | Loose connection or sensor issue. | Check all connections. If the problem persists, contact customer support. |
Specifications
- Brand: TANYO
- Model Name: Tire Inflator Portable Air Compressor
- Model Number: FD12S
- Product Dimensions: 2.08"L x 2.08"W x 8.38"H
- Item Weight: 1.1 Pounds
- Voltage: 12 Volts (DC)
- Power Source: Battery Powered
- Maximum Operating Pressure: 150 PSI
- Noise Level: 50 dB
- Battery Type: Lithium Ion (1 required)
- Special Features: Pressure Detection, Portable, LED Light, Automatic Shut-Off, Quick Inflation
- Material: Plastic
- Color: Black Cordless
Safety Information
- Always read and understand all instructions before operating the device.
- Keep out of reach of children.
- Do not leave the inflator unattended while in operation.
- Ensure proper ventilation during use to prevent overheating.
- Do not operate the device if it is damaged or malfunctioning.
- Avoid exposing the device to water or extreme temperatures.
- Use only the provided accessories and adapters.
- Do not attempt to disassemble or repair the device yourself. Contact qualified personnel for service.
- Always check the recommended tire pressure for your vehicle or item before inflating.
Warranty and Support
TANYO products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your product, please refer to the contact details provided on the product packaging or visit the official TANYO website. Please retain your proof of purchase for warranty claims.
For further assistance, you may also contact the seller directly through the platform where the purchase was made.
