MIZUDO EQUIK 14kW

MIZUDO 14kW Electric Tankless Water Heater User Manual

Model: EQUIK 14kW

1. Important Safety Information

This MIZUDO 14kW tankless water heater is designed with advanced safety features. Please read and understand all safety instructions before installation and operation to prevent injury or property damage.

  • The unique design separates internal water and electrical circuits, minimizing risks of electric leakage and scale buildup.
  • ETL certified for safety.
  • Multiple safety protections include leakage, overheating, high pressure, and dry-fire prevention.
  • Always ensure the power supply is disconnected before performing any maintenance or installation.
MIZUDO 14kW Tankless Water Heater with multiple safety icons including overheat protection, dry combustion protection, IPX4 waterproof, anti-scale design heating chamber, leakage protection, and lightning-resistant control component.
Figure 1: Multiple safety protections ensure reliable operation.

2. Product Overview

The MIZUDO 14kW Electric Tankless Water Heater provides instant hot water with high efficiency. Its compact design makes it suitable for various installations, including under sinks, in cabinets, bathrooms, garages, or basements. The unit features an LED digital display for easy temperature control.

MIZUDO 14kW Electric Tankless Water Heater installed in a kitchen, demonstrating its compact size next to a sink and under-sink water heater.
Figure 2: Compact design for space-saving installation.
Close-up of the MIZUDO 14kW Electric Tankless Water Heater's digital display and touch control panel with power, temperature conversion, water flow signal, heating indicator, Fahrenheit, Celsius, heat up, and heat down buttons.
Figure 3: Digital display and touch control panel for easy temperature adjustment.

Video 1: An overview of the MIZUDO Electric Tankless Water Heater, highlighting its compact size, integrated waterway, efficient heat exchanger, precise temperature control, and multiple safety features.

3. Installation Requirements

Proper installation is critical for the safe and efficient operation of your MIZUDO tankless water heater. Installation should only be performed by a qualified electrician or plumber in accordance with all local and national electrical and plumbing codes.

3.1 Electrical Requirements

  • Power: 14 kW
  • Voltage: 240V AC
  • Maximum Amperage Draw: 59A
  • Required Breaker: 1 x 60 AMP (double-pole breaker)
  • Wire Gauge: 1 x 6 AWG copper wire

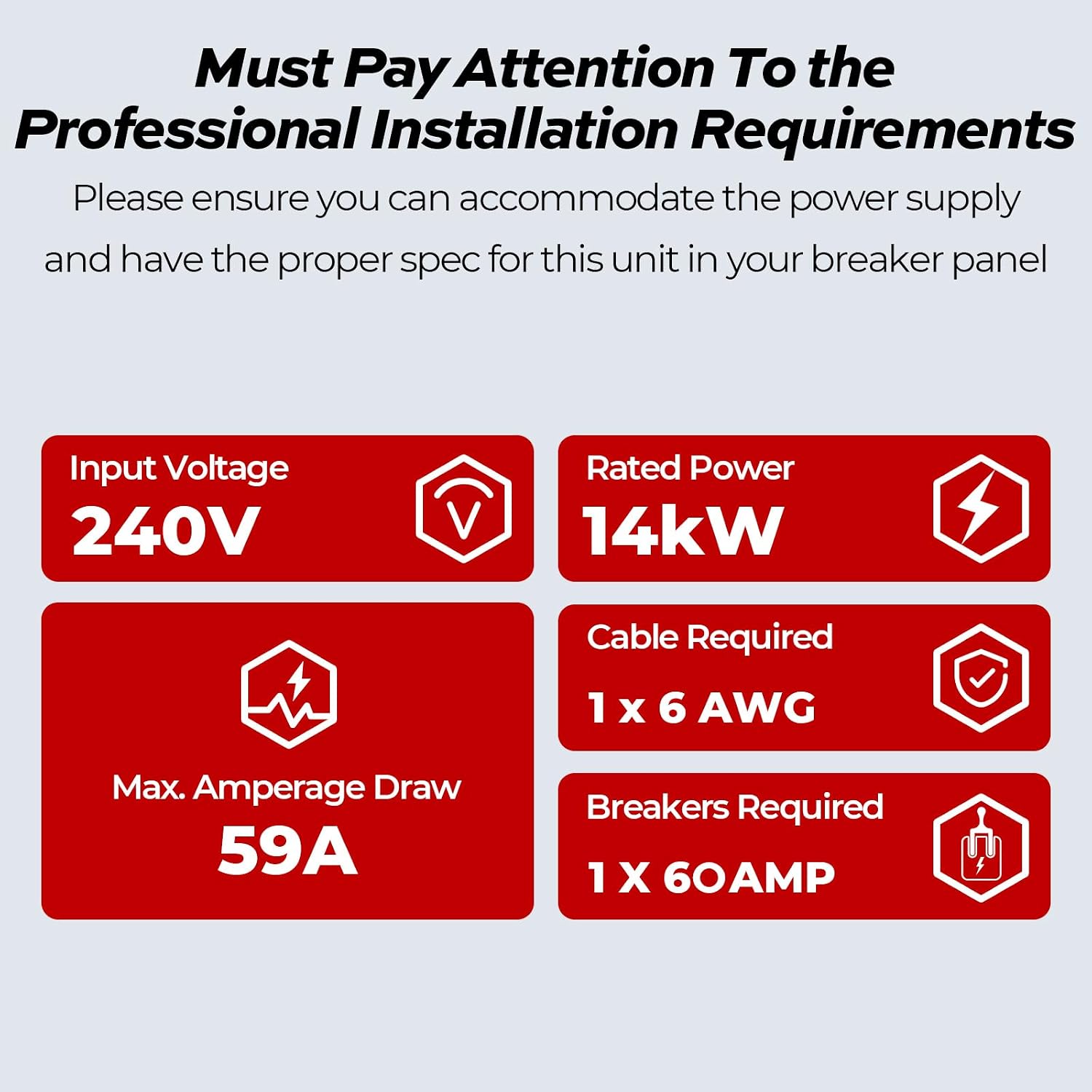

Diagram showing professional installation requirements for a 14kW tankless water heater, specifying 240V input voltage, 14kW rated power, 59A max amperage draw, 1x6 AWG cable required, and 1x60 AMP breakers required.
Figure 4: Professional electrical installation requirements.
Wiring diagram for a 14kW tankless water heater showing connections to a 240V/60A two-pole breaker. L1 and L2 wires connect to the breaker, and the ground wire (G) connects to the ground bar.
Figure 5: Electrical wiring diagram for installation.

Video 2: Detailed instructions on the electrical wiring method for the MIZUDO Electric Tankless Water Heater.

3.2 Water Connection Requirements

  • Water Connection: 1/2" NPT
  • Maximum Flow Rate: 3.4 GPM
  • Minimum Water Flow: 0.5 GPM/min
Diagram showing the MIZUDO 14kW tankless water heater with dimensions: 14.30 inches height, 9.57 inches width, 2.80 inches depth. It also indicates 1/2 inch NPT water inlet and outlet connections.
Figure 6: Product dimensions and water connection details.

3.3 Water Heater Selection Guide

The actual hot water flow rate depends on the inlet water temperature and the power of the unit. Refer to the selection guide to ensure the unit meets your household's hot water usage needs.

Tankless Water Heater Selection Guide showing a map of the U.S. with average ground water temperatures and a table correlating inlet temperature with GPM for 8kW, 11kW, and 14kW units. For 14kW, at 67°F inlet temp, it provides 2.4 GPM.
Figure 7: Tankless Water Heater Selection Guide based on inlet temperature and flow rate.
Diagram illustrating multi-point use of the MIZUDO tankless water heater, showing it supplying hot water to a kitchen sink and a bathroom shower simultaneously.
Figure 8: The unit supports multi-point use for applications like a kitchen sink and a bathroom.

4. Operation

The MIZUDO 14kW water heater is equipped with an LED touch display for easy temperature customization. Once installed and powered, the unit is ready for use.

4.1 Setting Temperature

  • Use the Up and Down arrows on the touch display to adjust the desired water temperature.
  • The display will show the set temperature.
  • The unit will automatically heat water to the set temperature as water flows through it.
A graph showing steady temperature control over time, with the water temperature maintaining a consistent 108°F after an initial heating period.
Figure 9: The unit provides steady temperature control for consistent hot water.
A shower running with hot water, illustrating the 'On Demand Instant Endless Hot Water' feature of the MIZUDO tankless water heater.
Figure 10: Enjoy on-demand, instant, and endless hot water without preheating.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your water heater. Always disconnect power before any maintenance.

5.1 Safety Thermal Cut-off Reset

If the product stops working due to the safety thermal cut-off protection, you can reset it to restore normal operation. Warning: Ensure power is OFF before proceeding.

  1. Remove the outer shell of the water heater.
  2. Locate the safety thermal cut-off switch inside the unit.
  3. Press the reset button with a screwdriver.
  4. Reinstall the outer shell.

To determine if the safety thermal cut-off has tripped:

  • The display screen is not working.
  • The municipal power supply is normal (other appliances at home are functioning).
  • The circuit breaker connected to the electric water heater has not tripped.

If all three conditions are met, the product's limiter may have tripped, and you will need to open the product cover to reset the safety thermal cut-off.

Four-step visual guide on how to reset the safety thermal cut-off: 1. Remove outer shell, 2. Locate thermal cut-off, 3. Press reset button with screwdriver, 4. Install outer shell.
Figure 11: Steps to reset the safety thermal cut-off.

6. Troubleshooting

If your water heater is not functioning as expected, consider the following common issues:

  • No Hot Water: Check if the circuit breaker has tripped. Ensure the unit is powered on and the temperature is set correctly. Verify water flow is above the minimum requirement (0.5 GPM). If the display is off but other appliances work, refer to the Safety Thermal Cut-off Reset instructions in Section 5.1.
  • Insufficient Hot Water: This may occur if the inlet water temperature is very low or if the flow rate exceeds the unit's capacity for the given inlet temperature. Refer to the Water Heater Selection Guide (Figure 7) to confirm suitability for your usage.
  • Unit Not Turning On: Confirm electrical connections are secure and the breaker is not tripped.

For persistent issues, contact MIZUDO customer support.

7. Specifications

FeatureSpecification
BrandMIZUDO
Model NumberEQUIK 14kW
Power SourceHard Wiring Required
Wattage14 KW
Voltage240 Volts (AC)
Flow Rate3.4 Gallons Per Minute (Max)
Heat Output14 Kilowatts
EfficiencyHigh
Mount TypeWall
Product Dimensions (W x H)9.57"W x 14.3"H
Item Depth9.6 inches
Material TypeHousing material is iron
Special FeatureLED Display
CertificationsETL Certified

8. Warranty and Support

Specific warranty details for the MIZUDO 14kW Electric Tankless Water Heater are typically provided in the packaging or on the manufacturer's official website. Please refer to these resources for comprehensive warranty information and terms.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact MIZUDO customer service through their official channels. Contact information can usually be found in the product packaging or on the MIZUDO website.
