Proflame 2 Series Sit IFC Control Module

1. Product Overview

The Sit Proflame 2 IFC board, model 0.584.625, is an electronic ignition module designed for hearth appliances. It provides automatic ignition and pilot flame supervision, controlling various functions of your fireplace, gas log system, or pedestal stove. This module supports both Intermittent Pilot Ignition (IPI) and Continuous Pilot Ignition (CPI) modes for main burner operation.

Key functionalities include control over stepper motor flame height, splitflow valve, comfort fan, dimmable light features, digital I/O, burner fan, and auxiliary options.

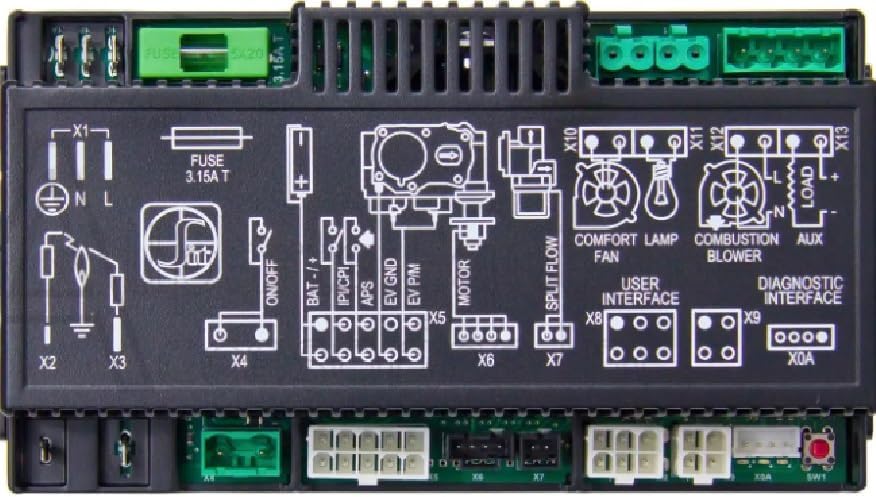

Figure 1: Front view of the Proflame 2 Series Sit IFC Control Module 0.584.625, showing various connection points and internal components.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Always disconnect power before servicing or installing the module.
• Installation must be performed by a qualified service technician.
• Ensure all wiring connections are secure and correct according to the appliance manufacturer's instructions.
• Do not operate the appliance if any part has been submerged in water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control that has been submerged in water.

3. Setup and Installation

The Sit IFC Control module 0.584.625 is designed for straightforward installation in various hearth appliances. It is compatible with Proflame 2 electronic ignition systems from brands such as Lennox, Travis, Empire, HHT, Hearth and Home Technologies, and Napoleon.

3.1. General Installation

This module directly controls the pilot assembly and automatic SIT Gas Controls 880, 886, and 885 Sit Proflame gas control valves. Refer to your appliance's specific manual for detailed wiring diagrams and mounting instructions.

3.2. Remote Transmitter Programming

Before initial use, the new IFC board must be programmed to synchronize with your remote transmitter. Follow these steps:

1. Locate the red button labeled SW1 on your IFC board. This is the Remote Sync Button.
2. Press this button one time. You will hear an audible beep from the module.
3. Turn your remote transmitter ON. You should hear additional audible beeps, indicating that the remote is now programmed to the new IFC module.

Figure 2: The Proflame 2 IFC Control Module with a red arrow pointing to the Remote Sync Button (SW1) for programming.

Figure 3: Visual guide for programming the remote control to the IFC module.

4. Operating Instructions

Once installed and programmed, the Proflame 2 IFC module allows for convenient control of your hearth appliance. Operation is primarily managed through your paired remote transmitter.

4.1. Ignition Modes (IPI/CPI)

The module supports two main ignition modes:

• IPI (Intermittent Pilot Ignition): The pilot flame ignites only when the main burner is called to operate, conserving fuel.
• CPI (Continuous Pilot Ignition): The pilot flame remains lit continuously, providing instant ignition of the main burner and a constant heat source. This mode is often preferred in colder climates to prevent downdrafts and maintain a warm flue.

Refer to your remote transmitter's manual for instructions on how to switch between IPI and CPI modes, or to adjust other settings.

5. Key Features

The Proflame 2 Series Sit IFC Control Module 0.584.625 offers advanced features for enhanced control and comfort:

• ON/OFF Main Burner Operation: Direct control over the primary heat source.
• IPI/CPI Mode Selection: Choose between intermittent or continuous pilot ignition.
• Stepper Motor Flame Height Control: Allows for precise adjustment of flame intensity.
• Splitflow Valve Compatibility: Manages gas flow for multi-burner systems.
• Comfort Fan Control: Integrates with appliance fan systems to circulate heat.
• Dimmable Light Feature: Controls integrated lighting for ambiance.
• Digital I/O: Provides input/output capabilities for advanced system integration.
• Burner Fan Control: Manages additional fan systems related to the burner.
• Auxiliary Option: Supports additional accessory control.

Figure 4: An illustration highlighting the key features and capabilities of the Proflame 2 IFC Control Module.

6. Maintenance

The Proflame 2 IFC Control Module is designed for reliable operation with minimal maintenance. However, periodic inspection and proper care can extend its lifespan and ensure continued performance.

• Annual Inspection: It is recommended to have a qualified service technician inspect your hearth appliance and its control system annually.
• Keep Clean: Ensure the module and its connections are free from dust, debris, and moisture. Use a soft, dry cloth for cleaning.
• Check Connections: Periodically verify that all electrical connections to the module are secure and free from corrosion.
• Fuse Replacement: The module contains a fuse (3.15A T). If the fuse blows, replace it only with a fuse of the same type and rating. Consult a qualified technician if fuses blow repeatedly.

Figure 5: A technician performing maintenance on gas valve connections, illustrating the importance of professional inspection.

7. Troubleshooting

If you experience issues with your Proflame 2 IFC Control Module, consider the following common troubleshooting steps. For complex problems, always contact a qualified service technician.

• No Ignition:
  • Check if the gas supply is on.
  • Verify that the module has power.
  • Ensure the remote control is paired and has fresh batteries.
  • Inspect pilot and main burner orifices for blockages.
• Pilot Lights but Main Burner Does Not:
  • Check gas valve operation.
  • Ensure flame sensor is clean and properly positioned.
• Module Beeps Continuously:
  • Refer to your appliance's manual for diagnostic codes, if available.
  • Could indicate a fault or a need for remote re-pairing.
• Remote Not Responding:
  • Replace remote batteries.
  • Re-pair the remote with the module (refer to Section 3.2).

8. Specifications

9. Warranty Information

This product comes with a 1 Year Exchange Warranty from Allparts Equipment. Please note that this warranty is valid only if the product is purchased from Allparts Equipment and is non-returnable if removed from its sealed packaging. This warranty covers exchange only for defective components.

10. Technical Support

Allparts Equipment & Accessories is committed to providing excellent customer service. We offer over 50 years of combined top-tier USA-based technical support to assist you with any questions or issues regarding your Proflame 2 Series Sit IFC Control Module.
