1. Introduction
Thank you for choosing the CHiQ CFL100-14586IM3XA 10kg Front-Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the washing machine and keep it for future reference.

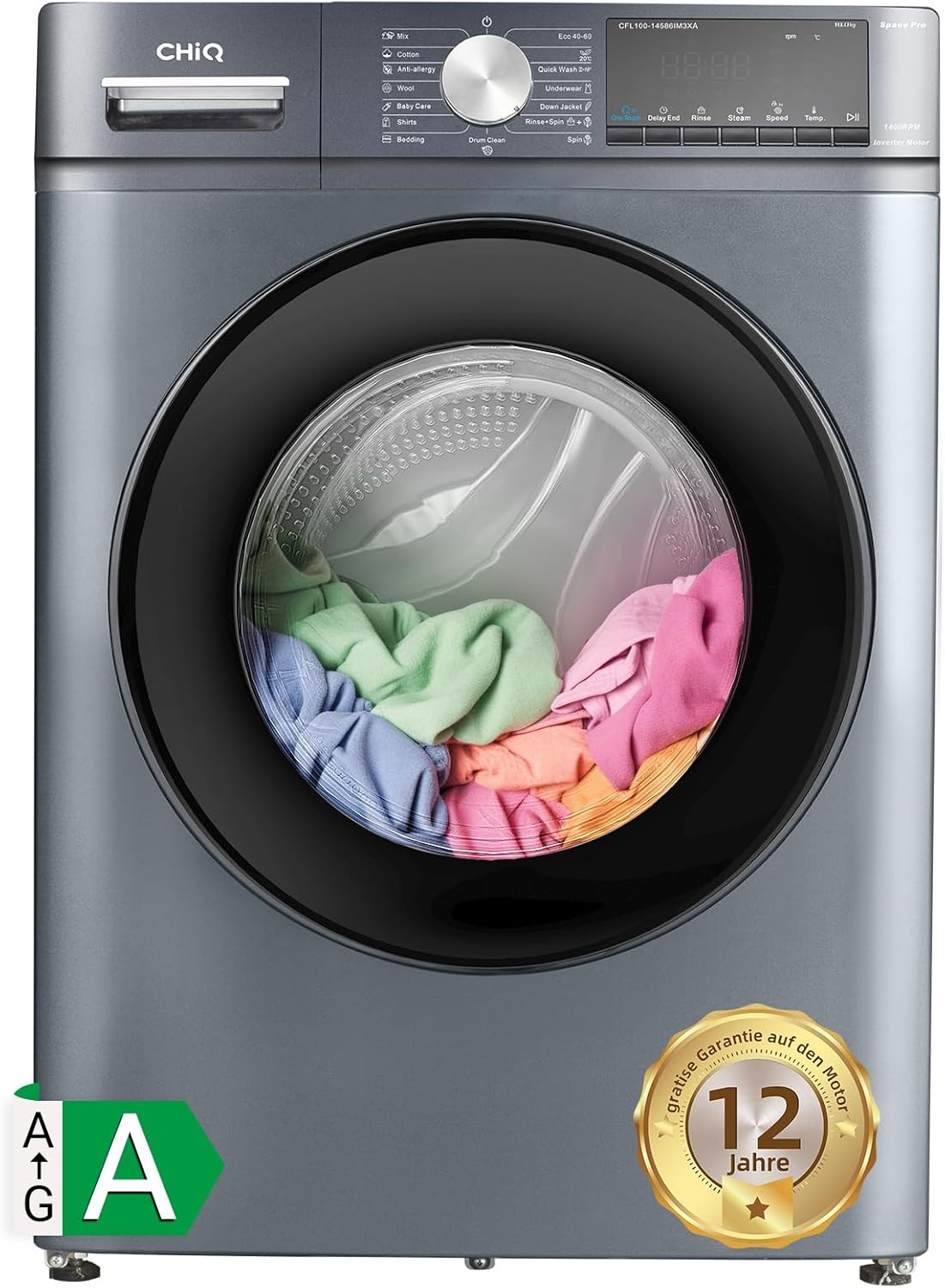

Figure 1.1: Front view of the CHiQ CFL100-14586IM3XA 10kg Front-Load Washing Machine, showcasing its modern grey design and large drum capacity.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury. This appliance is intended for household use only.
- Ensure the washing machine is properly grounded.
- Do not operate the machine if the power cord is damaged.
- Keep children and pets away from the appliance during operation.
- Do not wash items that are soiled with flammable substances.
- Always unplug the machine before cleaning or performing maintenance.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials. It is crucial to remove the transport bolts located at the rear of the machine before operation. Failure to do so can cause severe damage to the appliance.
3.2 Placement
Place the washing machine on a firm, level surface. Ensure there is adequate space around the machine for ventilation and connections. The compact dimensions of 600 x 577 x 847 mm (W x D x H) allow for flexible placement.
Figure 3.1: Dimensions of the CHiQ washing machine, showing a width of 600mm, depth of 577mm, and height of 847mm.
Figure 3.2: The CHiQ washing machine seamlessly integrated into a compact laundry area, demonstrating its space-saving design.
3.3 Water Connection
Connect the water inlet hose to a cold water tap with a 3/4-inch thread. Ensure all connections are tight to prevent leaks.
3.4 Drainage Connection
Securely place the drain hose into a standpipe or over the edge of a sink, ensuring it is not kinked or blocked.
3.5 Power Connection
Plug the power cord into a grounded electrical outlet. The machine operates on 220 Volts and has a power consumption of 2000 Watts.
4. Operating Instructions
4.1 Control Panel Overview
The washing machine features an intuitive control panel with a rotary knob for program selection and an LED display for settings and status.
Figure 4.1: Close-up of the control panel, showing the program selection knob, LED display, and touch buttons for various functions.
4.2 Loading Laundry
Open the door and load laundry into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The machine has a capacity of 10 kg.
Figure 4.2: The washing machine door is open, revealing the spacious drum ready for laundry loading.
4.3 Adding Detergent
Pull out the detergent drawer located on the top left of the machine. Add detergent to compartment (2) for main wash and fabric softener to compartment (3). Pre-wash detergent goes into compartment (1).
Figure 4.3: The detergent drawer pulled out, showing clearly marked compartments for pre-wash (1), main wash (2), and fabric softener (3).
4.4 Program Selection
Turn the program knob to select one of the 16 available wash programs, including:
- Mix
- Cotton
- Anti-allergy
- Wool
- Baby Care
- Shirts
- Bedding
- Eco 40-60
- Quick Wash 20°C
- Underwear
- Down Jacket
- Rinse+Spin
- Spin
- Drum Clean
The 15-minute quick wash program is ideal for lightly soiled items, saving time and energy.
Figure 4.4: Illustration highlighting the 15-minute Quick Wash feature, designed for efficient washing and time-saving.
4.5 Starting a Cycle
After selecting the program and adding detergent, press the Start/Pause button to begin the wash cycle. You can also use the 'Delay End' function to postpone the start of the cycle.
4.6 Special Functions
- Steam Wash: Utilizes steam for deeper cleaning and wrinkle reduction.
- Rinse: Adds an extra rinse cycle.
- Spin: Adjusts the spin speed up to 1400 RPM for efficient water extraction.
- Child Lock: Activates to prevent accidental changes to settings during operation.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
5.1 Cleaning the Detergent Drawer
Periodically remove and clean the detergent drawer to prevent residue buildup. Rinse it under running water and dry before reinserting.
5.2 Cleaning the Drum
Use the dedicated 'Drum Clean' program to sanitize the drum and remove any odors or residue. It is recommended to run this program monthly.
5.3 Cleaning the Filter
Locate the drain pump filter at the bottom front of the machine. Open the cover, drain any residual water, and remove the filter. Clean it thoroughly and reinsert.
5.4 Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents.
6. Troubleshooting
If you encounter issues with your washing machine, refer to the following common problems and solutions before contacting service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, door not closed properly, program not selected. | Check power connection, ensure door is latched, select a program and press start. |
| No water intake | Water tap closed, inlet hose kinked, water pressure too low. | Open water tap, straighten hose, check water supply. |
| Excessive vibration/noise | Transport bolts not removed, machine not level, uneven load. | Remove transport bolts, adjust leveling feet, redistribute laundry. |
| Water leakage | Hose connections loose, detergent drawer overflowing. | Tighten hose connections, do not overfill detergent drawer. |
7. Specifications
Key technical specifications for the CHiQ CFL100-14586IM3XA washing machine:
| Feature | Specification |
|---|---|
| Model Number | CFL100-14586IM3XA |
| Capacity | 10 Kilograms |
| Maximum Spin Speed | 1400 Revolutions per Minute |
| Dimensions (W x D x H) | 60 x 57.7 x 84.7 cm |
| Weight | 65 Kilograms |
| Energy Efficiency Class | A |
| Airborne Acoustical Noise Emission | 76 dB |
| Number of Programs | 16 |
| Motor Type | Inverter Motor |
| Special Features | AI Smart Wash, Automatic Drum Cleaning, Steam Wash, 15 Min Quick Wash, LED Display |
Figure 7.1: The energy efficiency label for the CHiQ CFL100-14586IM3XA, indicating its 'A' rating and key consumption figures. For more details, visit the official EU EPREL database: https://eprel.ec.europa.eu/qr/1708647
8. Warranty and Support
CHiQ is committed to providing reliable products and excellent customer service.
- Motor Warranty: The washing machine comes with a 12-year warranty on the inverter motor, ensuring long-term durability and peace of mind.
- Product Warranty: A 2-year warranty applies to all products (3 years for Spain).
- On-Site Service: On-site service is available to ensure lasting user satisfaction.
- Returns: 30-day return policy without reason, handled via Amazon.
- Customer Service: An online hotline is staffed by professional employees on weekdays for competent customer support.
Figure 8.1: Official badge indicating the 12-year warranty provided for the washing machine's motor.
