BRIGHTLUX AML14-WW-16.5FT LED Neon Rope Light User Manual

1. Important Safety Information

Please read all instructions carefully before installation and use. Retain this manual for future reference.

Electrical Safety: This product operates on 120V AC. Ensure the power source is compatible. Do not overload circuits.
Water Resistance: The rope light is IP65 waterproof, suitable for indoor and outdoor use. However, the power plug and controller are not waterproof and must be protected from water exposure. For outdoor use, connect to a GFCI (Ground Fault Circuit Interrupter) protected outlet.
Installation: Do not cut the rope light. Do not bend the rope light sharply or twist it excessively, as this may damage the internal wiring.
Heat: While LED lights generate minimal heat, ensure proper ventilation. Do not cover the rope light with flammable materials.
Damage: Do not use if the rope light or power cord is damaged. Contact customer support for assistance.
Children: Keep out of reach of children.

2. Package Contents

Verify that all components are present before proceeding with installation.

1x BRIGHTLUX 16.4ft LED Neon Rope Light (Warm White 2700K)
1x 5ft Power Cable (with ETL Certified Power Cord and In-Line Fuse)
10x Mounting Clips
10x Screws

BRIGHTLUX LED Neon Rope Light and accessories in packaging — Image 2.1: The BRIGHTLUX LED Neon Rope Light, coiled, with its power cord and mounting accessories, displayed next to its product packaging.

3. Product Features

360-Degree Illumination: Provides uniform and continuous light output around the entire circumference of the rope, eliminating visible LED dots.
Flexible PVC Jacket: The 16.4ft (5m) rope light features a durable and flexible PVC jacket, allowing for easy shaping and installation.
Warm White (2700K): Emits a soft, inviting warm white light, ideal for creating a cozy ambiance.
High Brightness: Delivers 2500 Lumens of illumination.
Linkable Design: Equipped with male and female end-to-end connectors, allowing up to 8 units (total 132ft) to be connected for longer runs.
Durable and Weather Resistant: IP65 rated for protection against dust and water jets, suitable for various indoor and outdoor environments.
Safety Assured: ETL Listed power cord with an included in-line fuse for enhanced safety.

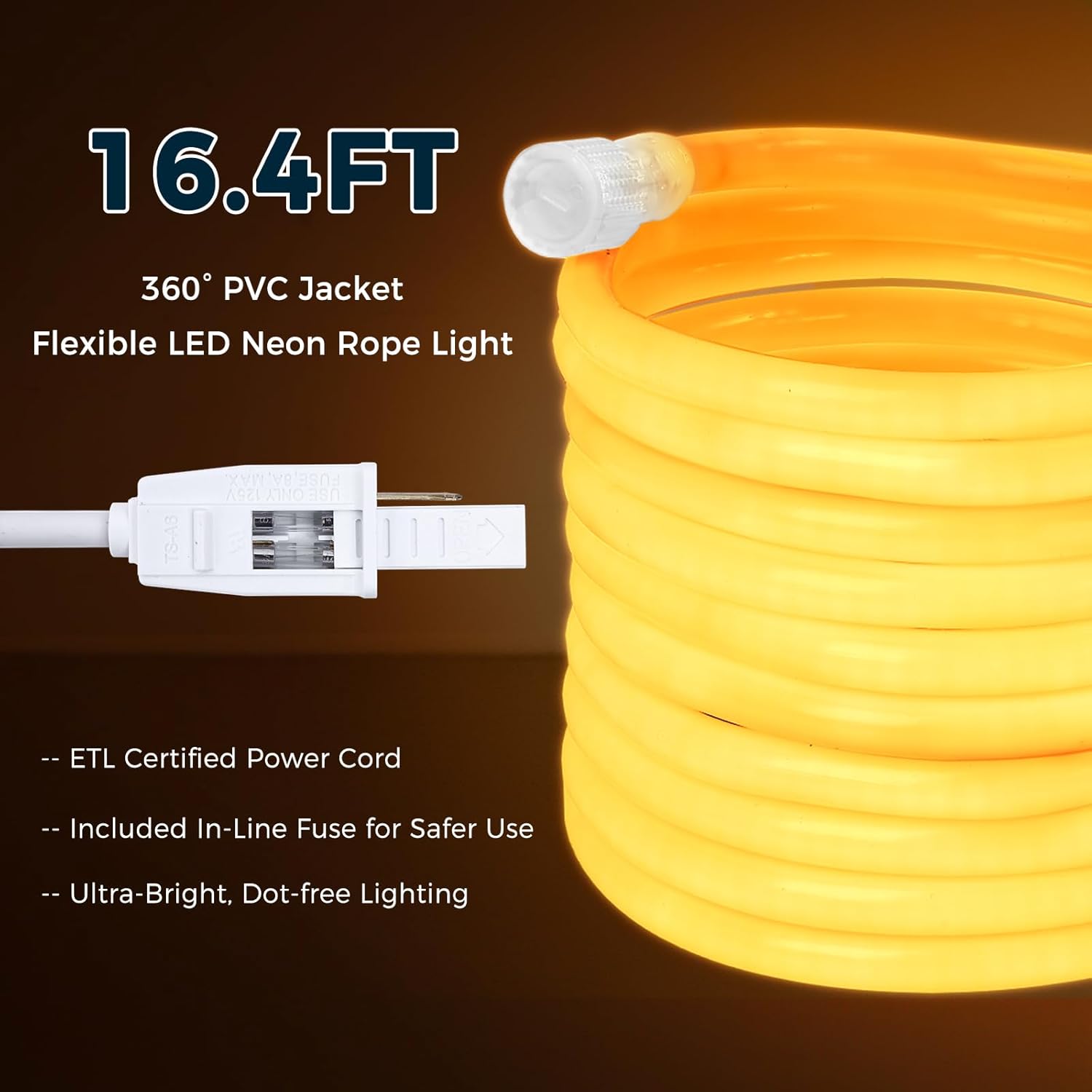

Close-up of BRIGHTLUX LED Neon Rope Light showing 16.4ft length, 360 degree PVC jacket, ETL certified power cord, in-line fuse, and dot-free lighting. — Image 3.1: A detailed view of the rope light highlighting its 16.4ft length, flexible 360-degree PVC jacket, ETL certified power cord, and the benefit of dot-free illumination.

Diagram showing the linkable feature of the BRIGHTLUX LED Neon Rope Light, with specifications for 6000K Cold White, 32W, 120V/60Hz, and 2500 Lumens. — Image 3.2: An illustration demonstrating how multiple rope light segments can be connected, alongside key specifications such as wattage, voltage, and lumen output.

Comparison image showing the BRIGHTLUX 360-degree lighting versus a competitor's 180-degree lighting, with two children reading under the warm white light. — Image 3.3: A visual comparison illustrating the uniform 360-degree light distribution of the BRIGHTLUX rope light against a typical 180-degree light, shown in a bedroom setting.

BRIGHTLUX LED Neon Rope Light used outdoors, wrapped around a tent in the rain, demonstrating its IP65 waterproof rating. Also shows the waterproof rope light and the power cord with GFCI requirement. — Image 3.4: The rope light installed around an outdoor tent during rain, emphasizing its IP65 waterproof rating. A separate inset shows the waterproof rope light and the power cord, noting the requirement for a GFCI outlet for outdoor use.

4. Setup Instructions

Unpack: Carefully remove the rope light and all accessories from the packaging. Inspect for any damage.
Plan Placement: Determine the desired location and path for your rope light. Ensure the power cable can reach a suitable outlet.
Clean Surface: For optimal adhesion and secure mounting, clean the surface where clips will be installed.
Shape and Position: Gently bend the rope light to create the desired shape or pattern. Do not force sharp angles.
Install Mounting Clips:
- Place mounting clips at regular intervals (e.g., every 1-2 feet) along the rope light's path to provide support.
- Mark the screw locations through the clip holes.
- Secure each clip using the provided screws. Ensure clips are tight enough to hold the rope light securely but not so tight as to pinch or damage it.
Connect Power: Connect the 5ft power cable to the rope light. Ensure the connection is secure.
Link Multiple Units (Optional): If connecting multiple rope lights, align the male and female end connectors and twist to secure. Ensure the total length does not exceed 132ft (8 units).

Four-step installation guide for BRIGHTLUX LED Neon Rope Light: 1. Clean the wall, 2. Design shape and confirm clip position, 3. Secure LED neon light in wall clip, 4. Connect to power supply. — Image 4.1: A visual guide detailing the four main steps for installing the rope light: cleaning the surface, planning the layout, securing with clips, and connecting to power.

5. Operating Instructions

Once installed, operating the BRIGHTLUX LED Neon Rope Light is straightforward.

Power On: Plug the power cable into a standard 120V AC electrical outlet. For outdoor use, ensure it's a GFCI protected outlet.
Power Off: Unplug the power cable from the electrical outlet. This product does not feature an integrated on/off switch.

Note: For advanced control (e.g., timers), consider using a compatible external timer switch (not included).

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your rope light.

Cleaning: Disconnect from power before cleaning. Wipe the rope light gently with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
Inspection: Periodically inspect the rope light, power cord, and connections for any signs of wear, damage, or loose clips.
Storage: If storing the rope light for an extended period, coil it loosely and store it in a cool, dry place away from direct sunlight and extreme temperatures.
Fuse Replacement: The power cable includes an in-line fuse. If the light does not turn on, check and replace the fuse if necessary. Refer to the power cable for fuse specifications.

7. Troubleshooting

Problem	Possible Cause	Solution
Light does not turn on.	No power to the outlet. Loose connection. Blown fuse in power cable. Damaged rope light/power cord.	Check if the outlet is working. Ensure all connections are secure. Check and replace the in-line fuse. Inspect for visible damage; discontinue use if damaged.
Light flickers or is dim.	Loose connection. Power fluctuation. Partial damage to the rope light.	Check all connections. Test with a different outlet. Inspect the rope light for kinks or damage.
Rope light gets excessively hot.	Poor ventilation. Internal short circuit.	Ensure the light is not covered. Provide adequate airflow. Immediately unplug and discontinue use. Contact support.

8. Specifications

Feature	Detail
Model Number	AML14-WW-16.5FT
Length	16.4 ft (5 meters)
Light Color	Warm White (2700K)
Brightness	2500 Lumens
Voltage	120V AC
Power Source	Plug-in
Indoor/Outdoor Usage	Indoor, Outdoor (GFCI outlet required for outdoor)
Water Resistance Rating	IP65 (Rope Light only)
Linkable	Yes, up to 132 ft (8 units)
Material	Polyvinyl Chloride (PVC)
Included Components	Rope Light, Power Cable, 10 Mounting Clips, 10 Screws

9. Product Video

Watch this video for a visual overview of the BRIGHTLUX LED Neon Rope Light's features and applications.

Video 9.1: An official product video showcasing the BRIGHTLUX 360-degree neon rope lights, demonstrating their flexibility, uniform illumination, and suitability for various indoor and outdoor decorative lighting applications.

10. Warranty and Support

Warranty: This BRIGHTLUX product comes with a 2-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

What is NOT Covered: This warranty does not cover damage caused by improper installation, misuse, abuse, accidents, unauthorized repairs or modifications, or acts of nature.

Customer Support: For warranty claims, technical assistance, or any questions regarding your BRIGHTLUX LED Neon Rope Light, please contact BRIGHTLUX customer support through their official website or the retailer where the product was purchased.

For more information, visit the BRIGHTLUX Store on Amazon.
