Introduction
The CAT Mini Bluetooth Speaker is a rugged, portable wireless speaker designed for demanding environments. It features shockproof, dustproof, and IP66 water-resistant construction, making it suitable for various outdoor and work settings. This manual provides essential information for setting up, operating, and maintaining your speaker to ensure optimal performance and longevity.
Package Contents
Please verify that all items are present in the package:
- 1 x CAT Mini Bluetooth Speaker
- 1 x USB Charging Cable
- 1 x Auxiliary (AUX) Cable
- 1 x User Manual

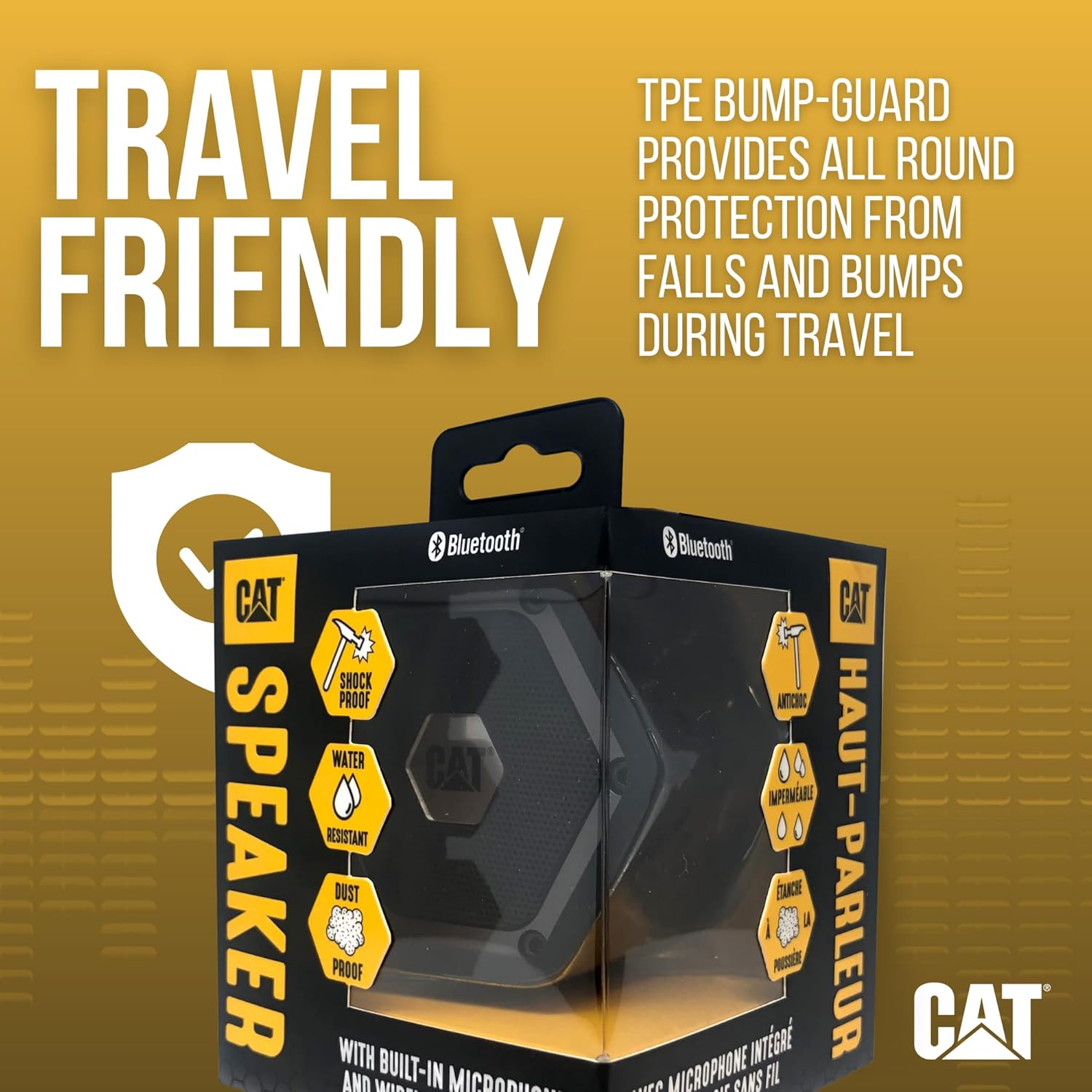

Image: The CAT Mini Bluetooth Speaker and its included accessories within the product packaging.
Product Features
- Rugged Construction: Built to withstand harsh conditions, featuring shockproof, dustproof, and IP66 water-resistant properties. A TPE all-over bump guard provides protection against falls and impacts.
- Easy Operation: Embossed, soft-touch buttons allow for simple control, even when wearing gloves.
- Bluetooth Connectivity: Integrated wireless technology for true wireless stereo (TWS) and seamless connection to most Bluetooth-enabled devices within a 10-meter range.
- Hands-Free Calling: A built-in microphone enables convenient hands-free phone calls.
- Portability: Compact design with a 6-hour playtime, ready for use at home, work, or on the go.
Image: Front view of the CAT Mini Bluetooth Speaker.
Image: Overview of the speaker's rugged construction features.
Setup
1. Charging the Speaker
- Locate the charging port on the speaker, typically protected by a rubber flap.
- Connect the smaller end of the provided USB charging cable to the speaker's charging port.
- Connect the larger end of the USB charging cable to a compatible USB power source (e.g., wall adapter, computer USB port).
- The LED indicator will illuminate to show charging status. Allow approximately 2 hours for a full charge.
Image: Speaker connected to its charging cable.
Operation
1. Power On/Off
- To power on, press and hold the power button (usually marked with a circle or power symbol) for a few seconds until you hear an audible prompt or see the LED indicator light up.
- To power off, press and hold the power button again for a few seconds until the speaker powers down.
Image: Side view of the speaker showing power and volume buttons.
2. Bluetooth Pairing
- Ensure the speaker is powered on and in pairing mode (the LED indicator may flash blue rapidly).
- On your mobile device (smartphone, tablet, etc.), go to the Bluetooth settings.
- Search for available devices. The speaker should appear as "CAT Mini Speaker" or similar.
- Select the speaker from the list to pair. Once connected, the LED indicator will typically show a solid blue light, and you may hear a confirmation tone.
Image: Bluetooth enabled feature with operating range.
3. Hands-Free Calling
- When a call comes in while connected via Bluetooth, the speaker will ring.
- To answer a call, press the Play/Pause button (often the central button).
- To end a call, press the Play/Pause button again.
- To reject a call, press and hold the Play/Pause button for a few seconds.
4. Audio Playback
- Play/Pause: Press the Play/Pause button once to play or pause audio.
- Volume Control: Press the "+" button to increase volume, and the "-" button to decrease volume.
- Skip Tracks: Long press the "+" button for the next track, and long press the "-" button for the previous track.
5. Auxiliary (AUX) Input
- Open the rubber flap covering the AUX port.
- Connect one end of the provided AUX cable to the speaker's AUX port.
- Connect the other end of the AUX cable to the audio output jack of your device.
- The speaker will automatically switch to AUX mode.
Maintenance
- Cleaning: Use a soft, damp cloth to clean the speaker's exterior. Avoid harsh chemicals or abrasive cleaners.
- Water Resistance: Ensure the rubber flap covering the charging and AUX ports is securely closed to maintain IP66 water resistance. Do not submerge the speaker.
- Storage: Store the speaker in a cool, dry place away from direct sunlight and extreme temperatures when not in use for extended periods.
- Battery Care: To prolong battery life, avoid fully discharging the speaker frequently. Charge it regularly, even if not in constant use.
Troubleshooting
| Problem | Possible Solution |
|---|---|
| Speaker does not power on. | Ensure the speaker is fully charged. Connect it to a power source using the USB cable. |
| Cannot pair via Bluetooth. | Make sure the speaker is in pairing mode. Disable and re-enable Bluetooth on your device. Ensure your device is within the 10-meter range. Forget the device on your phone and try pairing again. |
| No sound or low volume. | Check the volume levels on both the speaker and your connected device. Ensure the speaker is properly paired or the AUX cable is securely connected. |
| Sound distortion. | Reduce the volume on both the speaker and your device. Move closer to the speaker to avoid interference. |
| Water exposure. | While IP66 rated, avoid prolonged submersion. If exposed to water, ensure all ports are sealed. Dry thoroughly before charging. |
Specifications
| Model Number | CAT-BT-MINISPK |
| Brand | CAT |
| Speaker Type | Outdoor |
| Special Feature | Shockproof |
| Water Resistance Rating | IP66 (Water Resistant) |
| Wireless Communication Technology | Bluetooth |
| Bluetooth Range | 10 Meters |
| Power Source | Battery Powered |
| Item Weight | 0.36 Kilograms (12.6 ounces) |
| Product Dimensions | 11.3 x 4 x 4.7 inches |
| Control Method | Touch |
| Compatible Devices | Smartphone, Tablet, MP3 Player, Desktop, Television, Projector, Laptop |
| UPC | 767322197381 |
Warranty and Support
The CAT Mini Bluetooth Speaker comes with a Lifetime Warranty, as specified by the manufacturer. For warranty claims, technical support, or any inquiries regarding your product, please refer to the contact information provided with your purchase or visit the official CAT Mobile website.
Always ensure you are using official CAT accessories for optimal performance and to maintain warranty validity.
