A ABSOPRO External Ambient Temperature Sensor User Manual

1. Introduction

The A ABSOPRO External Ambient Temperature Sensor, model 8M2T10K936AA, is a crucial component designed to monitor the external air temperature around your vehicle. This sensor plays a vital role in maintaining the efficiency and proper functioning of your vehicle's temperature control system, including regulating the fan speed.

Manufactured from durable plastic and metal, this sensor is built to be resistant to impacts and wear, ensuring reliable performance, precision, and sensitivity. It detects the ambient temperature outside the vehicle, allowing the control system to adjust internal climate settings based on the temperature difference.

Figure 1.1: Overview of the A ABSOPRO External Ambient Temperature Sensor.

2. Compatibility

This external ambient temperature sensor (OE Number: 8M2T10K936AA) is compatible with various Ford vehicle models. Please verify the OE number and ensure compatibility with your specific vehicle before installation.

Compatible Ford Models:

• Ford Galaxy (2006-2015)
• Ford Mondeo (2007-2015)
• Ford Ranger (2011-2020)
• Ford S-Max (2006-2014)
• Ford Transit Connect (2002-2013)

Note: This is a non-OEM accessory product. Always ensure the size, model, and OE number match your vehicle's requirements.

3. Key Features

• Durable Construction: Made from high-quality plastic and metal for impact and wear resistance.
• Accurate Temperature Sensing: Provides precise and sensitive readings of external ambient air temperature.
• System Integration: Helps maintain the vehicle's temperature control system and regulates fan speed.
• Direct Replacement: Designed for easy and quick replacement of the original sensor.
• OE Standard: Matches OE Number 8M2T10K936AA for reliable fit and function.

Figure 3.1: Visual representation of the sensor's features, including its form factor and 2-pin connector.

4. Installation Guide

The A ABSOPRO External Ambient Temperature Sensor is designed for straightforward replacement. While specific installation steps may vary slightly depending on your vehicle model, the general process involves locating the old sensor and replacing it with the new one. No special tools are typically required for this process.

General Installation Steps:

1. Locate the Old Sensor: Refer to your vehicle's service manual for the exact location of the external ambient temperature sensor. It is typically found near the front bumper, radiator, or side mirror.
2. Disconnect Power: For safety, disconnect the vehicle's battery before proceeding with the replacement.
3. Remove Old Sensor: Carefully disconnect the electrical connector from the old sensor. Then, unclip or unscrew the old sensor from its mounting point.
4. Install New Sensor: Align the new A ABSOPRO sensor with the mounting point and secure it. Ensure it clicks firmly into place or is properly screwed in.
5. Connect Electrical Connector: Reconnect the electrical connector to the new sensor, ensuring a snug fit.
6. Reconnect Battery: Reconnect the vehicle's battery.
7. Test Functionality: Start the vehicle and check if the external temperature reading on your dashboard or climate control system is accurate.

It is recommended to consult a professional mechanic if you are unsure about any step of the installation process.

Figure 4.1: Example of an ambient temperature sensor's typical location within a vehicle's engine bay.

5. Operating Principle

The A ABSOPRO External Ambient Temperature Sensor operates by continuously measuring the temperature of the air outside the vehicle. This information is then transmitted to the vehicle's Engine Control Unit (ECU) or climate control module.

Based on the data received from the sensor, the vehicle's control system performs several functions:

• Climate Control Adjustment: It helps the automatic climate control system determine the optimal heating or cooling settings for the cabin, considering the difference between external and internal temperatures.
• Engine Management: In some vehicles, external temperature data can influence engine performance parameters, such as fuel mixture or idle speed, especially in extreme weather conditions.
• Information Display: The sensor's readings are often displayed on the vehicle's dashboard, providing the driver with real-time external temperature information.

A properly functioning ambient temperature sensor ensures that your vehicle's climate system operates efficiently and accurately, contributing to passenger comfort and overall vehicle performance.

6. Maintenance

The A ABSOPRO External Ambient Temperature Sensor is designed to be a low-maintenance component. Due to its sealed construction and placement, it typically does not require regular cleaning or servicing.

Recommendations:

• Periodic Inspection: During routine vehicle maintenance, a visual inspection of the sensor and its wiring can be performed to check for any signs of physical damage, corrosion, or loose connections.
• Keep Clear: Ensure the area around the sensor is free from debris, mud, or ice buildup, which could potentially obstruct its readings.

Avoid using harsh chemicals or abrasive materials directly on the sensor, as this may damage its sensitive components.

7. Troubleshooting

If you experience issues with your vehicle's external temperature readings or climate control system after installing or using the sensor, consider the following troubleshooting steps:

• Incorrect Temperature Reading:
  • Check Connections: Ensure the sensor's electrical connector is securely attached and free from corrosion.
  • Sensor Placement: Verify that the sensor is correctly mounted and not obstructed by other components or debris.
  • Vehicle Diagnostics: A diagnostic scan tool can be used to check for fault codes related to the ambient temperature sensor.
• Climate Control Malfunction:
  • If the climate control system is not functioning correctly (e.g., fan speed issues, incorrect temperature output), and the external temperature reading is erratic or absent, the sensor might be faulty.
  • Ensure all other components of the climate control system are functioning properly.
• No Reading on Dashboard:
  • Confirm the sensor is properly plugged in.
  • Check for any damaged wiring leading to the sensor.

If troubleshooting steps do not resolve the issue, it is advisable to seek assistance from a qualified automotive technician.

8. Specifications

Figure 8.1: Detailed dimensions of the sensor.

Figure 8.2: Close-up view highlighting the product's details.

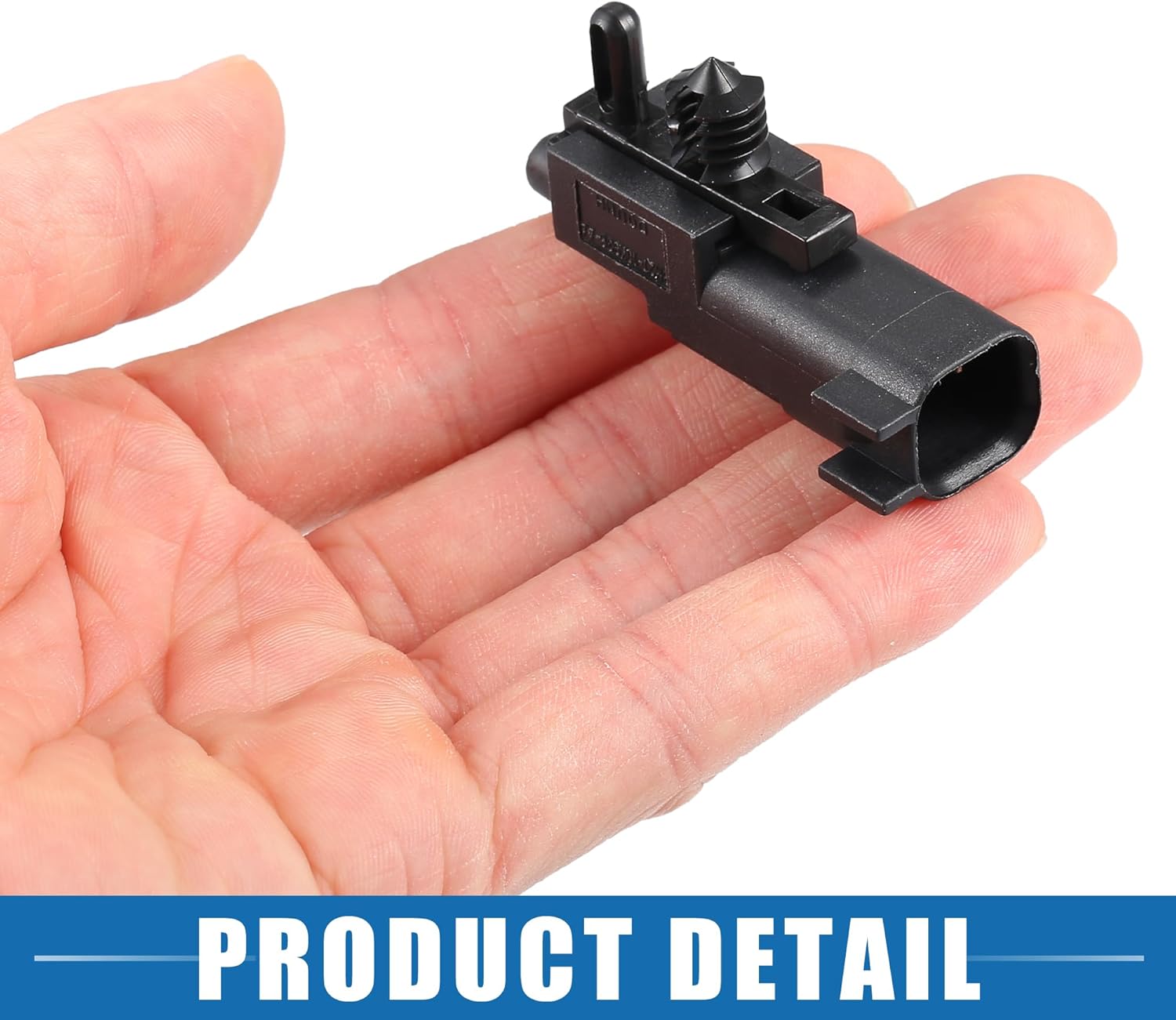

Figure 8.3: Sensor shown in hand for scale reference.

9. Warranty and Support

Specific warranty information for the A ABSOPRO External Ambient Temperature Sensor is typically provided at the point of purchase or within the product packaging. Please refer to your purchase receipt or contact the seller directly for details regarding warranty coverage and terms.

Customer Support:

For any questions, technical assistance, or support regarding this product, please contact the seller or manufacturer directly through the platform where the purchase was made. They will be able to provide the most accurate and up-to-date information and assistance.

When contacting support, please have your product model number (8M2T10K936AA) and purchase details readily available.
