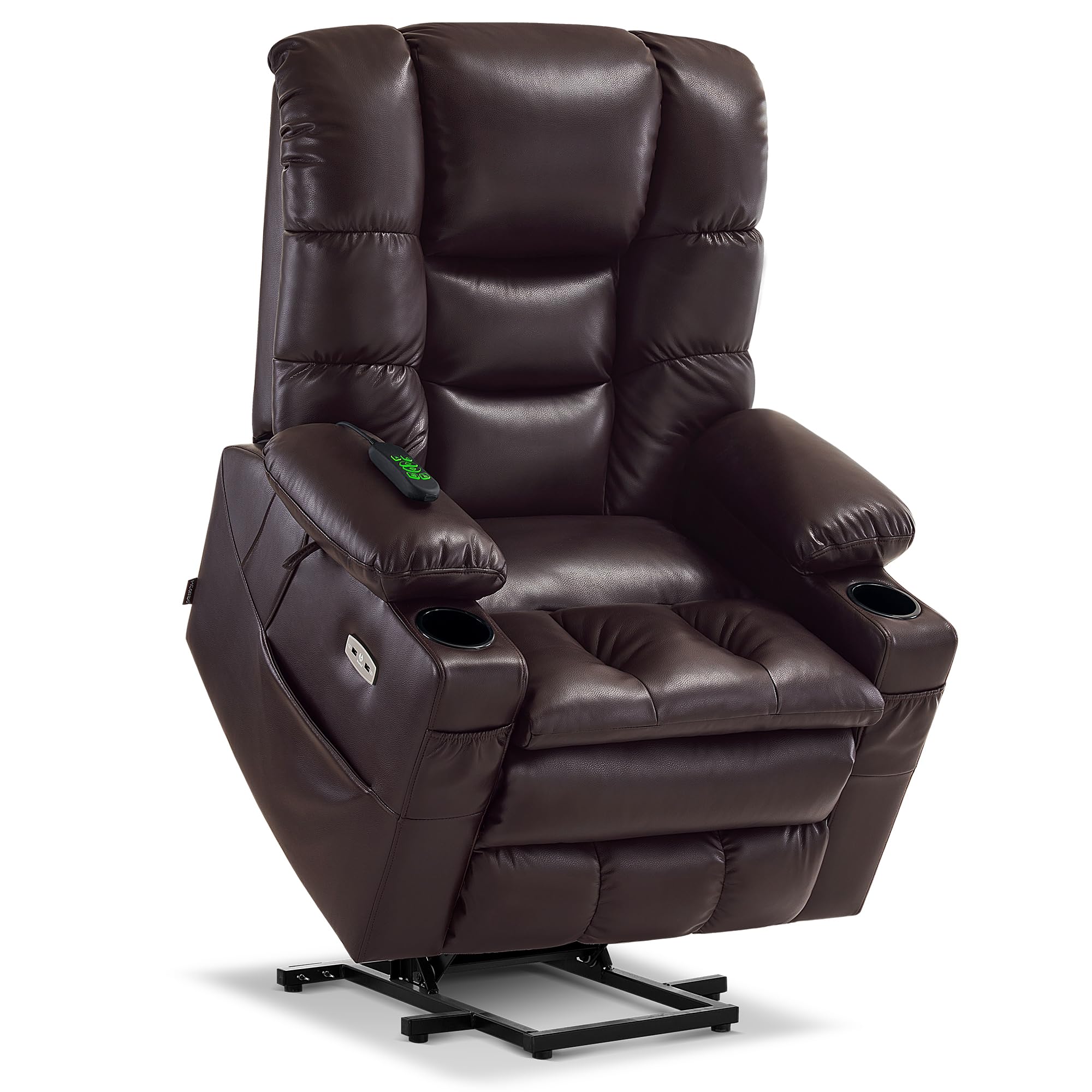

MCombo 7634 Triple Motor Power Lift Recliner Chair Instruction Manual

Introduction

Thank you for choosing the MCombo 7634 Triple Motor Power Lift Recliner Chair. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new recliner. Please read all instructions carefully before use and retain this manual for future reference.

Important Safety Warnings

Failure to follow these safety instructions could result in injury or damage to the product.

• Always assemble the chair according to the provided instructions.
• Do not exceed the maximum weight capacity of 350 lbs (158 kg).
• Be cautious when using the massage and heat functions to avoid burns or discomfort. Monitor usage, especially for individuals with reduced sensation.
• Keep the chair away from water and other potential hazards to prevent electrical shocks.
• Ensure all power cords are properly routed and not pinched or damaged.
• Keep children and pets away from the chair's moving parts.
• Do not allow anyone to sit on the footrest when it is extended.
• Unplug the chair from the power outlet before cleaning or maintenance.

Setup and Assembly

The MCombo 7634 recliner is designed for easy assembly, typically requiring no tools and taking approximately 20 minutes for a novice. The chair arrives in three separate boxes.

Assembly Steps:

1. Anti-Back-Tipping Installation: Attach the anti-back-tipping mechanism to the base of the chair. This ensures stability during operation.
2. Armrests Assembly: Carefully align and slide the left and right armrests onto the metal brackets on the chair's base. Ensure they are securely locked into place.
3. Backrest Assembly: Position the backrest over the base, aligning the metal receivers on the backrest with the corresponding posts on the base. Push down firmly until the backrest clicks into place.
4. Wire Connections: Connect all electrical wires located at the back of the chair. Ensure all connections are secure and properly matched (e.g., color-coded or uniquely shaped connectors). Connect the remote controls and the power adapter. Once connected, plug the power adapter into a wall outlet and turn on the power switch located on the chair's base.

Operating Instructions

Your MCombo recliner features triple motor functionality, allowing independent adjustment of the headrest, backrest, and footrest, along with massage, heating, and power lift functions. Two remote controls are provided for these features.

Remote Control Functions:

One remote controls the chair's movement:

• Lift: Raises the chair to assist in standing.
• Recline: Lowers the chair into a reclined position.
• Back (Up/Down): Adjusts the angle of the backrest independently.
• Legrest (Up/Down): Extends or retracts the footrest independently.
• Headrest (Up/Down): Adjusts the angle of the headrest independently.

The second remote controls the massage and heating functions:

• Power Button: Turns the massage and heat functions on/off.
• Massage Zones: Select specific areas for massage (Leg, Thigh, Lumbar, Back) or activate all zones.
• Massage Modes: Cycle through different massage patterns (M1, M2, M3).
• Intensity Levels: Adjust massage intensity (Low, Medium, High).
• Heat Function: Activates dual heating for the lumbar and seat areas.
• Timer: Set the operating time for massage and heat (15, 30, 60 minutes).

Key Features:

• Infinite Position: Adjust the headrest, backrest, and footrest separately for personalized comfort.
• Power Headrest: Allows for custom head and neck support, especially when reclined.
• Extended Footrest: The 4.7-inch extended footrest provides full leg support, preventing dangling feet.
• Dual USB Charging Ports & Cup Holders: Conveniently located on the armrests for charging mobile devices and holding beverages.

Maintenance

Proper care will extend the life and appearance of your MCombo recliner.

• Product Care Instructions: Spot Clean only. Use a soft, damp cloth with mild soap for spills or stains. Avoid harsh chemicals or abrasive cleaners.
• Faux Leather Care: Regularly wipe down the faux leather with a dry or slightly damp cloth to remove dust and dirt. Avoid direct sunlight and heat sources to prevent material degradation.
• Electrical Components: Periodically check all wires and connections for any signs of wear or damage. Ensure the power cord is not tangled or pinched.
• Moving Parts: The chair's mechanisms are designed for long-term use. Avoid forcing any moving parts. If you notice unusual noises or stiffness, contact customer support.

Troubleshooting

If you encounter any issues with your recliner, please refer to the following common solutions:

• Chair Not Responding:
  - Ensure the power cord is securely plugged into a working electrical outlet.
  - Check that the power switch on the chair's base is in the 'ON' position.
  - Verify all wire connections between the chair components and remotes are firm.
• Massage/Heat Not Working:
  - Confirm the massage/heat remote is properly connected and powered on.
  - Check the timer setting; the function may have automatically turned off.
• Unusual Noises:
  - Inspect the chair's base and moving parts for any obstructions.
  - Ensure all assembly bolts and connections are tight.
• Remote Control Issues:
  - Check for any visible damage to the remote or its cord.
  - Ensure the remote is properly plugged into the chair's connection port.

If the problem persists after attempting these steps, please contact MCombo Customer Support.

Specifications

Warranty

Your MCombo 7634 Triple Motor Power Lift Recliner Chair comes with a 2-Year limited manufacturer warranty. This warranty covers:

• Reclining and Lift Mechanism
• Electrical Parts
• Upholstery Material
• Cushions
• Wood and Metal Frame

Please retain your proof of purchase for warranty claims.

Customer Support

For any questions, assistance, or warranty claims, please contact MCombo Customer Support. Refer to the contact information provided with your purchase or visit the official MCombo website.
