Introduction
Thank you for choosing the Generic TWS-S23 Wireless Earbuds. These earbuds are designed to provide a superior audio experience with advanced Bluetooth V5.3 technology, Hi-Fi stereo sound, and convenient features like smart touch control and an intelligent LED power display. This manual will guide you through the setup, operation, and maintenance of your new earbuds to ensure optimal performance.
Figure 1: Generic TWS-S23 Wireless Earbuds and Charging Case
What's in the Box
Upon opening your package, please ensure all the following items are present:
- Wireless Earbuds (Left and Right)
- Charging Case with LED Power Display
- USB Charging Cable (Type-C)
- User Manual
- Additional Earbud Tips (various sizes)
Figure 2: Packing List Overview
Setup
1. Charging the Earbuds and Case
Before first use, fully charge the earbuds and the charging case. Connect the provided USB Type-C cable to the charging port on the case and a power source. The LED display on the charging case will show the battery percentage, indicating the charging status. Each earbud also has an independent battery indicator.
Figure 3: Type-C Fast Charging
2. Bluetooth Pairing
- Ensure the earbuds are charged.
- Open the charging case. The earbuds will automatically power on and enter pairing mode.
- On your device (smartphone, tablet, etc.), enable Bluetooth.
- Search for "TWS-S23" in the list of available Bluetooth devices and select it to connect.
- Once connected, the earbuds will automatically pair with your device each time you open the charging case.
Figure 4: Earbuds in Charging Case with LED Display
Operating Instructions
Smart Touch Control
The earbuds are equipped with sensitive touch control panels for easy management of music and calls. Refer to the diagram below for specific functions:
Figure 5: Simple Touch Control Functions
- Play/Pause: Single tap on either earbud.
- Answer/Hang Up Call: Single tap on either earbud.
- Previous Song: Double-click the left earbud.
- Next Song: Double-click the right earbud.
- Activate Voice Assistant (Siri): Touch and hold either earbud for 2 seconds.
Call Functions
The earbuds feature a built-in high-sensitive microphone with call noise reduction, ensuring clear communication. You can answer and end calls directly from the earbuds using the touch controls.
Figure 6: Call Noise Reduction for Clear Calls
Features
Hi-Fi Stereo Sound
Experience rich and detailed audio with the 10mm graphene composite diaphragm drivers. The earbuds deliver deep bass, crisp mids, and crystal-clear highs for an immersive listening experience, whether for music, movies, or games.

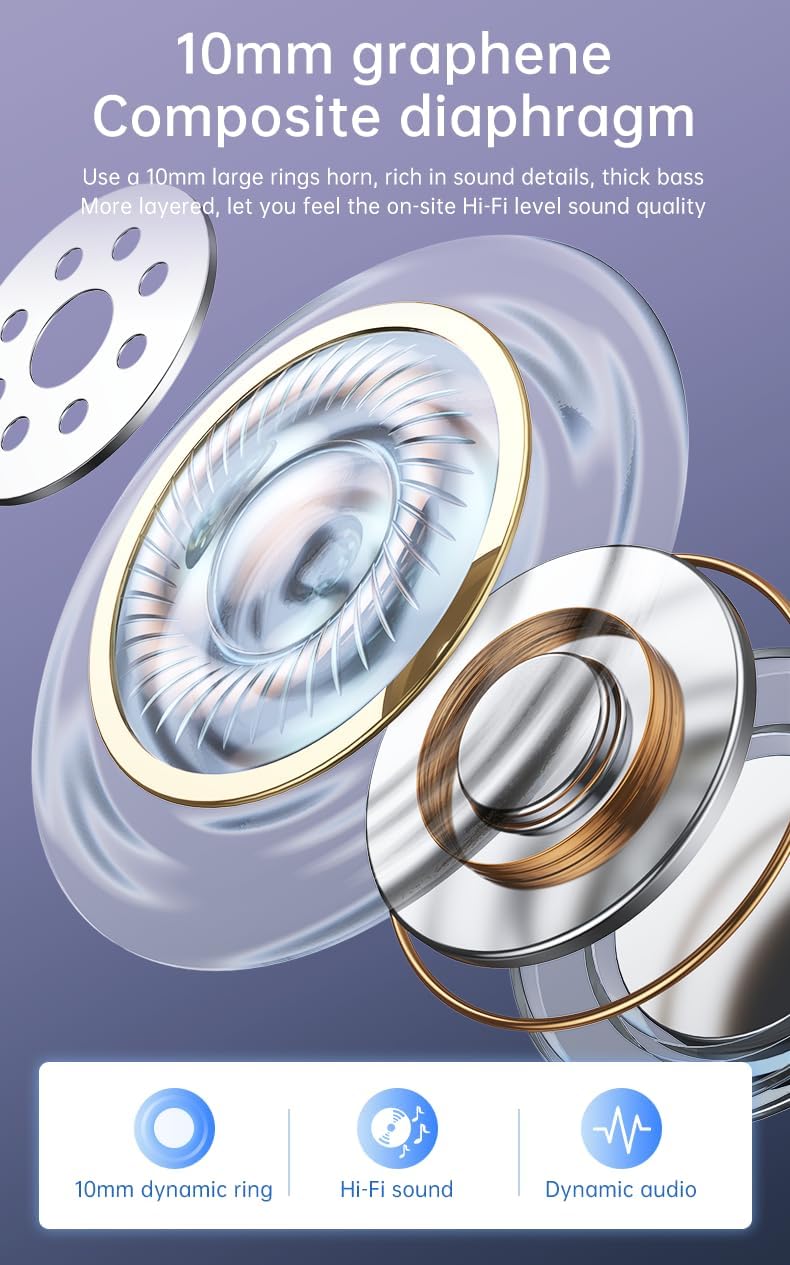

Figure 7: 10mm Graphene Composite Diaphragm
Lightweight, Portable & Ergonomic Design
Each earbud weighs only 0.14 ounces (approximately 4g), making them incredibly light and comfortable for extended wear. The ergonomic design ensures a firm and comfortable fit, suitable for various activities.
Figure 8: Comfortable and Stable Fit
Figure 9: Small and Portable Design
IP7 Waterproof Rating
The IP7 waterproof rating effectively protects the headphones from sweat and rain, making them ideal for sports and outdoor activities.
Zero Latency for Gaming
With an ultra-low latency of 0.05 seconds and a stable signal connection, these earbuds provide a seamless audio experience for gaming, ensuring you hear every detail without delay.
Figure 10: Perfect Headset for Gaming with Zero Latency
Maintenance
To ensure the longevity and optimal performance of your earbuds, follow these maintenance guidelines:
- Cleaning: Regularly clean the earbuds and charging case with a soft, dry, lint-free cloth. Avoid using abrasive materials or harsh chemicals.
- Water Exposure: While the earbuds are IP7 waterproof, avoid prolonged submersion in water. Dry them thoroughly if they get wet from sweat or rain before placing them back in the charging case.
- Storage: Store the earbuds in their charging case when not in use to protect them from dust and damage.
- Charging: Use only the provided charging cable or a certified Type-C cable. Avoid overcharging or completely draining the battery for extended periods.
Troubleshooting
If you encounter any issues with your earbuds, please refer to the following common troubleshooting steps:
| Problem | Possible Solution |
|---|---|
| Earbuds not pairing | Ensure earbuds are charged. Turn off and on your device's Bluetooth. Forget "TWS-S23" from your device's Bluetooth list and re-pair. |
| No sound from one earbud | Place both earbuds back in the charging case, close the lid, wait a few seconds, then open and try again. Check device's audio balance settings. |
| Charging case not charging | Ensure the USB cable is securely connected to both the case and the power source. Try a different charging cable or power adapter. |
| Touch controls not responding | Ensure earbuds are clean and dry. Restart the earbuds by placing them in the case and taking them out. |
If the issue persists after trying these steps, please contact customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Model Name | TWS-S23 |
| Wireless Communication Technology | Bluetooth V5.3 |
| Form Factor | In Ear |
| Control Method | Touch |
| Control Type | Siri (Voice Assistant) |
| Waterproof Rating | IP7 |
| Driver Size | 10mm |
| Item Weight | 3.95 ounces (total package) |
| Playtime | 22+ Hours (with charging case) |
| Charging Port | USB Type-C |
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for any warranty claims.
