1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Pioneer TS-A1678S 3-Way Car Speaker. The TS-A1678S is a 6.5-inch coaxial speaker designed for automotive audio systems, featuring a 3-way design for balanced sound reproduction. It incorporates a rigid carbon and mica-reinforced IMPP cone and an elastic polymer surround for enhanced performance.
2. Safety Information
- Professional Installation Recommended: For optimal performance and safety, installation by a qualified professional is highly recommended.
- Power Handling: Do not exceed the speaker's maximum power rating (320W) or RMS power rating (70W) to prevent damage.
- Wiring: Ensure all wiring is correctly connected, insulated, and secured to prevent short circuits and electrical hazards.
- Vehicle Electrical System: Disconnect the vehicle's negative battery terminal before beginning installation to avoid electrical shock or damage.
- Sound Levels: Prolonged exposure to high volume levels can cause hearing damage. Adjust volume to a safe level.
- Environmental Conditions: Avoid exposing speakers to excessive moisture or extreme temperatures.
3. Package Contents
Verify that all items are present in the package:
- 1 x Pioneer TS-A1678S 3-Way Speaker
- 1 x Speaker Adapter (if included in specific regional packaging)
- Mounting Screws and Clips (quantity may vary)
- Speaker Wire (if included)
4. Installation (Setup)
The following steps provide general guidance for installing the TS-A1678S speaker. Specific vehicle requirements may vary.
4.1 Preparation
- Disconnect Battery: Disconnect the negative terminal of your vehicle's battery.
- Access Mounting Location: Carefully remove the existing speaker grille and speaker from the desired mounting location (e.g., door panel, rear deck).
- Check Fitment: Ensure the Pioneer TS-A1678S speaker fits correctly into the opening. Use the provided adapter if necessary to achieve a secure fit.

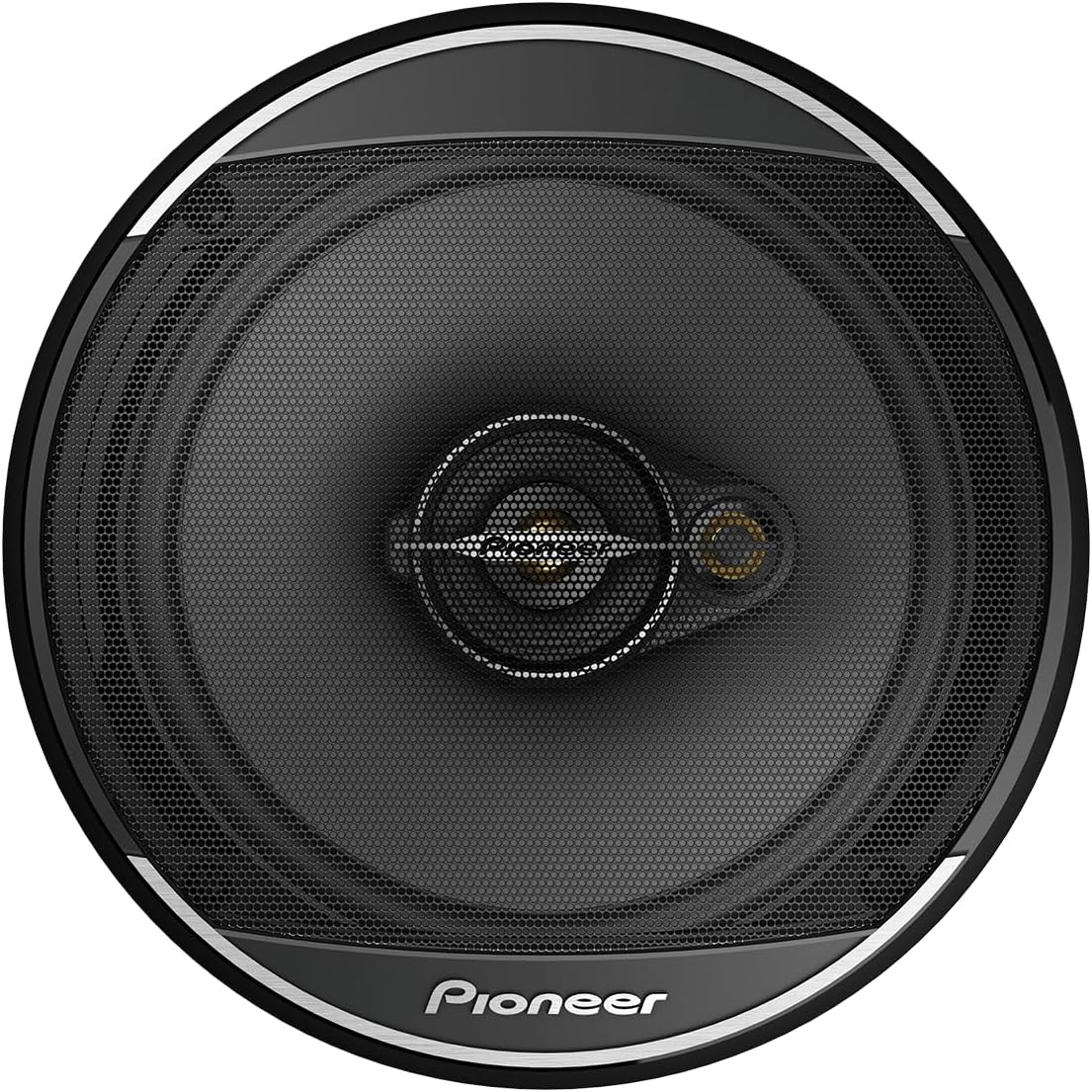

Image 1: Front view of the Pioneer TS-A1678S 3-Way Car Speaker, showing the cone, tweeter, and grille.
4.2 Wiring
- Identify Polarity: Connect the positive (+) terminal of the speaker to the positive (+) speaker wire from your car's audio system. Connect the negative (-) terminal of the speaker to the negative (-) speaker wire. Incorrect polarity will result in poor sound quality.
- Secure Connections: Use appropriate connectors or solder connections and insulate them properly to prevent short circuits.
4.3 Mounting
- Position Speaker: Place the speaker into the mounting opening, ensuring it is flush and centered.
- Secure Speaker: Use the provided mounting screws to firmly secure the speaker to the vehicle's mounting surface. Do not overtighten.
- Reassemble: Reinstall any removed panels or grilles.
Image 2: Angled view of the Pioneer TS-A1678S 3-Way Car Speaker, highlighting the mounting tabs and overall profile.
4.4 Final Steps
- Reconnect Battery: Reconnect the negative terminal of your vehicle's battery.
- Test System: Turn on your car's audio system and test the speakers at a low volume. Gradually increase the volume to ensure proper operation and sound quality.
5. Operating Instructions
Once installed, the Pioneer TS-A1678S speakers operate as part of your vehicle's audio system. Their performance is controlled by your car's head unit (stereo receiver).
- Volume Control: Adjust the volume using your car's head unit. Avoid excessively high volumes to prevent speaker damage and hearing loss.
- Tone Controls: Use the bass, treble, and balance/fader controls on your head unit to fine-tune the sound to your preference.
- Break-in Period: New speakers may benefit from a 'break-in' period of several hours of normal listening to allow the cone and surround materials to loosen and achieve optimal performance.
6. Maintenance
- Cleaning: Use a soft, dry cloth to gently wipe the speaker grilles and surrounds. Do not use harsh chemicals or abrasive cleaners.
- Inspection: Periodically check speaker connections for tightness and ensure no wires are frayed or exposed.
- Avoid Overpowering: Ensure your amplifier or head unit's output does not consistently exceed the speaker's RMS power rating to prolong its lifespan.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speaker |
|
|
| Distorted or poor sound quality |
|
|
| Speaker rattling or buzzing |
|
|
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | TS-A1678S |
| Brand | PIONEER |
| Speaker Type | 3-Way Coaxial Car Speaker |
| Speaker Size | 6.5 Inches (16.5 cm) |
| Maximum Power Handling | 320 Watts |
| RMS Power Handling | 70 Watts |
| Impedance | 4 Ohm |
| Cone Material | Carbon and mica-reinforced IMPP |
| Surround Material | Elastic Polymer |
| Audio Output Mode | Stereo |
| Item Weight | 1.5 Kilograms (approximate, for one speaker or packaged item) |
| Special Features | Hi Res Audio |
| Included Components | 1 x Pioneer TS-A1678S 320W Max/70W RMS 3-Way Speaker with Adapter |
9. Warranty and Support
Pioneer products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Pioneer website for your region. Keep your purchase receipt as proof of purchase for warranty claims.
For technical support, service, or inquiries, please contact Pioneer customer service through their official website or authorized service centers. You can often find contact information and FAQs on the Pioneer Brand Store or the main Pioneer corporate website.
