eo Digital Alarm Clock with Phone Stand & Pen Holder User Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, and maintenance of your eo Digital Alarm Clock, model ED-014. This multifunctional device integrates a digital alarm clock with a clear LED display, a convenient phone stand, and dual pen holders, designed to enhance your desktop organization.

The eo Digital Alarm Clock, showcasing its integrated phone stand, pen holder, and clear LED display.

2. Package Contents

Please verify that all items are present in the package:

• eo Digital Alarm Clock Unit (Model ED-014)
• USB-C Power Cable
• User Manual (This document)

3. Product Overview

The eo Digital Alarm Clock features a split-front design with a large mirror-finish LED display. It includes an elevated smartphone stand and dual pen holders for organizational convenience.

Key Features:

• Digital Alarm Clock with Snooze function
• LED Mirror Finish Display for clear visibility
• USB-C Powered operation
• Raised Smartphone Stand with charging cable gap
• Dual Pen Holders
• Temporal Memory function (requires CR2032 battery, not included)
• Front-facing control buttons

This image highlights the clock's key features: a dedicated smartphone stand for charging, dual pen holders for organization, and the digital alarm clock display showing time and date.

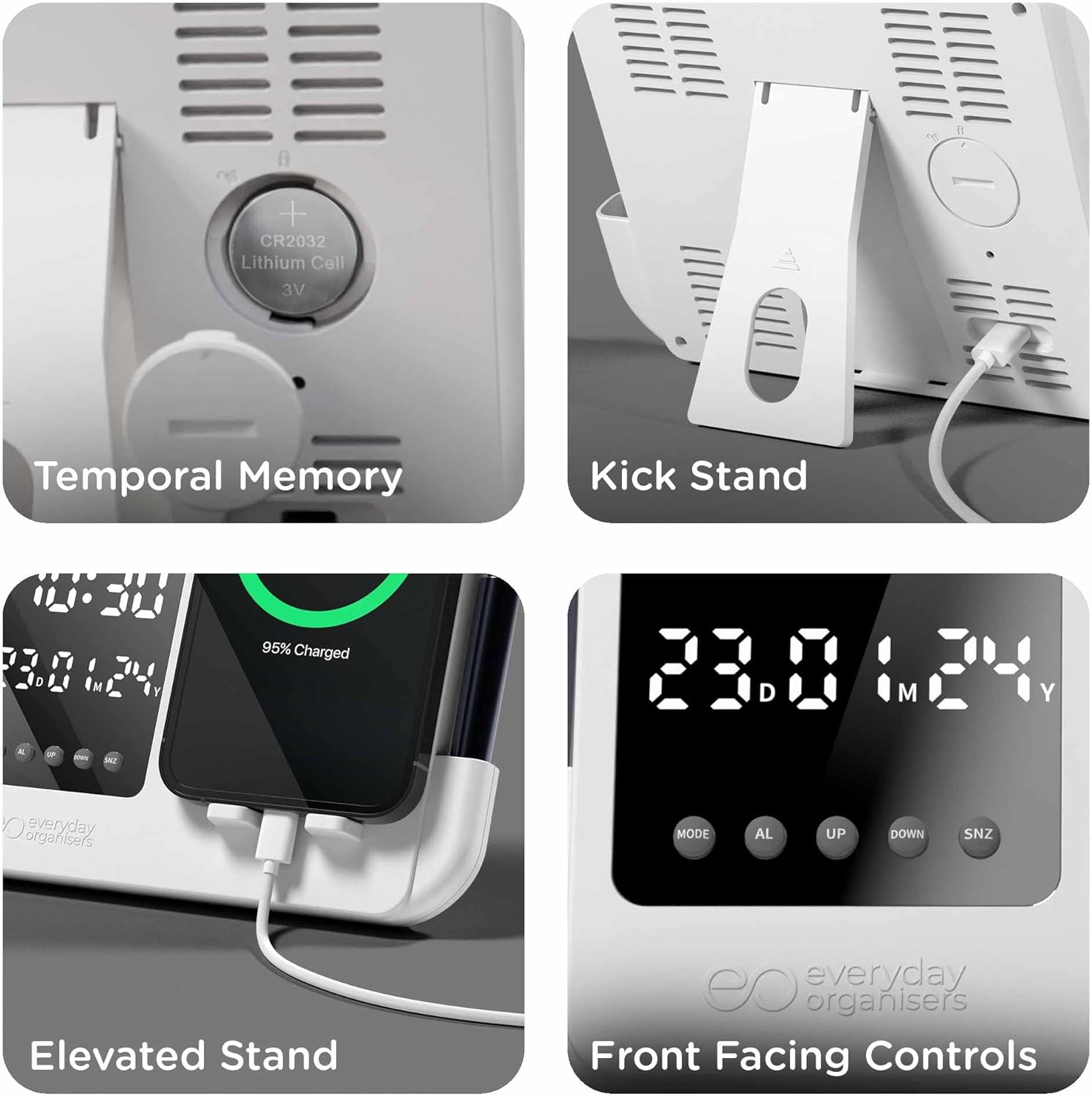

Details the CR2032 battery compartment for temporal memory, the adjustable kickstand, the elevated phone stand design, and the accessible front-facing control buttons.

4. Setup

4.1 Power Connection

1. Connect the provided USB-C cable to the USB-C port located at the back of the alarm clock.
2. Plug the other end of the USB-C cable into a compatible 5V USB power adapter (not included).
3. The display will illuminate, indicating the clock is powered on.

4.2 Temporal Memory Battery Installation (Optional)

To retain time settings during a power outage, install a CR2032 lithium cell battery (not included).

1. Locate the battery compartment on the back of the clock.
2. Open the battery compartment cover.
3. Insert one CR2032 battery with the positive (+) side facing up.
4. Close the battery compartment cover securely.

5. Operating Instructions

The clock features four control buttons located on the front panel: MODE, AL (Alarm), UP, and DOWN, and SNZ (Snooze).

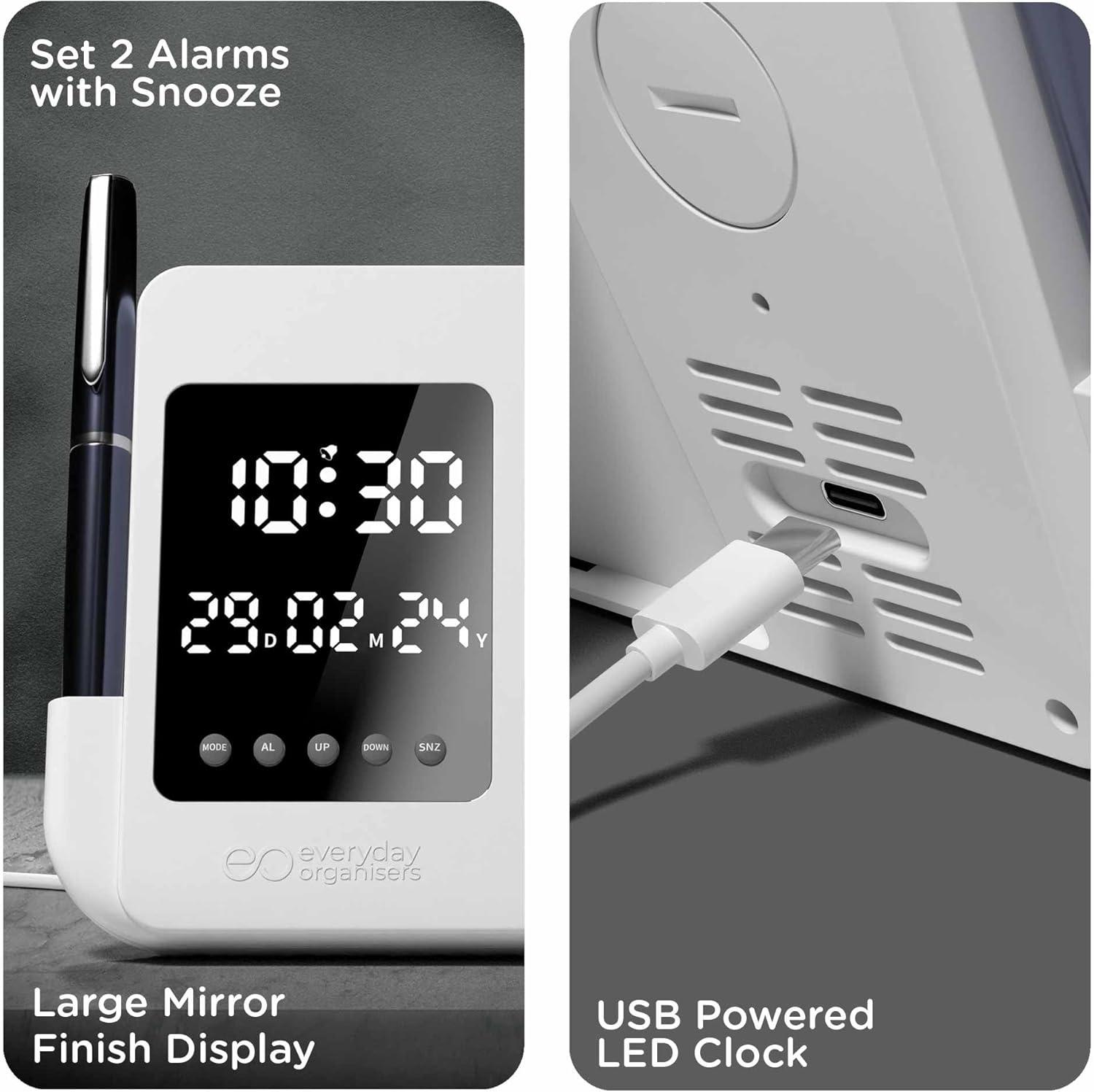

Illustrates the process of setting two alarms with snooze, the large mirror-finish LED display, and the USB-C port for power.

5.1 Setting Time and Date

1. In normal time display mode, press and hold the MODE button for 3 seconds to enter time setting mode. The hour digits will flash.
2. Use the UP and DOWN buttons to adjust the hour.
3. Press MODE again to move to minute setting. Use UP and DOWN to adjust minutes.
4. Press MODE again to set the year (YY). Use UP and DOWN to adjust.
5. Press MODE again to set the month (MM). Use UP and DOWN to adjust.
6. Press MODE again to set the day (DD). Use UP and DOWN to adjust.
7. Press MODE one more time to exit setting mode, or wait 10 seconds for it to exit automatically.

5.2 12/24 Hour Format

In normal time display mode, press the UP button to switch between 12-hour and 24-hour formats.

5.3 Setting Alarms (Dual Alarms)

1. In normal time display mode, press the AL button once to view Alarm 1 (A1). Press AL again to view Alarm 2 (A2).
2. While viewing A1 or A2, press and hold the AL button for 3 seconds to enter alarm setting mode. The hour digits will flash.
3. Use the UP and DOWN buttons to adjust the alarm hour.
4. Press AL again to move to minute setting. Use UP and DOWN to adjust minutes.
5. Press AL again to enable/disable the alarm. Use UP or DOWN to select ON or OFF.
6. Press AL one more time to exit setting mode, or wait 10 seconds for it to exit automatically.

5.4 Snooze Function

• When an alarm sounds, press the SNZ button to activate the snooze function. The alarm will pause and sound again after a few minutes (default snooze duration).
• To turn off the alarm completely, press any other button (MODE, AL, UP, DOWN) when the alarm is sounding or during the snooze period.

5.5 Using the Phone Stand

The elevated smartphone stand is designed to hold your phone securely. A built-in gap allows for hassle-free charging while your phone is docked.

5.6 Using the Pen Holders

The clock features dual pen holders on each side. These grooves are suitable for storing pens, pencils, or other small desk accessories.

6. Maintenance

6.1 Cleaning

To clean the clock, gently wipe the surface with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish or display.

6.2 Battery Replacement (Temporal Memory)

If the clock loses time settings frequently after power disconnection, the CR2032 temporal memory battery may need replacement. Follow the instructions in Section 4.2 to replace the battery.

7. Troubleshooting

8. Specifications

A visual representation of the eo Digital Alarm Clock's dimensions: 180mm length, 130mm height, and 20mm width.

9. Warranty and Support

The eo Digital Alarm Clock (Model ED-014) comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.

For warranty claims, technical support, or any inquiries regarding your product, please refer to the manufacturer's official website or contact their customer service department through the retailer where the product was purchased.
