Product Overview
The CIRCOOTER Raptor Pro is a high-performance electric scooter designed for adults, offering a powerful and comfortable riding experience for both off-road adventures and daily commuting. It features dual motors, a long-range battery, advanced safety features, and a smart app for enhanced control.
Figure 1: Overview of the Circooter Raptor Pro Electric Scooter, including the included storage bag.
Setup and Assembly
Your Circooter Raptor Pro comes partially assembled. Follow these steps to complete the setup:
- Unboxing: Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present.
- Handlebar Installation:
The handlebar needs to be securely attached to the stem. Loosen the clamp on the stem, insert the handlebar, and tighten the bolts evenly to ensure it is firm and aligned.
Video 1: Demonstration of the scooter's features, including the stem and handlebar assembly (relevant segment: 5:20 - 5:37).
- Initial Charge: Fully charge the scooter before its first use. Connect the included charger to one of the dual charging ports located on the side of the deck. A full charge typically takes 3-5 hours with dual chargers.
- Tire Pressure Check: Ensure the 11-inch pneumatic off-road tires are inflated to the recommended pressure for optimal performance and safety.
- Brake Adjustment: Verify that the dual braking systems (front and rear disc brakes) are functioning correctly and provide adequate stopping power. Adjust if necessary.
Operating Instructions
Familiarize yourself with the controls and riding modes for a safe and enjoyable experience.
- Power On/Off: Use the on/off button on the handlebar control pad to power the scooter on or off.
- Riding Modes: The scooter offers three adjustable speed settings: Eco, Standard, and Turbo. Use the mode button on the control pad to switch between these modes.
- Throttle Control: The scooter features a thumb throttle. For safety, some models may require a slight push-off before the throttle engages. This can often be adjusted via the companion app.
- Lighting System:
The scooter is equipped with dual headlights, front and rear turn signals, a brake light, and dual side moon lights for enhanced visibility. The headlights can be set to steady or flashing. The brake light illuminates when the brake lever is pulled. The turn signals are integrated into the deck.
Figure 2: Detailed view of the scooter's comprehensive lighting system for improved safety and visibility.
Video 2: Demonstration of the scooter's lighting features, including headlights, brake lights, and turn signals (relevant segments: 0:06 - 0:19, 0:40 - 0:50, 1:07 - 1:11, 1:24 - 1:35).
- Braking: Utilize the front and rear disc brakes for effective stopping. The electronic brakes provide additional stopping power.
- Smart APP Integration: Download the CIRCOOTER APP to monitor performance, adjust settings, and potentially lock the scooter. Note that the app's mileage tracking may not always be perfectly accurate.
- Cruise Control: The scooter may feature an automatic cruise control that activates after holding the throttle for several seconds. This feature can typically be enabled or disabled via the companion app.
Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
- Cleaning: Keep the scooter clean. The deck features a rubberized coating for grip. For general cleaning, wipe with a damp cloth. Avoid high-pressure water jets directly on electronic components. The scooter has an IPX4 waterproof rating, meaning it is resistant to water splashes from any direction.
- Battery Care: Charge the 48V 20Ah lithium battery regularly, even when not in use, to maintain battery health. Avoid fully draining the battery.
- Tire Maintenance: Regularly check the pneumatic tires for wear and tear, and maintain proper inflation pressure.
- Brake System Check: Inspect disc brakes and electronic brakes periodically for wear and proper function. Ensure brake levers operate smoothly.
- Suspension Inspection: The dual suspension system (spring suspension in front and rear) is designed for shock absorption. While stiff for lighter riders, it is built to support heavier loads. Inspect for any damage or unusual noises.
- Folding Mechanism: Ensure the stem folding mechanism operates smoothly and locks securely.
Figure 3: The scooter's IPX4 waterproof rating ensures durability against water splashes.
Troubleshooting
Common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter not powering on | Low battery; Power button not pressed correctly | Charge the battery; Press and hold the power button firmly |
| Throttle not engaging | Safety start mode enabled; Loose connection | Push off to activate throttle (if in safety mode); Check throttle cable connections |
| Lights bouncing excessively | Loose light brackets | Tighten light brackets; Consider additional handlebar-mounted light for stability |
| Reduced range or speed | Low tire pressure; Battery degradation; Riding conditions (hills, heavy load) | Check and inflate tires; Contact support for battery issues; Adjust riding style |
Specifications
- Model Name: Raptor Pro
- Motor: Dual 800W motors (1600W total)
- Top Speed: Up to 28 Mph
- Battery: 48V 20Ah Lithium Battery
- Max Range: Up to 31 Miles
- Charging Time: 3-5 hours (with dual chargers)
- Max Load: 330 LBS
- Tires: 11-inch Pneumatic Off-Road Tires
- Suspension: Dual Suspension (Front and Rear)
- Brakes: Dual Braking Systems (Front and Rear Disc Brakes, Electronic Brakes)
- Frame Material: Aluminum
- Item Weight: 77 Pounds
- Waterproof Rating: IPX4
- Special Features: Smart APP, Adjustable Handlebar, Storage Bag included

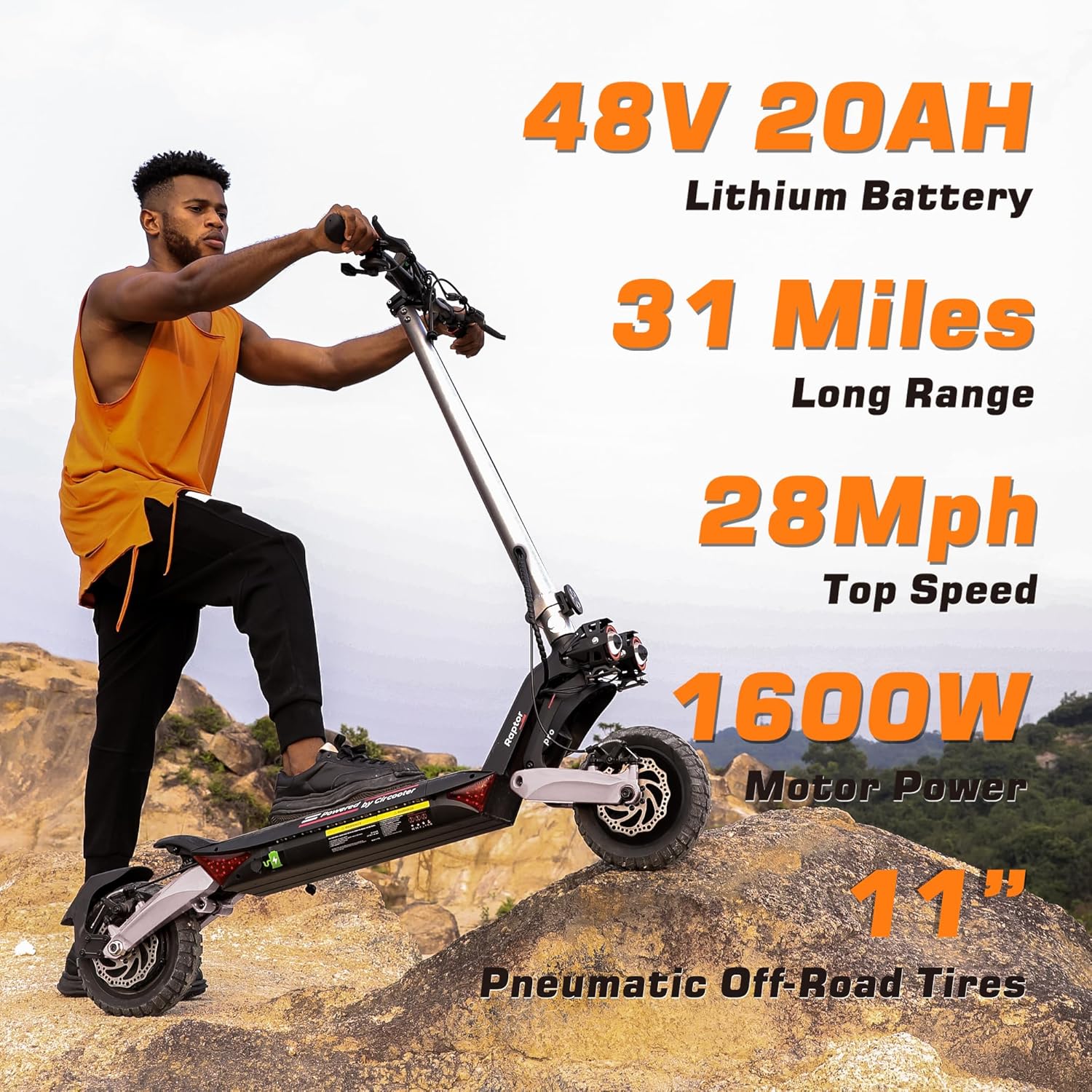

Figure 4: Key performance specifications of the Circooter Raptor Pro.
Figure 5: Details on the powerful 1600W motor and its capabilities.
Figure 6: Information on the scooter's robust dual shock absorbers and maximum load capacity.
Warranty and Support
Circooter stands behind its electric scooters with robust customer service and warranty options. Your satisfaction is our priority.
Warranty Details:
- Accessories: 12 months and 365 days for different accessories (e.g., rear fender, throttle, disc brake).
- Motor & Battery: 180 days limited warranty.
Contact Support:
For any questions or concerns, please contact Circooter customer service at hello@circooter.com.
