1. Introduction
This manual provides essential information for the safe installation, operation, and maintenance of your IMEX GTA052/BGM ASSEN Concealed Single-Lever Shower Set. Please read these instructions carefully before installation and retain them for future reference. This shower set features a modern design with a Black Gun Metal finish, offering both an overhead shower and a hand shower controlled by a single-lever mixer and a diverter.
2. Safety Information
- Professional Installation Recommended: Installation of this concealed shower set requires plumbing expertise. It is highly recommended that a qualified plumber performs the installation to ensure proper function and prevent damage.
- Water Supply: Always turn off the main water supply before beginning any installation or maintenance work.
- Pressure Requirements: Ensure your home's water pressure is within the recommended range for shower systems to ensure optimal performance.
- Temperature Control: Exercise caution when adjusting water temperature to prevent scalding.
- Leak Checks: After installation, thoroughly check all connections for leaks before sealing walls.
3. Package Contents
Please verify that all components are present and undamaged before installation:
- Concealed Mixer Body (for wall installation)
- Single-Lever Control Handle (for temperature and flow)
- Diverter Control Handle (to switch between shower outlets)
- Overhead Shower Head
- Hand Shower with Hose
- Hand Shower Wall Holder
- Escutcheons/Cover Plates
- Installation Hardware (screws, seals, etc.)
Figure 1: Overview of the IMEX GTA052/BGM ASSEN Concealed Shower Set installed.
4. Setup and Installation
Due to the concealed nature of this shower set, installation involves embedding the mixer body within the wall. This process typically includes:
- Wall Preparation: Create an opening in the wall at the desired height and location for the concealed mixer body. Ensure adequate space for plumbing connections.
- Mixer Body Installation: Secure the concealed mixer body firmly within the wall opening, ensuring it is level and at the correct depth relative to the finished wall surface.
- Plumbing Connections: Connect the hot and cold water supply lines to the designated inlets on the mixer body. Connect the outlets to the overhead shower and hand shower lines. Ensure all connections are watertight.
- Leak Test (Rough-in): Before closing the wall, turn on the main water supply and check all connections for leaks. Rectify any leaks immediately.
- Wall Finishing: Once the mixer body and plumbing are secure and leak-free, finish the wall surface (e.g., tiling).
- Trim Installation: Install the escutcheons, control handles, overhead shower head, hand shower, hose, and wall holder onto the finished wall.
- Final Leak Test: After all components are installed, perform a final leak test and check the functionality of the shower set.
Figure 2: Hand shower and control handles detail.

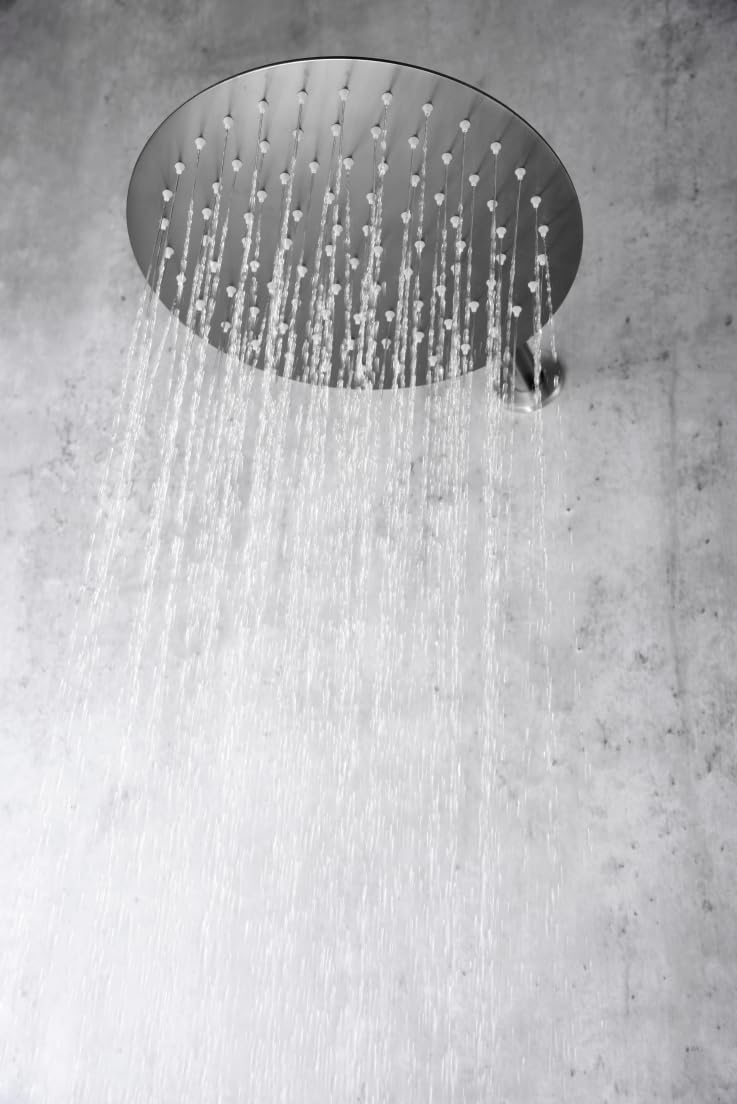

Figure 3: Overhead shower head in operation.
5. Operating Instructions
Your IMEX GTA052/BGM ASSEN shower set is designed for intuitive use:
- Turning On/Off and Adjusting Flow: The single-lever handle controls both water flow and temperature. Lift the handle to turn on the water and increase flow. Push it down to turn off the water.
- Adjusting Temperature: Rotate the single-lever handle left for hotter water and right for colder water. Adjust gradually to find your desired temperature.
- Diverting Water Flow: The second handle (diverter) allows you to switch between the overhead shower and the hand shower. Rotate this handle to select your preferred water outlet.
6. Maintenance
Regular cleaning and maintenance will ensure the longevity and appearance of your shower set:
- Cleaning the Finish: Clean the Black Gun Metal finish with a soft cloth and mild, non-abrasive soap and water. Rinse thoroughly and dry immediately to prevent water spots. Avoid using abrasive cleaners, scouring pads, or chemical solvents, as these can damage the finish.
- Cleaning Shower Nozzles: Over time, mineral deposits (limescale) can build up on the shower head nozzles. Many modern shower heads feature flexible silicone nozzles that can be cleaned by gently rubbing them with your finger to dislodge deposits. For stubborn buildup, a solution of white vinegar and water can be used, applied with a soft cloth.
- Checking for Leaks: Periodically inspect visible connections for any signs of leaks. Address any leaks promptly to prevent water damage.
7. Troubleshooting
Below are common issues and potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Partially closed stopcock; clogged shower head nozzles; low household water pressure. | Ensure stopcock is fully open. Clean shower head nozzles (see Maintenance). Consult a plumber if household pressure is consistently low. |
| Inconsistent Water Temperature | Issues with water heater; unbalanced hot/cold water pressure; faulty thermostatic cartridge. | Check water heater settings. Consult a plumber to balance water pressure or replace the cartridge if necessary. |
| Leaks from Connections | Loose connections; damaged seals/washers. | Tighten connections carefully. Replace worn or damaged seals/washers. If leaks persist, consult a plumber. |
| Dripping from Shower Head | Worn cartridge; mineral buildup. | Clean shower head nozzles. If dripping continues, the mixer cartridge may need replacement by a qualified plumber. |
8. Specifications
- Brand: IMEX
- Model/Part Number: GTA052/BGM
- Number of Handles: 1 (for temperature/flow) + 1 (for diverter)
- Finish: Black Gun Metal
- Weight: Approximately 1 Kilogram
- ASIN: B0CPNY3DYM
9. Warranty and Support
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or spare parts, please contact IMEX customer service or your authorized dealer. Always provide your product model number (GTA052/BGM) when seeking assistance.
