Bomann KG7353 Refrigerator-Freezer User Manual

1. Introduction

Thank you for choosing the Bomann KG7353 Refrigerator-Freezer. This manual provides essential information for the safe and efficient use of your appliance. Please read these instructions carefully before installation and operation, and keep them for future reference.

2. Safety Information

General Safety:

• Ensure the appliance is disconnected from the power supply before cleaning or maintenance.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
• This appliance is intended for household use only.
• Keep ventilation openings clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Children should be supervised to ensure they do not play with the appliance.

Electrical Safety:

• The appliance must be connected to a properly grounded outlet.
• Do not use extension cords or ungrounded adapters.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

3. Product Overview

The Bomann KG7353 is a freestanding refrigerator-freezer designed for efficient food preservation. It features a total capacity of 268 liters, with a 197-liter refrigerator compartment and a 71-liter 4-star freezer compartment.

Figure 3.1: Bomann KG7353 Refrigerator-Freezer with doors open, illustrating the spacious interior of both the refrigerator and freezer sections. The refrigerator section features multiple glass shelves and door bins, while the freezer section contains three transparent drawers.

Key Features:

• Total Capacity: 268 Liters (197 L Refrigerator, 71 L Freezer)
• Dimensions (H x W x D): 180 cm x 55 cm x 55.8 cm
• Energy Efficiency Class: C (134 kWh/annum)
• Low Noise Level: 36 dB
• Interior LED Lighting
• Progressive Temperature Control
• Reversible Door Hinge
• Adjustable Glass Shelves and Door Storage
• Transparent Vegetable Drawer
• 4-Star Freezer Compartment

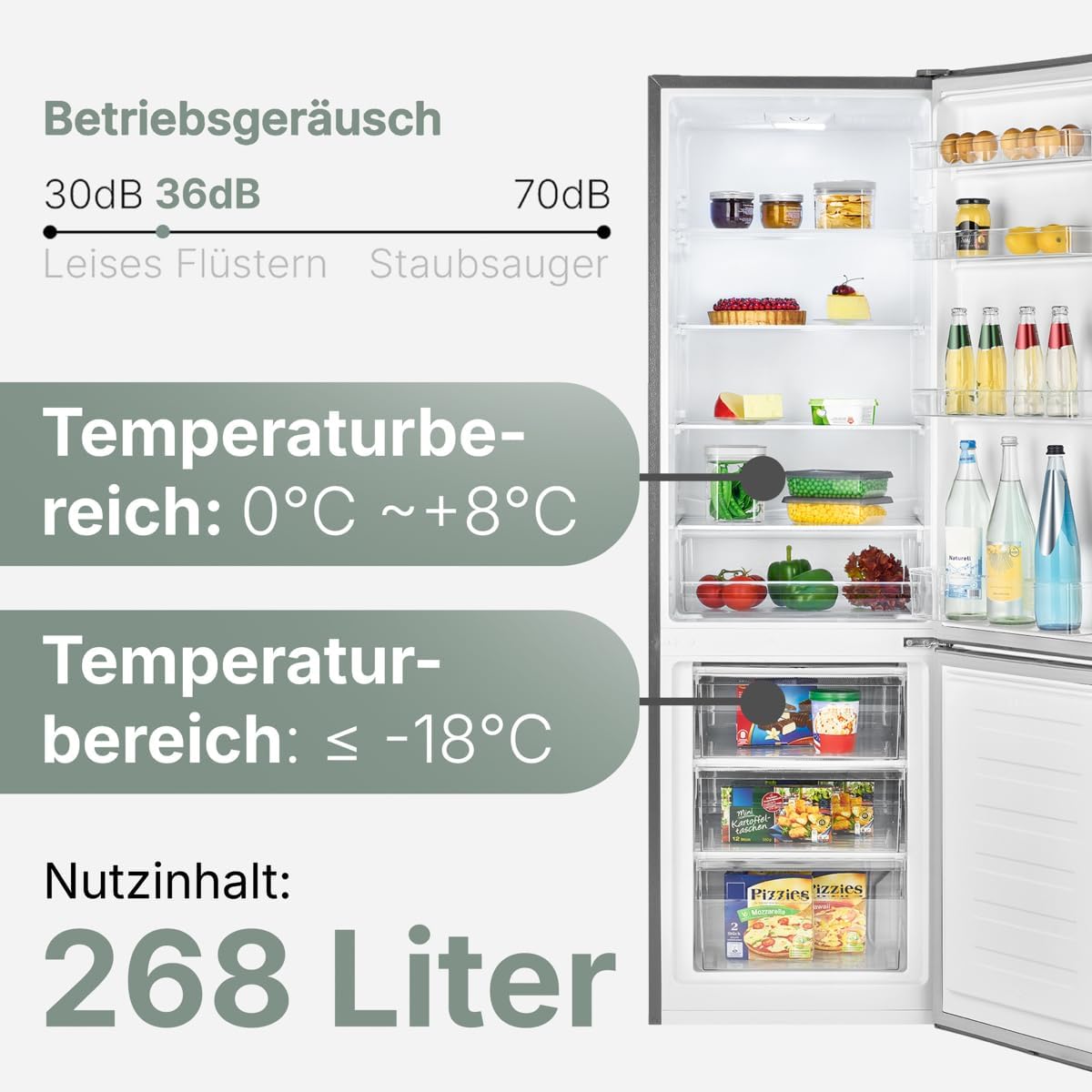

Figure 3.2: This diagram illustrates the key specifications of the Bomann KG7353, including a total capacity of 268 liters, with 197 liters for the refrigerator and 71 liters for the freezer. It also shows the temperature ranges (0°C to +8°C for the fridge, ≤ -18°C for the freezer) and a quiet operating noise level of 36 dB.

4. Setup and Installation

4.1 Unpacking:

• Carefully remove all packaging materials.
• Inspect the appliance for any transport damage. Report any damage immediately to your retailer.
• Keep packaging materials out of reach of children.

4.2 Placement:

• Place the appliance on a firm, level surface.
• Ensure adequate ventilation around the appliance. Leave at least 10 cm of space at the back and sides for proper air circulation.
• Avoid placing the appliance near heat sources (e.g., ovens, radiators) or in direct sunlight.
• The appliance is designed for an ambient temperature range suitable for its climate class (refer to specifications).

Figure 4.1: This image displays the external dimensions of the Bomann KG7353 refrigerator-freezer, measuring 180 cm in height, 55 cm in width, and 55.8 cm in depth. It also indicates the importance of maintaining sufficient clearance around the appliance for optimal performance and ventilation.

4.3 Leveling:

• Adjust the front feet to level the appliance. This ensures proper door closing and reduces vibrations.

4.4 Door Reversal:

• The door hinge is reversible, allowing you to change the opening direction from right to left, or vice versa, to suit your kitchen layout. Refer to the detailed instructions in the separate door reversal guide (if provided) or contact customer support for assistance.

4.5 Initial Cleaning:

• Before first use, clean the interior and all accessories with lukewarm water and a mild detergent. Dry thoroughly.

4.6 Power Connection:

• After positioning and leveling, wait at least 2-4 hours before plugging the appliance into the power outlet. This allows the refrigerant to settle.
• Connect the appliance to a dedicated, grounded 220-240 V~ / 50 Hz power outlet.

5. Operating Instructions

5.1 Temperature Control:

• The appliance features progressive temperature control. The refrigerator temperature can be adjusted between 0°C and +8°C. The freezer temperature is maintained at ≤ -18°C.
• Adjust the thermostat dial located inside the refrigerator compartment to your desired setting. A higher number typically indicates a colder temperature.

Figure 5.1: This image shows the stepless temperature control dial located within the refrigerator compartment. Users can adjust this dial to set the desired cooling level for the fresh food section.

5.2 Food Storage Guidelines:

To optimize food preservation and energy efficiency, store different types of food in appropriate sections:

• Upper Compartment: Jams, cooked foods, packaged cheese, etc.
• Middle Compartment: Milk, yogurt, sauces, unpackaged cheese, etc.
• Lower Compartment: Sausage, fresh meat, fish, cakes, etc.
• Vegetable Drawer: Salads, herbs, vegetables.

Figure 5.2: This diagram provides guidance on optimal food placement within the refrigerator. It designates specific areas for different food types, such as jams and cooked foods in the upper section, dairy products in the middle, fresh meats and fish in the lower section, and vegetables in the dedicated drawer.

5.3 Freezer Compartment:

• The 4-star freezer is suitable for long-term storage of frozen foods and for freezing fresh food.
• Freezing capacity: 3.2 kg / 24 h.
• Power failure storage time: max. 11 h.
• The freezer includes 3 drawers and an ice cube tray.

Figure 5.3: The freezer compartment of the Bomann KG7353, featuring three transparent drawers for organized storage. It is a 4-star freezer, indicating its capability for long-term storage of frozen goods, and includes an ice cube tray.

Freezer Star Rating Guide:

Table 5.1: Freezer Star Rating Guide, indicating recommended storage durations based on temperature.

6. Maintenance and Cleaning

6.1 Cleaning the Interior:

• Always unplug the appliance before cleaning.
• Clean the interior regularly with a soft cloth, lukewarm water, and a mild, non-abrasive detergent.
• Wipe down shelves, drawers, and door seals.
• Rinse with clean water and dry thoroughly to prevent odors and mold.

6.2 Cleaning the Exterior:

• Wipe the exterior surfaces with a soft, damp cloth. For stainless steel finishes, use a specialized stainless steel cleaner.
• Clean the condenser coils at the back of the appliance periodically (e.g., every 6-12 months) using a soft brush or vacuum cleaner to remove dust. This improves energy efficiency.

6.3 Defrosting:

• The refrigerator compartment features an automatic defrosting system. Frost on the back wall will melt and drain through a channel to an evaporation tray.
• The freezer compartment may accumulate frost over time. When the frost layer becomes about 3-5 mm thick, manually defrost the freezer.
• To defrost the freezer:
  1. Unplug the appliance.
  2. Remove all frozen food and wrap it in newspaper to keep it cold.
  3. Leave the freezer door open. Place towels on the floor to absorb melting water.
  4. Do not use sharp objects or heating devices to speed up defrosting.
  5. Once defrosted, clean and dry the interior thoroughly before plugging the appliance back in and returning food.

6.4 LED Interior Lighting:

• The appliance is equipped with energy-efficient LED lighting.
• If the LED light fails, it should be replaced by a qualified service technician. Do not attempt to replace it yourself.

Figure 6.1: This image highlights the LED interior lighting within the Bomann KG7353 refrigerator. The LED light provides bright and energy-efficient illumination for clear visibility of stored items.

7. Troubleshooting

Before contacting customer service, please check the following common issues:

If the problem persists after checking these points, please contact customer support.

8. Technical Specifications

For more detailed information, please refer to the official product data sheet: EPREL Product Data Sheet

Figure 8.1: The energy label for the Bomann KG7353, indicating its energy efficiency class C, annual energy consumption of 134 kWh, and noise level of 36 dB. It also shows the net capacities for the refrigerator (197 L) and freezer (71 L).

9. Warranty and Support

Warranty Information:

• This appliance comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
• Spare parts are available for a period of 2 years.

Customer Support:

• For technical assistance, spare parts, or service requests, please contact your retailer or the official Bomann customer service.
• When contacting support, please have your model number (KG7353) and purchase date available.
