COSTWAY Upholstered Platform Bed Frame with Storage Headboard

1. Introduction

Thank you for choosing the COSTWAY Upholstered Platform Bed Frame with Storage Headboard. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

This bed frame is designed to provide a comfortable and supportive foundation for your mattress, featuring a stylish upholstered design and a practical storage headboard. The robust construction ensures durability and stability for long-term use.

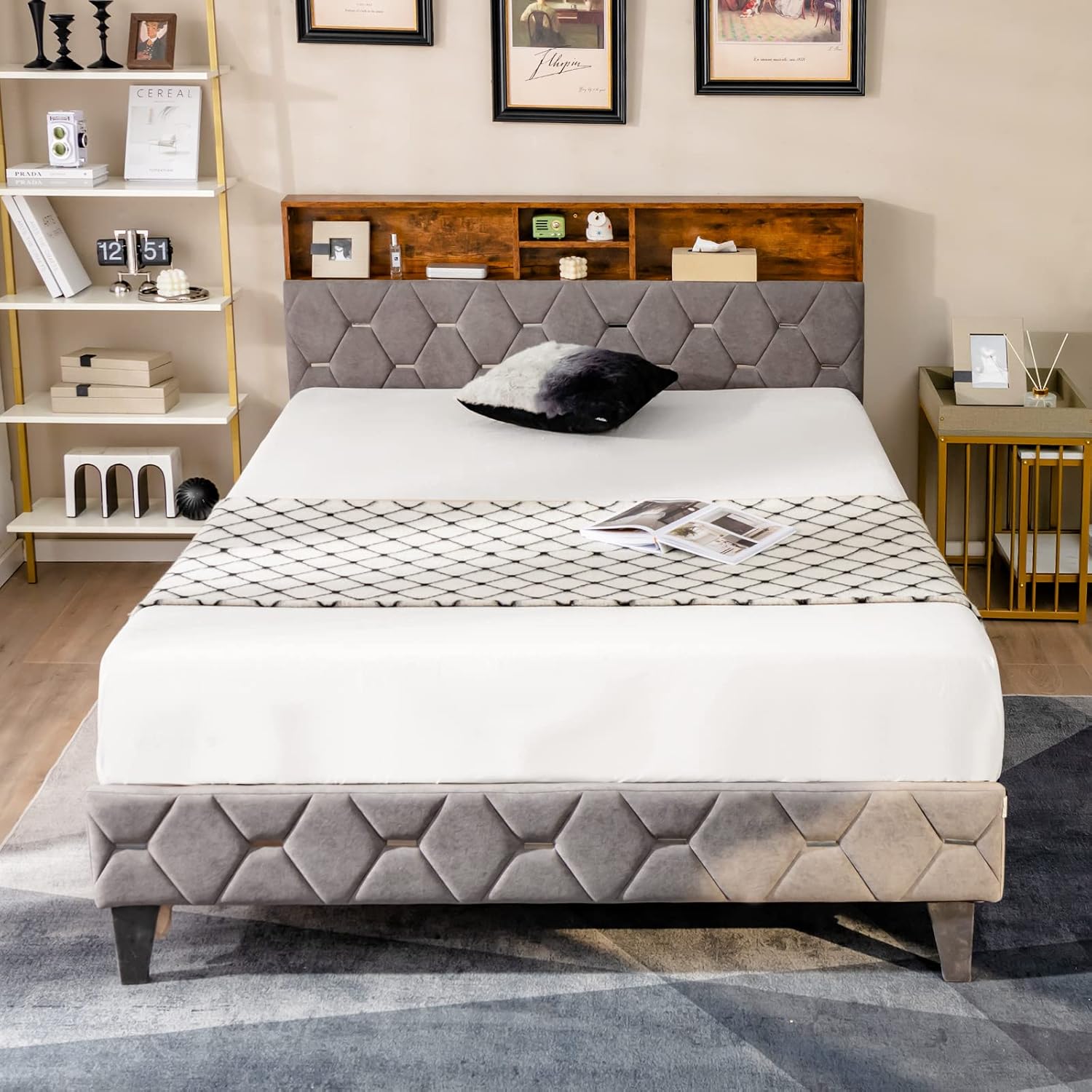

Image 1.1: Fully assembled COSTWAY Upholstered Platform Bed Frame with Storage Headboard. This image shows the complete bed frame with a mattress and bedding, highlighting its overall design and functionality.

2. Safety Information

• Always follow the assembly instructions carefully. Incorrect assembly can lead to instability and potential injury.
• Keep all small parts and packaging materials away from children and pets to prevent choking hazards.
• Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten fasteners as needed.
• Do not exceed the maximum weight capacity of 450 kg (approximately 992 lbs) for the bed frame.
• The headboard features an anti-toppling device. Ensure this device is properly installed to keep the headboard firm and stable.
• Use the bed frame on a flat, level surface to prevent wobbling.
• Avoid standing or jumping on the bed frame.

Image 2.1: Diagram illustrating the dimensions and maximum weight capacity of the King size bed frame. This image provides critical measurements and highlights the 450 kg weight limit for safe use.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. Refer to the detailed parts list provided in the separate instruction leaflet included in your package. Typically, the package includes:

• Headboard components (upholstered section, storage unit)
• Footboard
• Side Rails
• Wooden Slats
• Support Legs (wood and metal)
• Center Support Bar
• Hardware Pack (screws, bolts, washers, Allen wrench)
• Instruction Manual

If any parts are missing or damaged, do not proceed with assembly. Contact COSTWAY customer service for assistance.

4. Assembly Instructions

Assembly typically requires two adults. Ensure you have adequate space and the necessary tools (usually an Allen wrench, often included). Follow the step-by-step diagrams in the separate instruction leaflet for precise guidance.

4.1 Pre-Assembly Checklist

• Clear a spacious area for assembly.
• Lay out all components on a soft, clean surface to prevent scratches.
• Identify all parts and hardware using the provided parts list.

4.2 General Assembly Steps (Refer to included leaflet for detailed diagrams)

1. Assemble the Headboard: Attach the upholstered section to the storage unit. Ensure the hydraulic lifting system and magnetic catch are correctly installed. Secure the anti-toppling device.
2. Attach Side Rails: Connect the side rails to the headboard and footboard using the provided hardware. Do not fully tighten bolts until the frame is aligned.
3. Install Support Legs: Attach the central support bar and the various support legs to the frame. Ensure adjustable foot pads are in place.
4. Place Slats: Unroll or place the wooden slats across the bed frame. The slats are often pre-connected with hook & loop fasteners for easy and secure placement.
5. Final Tightening: Once all components are in place and aligned, securely tighten all bolts and screws.

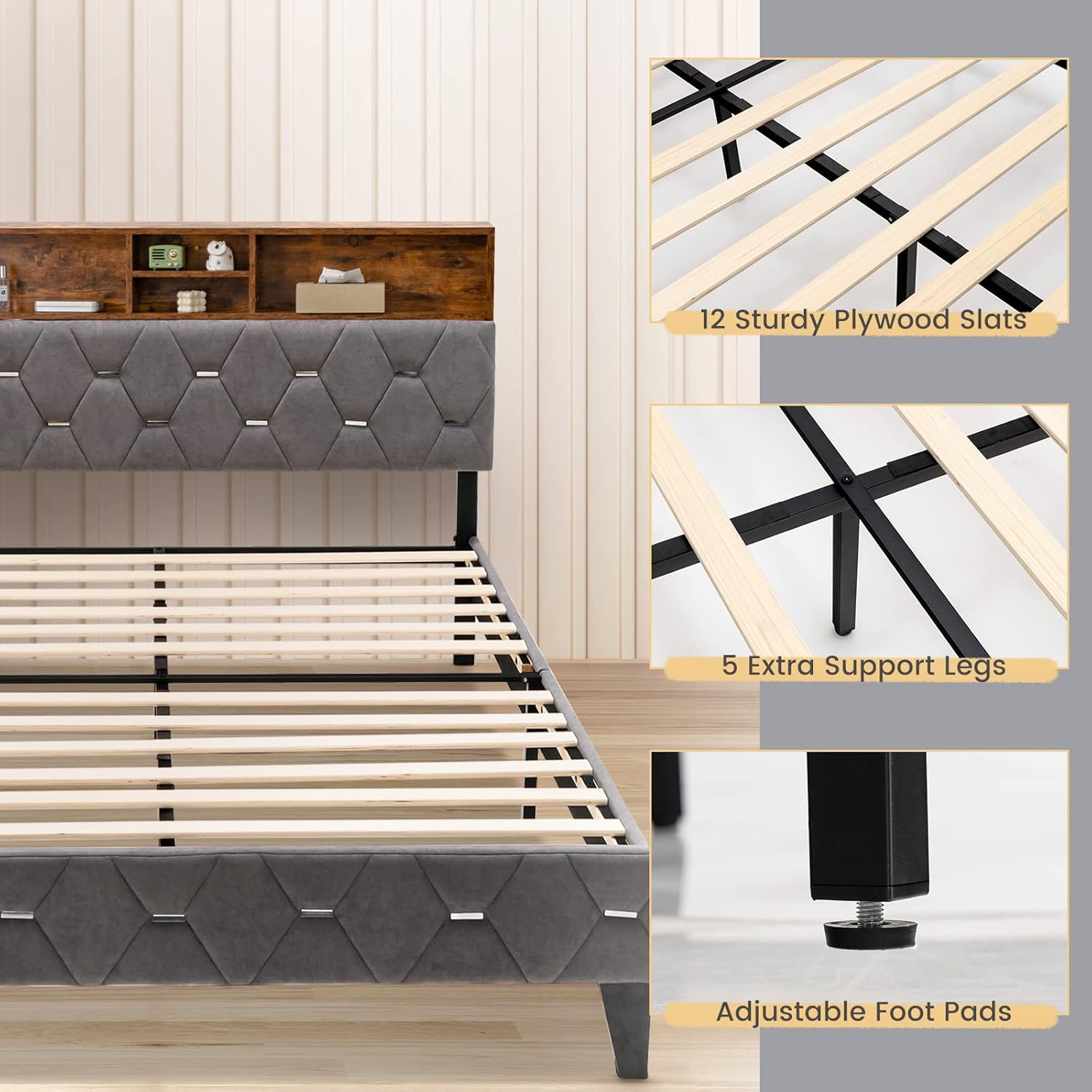

Image 4.1: Close-up view of the bed frame's internal structure, showing the wooden slats, metal support frame, and adjustable foot pads. This illustrates the robust support system for the mattress.

Image 4.2: This image highlights key design details such as the hook & loop fastener for slats, noise reduction foam on the center bar, the anti-toppling device for the headboard, and the upholstered headboard's velvet fabric.

5. Operating Instructions

5.1 Using the Storage Headboard

The headboard features a hidden storage compartment and open shelves. To access the hidden compartment, gently lift the upholstered section of the headboard. It is equipped with a premium hydraulic lifting system for smooth and quiet operation. A magnetic catch helps secure the lid when closed.

• Opening: Gently pull the upholstered section upwards. The hydraulic lift will assist in holding it open.
• Closing: Gently push the upholstered section downwards until the magnetic catch engages, securing it in the closed position.

Image 5.1: Detailed view of the storage headboard's internal mechanisms, including the premium hydraulic lifting system, durable metal hinges, and practical magnetic catch. This demonstrates how the hidden compartment operates.

5.2 Mattress Placement

This platform bed frame does not require a box spring. Place your mattress directly onto the wooden slats. The recommended mattress thickness is 25-30 cm (approximately 9.8-11.8 inches).

6. Maintenance

6.1 Cleaning

• Upholstered Parts (Velvet Fabric): Gently vacuum with an upholstery attachment to remove dust. For spills, blot immediately with a clean, dry cloth. For stubborn stains, consult a professional upholstery cleaner or use a mild fabric cleaner according to its instructions. Test any cleaning solution on an inconspicuous area first.
• Wooden Parts: Wipe with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Under-bed Space: The bed frame provides 16 cm (approximately 6.3 inches) of under-bed clearance, facilitating easy cleaning with a vacuum or robot cleaner.

Image 6.1: This image illustrates the 16 cm under-bed clearance, demonstrating how it allows for convenient cleaning underneath the bed frame, such as with a robotic vacuum.

6.2 General Care

• Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain stability.
• Avoid exposing the bed frame to direct sunlight or extreme temperature changes, which can affect the wood and fabric.

7. Troubleshooting

• Squeaking Noises: Check all connections and tighten any loose bolts. The center support bar is equipped with noise reduction foam to minimize squeaking; ensure it is properly positioned.
• Bed Frame Wobbles: Ensure all support legs are firmly on the ground and adjusted correctly. Check that all assembly hardware is securely tightened. Verify the bed is on a level surface.
• Headboard Storage Lid Not Staying Open/Closed: Check the hydraulic lift system for proper function. Ensure the magnetic catch is aligned and engaging correctly.
• Parts Missing/Damaged: Do not attempt to force assembly. Contact COSTWAY customer service immediately for replacement parts.

8. Specifications

9. Warranty and Support

For warranty information, specific return policies, or technical support, please refer to the documentation included with your purchase or visit the official COSTWAY website. If you encounter any issues or have questions regarding your product, please contact COSTWAY customer service directly. Ensure you have your model number (77301UH) and proof of purchase available when contacting support.
