VCK 9L Ultrasonic Cool Mist Top Fill Humidifier

Instruction Manual - Model: LE-H007A

1. Introduction and Overview

Thank you for choosing the VCK 9L Ultrasonic Cool Mist Top Fill Humidifier. This device is designed to efficiently add moisture to the air in large rooms, improving air quality and comfort. It features a generous 9-liter capacity, ultrasonic cool mist technology, a convenient top-fill design, an essential oil tray for aromatherapy, three mist speed settings, a 360-degree rotatable nozzle, a programmable timer, and an intelligent AI mode for automatic humidity control. Please read this manual thoroughly before operation to ensure safe and optimal performance.

VCK 9L Humidifier with features listed: Quiet, 3 Spray Modes, Remote Control, 1-24H Timer, Aroma Box, AI Mode, 9L Large Tank, Top Fill Design.
Image 1.1: Overview of the VCK 9L Humidifier highlighting key features such as quiet operation, multiple spray modes, remote control, timer, aroma box, AI mode, large tank, and top-fill design.
VCK 9L Humidifier in a living room setting with a family, emphasizing its 9L capacity and longer runtime.
Image 1.2: The VCK 9L Humidifier shown in a home environment, illustrating its large capacity (9L / 2.38 Gallons) for extended operation.

2. Important Safety Instructions

To reduce the risk of fire, electric shock, or injury, please observe the following safety precautions:

  • Always place the humidifier on a firm, flat, waterproof surface at least 12 inches (30 cm) away from walls and appliances.
  • Do not place the humidifier directly on carpet, towels, or other absorbent surfaces.
  • Ensure the power cord is not damaged and is placed where it cannot be tripped over.
  • Unplug the humidifier from the power outlet before filling, cleaning, or moving it.
  • Do not immerse the base unit in water or other liquids.
  • Use only clean, cool tap water. Distilled or demineralized water is recommended to prevent mineral buildup.
  • Do not add essential oils directly into the water tank. Use only the designated essential oil tray.
  • Keep the humidifier out of reach of children and pets.
  • Do not block the mist outlet or air intake vents.
  • If the humidifier emits an unusual smell or sound, or if smoke appears, unplug it immediately and contact customer support.

3. Product Components

Familiarize yourself with the main parts of your VCK humidifier:

  • Mist Nozzle: Rotates 360 degrees to direct mist.
  • Water Tank: Large capacity (9L) for extended operation. Features a transparent water level indicator.
  • Control Panel: Digital display and touch buttons for settings.
  • Base Unit: Contains the ultrasonic transducer, fan, and electronic components.
  • Essential Oil Tray: A small compartment for adding essential oils.
  • Power Cord: For connecting to an electrical outlet.
  • Remote Control: For convenient operation from a distance.
Close-up images showing the aroma box, 360-degree nozzle, night mode, and AI mode display on the VCK humidifier.
Image 3.1: Detailed view of the Aroma Box, 360° Nozzle, Night Mode indicator, and AI Mode display (showing 40%-90% Relative Humidity range).

4. Setup

  1. Unpack: Carefully remove all packaging materials and place the humidifier on a flat, stable surface.
  2. Placement: Position the humidifier in the desired location, ensuring it is at least 12 inches (30 cm) from walls, furniture, and electronics. Avoid placing it directly under vents or near heat sources.
  3. Fill Water Tank: Open the top cover. Pour clean, cool tap water directly into the water tank. Do not exceed the 'MAX' fill line. Distilled or demineralized water is recommended to minimize mineral dust.
  4. Add Essential Oils (Optional): Open the essential oil tray located on the side or back of the unit. Add a few drops of your preferred essential oil onto the aroma pad. Close the tray securely. Do not add essential oils directly into the water tank.
  5. Connect Power: Plug the power cord into a standard electrical outlet. The humidifier will enter standby mode.

5. Operating Instructions

The humidifier can be operated using the touch control panel on the unit or the included remote control.

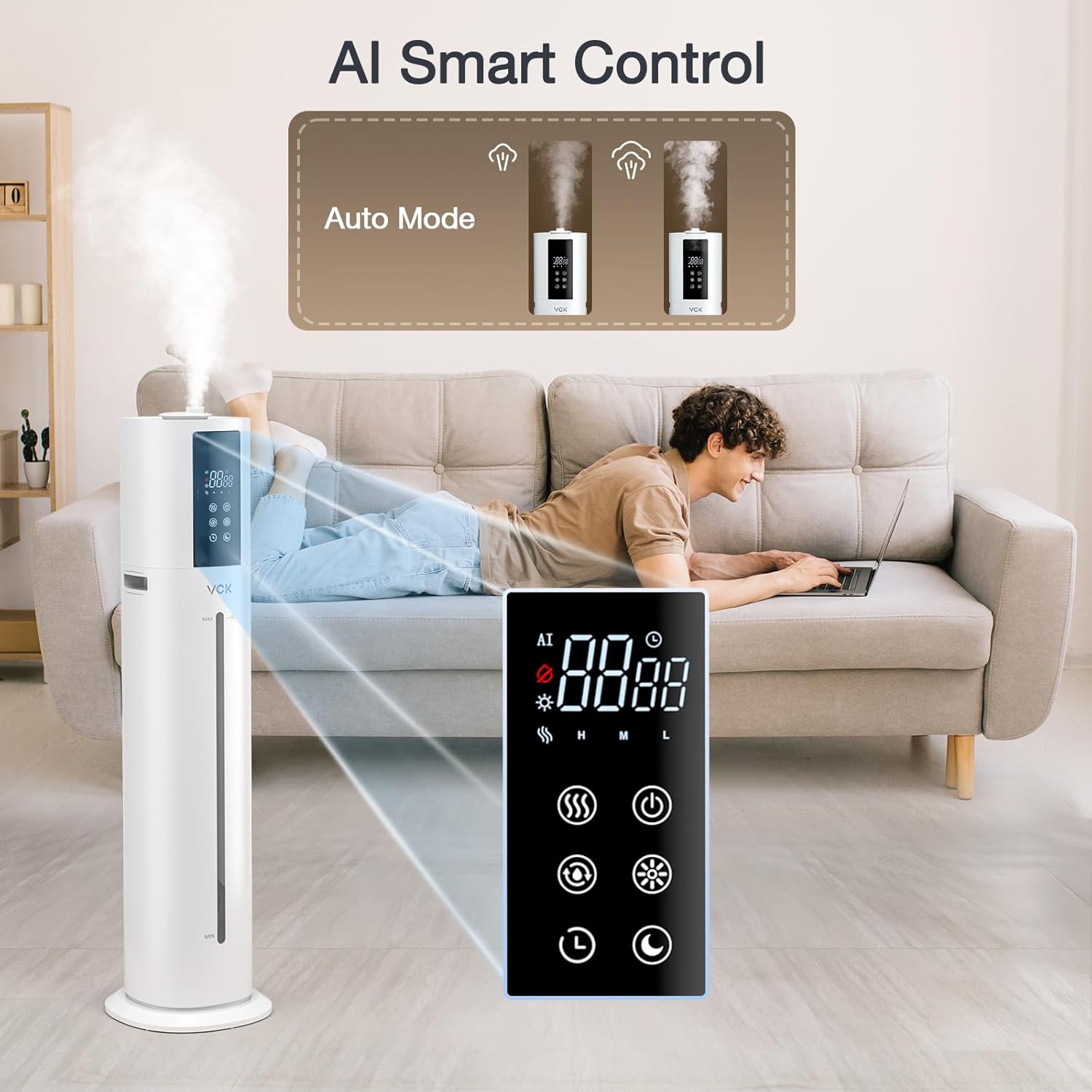

VCK Humidifier with a remote control showing various functions like AI mode, mist levels, timer, and night mode.
Image 5.1: The VCK Humidifier's control panel and remote control, illustrating the AI Smart Control feature.

5.1 Basic Operation

  • Power On/Off: Press the Power button (Power icon) to turn the humidifier on or off. The display will illuminate when on.
  • Mist Speed Adjustment: Press the Mist button (Mist icon) repeatedly to cycle through 3 mist output levels (Low, Medium, High).
  • 360° Nozzle: Manually rotate the mist nozzle on top of the unit to direct the mist in any desired direction.

5.2 Advanced Features

  • AI Mode (Automatic Humidity Control): Press the AI Mode button (AI icon) to activate. The humidifier will automatically adjust mist output to maintain a comfortable humidity level between 40% and 90% Relative Humidity (RH). The display will show the current humidity.
  • Timer Function: Press the Timer button (Timer icon) repeatedly to set an operating time from 1 to 24 hours. The humidifier will automatically turn off when the set time expires.
  • Night Mode: Press the Night Mode button (Night Mode icon) to dim the display lights and reduce operational noise for undisturbed sleep.
  • Remote Control: The included remote control allows you to access all functions (Power, Mist Speed, AI Mode, Timer, Night Mode) from a distance. Ensure the remote is pointed towards the humidifier's display panel.

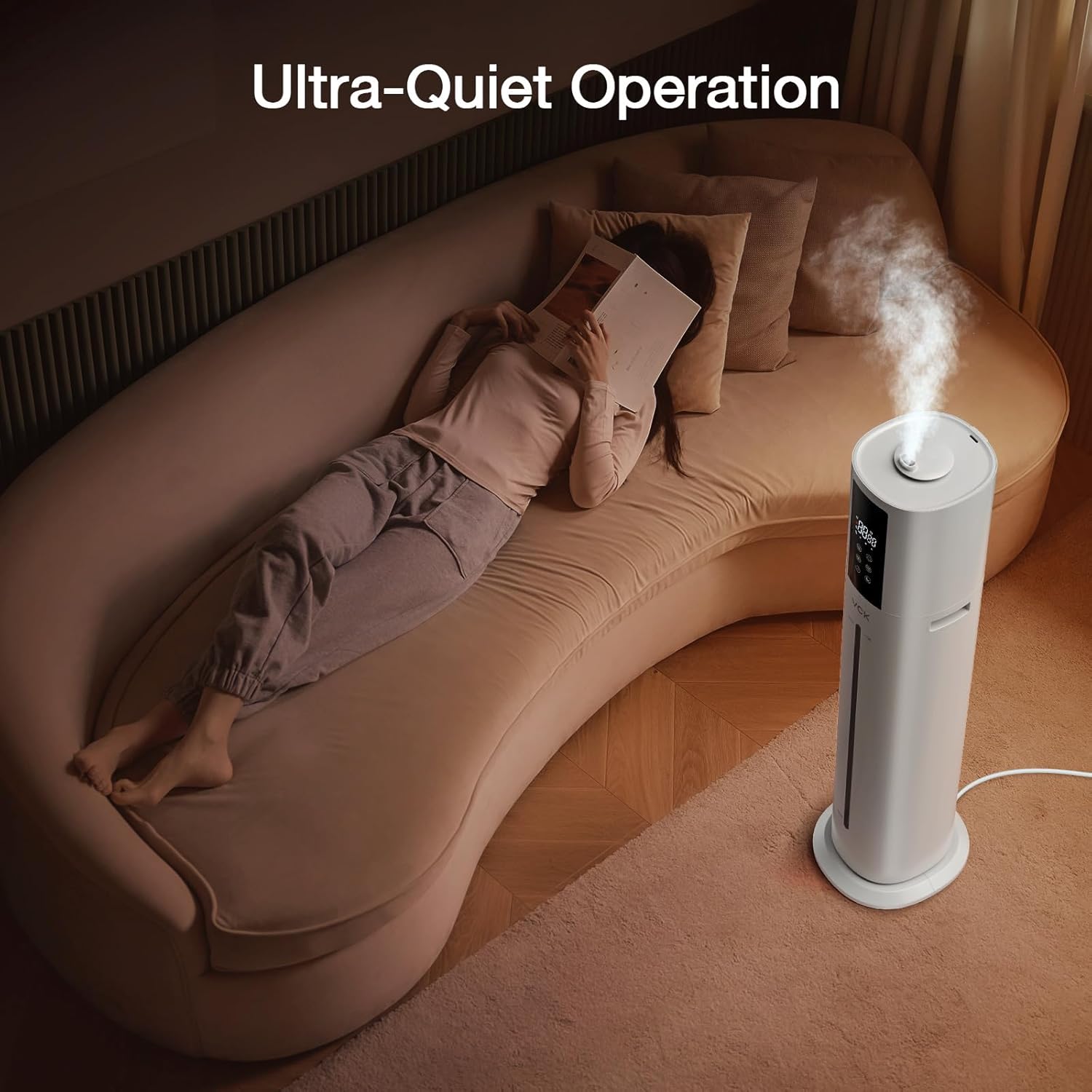

VCK Humidifier operating quietly in a bedroom while a person reads in bed.
Image 5.2: The humidifier demonstrating its ultra-quiet operation, suitable for use in bedrooms or other quiet environments.

6. Maintenance

Regular cleaning is essential for optimal performance and hygiene. Always unplug the humidifier before cleaning.

6.1 Daily Maintenance

  • Empty and rinse the water tank daily.
  • Wipe the inside of the water tank and the base with a clean, damp cloth.
  • Refill with fresh, cool water.

6.2 Weekly Maintenance (Descaling)

Mineral deposits (white dust) can accumulate on the transducer and inside the tank. Follow these steps to descale:

  1. Unplug the humidifier.
  2. Empty any remaining water from the tank and base.
  3. Pour 1 cup (240ml) of undiluted white vinegar into the water tank and into the base reservoir, ensuring it covers the ultrasonic transducer.
  4. Let it soak for 20-30 minutes.
  5. Use a soft brush or cloth to gently clean the transducer and the inside of the tank to remove mineral buildup.
  6. Rinse the tank and base thoroughly with clean water until the vinegar smell is gone.
  7. Wipe the essential oil tray clean with a damp cloth.

6.3 Storage

When storing the humidifier for an extended period:

  • Clean and descale the unit as per weekly maintenance instructions.
  • Ensure all parts are completely dry before reassembling.
  • Store in a cool, dry place, preferably in its original packaging.

7. Troubleshooting

If you encounter issues with your humidifier, please refer to the following common problems and solutions:

Problem Possible Cause Solution
No mist or very little mist
  • No water in tank
  • Mineral buildup on transducer
  • Mist nozzle blocked
  • Refill water tank.
  • Clean the transducer as per weekly maintenance.
  • Ensure mist nozzle is clear of obstructions.
"No Water" error / Red light indicator
  • Water level is too low
  • Sensor malfunction
  • Refill the water tank to above the minimum level.
  • Ensure the float sensor in the base is not stuck or obstructed. If the issue persists after refilling, contact customer support.
Unusual noise
  • Humidifier not on a flat surface
  • Water level too low
  • Foreign object in base
  • Place on a firm, flat surface.
  • Refill water tank.
  • Unplug and check the base for any foreign objects.
Water leakage
  • Overfilled water tank
  • Unit not assembled correctly
  • Do not fill past the 'MAX' line.
  • Ensure all components are securely in place.

8. Specifications

  • Brand: VCK
  • Model Number: LE-H007A
  • Capacity: 9 Liters (2.38 Gallons)
  • Room Type: Large Room / Bedroom
  • Power Source: Corded Electric
  • Mist Type: Ultrasonic Cool Mist
  • Features: Top Fill Design, Essential Oil Tray, 3 Mist Speeds, 360° Rotatable Nozzle, 1-24 Hour Timer, AI Mode (40%-90% RH), Remote Control, Ultra-Quiet Operation, Night Mode.
VCK Humidifier shown in various large room settings: piano room, whole house, gym, and office, indicating its suitability for large spaces.
Image 8.1: The humidifier's application in various large spaces, demonstrating its capability to quickly humidify extensive areas.

9. Warranty and Support

For warranty information, technical assistance, or any questions regarding your VCK 9L Ultrasonic Cool Mist Top Fill Humidifier, please contact VCK customer support. Refer to the product packaging or the official VCK website for contact details. Please have your model number (LE-H007A) and purchase information ready when contacting support.
