Introduction
Thank you for choosing the Diivoo Bluetooth Smart Watering Timer. This device is designed to automate your garden irrigation, providing convenience and efficient water management. With app control, you can easily set up watering schedules, activate manual watering, and utilize the rain delay function for optimal plant care.
Product Overview & Features
The Diivoo WT-05 Smart Watering Timer offers advanced features for flexible and efficient irrigation:
- Bluetooth Connectivity: Control your watering timer wirelessly via the dedicated smartphone application.
- Smart App Control: Manage up to 20 customizable watering plans directly from your mobile device.
- Multiple Watering Modes: Supports both automatic scheduled watering and instant manual watering.
- Rain Delay Function: Pause your watering schedule for 24, 48, or 72 hours to conserve water during rainy periods.
- Versatile Application: Ideal for various watering needs including gardens, vegetable patches, lawns, greenhouses, flower beds, and even pool filling.
- Extended Bluetooth Range: Reliable control up to 49.2 feet (15 meters) without interference.
Image: The Diivoo Smart Watering Timer shown alongside a smartphone displaying its control application, illustrating the device's app-controlled functionality.
Image: A user relaxing in a hammock while controlling the Diivoo watering timer via Bluetooth on their smartphone, demonstrating the convenience of remote app control.
Image: An illustration showing the effective Bluetooth remote control range of the Diivoo watering timer, indicating a distance of up to 49.2 feet (15 meters).
Package Contents
Please check the package for the following items:
- Diivoo Bluetooth Smart Watering Timer (WT-05)
- User Manual (this document)
Setup
1. Battery Installation
The Diivoo Smart Watering Timer requires batteries for operation. Locate the battery compartment, typically on the back or side of the device. Insert the required batteries (usually AA or AAA, check device markings) ensuring correct polarity.
Image: A detailed view of the Diivoo watering timer's components, highlighting the battery compartment, inlet filter, and hose connections.
2. Physical Installation
- Ensure your outdoor faucet is turned off.
- Screw the Diivoo Smart Watering Timer onto your outdoor faucet. Ensure a tight, leak-free connection.
- Connect your garden hose to the outlet of the watering timer.
- Turn on your outdoor faucet. The timer is now ready to receive commands.
3. App Download & Pairing
- Download the "Smart Life" or "Diivoo Home" app from your smartphone's app store (iOS App Store or Google Play Store).
- Open the app and create an account or log in.
- Follow the in-app instructions to add a new device. The app will guide you through the pairing process using Bluetooth. Ensure Bluetooth is enabled on your smartphone.
- Once paired, you will see the Diivoo Smart Watering Timer listed in your app, ready for configuration.
Operating Instructions
1. Creating Watering Schedules
The app allows you to create up to 20 different watering plans:
- Open the Diivoo app and select your watering timer.
- Navigate to the "Schedule" or "Timer" section.
- Tap the "+" icon to add a new schedule.
- Choose between "Normal Schedule" (timed irrigation) or "Cycle/Soak" (cyclical irrigation).
- Set the start time, duration, frequency (e.g., daily, specific days of the week, every few days), and any other desired parameters.
- Save the schedule. The timer will now automatically follow this plan.
Image: The Diivoo app interface demonstrating the two available watering modes: Timed Irrigation for setting specific durations, and Cyclical Irrigation for repeating on/off cycles.
2. Manual Watering
For immediate watering outside of your set schedules:
- In the app, select your watering timer.
- Look for a "Manual" or "Instant On" option.
- Set the desired duration for manual watering.
- Confirm to start watering immediately. This will not interfere with your pre-set automatic schedules.
3. Rain Delay Function
To prevent overwatering during rainy weather:
- Access the "Rain Delay" feature in the app.
- Select the desired delay period: 24 hours, 48 hours, or 72 hours.
- Confirm the delay. All scheduled watering will be paused for the selected duration and will resume automatically afterward.

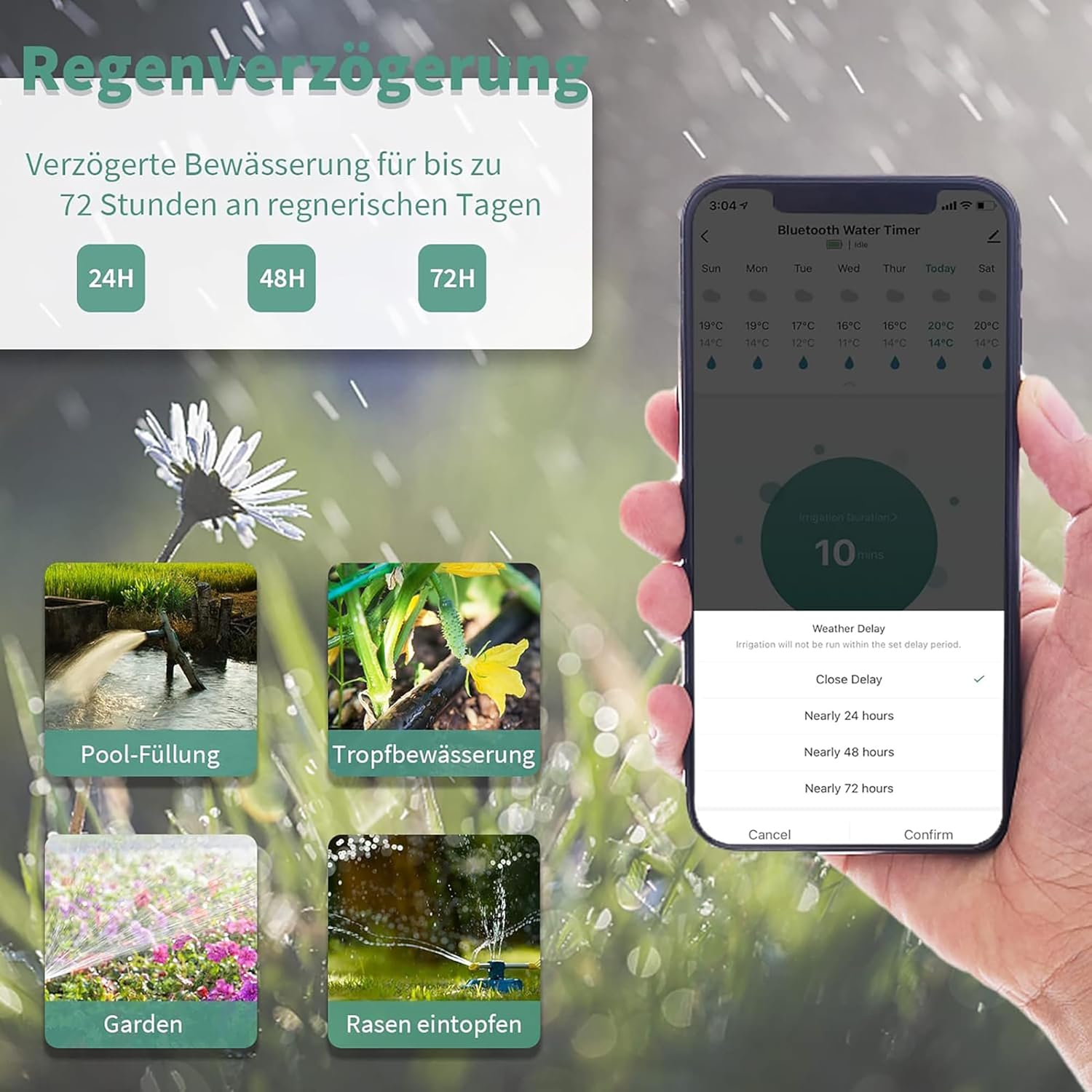

Image: The Diivoo app displaying the rain delay options, allowing users to pause watering for 24, 48, or 72 hours to conserve water during rainfall.
Image: A collage illustrating diverse applications of the Diivoo watering timer, including sprinkler systems, drip irrigation, pool filling, and general garden watering.
Maintenance
- Battery Replacement: Replace batteries when the low battery indicator appears in the app or on the device (if applicable). Always use fresh batteries of the recommended type.
- Cleaning: Periodically clean the exterior of the timer with a damp cloth. Do not use abrasive cleaners.
- Filter Cleaning: The inlet connection has a filter to prevent debris from entering the timer. Periodically remove and clean this filter to ensure proper water flow.
- Winterization: Before freezing temperatures, disconnect the timer from the faucet and hose, remove batteries, and store it indoors in a dry, protected area to prevent damage from freezing water.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Timer not turning on/off | Low or dead batteries; Incorrect schedule; Faucet off; Water pressure too low. | Replace batteries; Check app schedule settings; Ensure faucet is fully open; Check water supply pressure. |
| Leaking from connections | Loose connections; Worn washers; Damaged threads. | Tighten connections; Replace rubber washers; Inspect threads for damage. |
| Cannot connect to app via Bluetooth | Bluetooth off on phone; Timer out of range; Batteries low; App issue. | Enable Bluetooth; Move closer to timer (within 15m); Replace batteries; Restart app/phone. |
| Watering schedule not running | Rain delay active; Schedule disabled; Incorrect time/date setting. | Check and disable rain delay; Ensure schedule is enabled in app; Verify correct time/date in app. |
Specifications
| Model Number | WT-05 |
| Brand | Diivoo |
| Color | Green |
| Dimensions (L x W x H) | 14.7 x 6.65 x 11.85 cm (5.79 x 2.62 x 4.67 inches) |
| Weight | 350 grams (0.77 lbs) |
| Watering Plans | Up to 20 |
| Connectivity | Bluetooth |
| Bluetooth Range | Up to 15 meters (49.2 feet) |
Image: Technical drawing showing the precise dimensions of the Diivoo Smart Watering Timer in both millimeters and inches.
Warranty and Support
Diivoo products are designed for reliability and performance. For warranty information, technical support, or any inquiries regarding your Diivoo Smart Watering Timer, please refer to the contact information provided on the product packaging or visit the official Diivoo website. Please retain your proof of purchase for warranty claims.
