1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the Baomain BM-J01-F Nonprogrammable Thermostat. This device is designed for controlling radiant floor heating systems in various building types, including commercial, residential, and light industrial. It is particularly effective for intermittent heating requirements.
2. Safety Information
WARNING: Electrical Shock Hazard. Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Disconnect power at the circuit breaker before installation or servicing.
- Ensure the power supply voltage (110-120V AC) matches the thermostat's requirements.
- Do not exceed the maximum load current of 16 Amps.
- Keep the device away from water and moisture.
- Do not attempt to repair or modify the thermostat yourself. Contact qualified personnel for service.
3. Product Overview

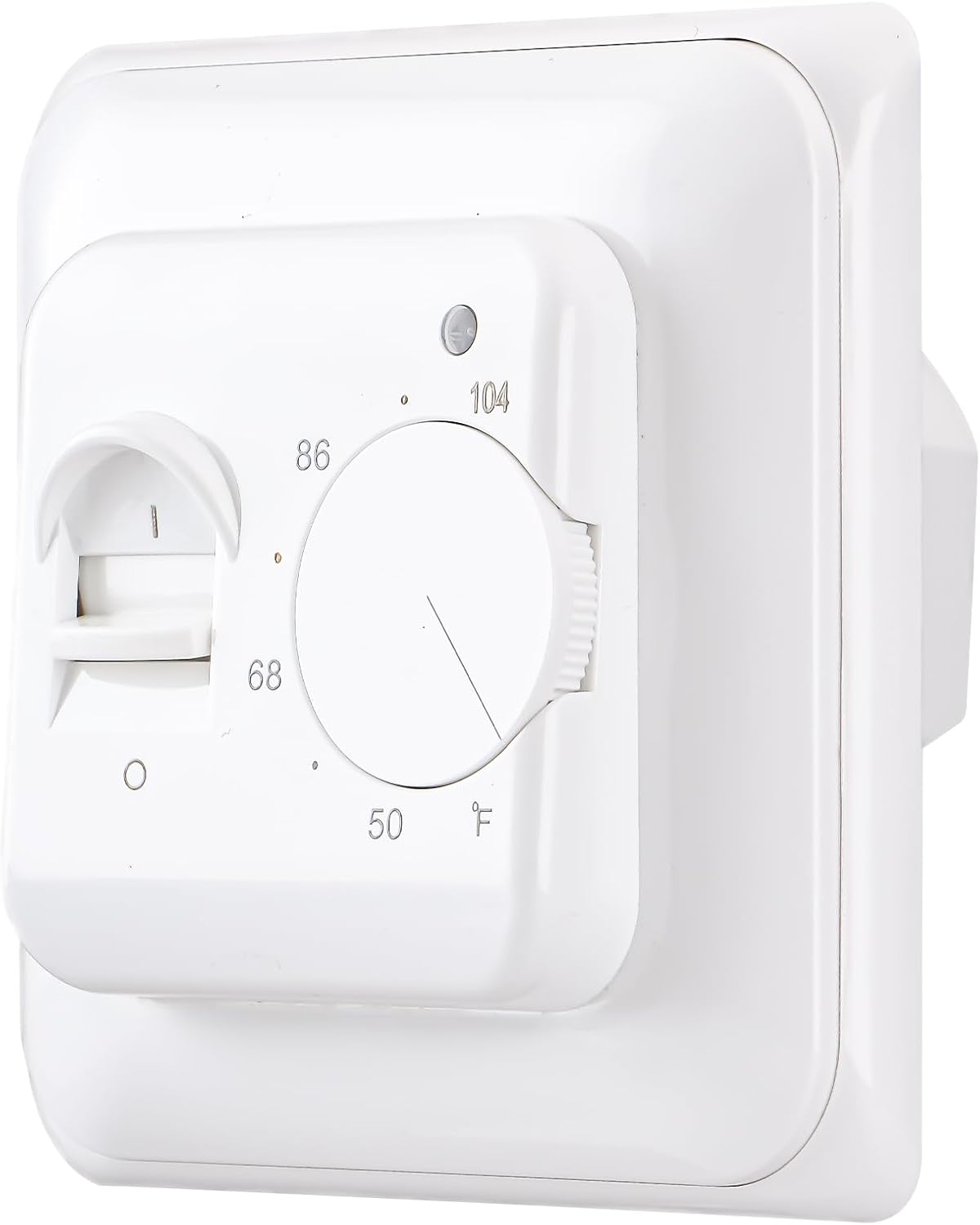

The Baomain BM-J01-F is a manual temperature controller for radiant floor heating systems. It features a simple dial for temperature adjustment and an LED indicator for heating status.
Key Features:
- Temperature control range: 40°F - 104°F (adjustable upper limit 95°F - 140°F).
- Power Supply: 115 VAC ±10% 50/60Hz.
- Maximum Load Current: 16 Amp.
- Power Consumption: <2W.
- Ambient temperature display accuracy: ±0.1℃.
- Temperature control accuracy: ±0.5℃.
- Includes a 3m floor temperature sensor.
- LED indicator for heating status.
4. Setup and Installation
Proper installation is critical for the safe and efficient operation of your thermostat. Please follow these steps carefully.
4.1 Wiring Diagram
Refer to the wiring diagram below for correct electrical connections. Ensure all connections are secure and insulated.
4.2 Physical Installation
- Power Disconnection: Turn off the main power supply at the circuit breaker before beginning any installation work.
- Mounting: The thermostat is designed for concealed installation. The installation hole distance is 60mm. Note that this thermostat may not fit standard American electrical boxes without modification or an adapter plate.
- Wiring: Connect the power supply wires, heating load wires, and the floor sensor wires to the appropriate terminals as shown in Figure 3. Ensure proper gauge wires are used for the 16A load.
- Sensor Placement: Install the 3-meter floor temperature sensor in the floor, ideally within the heating mat/cable area, to accurately measure floor temperature.
- Secure Thermostat: Mount the thermostat securely into the wall box.
- Restore Power: Once all connections are secure and the thermostat is mounted, restore power at the circuit breaker.
5. Operating Instructions
The Baomain BM-J01-F thermostat is designed for straightforward manual operation.
- Power On: Ensure power is supplied to the thermostat.
- Set Temperature: Rotate the temperature dial on the front of the thermostat to your desired floor temperature. The temperature range is from 40°F to 104°F.
- Heating Indicator: A small LED light on the thermostat will illuminate when the heating system is actively engaged to reach or maintain the set temperature.
- Temperature Control: The thermostat will automatically turn the heating system on and off to maintain the set floor temperature within its accuracy range.
6. Maintenance
The Baomain BM-J01-F thermostat requires minimal maintenance.
- Cleaning: Periodically wipe the thermostat's surface with a soft, dry cloth to remove dust. Do not use abrasive cleaners or solvents.
- Inspection: Annually, or if you suspect an issue, have a qualified electrician inspect the wiring connections for any signs of wear or loosening.
- There are no user-serviceable parts inside the thermostat.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Thermostat not powering on. | No power supply; incorrect wiring. | Check circuit breaker. Verify wiring connections (refer to Figure 3). |
| Heating not turning on. | Temperature set too low; faulty wiring; sensor issue. | Increase set temperature. Check wiring. Ensure sensor is correctly installed and functional. |
| Floor not reaching desired temperature. | Heating system capacity; insulation issues; sensor placement. | Ensure heating system is adequately sized for the area. Verify proper floor insulation. Check sensor placement for accurate readings. |
| Thermostat does not fit standard US electrical box. | Product designed for different mounting standards. | Custom fabrication or adapter plate may be required. Consult a professional for solutions. |
8. Specifications
| Specification | Detail |
|---|---|
| Model Name | BM-J01-F |
| Power Supply Voltage | 115 VAC ±10% 50/60Hz |
| Load Current | 16 Amp (Max) |
| Power Consumption | <2W |
| Temperature Control Range | 40°F - 104°F (Upper limit adjustable 95°F - 140°F) |
| Ambient Temperature Display Accuracy | ±0.1℃ |
| Temperature Control Accuracy | ±0.5℃ |
| Installation Method | Concealed installation |
| Installation Hole Distance | 60mm |
| Housing Material | Anti-flammable PC Plastic |
| Levels of Protection | IP20 |
| Included Components | Thermostat, Wall Plate, 3m Floor Temperature Sensor |
| Product Dimensions (D x W x H) | 1.92"D x 3.39"W x 3.39"H (48.7mm D x 86mm W x 86mm H) |
| Weight | 248g |
9. Warranty and Support
For warranty information or technical support, please contact Baomain customer service directly through their official channels or the retailer from whom the product was purchased. Please have your model number (BM-J01-F) and purchase date available when contacting support.
