Beghelli Salvalavita Phone SLV19 User Manual
Emergency GSM Mobile Phone with SOS Function
1. Introduction
This manual provides detailed instructions for the proper use and maintenance of your Beghelli Salvalavita Phone SLV19. Please read this manual carefully before using the device to ensure safe and optimal performance. Keep this manual for future reference.
2. Package Contents
Verify that all items are present in the package:
- Beghelli Salvalavita Phone SLV19
- Battery
- Charger
- User Manual (this document)
Image Description: A black power adapter with a European two-pin plug and an attached black USB-A to Micro-USB charging cable. The charger has "Beghelli" branding.
3. Device Overview
The Beghelli Salvalavita Phone SLV19 is a user-friendly flip phone designed for clear communication and emergency assistance. It features large keys, a bright display, and a dedicated SOS button.

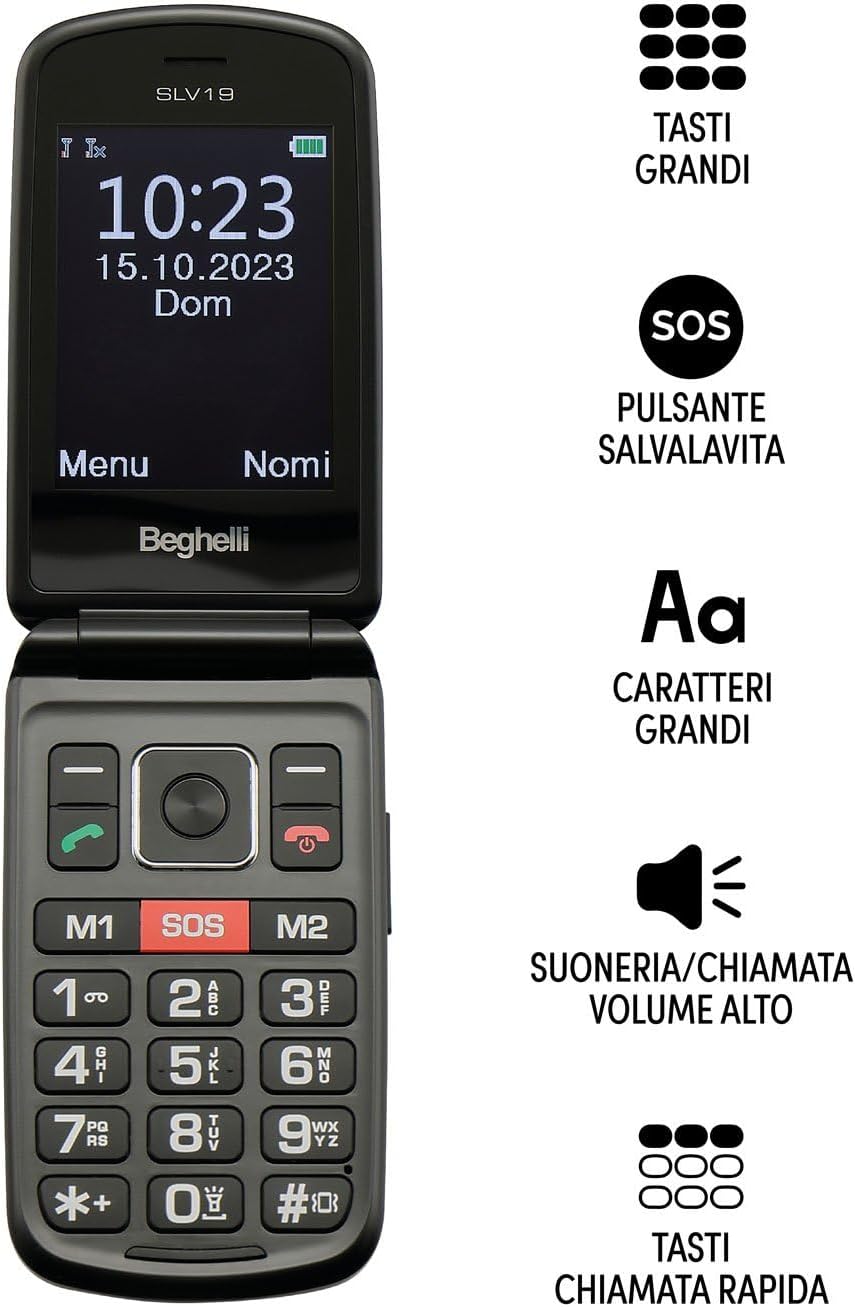

Image Description: The Beghelli Salvalavita Phone SLV19 shown open, displaying the screen and keypad. Key features are highlighted: large keys, SOS button, large characters on screen, high volume ringer, and quick dial keys.
Image Description: The Beghelli Salvalavita Phone SLV19 shown open, revealing its 2.8-inch color display and large, backlit keypad with clearly labeled buttons.
Image Description: The Beghelli Salvalavita Phone SLV19 in its closed, compact flip phone form factor, showing the front casing.
Image Description: A side view of the Beghelli Salvalavita Phone SLV19 when closed, highlighting its slim profile and side buttons/ports.
Image Description: The back view of the Beghelli Salvalavita Phone SLV19 when closed, featuring the Beghelli logo and a smooth finish.
Image Description: A composite image showing both the front and back of the Beghelli Salvalavita Phone SLV19 in its closed state, providing a complete view of the device's exterior.
4. Setup
4.1. Inserting the SIM Card
The Beghelli Salvalavita Phone SLV19 requires a Nano SIM card (not included). Ensure the SIM card has voice and SMS traffic enabled.
- Open the back cover of the phone.
- Remove the battery if it is already inserted.
- Carefully insert the Nano SIM card into the designated slot, ensuring correct orientation.
- Reinsert the battery and close the back cover.
Note: A Nano SIM card with active voice and SMS services is required for phone functionality. The SIM card is not included in the package.
4.2. Inserting the Battery
- Remove the back cover of the phone.
- Align the battery contacts with the phone's terminals and gently press the battery into place.
- Replace the back cover, ensuring it clicks securely.
4.3. Charging the Phone
Before first use, fully charge the phone's battery.
- Connect the Micro-USB end of the charging cable to the charging port on the phone.
- Plug the power adapter into a wall outlet.
- The charging indicator on the phone will illuminate. Once fully charged, the indicator may change color or turn off.
- Disconnect the charger once charging is complete.
5. Operating Instructions
5.1. Powering On/Off
- To power on: Press and hold the Red Call End/Power button until the screen lights up.
- To power off: Press and hold the Red Call End/Power button until the power-off options appear, then confirm.
5.2. Making and Receiving Calls
- To make a call: Dial the number using the keypad and press the Green Call button.
- To receive a call: Press the Green Call button when the phone rings.
- To end a call: Press the Red Call End/Power button.
5.3. SOS Emergency Function
The Salvalavita Phone SLV19 features a dedicated SOS button for emergencies. You can set up to 10 emergency numbers.
- Setting Emergency Numbers: Access the phone's settings menu to configure the emergency contact list. Refer to the "Contacts" section for detailed steps on adding and managing numbers.
- Activating SOS: In an emergency, press and hold the SOS button (typically located on the back or front of the phone, clearly marked) for 2 seconds.
- The phone will automatically dial the emergency numbers in sequence until one is answered. It will also send an emergency SMS to these contacts.
Optional: Beghelli Salvalavita Center Connection
This device can be connected to the Beghelli Salvalavita Center, a 24/7 monitoring service. Activation of this service requires a separate subscription.
Note: For details on activating and subscribing to the Beghelli Salvalavita Center service, please refer to the information provided with your device or visit the official Beghelli website.
5.4. Contacts (Phonebook)
Store frequently called numbers in the phonebook for easy access.
- Navigate to the "Contacts" or "Phonebook" menu option.
- Select "Add New Contact" and enter the name and phone number.
- Save the contact.
- You can assign quick dial numbers (M1, M2) to important contacts for one-touch dialing.
5.5. Multimedia Functions
The phone includes basic multimedia features. A TF memory card (up to 32GB, not included) is required for storing media files.
- Camera: Access the camera from the main menu to take photos.
- Video Player: Play MP4/AVI/3GP video files stored on the memory card.
- FM Radio: Tune into FM radio stations. Headphones may be required as an antenna.
- Flashlight: Activate the built-in flashlight from the shortcuts or menu.
- Calculator: Use the basic calculator function for arithmetic operations.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the phone's exterior. Avoid liquid cleaners.
- Battery Care: Do not expose the battery to extreme temperatures. If the phone will not be used for an extended period, charge it periodically to maintain battery health.
- Storage: Store the phone in a cool, dry place away from direct sunlight and moisture.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Phone does not turn on | Battery is depleted or not inserted correctly. | Charge the battery. Ensure the battery is correctly inserted. |
| Cannot make or receive calls | No SIM card, SIM card not inserted correctly, or no network signal. | Ensure SIM card is inserted correctly and activated. Check for network coverage. |
| SOS function not working | Emergency numbers not set, or no credit/signal. | Verify emergency numbers are configured. Ensure phone has network signal and sufficient credit. |
| Poor audio quality | Low volume setting, obstruction of speaker/microphone, or weak signal. | Adjust volume. Clear any obstructions. Move to an area with better signal. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | Salvalavita Phone SLV19 |
| Brand | Beghelli |
| Operating System | Proprietary |
| Cellular Technology | 2G (GSM Quadri Band) |
| SIM Card Type | Nano SIM (Dual SIM support) |
| Display Size | 2.8 Inches |
| Display Resolution | 320 x 240 |
| Memory Card Support | TF Card, up to 32 GB (not included) |
| Camera | Yes (1.3 MP with flash) |
| Battery Capacity | 1000 mAh Lithium |
| Dimensions (Closed) | 108 x 59 x 19 mm |
| Weight | 106 g |
| Additional Features | Large backlit keys, High volume, Vibration, Flashlight, FM Radio, Calculator, Video Player (MP4/AVI/3GP) |
Image Description: The product packaging for the Beghelli Salvalavita Phone SLV19, displaying various features and technical specifications in Italian, including GSM Quadri Band, 2.8-inch display, 1.3 MP camera, 1000mAh battery, and dimensions.
9. Warranty and Support
For warranty information and technical support, please refer to the official Beghelli website or contact their customer service. Keep your proof of purchase for warranty claims.
Beghelli Customer Service: Please visit www.beghelli.it for contact details and further assistance.
