SainSmart Creality Nebula Camera User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your SainSmart Creality Nebula Camera. This camera is designed to enhance your 3D printing experience through advanced monitoring and detection capabilities.

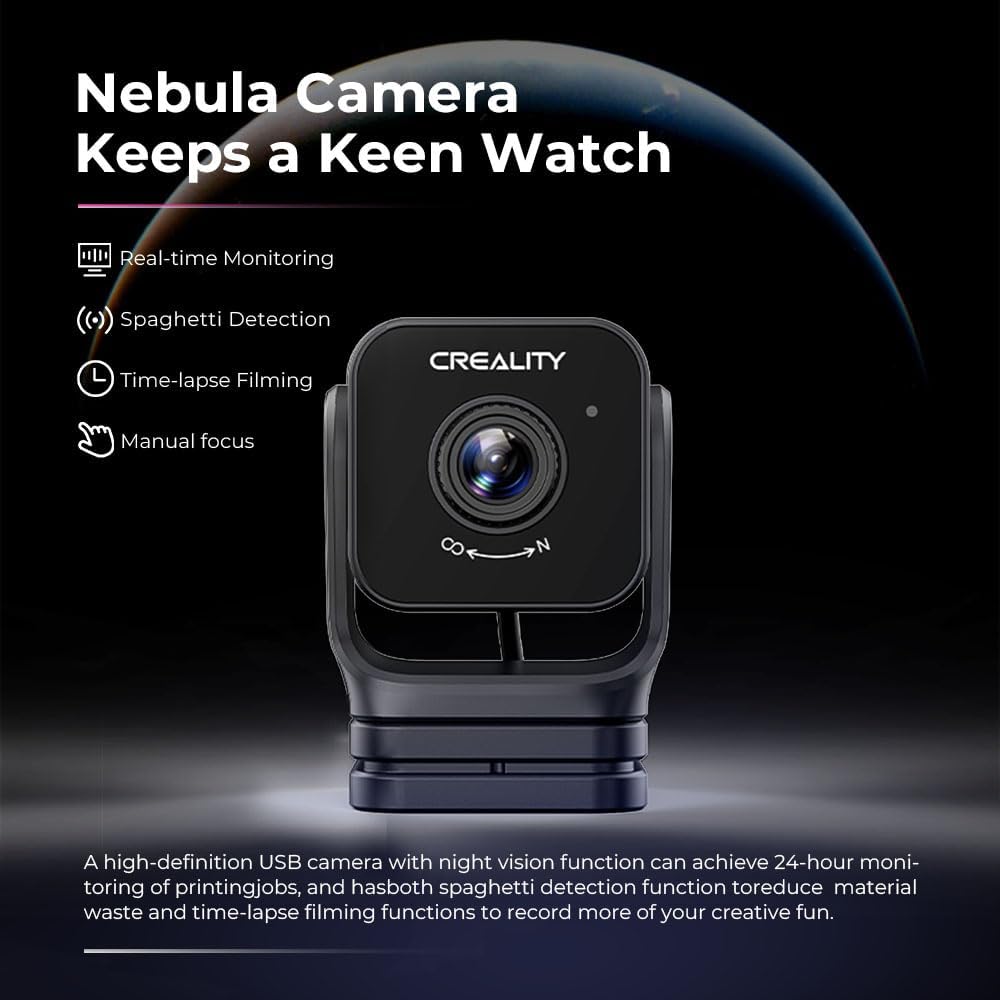

Figure 1: SainSmart Creality Nebula Camera

2. Key Features

• Seamless Integration and Wide Compatibility: Connects easily via USB to Creality Sonic Pad, Creality Nebula Pad, Ender-3 V3 KE, CR-10 SE, Holot-Mage, and Halot-Mage Pro printers.
• Remote Precision Monitoring: Offers real-time monitoring with 1920*1080 resolution and night vision, allowing you to track printing progress from any location.
• Dynamic Time-Lapse Recording: Capture and create engaging time-lapse videos of your 3D prints.
• Precision Imaging with Manual Focus: Adjust camera angle and focal length manually using the integrated knob for high-definition image quality.
• Continuous Monitoring for Uninterrupted Printing: Provides 24-hour surveillance with a built-in 940nm infrared fill light. Detects anomalies like filament jams or misalignments and sends alerts to prevent material waste.

Figure 2: Overview of Nebula Camera's core features.

3. What's in the Box

• Creality Nebula Camera

4. Setup Instructions

4.1. Camera Installation and Connection

The Nebula Camera connects to your 3D printer via a USB port. It is compatible with Creality Sonic Pad, Creality Nebula Pad, Ender-3 V3 KE, CR-10 SE, Holot-Mage, and Halot-Mage Pro printers.

1. Attach the Nebula Camera to its tripod or a suitable mounting point near your 3D printer.
2. Connect the camera's integrated USB cable to an available USB port on your compatible Creality 3D printer or Nebula Pad.

Figure 3: Nebula Camera connected to a 3D printer.

4.2. Initial Setup with Creality Print Software/App

For remote monitoring and control, ensure your Nebula Camera is properly integrated with the Creality Print software or app.

1. Install the Creality Print software on your computer or the Creality Cloud app on your mobile device.
2. Ensure your 3D printer/Nebula Pad and the device running Creality Print are on the same local area network (LAN).
3. In Creality Print, navigate to the 'Device' section and select 'Manual Add' or 'Scan Add'.
4. Enter the IP address of your Nebula Pad or 3D printer if prompted, then click 'Add'.
5. Once connected, you should see the camera feed and printer controls within the software.

4.3. Nebula Pad Integration (if applicable)

If using a Creality Nebula Pad, follow the on-screen instructions for initial setup, including network configuration and printer model selection. The Nebula Camera connects directly to the Nebula Pad.

Figure 4: Compatible Creality 3D printer models.

5. Operating Instructions

5.1. Real-time Monitoring

Once connected, you can view the live feed from the Nebula Camera through the Creality Print software or app. This allows for remote observation of your 3D printing process.

Figure 5: Monitoring printing status in real-time.

5.2. Night Vision

The camera features a built-in 940nm infrared fill light, enabling clear monitoring even in low-light or dark conditions. This ensures 24-hour surveillance of your prints.

Figure 6: Day and night vision capabilities.

5.3. Time-Lapse Filming

Utilize the time-lapse function to capture the entire printing process. These videos can be accessed and shared through the Creality app.

Figure 7: Time-lapse photography interface.

5.4. Spaghetti Detection

The Nebula Camera is equipped with AI detection to identify printing anomalies, such as 'spaghetti' failures. If a problem is detected, the system will alert you and can pause the print to prevent further material waste.

Figure 8: Spaghetti detection alert.

5.5. Manual Focus Adjustment

For optimal image clarity, manually rotate the lens of the Nebula Camera to adjust the focal length. This allows for precise focusing on your print area.

Figure 9: Manual focus for high-definition quality.

6. Maintenance

To ensure optimal performance and longevity of your Nebula Camera, follow these maintenance guidelines:

• Cleaning: Gently wipe the camera lens with a soft, lint-free cloth. Avoid abrasive materials or harsh chemicals that could scratch the lens.
• Storage: When not in use for extended periods, store the camera in a cool, dry place away from direct sunlight and excessive dust.
• Cable Care: Ensure the USB cable is not kinked or strained. Avoid pulling the cable forcefully when disconnecting.

7. Troubleshooting

If you encounter issues with your Nebula Camera, refer to the following common solutions:

• No Camera Feed:
  • Ensure the USB cable is securely connected to both the camera and the 3D printer/Nebula Pad.
  • Verify that the 3D printer/Nebula Pad is powered on.
  • Check the Creality Print software/app settings to confirm the camera is recognized and enabled.
• Poor Image Quality:
  • Adjust the manual focus knob on the camera lens until the image is clear.
  • Clean the camera lens if it appears smudged or dusty.
  • Ensure adequate lighting in the printing area, especially if night vision is not active.
• Spaghetti Detection Not Working:
  • Verify that the spaghetti detection feature is enabled in your Creality Print software/app settings.
  • Ensure the camera has a clear, unobstructed view of the print bed.
• Connectivity Issues:
  • Confirm that your device running Creality Print and the 3D printer/Nebula Pad are connected to the same Wi-Fi network.
  • Restart both the 3D printer/Nebula Pad and the Creality Print application.

8. Specifications

Figure 10: Detailed product specifications.

9. Warranty and Support

For warranty information and technical support, please refer to the official SainSmart website or contact their customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
