Andoer T64 Pocket LED Light User Manual

Introduction

The Andoer T64 Pocket LED Light is a compact and versatile lighting solution designed for various photography and videography needs, including vlogging, video conferencing, live streaming, and small product photography. It features adjustable color temperature and brightness, ensuring optimal illumination for different scenarios.

Key features include:

• Versatile Mounting Capability: Equipped with a threaded screw hole and 3 cold shoe mounts for easy attachment to tripods, stabilizers, and selfie sticks.
• High Quality Beads: Contains 64 LED beads (32 white, 32 yellow) for bright and satisfactory illumination.
• Compact & Easy to Carry: Portable design ideal for on-the-go use.
• 95+ High Color Rendering (CRI): Ensures accurate and faithful color representation in images and footage.
• Multiple Color Modes: Color temperature range of 2500K-9000K±200K with bi-color light modes to create desired moods.

What's in the Box

Upon unboxing, please verify that all components are present:

• 1 x Andoer T64 Photography Lamp
• 1 x Type-C Charging Cable
• 1 x User Manual

Image: Front and back view of the Andoer T64 Pocket LED Light, showing the light panel on one side and control buttons, battery indicator, and cold shoe mount on the other.

Setup

Charging the Device

Before first use, fully charge the Andoer T64 LED light. The device is equipped with a built-in 1200mAh lithium battery.

1. Locate the Type-C charging port on the side of the light.
2. Connect the provided Type-C cable to the light and the other end to a compatible USB power adapter (not included) or a computer USB port.
3. The battery indicator lights will show the charging progress. A full charge typically takes approximately 2 hours.

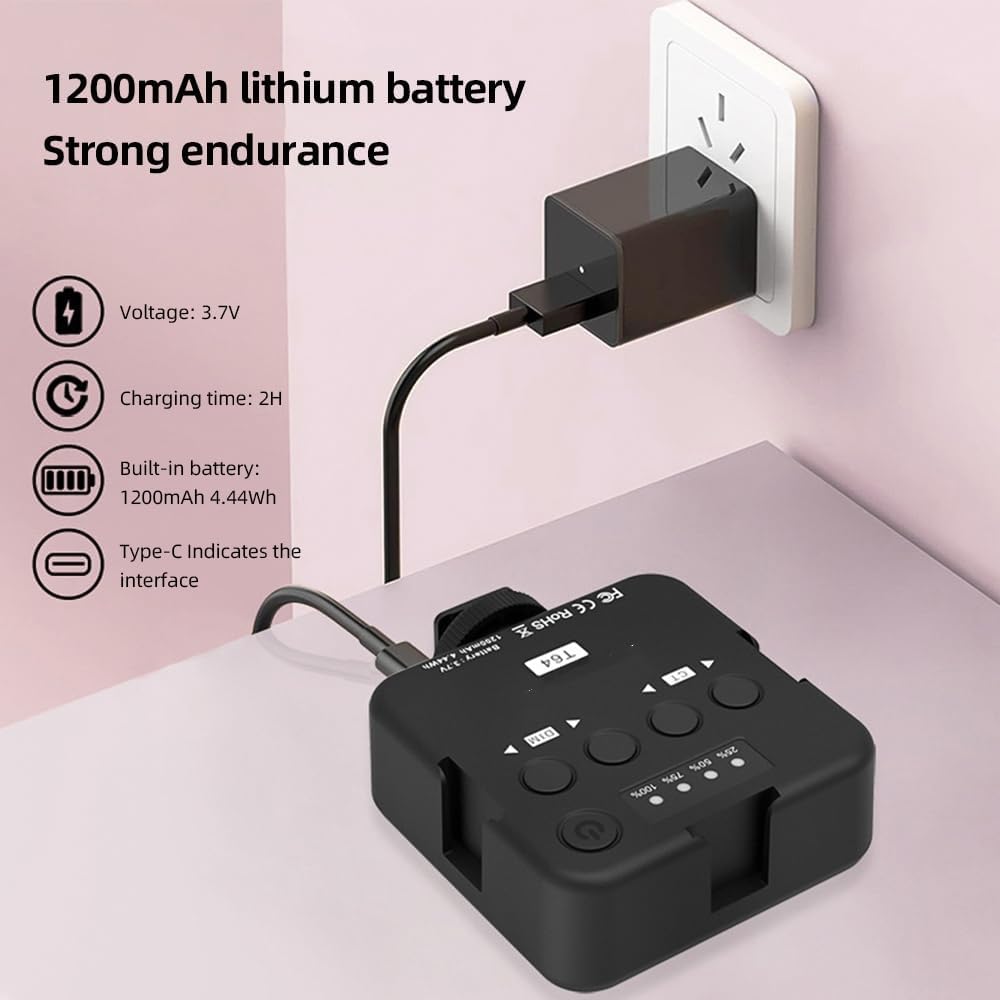

Image: The Andoer T64 LED light being charged via its Type-C port, with an illustration of the 1200mAh lithium battery and 2-hour charging time.

Mounting Options

The Andoer T64 offers flexible mounting options:

• Cold Shoe Mount: The light features a standard cold shoe mount at the bottom, allowing it to be attached directly to a camera's hot shoe, a camera cage, or other accessories with a cold shoe receiver.
• 1/4-inch Screw Hole: A 1/4-inch threaded screw hole is located at the bottom, compatible with tripods, light stands, and other photographic equipment.
• Multiple Cold Shoe Mounts: The light also includes three additional cold shoe mounts on its sides, enabling you to connect multiple T64 lights together for increased illumination or attach other accessories like microphones.

Image: Three Andoer T64 LED lights connected to each other and mounted on a DSLR camera, demonstrating the multi-light splicing capability using the cold shoe mounts.

Operating Instructions

Familiarize yourself with the controls of the Andoer T64 LED light:

Image: A detailed diagram of the Andoer T64 LED light's back panel, labeling the power/brightness/color temperature indicator, switch/function button, brightness control buttons (DIM), color temperature control buttons (CT), cold shoe mounts, and Type-C port.

• Power/Brightness/Color Temperature Indicator: Displays the current battery level, brightness level, and color temperature setting.
• Switch/Function Button (Power Button): Press and hold to power the light on or off. Short press to cycle through different display modes or confirm settings.
• Brightness Control (DIM) Buttons: Use the left and right arrow buttons under "DIM" to decrease or increase the brightness level.
• Color Temperature Control (CT) Buttons: Use the left and right arrow buttons under "CT" to adjust the color temperature from 2500K (warm) to 9000K (cool).

Adjusting Brightness and Color Temperature

The Andoer T64 allows for precise control over your lighting environment:

1. Power On: Press and hold the power button until the light turns on.
2. Adjust Brightness: Use the "DIM" arrow buttons to set the desired brightness level. The indicator will show the current percentage.
3. Adjust Color Temperature: Use the "CT" arrow buttons to change the color temperature. You can select from a range of 2500K (warm, yellowish light) to 9000K (cool, bluish light).

Image: Visual representation of the Andoer T64's dual color temperature adjustment, showing light output at 2500K (warm), 4500K (neutral), and 9000K (cool), with corresponding example portraits.

The compact size and versatile features make the T64 suitable for various applications:

Image: A collage showcasing the Andoer T64 LED light being used for different purposes, including live food photography, conference video calls, video fill light, camera fill light, and selfie fill light.

Maintenance

To ensure the longevity and optimal performance of your Andoer T64 Pocket LED Light, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the surface of the light. Do not use abrasive cleaners or solvents, as they may damage the finish or internal components.
• Storage: When not in use, store the light in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: To maintain battery health, avoid fully discharging the battery frequently. If storing for an extended period, charge the battery to about 50% capacity.
• Handle with Care: Avoid dropping the light or subjecting it to strong impacts, which could damage the LED beads or internal circuitry.

Troubleshooting

If you encounter issues with your Andoer T64 Pocket LED Light, refer to the following common troubleshooting steps:

• Light does not turn on:
  • Ensure the battery is sufficiently charged. Connect the light to a power source using the Type-C cable and allow it to charge for at least 30 minutes.
  • Press and hold the power button for a few seconds to ensure it's not just a short press.
• Light is dim or flickers:
  • Check the battery level; a low battery can affect brightness. Recharge the device.
  • Ensure the brightness setting is not at its lowest. Adjust using the "DIM" buttons.
• Cannot adjust color temperature:
  • Ensure the light is powered on.
  • Use the "CT" buttons to adjust the color temperature. If the buttons are unresponsive, try powering the device off and on again.
• Device not charging:
  • Verify that the Type-C cable is securely connected to both the light and the power source.
  • Try a different Type-C cable or a different USB power adapter to rule out faulty accessories.
  • Ensure the power source is active and providing sufficient power.

Specifications

Image: An infographic highlighting key product functions and specifications, including High Brightness LED Beads (32 white + 32 yellow), Dual Color Temperature (2500K-9000K±200K), CRI ≥95, Universal Cold Shoe, Portable & Light (8.5*7.2*2.8cm), and Built-in lithium battery (1200mAh 4.44Wh).

Safety Precautions

Please read and adhere to the following safety precautions to ensure safe operation and prevent damage to the device or injury:

• Do not expose the device to water or excessive humidity.
• Avoid operating the device in extremely high or low temperatures.
• Do not attempt to disassemble or modify the device. Repairs should only be performed by authorized personnel.
• Keep the device away from strong magnetic fields.
• When disposing of the product, follow local regulations for electronic waste.

Image: A warning sign indicating a suffocation hazard. Text advises to keep plastic bags away from babies and children.

Warranty and Support

For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Andoer website. Contact details for customer support are typically provided in the product packaging or on the manufacturer's website.
