1. Important Safety Instructions
Please read all instructions carefully before using the LABIGO Electric Spin Scrubber LA4 Pro. Keep this manual for future reference.
- Electrical Safety: Do not immerse the charging adapter or charging port in water. Ensure the rubber seal on the charging port is fully closed before exposing the device to water.
- Water Resistance: The main unit is IPX7 waterproof, meaning it can be submerged up to 1 meter for a maximum of 30 minutes. However, avoid prolonged submersion and ensure the charging port is sealed.
- Children and Pets: Keep the device out of reach of children and pets. This is not a toy.
- Cleaning Agents: Use with appropriate cleaning agents. Avoid highly corrosive or abrasive chemicals that may damage the device or surfaces.
- Battery Care: Do not attempt to disassemble or replace the battery. Charge the device using the provided Type-C cable. Do not use damaged chargers or cables.
- Usage Environment: Use the scrubber only for its intended purpose as described in this manual. Do not use on delicate surfaces that may be scratched by the rotating brush.
- Maintenance: Always turn off the device and disconnect from power before cleaning or performing maintenance.
2. Product Overview and Package Contents
The LABIGO Electric Spin Scrubber LA4 Pro is a cordless power cleaning tool designed to simplify various household cleaning tasks with its powerful motor and versatile brush heads.
Package Contents:
- LABIGO Electric Spin Scrubber Main Unit
- Adjustable Extension Handle
- Large Flat Brush Head
- Corner Brush Head
- Small Flat Brush Head
- Dome Brush Head
- Scouring Pad (x2)
- Microfiber Pad (x2)
- Magic Pad (x1)
- Type-C Charging Cable
- User Manual
Image: The LABIGO Electric Spin Scrubber LA4 Pro shown with its main unit, adjustable handle, various brush heads, and charging cable.
Key Features:
- Dual Speed Motor: Offers 350 RPM for daily cleaning and 450 RPM for stubborn stains.
- Adjustable & Detachable Handle: Extends from 39.37 inches to 47.63 inches for hard-to-reach areas, or detaches for handheld use.
- IPX7 Waterproof: Full body waterproof design allows for direct rinsing under a faucet.
- LED Display: Digital battery display for easy monitoring of power levels.
- Long Battery Life: Equipped with a 2500 mAh battery for extended cleaning sessions.
- Versatile Brush Heads: Includes 6 different brush heads and 1 magic pad for various cleaning surfaces and tasks.
3. Assembly and Charging
3.1 Initial Charging
- Before first use, fully charge the scrubber. Locate the Type-C charging port on the handle.
- Ensure the rubber seal covering the charging port is open.
- Connect the provided Type-C charging cable to the port and plug the other end into a compatible USB power adapter (not included).
- The LED display will show the charging progress. A full charge typically takes approximately 3 hours.
- Once fully charged, disconnect the cable and firmly close the rubber seal to maintain IPX7 waterproofing.
Image: Detailed view of the scrubber's components, including the adjustable extension tube, Type-C charging port, and the LED battery display.
3.2 Assembling the Handle
- For extended reach, attach the adjustable extension handle to the main unit. Align the connectors and push until it clicks securely into place.
- To adjust the length, press the release button on the extension handle and slide it to your desired length (between 39.37 inches and 47.63 inches). Release the button to lock.
- For handheld use, the extension handle can be detached by pressing the release button and pulling it apart.

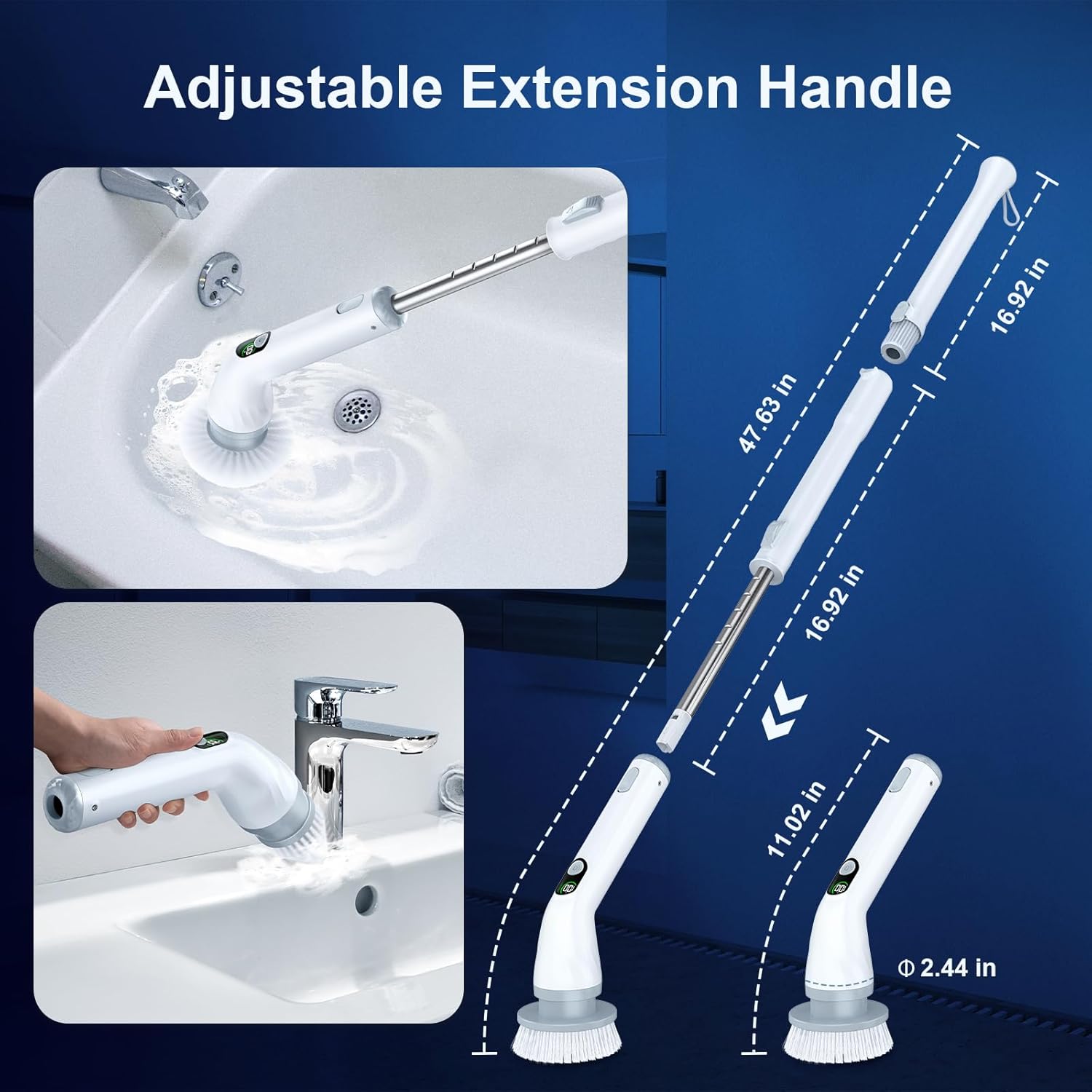

Image: Illustration demonstrating the adjustable extension handle, showing its minimum and maximum lengths for versatile cleaning.
3.3 Attaching Brush Heads
- Select the appropriate brush head for your cleaning task.
- Align the brush head with the rotating shaft on the main unit.
- Push the brush head firmly onto the shaft until it locks into place.
- To remove, simply pull the brush head off the shaft.
4. Operating Instructions
4.1 Powering On/Off and Speed Selection
- Press the power button once to turn on the scrubber. It will start in the low-speed mode (350 RPM).
- Press the power button again to switch to the high-speed mode (450 RPM) for more intensive cleaning.
- Press the power button a third time to turn off the device.
- The LED display will show the current battery level during operation.
Image: Visual representation of the two cleaning speeds, highlighting 450 RPM for stubborn stains and 350 RPM for efficient daily cleaning.
4.2 General Cleaning Tips
- Apply a suitable cleaning solution to the surface or directly to the brush head before starting.
- Start with the low speed for general cleaning and switch to high speed for tougher grime.
- Allow the rotating brush to do the work; avoid applying excessive pressure, which can slow down the motor.
- For stubborn stains, it is recommended to soak the area with cleaning solution for a few minutes before scrubbing.
Image: This image illustrates how the LABIGO scrubber makes cleaning more efficient, reducing cleaning time and physical strain compared to traditional methods.
4.3 Using Different Brush Heads
The LABIGO LA4 Pro comes with a variety of brush heads designed for specific cleaning tasks:
- Large Flat Brush: Ideal for large flat surfaces like bathroom floors, tile walls, and bathtubs.
- Corner Brush: Perfect for cleaning grout lines, corners, and tight crevices.
- Small Flat Brush: Suitable for smaller flat areas, sinks, and shower doors.
- Dome Brush: Excellent for curved surfaces like bathtubs, sinks, and toilet bowls.
- Scouring Pad: For tough, abrasive cleaning on surfaces like stovetops or car wheels.
- Microfiber Pad: Gentle cleaning for windows, mirrors, and delicate surfaces.
- Magic Pad: Versatile pad for various cleaning needs, often used for polishing or light scrubbing.

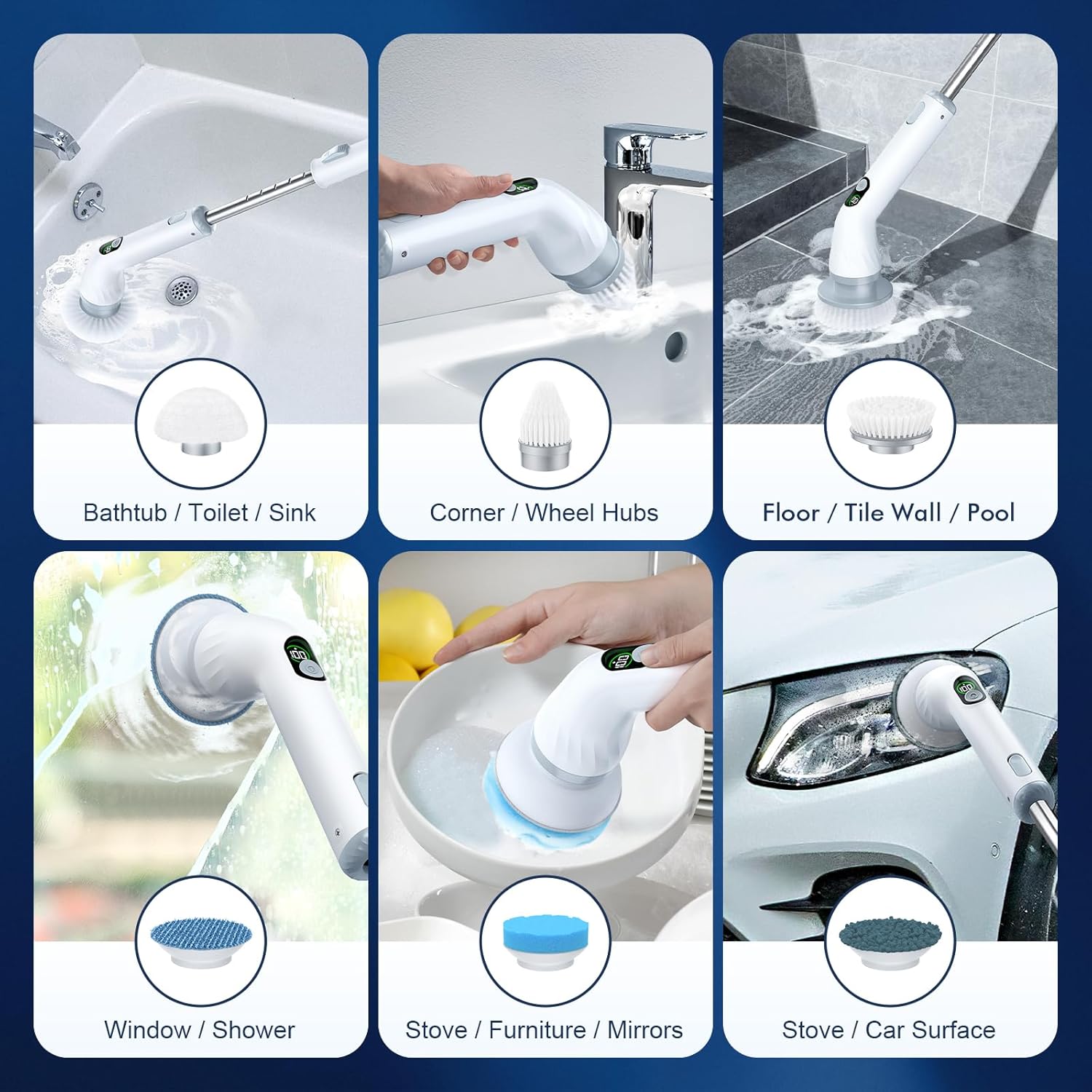

Image: A visual guide to the multifunctional brush head set, illustrating their specific applications for different cleaning scenarios around the home and car.
5. Care and Maintenance
5.1 Cleaning the Scrubber
- After each use, turn off the scrubber.
- Remove the brush head and rinse it thoroughly under running water to remove any dirt or cleaning solution residue.
- The main unit, due to its IPX7 waterproof design, can be rinsed directly under a faucet. Ensure the charging port's rubber seal is fully closed before rinsing the main unit.
- Wipe the main unit and handle with a clean, damp cloth. Do not use abrasive cleaners or solvents.
- Allow all parts to air dry completely before storing.

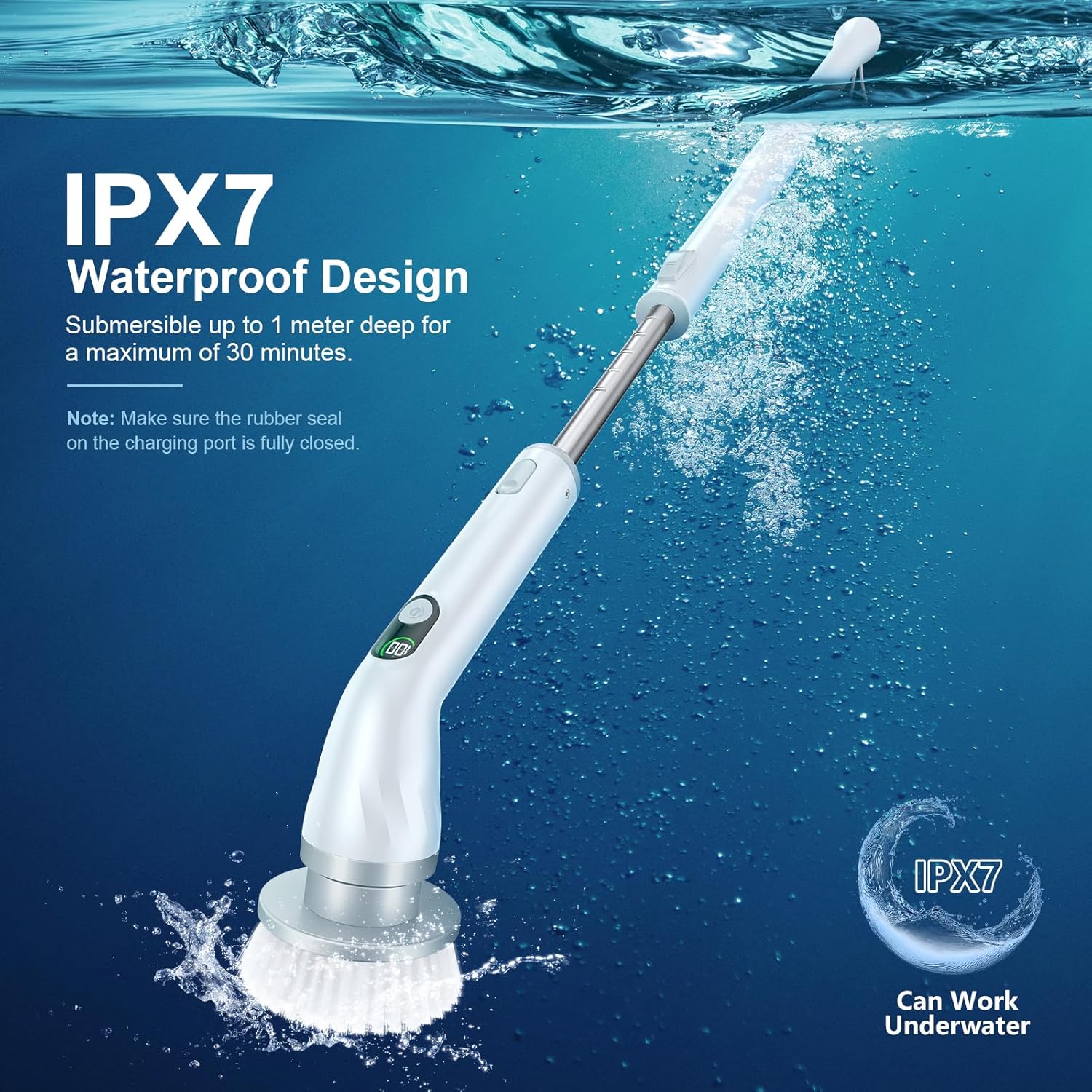

Image: The scrubber demonstrating its IPX7 waterproof capability, showing it can be safely submerged in water for cleaning.
5.2 Storage
- Store the scrubber and its accessories in a cool, dry place away from direct sunlight.
- Ensure the device is fully dry before storing to prevent mold or mildew.
- For long-term storage, it is recommended to charge the battery to about 50% every few months to maintain battery health.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Scrubber does not turn on. | Battery is depleted. | Charge the scrubber fully. |
| Brush head stops spinning or slows down significantly. | Excessive pressure applied. / Battery low. / Obstruction. | Reduce pressure. / Charge the battery. / Check for debris caught in the brush head. |
| Scrubber not charging. | Charging cable or adapter faulty. / Charging port not properly connected. | Try a different Type-C cable and USB adapter. Ensure the cable is firmly inserted into the charging port. |
| Water leakage from charging port. | Rubber seal not properly closed. | Ensure the rubber seal covering the Type-C charging port is firmly and completely closed before exposing to water. |
7. Technical Specifications
- Model: LA4 Pro
- Brand: LABIGO
- Color: Elegant White
- Handle Material: Plastic
- Product Dimensions (Extended): 2.44"L x 2.44"W x 47.63"H
- Battery Capacity: 2500 mAh
- Charging Time: Approximately 3 hours
- Operating Speeds: Low (350 RPM), High (450 RPM)
- Waterproof Rating: IPX7 (Submersible up to 1 meter for 30 minutes)
- Specific Uses: Bathroom, Bathtub, Tile, Shower, Grout, Floors, Windows, Cars, etc.
Image: This image highlights the scrubber's ultra-long battery life, indicating up to 99 minutes of operation and a 2500 mAh high-capacity battery.
8. Warranty and Customer Support
LABIGO products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact LABIGO customer support.
Customer Support:
If you encounter any issues or have questions regarding your LABIGO Electric Spin Scrubber LA4 Pro, please contact our customer support team. You can typically find contact information on the LABIGO official website or through your purchase platform.
Please have your model number (LA4 Pro) and purchase details ready when contacting support.
