Introduction
This manual provides essential information for the safe and effective use of your NyZyL Beam 12R Lamp. This high-performance lamp is designed as a replacement bulb for beam light moving heads, offering a powerful 250W output and an average lifespan of 3000 hours. Please read this manual thoroughly before installation and operation to ensure optimal performance and safety.
The NyZyL Beam 12R Lamp is engineered for durability, featuring a metallic finish and a robust design that resists rust, ensuring a long service life. Its low power consumption contributes to energy efficiency while providing bright, cool white light suitable for stage lighting applications.
Safety Information
Always observe the following safety precautions to prevent injury or damage to the lamp and associated equipment:
- Power Disconnection: Always disconnect power to the lighting fixture before attempting any installation, replacement, or maintenance of the lamp.
- Cool Down Period: Allow the lamp and fixture to cool completely before handling. Lamps can reach very high temperatures during operation.
- Handle with Care: Avoid touching the glass part of the lamp directly with bare hands. Oils from skin can create hot spots and reduce lamp life. Use clean gloves or a soft cloth.
- Correct Lamp Type: Ensure you are using the correct replacement lamp type (Beam 12R / R12) for your specific moving head fixture. Incorrect lamps can cause damage or safety hazards.
- Ventilation: Ensure adequate ventilation around the lighting fixture to prevent overheating, which can shorten lamp life and pose a fire risk.
- Disposal: Dispose of old lamps according to local regulations. Some lamps may contain hazardous materials.
Product Overview
The NyZyL Beam 12R Lamp is a single-ended projector lamp designed for high-intensity stage lighting applications. It features a robust base for secure fitting and a precisely engineered reflector for optimal light output.

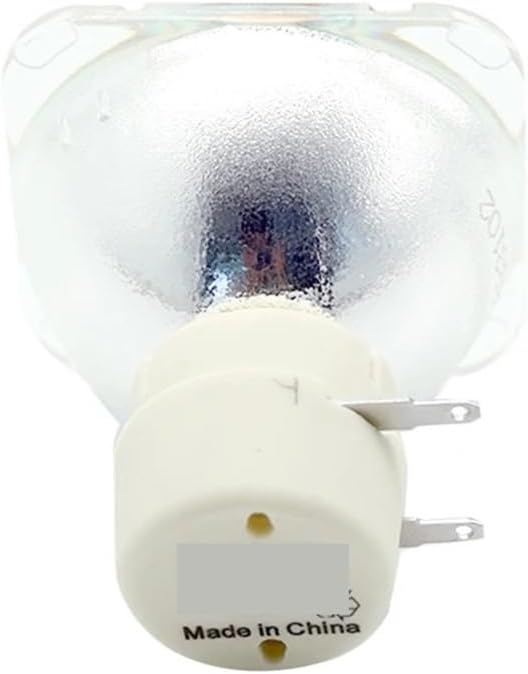

Figure 1: Front view of the NyZyL Beam 12R Lamp, showing the main bulb and the base with electrical contacts.

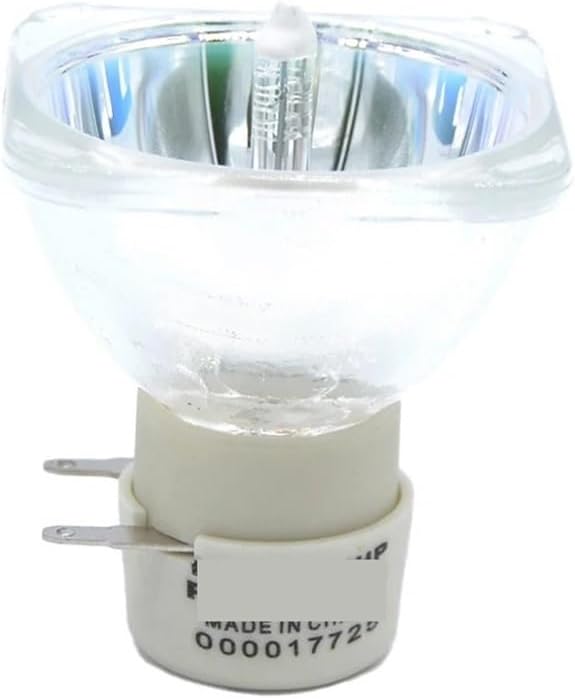

Figure 2: Angled view of the lamp, highlighting the square-shaped reflector and the robust ceramic base.
Figure 3: Top-down view looking into the reflector, showing the internal arc tube.
The lamp's design ensures compatibility with fixtures requiring an R12 bulb shape and E26 bulb base. Its compact dimensions (1.18 x 0.79 x 0.39 inches) and light weight (5 ounces) facilitate easy handling and installation.
Setup and Installation
The NyZyL Beam 12R Lamp is designed for easy installation. Follow these steps carefully:
- Preparation: Ensure the lighting fixture is completely powered off and unplugged from the mains. Allow the old lamp (if replacing) and the fixture to cool down for at least 30 minutes.
- Access Lamp Compartment: Open the lamp access door or panel on your moving head fixture. Refer to your fixture's specific manual for instructions on how to access the lamp.
- Remove Old Lamp: Carefully unclip or unscrew the old lamp from its socket. Handle the old lamp by its base, avoiding contact with the glass.
- Install New Lamp: Wearing clean gloves or using a soft cloth, gently insert the new NyZyL Beam 12R Lamp into the socket. Ensure the electrical contacts align correctly with the fixture's terminals. The lamp is designed to fit securely without excessive force.
- Secure Lamp: Clip or screw the new lamp into place, ensuring it is firmly seated.
- Close Compartment: Close and secure the lamp access door or panel on the fixture.
- Power On: Reconnect the fixture to power. The lamp is now ready for operation.
Note: No wiring is required for this lamp replacement; simply plug it into the existing socket.
Operating Instructions
Once installed, the NyZyL Beam 12R Lamp operates in conjunction with your moving head lighting fixture. The lamp is controlled by the fixture's internal systems or external DMX controllers.
- Power On: Turn on the power to your lighting fixture. The lamp will typically strike (ignite) within a few seconds.
- Warm-up Period: Allow the lamp a few minutes to reach its full brightness and stable color temperature.
- Control: Use your lighting console or the fixture's onboard controls to manage the lamp's functions, such as dimming (if supported by the fixture), strobe effects, and shutter control.
- Power Off: When finished, power off the lighting fixture. Avoid rapidly cycling the lamp on and off, as this can reduce its lifespan. Allow a brief cool-down period before restarting if necessary.
The lamp is designed for continuous use within its specified operating parameters and is not prone to overheating under normal conditions.
Maintenance
Proper maintenance can extend the life of your NyZyL Beam 12R Lamp and ensure consistent performance:
- Cleaning: Periodically, when the lamp is cool and power is disconnected, gently wipe the glass surface of the lamp with a clean, lint-free cloth. Avoid using abrasive cleaners.
- Fixture Cleaning: Regularly clean the reflector and lens of your lighting fixture to ensure maximum light output and prevent dust buildup, which can cause hot spots on the lamp.
- Inspection: During cleaning, inspect the lamp for any signs of damage, such as cracks or discoloration. Replace the lamp if any damage is observed.
- Ventilation Check: Ensure that the cooling fans and vents of your lighting fixture are clear of obstructions to maintain proper airflow.
Troubleshooting
If you encounter issues with your NyZyL Beam 12R Lamp, refer to the following table for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up. | No power to fixture; lamp not seated correctly; lamp has reached end of life; faulty ballast. | Check power connection; re-seat lamp; replace lamp; consult a qualified technician for ballast issues. |
| Lamp flickers or dims. | Unstable power supply; lamp nearing end of life; poor connection. | Ensure stable power; replace lamp; check lamp seating and connections. |
| Reduced brightness. | Dust/dirt on lamp or fixture optics; lamp nearing end of life. | Clean lamp and fixture optics; replace lamp. |
| Lamp explodes or cracks. | Overheating; physical damage; incorrect lamp type; manufacturing defect. | Ensure proper ventilation; handle with care; verify lamp compatibility; contact support if new. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | NyZyL |
| Model Name | NyZyL123 |
| Lamp Type | Beam 12R / MSD R12 Platinum Sharpy Bulb |
| Wattage | 250 Watts |
| Bulb Shape Size | R12 |
| Bulb Base | E26 |
| Light Color | Cool White |
| Average Life | 3000 Hours |
| Accepted Voltage Frequency | 100 to 240 Volts and 50 Hertz to 60 Hertz |
| Item Weight | 5 ounces (approx. 143 grams) |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
| Material | Metal (for base/housing) |
| Special Feature | Long Lasting |
Warranty and Support
NyZyL is committed to providing high-quality products. While specific warranty details are not provided in this manual, we stand by the quality of our Beam 12R Lamp.
If you have any questions, require technical assistance, or experience issues with your product, please do not hesitate to contact our customer support team. We are dedicated to ensuring your satisfaction and will do our best to resolve any concerns you may have.
For support, please refer to the contact information provided with your purchase or visit the official NyZyL website.
