FABATO Double Bed Base with LED Headboard and Storage Drawers

Introduction

Thank you for choosing the FABATO Double Bed Base. This instruction manual provides essential information for the safe assembly, operation, and maintenance of your new bed base. Please read this manual thoroughly before assembly and retain it for future reference.

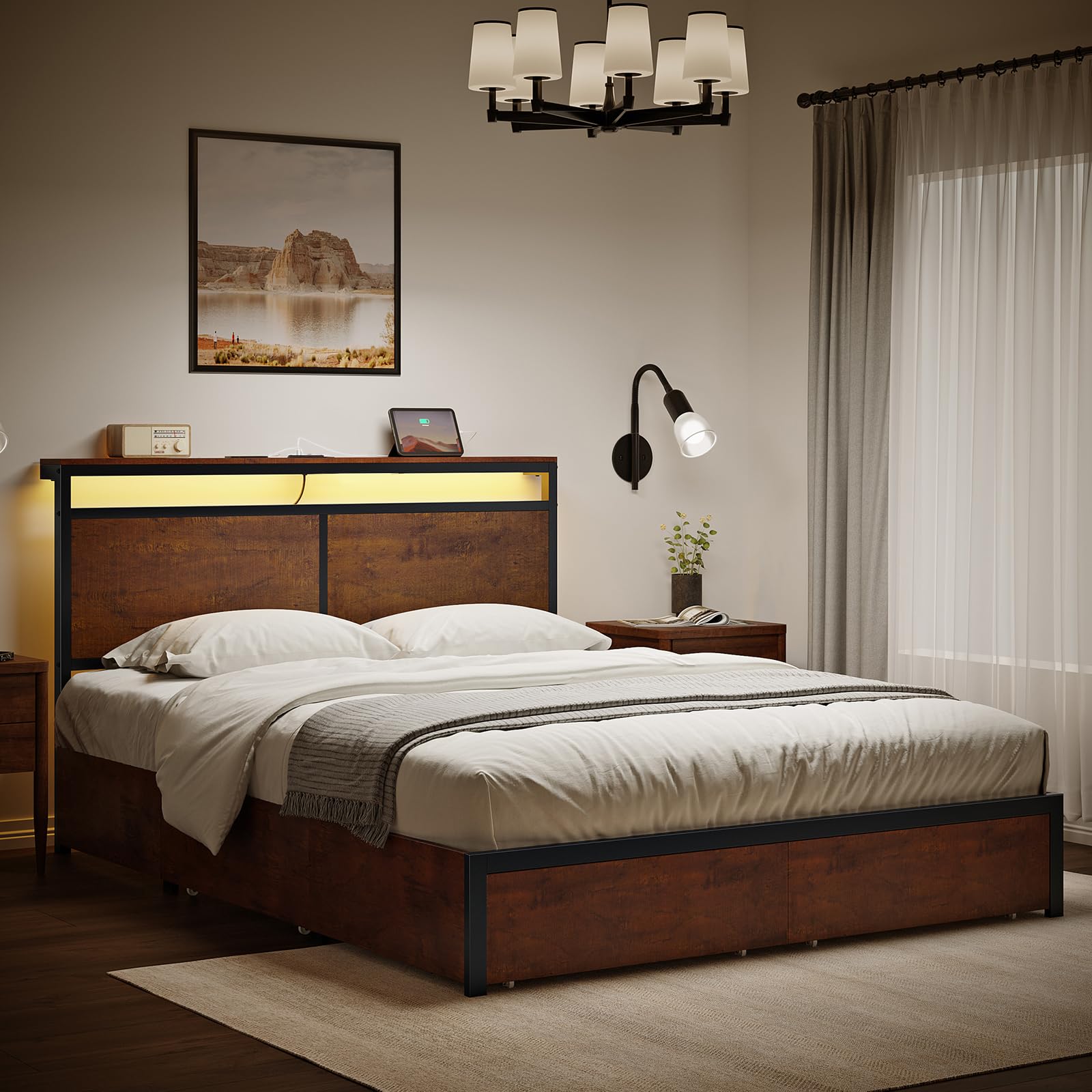

Image: The FABATO Double Bed Base, showcasing its integrated LED headboard and under-bed storage drawers.

Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• Use caution with the weight placed on the base of the bed to avoid damaging the structure or causing injury. The maximum weight recommendation is 1100 pounds.
• Follow the assembly instructions provided to avoid injury during installation.
• Ensure all connections for the LED lights and power outlets are secure before use.
• Do not overload the AC outlets or USB ports.
• Keep children away from small parts during assembly.

Package Contents

Before beginning assembly, verify that all components are present and undamaged. Refer to the detailed parts list included in your physical assembly guide.

• Headboard with integrated LED lights, AC outlets, and USB ports
• Metal bed frame components (side rails, support beams, slats)
• Four (4) under-bed storage drawers with wheels
• Assembly hardware (screws, bolts, washers)
• Assembly tools (Allen wrenches)
• Remote control for LED lights
• Four (4) drawer liners

Image: An overhead view of the bed base, showing the metal frame, headboard, and four under-bed storage drawers.

Setup and Assembly

The FABATO bed frame is designed for quick and simple assembly, typically completed within 1 hour. Detailed instructions, assembly tools, and numbered parts are included in the packaging.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, soft surface to prevent scratches. Verify all parts against the included parts list.
2. Assemble Headboard: Follow the specific steps in your physical manual to assemble the headboard, ensuring the LED strip and power unit are correctly positioned and secured.
3. Construct Bed Frame: Connect the side rails and support beams according to the numbered diagrams. Ensure all bolts are tightened securely.
4. Install Slats: Place the metal slats onto the frame. The 13 sturdy metal brackets are designed to be anchored on the side for firm support.
5. Assemble Drawers: Assemble the four storage drawers. They are designed to run on wheels for easy access. Insert the provided drawer liners to protect contents.
6. Final Checks: Ensure all connections are tight and the bed frame is stable. Plastic pads are included to protect your floor from scratches. No box spring is needed for this platform bed.

Operating Instructions

LED Headboard Lighting

The integrated LED lights in the headboard offer customizable ambiance:

• Power On/Off: Use the remote control or the button on the headboard to turn the lights on or off.
• Color Selection: The remote control allows you to select from 20 static colors.
• Dynamic Modes: Choose from 22 dynamic modes to create various lighting effects.
• Brightness Adjustment: Adjust the brightness level to your preference.

Image: A close-up view of the headboard's integrated control panel, showing the USB ports, AC outlets, and LED light controls.

Integrated Charging Station

The headboard includes a convenient charging station:

• AC Outlets: Two (2) standard AC outlets are provided for powering devices such as lamps or laptops.
• USB Ports: Two (2) USB ports (including one Type-C) are available for charging mobile phones, tablets, and other USB-powered devices.
• Ensure devices are compatible with the 5V/2A output of the USB ports.

Under-Bed Storage Drawers

The four large under-bed storage drawers provide ample space:

• Access: The drawers are equipped with wheels for easy pulling and removal.
• Protection: Use the provided drawer liners to protect your clothes or bedding from snagging or falling through gaps.
• Capacity: Utilize the drawers for storing bedding, clothing, books, or other personal items.

Image: A view of an open under-bed storage drawer, demonstrating its capacity for storing items like clothing.

Maintenance

Regular maintenance will help prolong the life and appearance of your bed base:

• Cleaning: Wipe the wood and metal surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Tighten Fasteners: Periodically check and tighten all bolts and screws to ensure the frame remains stable and squeak-resistant.
• Drawer Care: Keep the drawer wheels free of debris to ensure smooth operation.
• Electrical Components: Ensure the power cord and connections for the LED lights and charging station are not pinched or damaged.

Troubleshooting

If you encounter any issues, refer to the following common solutions:

• Squeaking Noise: Check all frame connections and tighten any loose bolts. Ensure the mattress is properly seated on the slats.
• LED Lights Not Working: Verify the power cord is securely plugged into a working outlet. Check the remote control battery. Ensure the LED strip connection to the headboard unit is secure.
• Charging Ports Not Functioning: Confirm the bed base is plugged into a live power source. Test with different devices and cables.
• Drawers Sticking: Check for any obstructions under the bed or in the drawer tracks. Clean the wheels and ensure they are properly aligned.
• Unstable Frame: Re-check all assembly steps, ensuring all components are correctly aligned and tightened.

Specifications

Image: A diagram illustrating the key dimensions of the FABATO Double Bed Base, including length, width, and height of the frame and headboard, as well as drawer dimensions.

Warranty and Support

For warranty information or customer support, please refer to the documentation included with your product or contact FABATO customer service through the retailer where the product was purchased.

For assistance with assembly, missing parts, or operational questions, please have your model number (FAQU001 or FAFU002) and purchase information ready.
