1. Introduction
The Kenmore Vacuum Sealer Machine Model KKFSDC is designed to preserve food freshness by removing air from specially designed bags and containers. This process helps extend the shelf life of various foods, reducing waste and simplifying meal preparation. This manual provides instructions for safe operation, setup, maintenance, and troubleshooting.
2. Important Safety Instructions
- Read all instructions before using the appliance.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Keep out of reach of children. This appliance is not intended for use by children.
- Unplug from outlet when not in use and before cleaning.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Use only Kenmore approved vacuum sealer bags and accessories.
- Do not use outdoors.
- Always place the appliance on a stable, flat, heat-resistant surface.
3. Package Contents
Verify that all items are present in the package:
- Kenmore Vacuum Sealer Machine
- 16 ft Bag Roll
- 10 Plastic Bags (precut)
- Vacuum Bottle Stopper
- Accessory Hose
- Drip Tray (removable)
- Power Cord
- Support Card (Documentation)

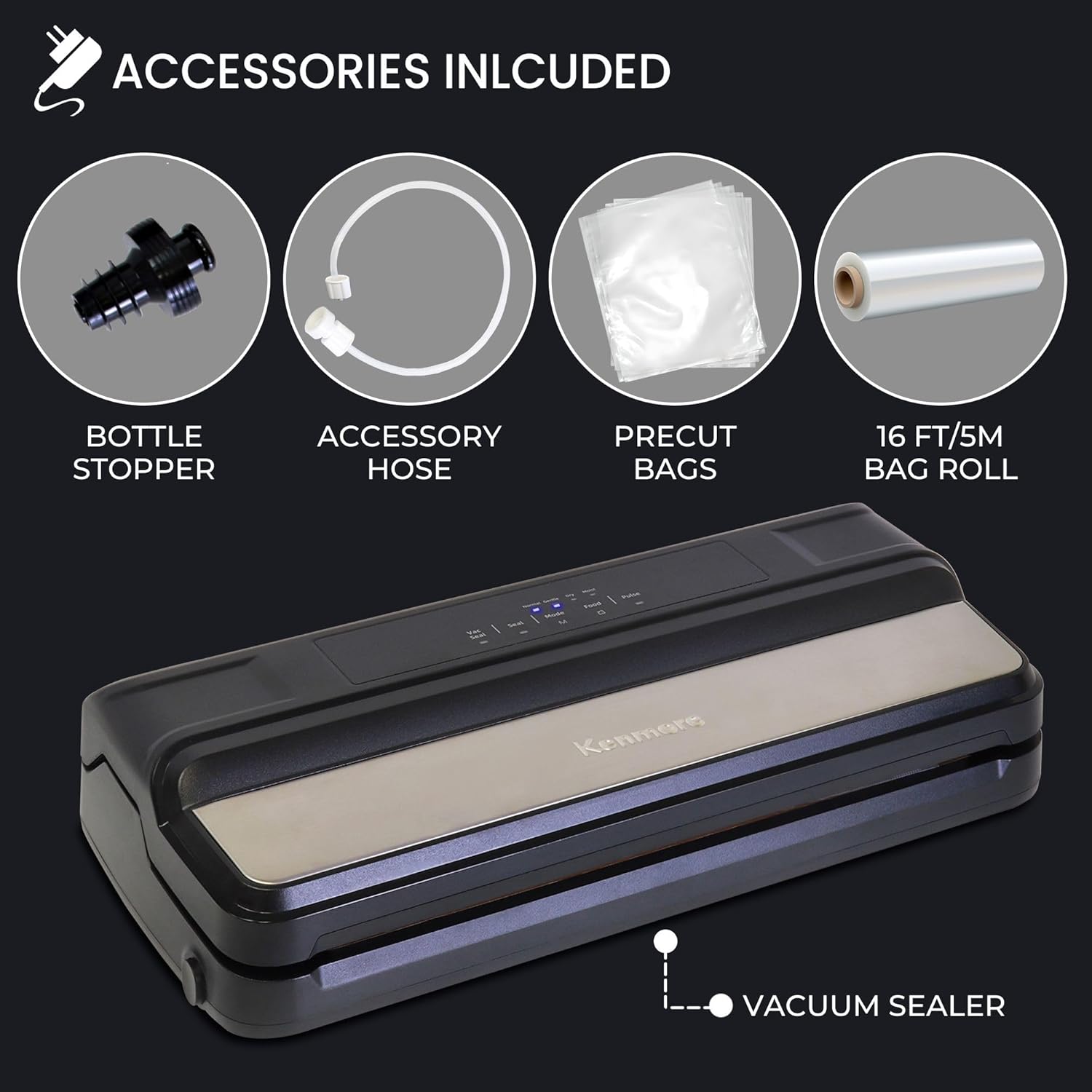

Image: Kenmore Vacuum Sealer Machine and its included accessories.
4. Product Overview
The Kenmore Vacuum Sealer features a compact stainless steel design with intuitive controls for various sealing needs. Key components include:
- Control Panel: Features buttons for Vac Seal, Seal, Mode (Normal, Gentle, Dry, Moist), Food, and Pulse.
- Sealing Bar: Creates a strong, airtight seal.
- Vacuum Channel: Area where air is extracted from the bag.
- Bag Roll Storage Compartment: Conveniently stores the bag roll.
- Built-in Bag Cutter: For creating custom-sized bags.
- Removable Drip Tray: Collects excess liquids for easy cleaning.
- Accessory Port: For connecting the accessory hose for external vacuuming.

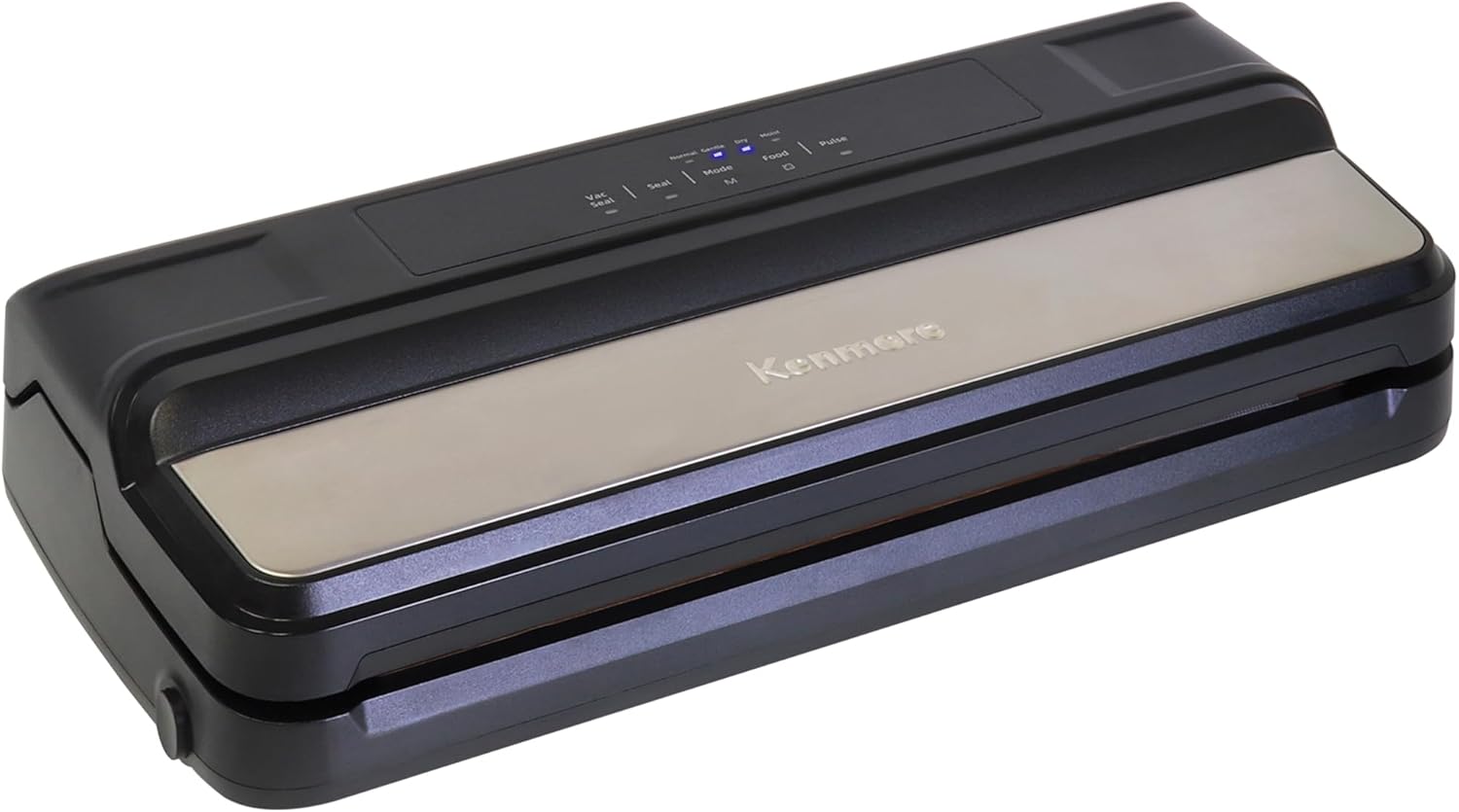

Image: Kenmore Vacuum Sealer Machine.
Image: Control panel with various mode selections.
5. Setup
5.1 Initial Preparation
- Unpack the vacuum sealer and all accessories.
- Place the appliance on a clean, dry, and flat surface.
- Ensure the power cord is securely plugged into a grounded electrical outlet.
5.2 Using the Built-in Bag Roll Storage and Cutter
The vacuum sealer includes a convenient compartment for storing the bag roll and a built-in cutter to create custom-sized bags.
- Open the lid of the vacuum sealer.
- Place the bag roll into the designated storage compartment.
- Pull out the desired length of bag material.
- Use the built-in cutter to cut the bag to your preferred size.
- Seal one end of the cut bag using the 'Seal' function (refer to Section 6.3).
Image: Features including bag roll storage and cutter.
6. Operating Instructions
6.1 Vacuum Sealing Bags
- Place the food item inside a Kenmore vacuum sealer bag, ensuring at least 3 inches of space between the food and the top of the bag.
- Lay the open end of the bag flat into the vacuum channel, ensuring it is smooth and free of wrinkles.
- Close the lid firmly until both sides click into place.
- Select the appropriate food mode (Dry or Moist) and pressure mode (Normal or Gentle) using the control panel.
- Press the 'Vac Seal' button. The machine will automatically remove air and then seal the bag.
- Once the process is complete, the indicator light will turn off. Open the lid and remove the sealed bag.
Image: Vacuum sealing a food item.
6.2 Dry and Moist Modes
The machine offers specific modes for different food types:
- Dry Mode: Ideal for solid foods with no moisture, such as nuts, grains, or dried fruits.
- Moist Mode: Suitable for foods with some liquid content, like raw meats, marinated items, or fruits. This mode ensures a stronger seal to prevent leakage.
6.3 Normal and Gentle Pressure Modes
Adjust the vacuum pressure based on the food's delicacy:
- Normal Mode: Standard vacuum pressure for most solid and firm foods.
- Gentle Mode: Reduces vacuum pressure to prevent crushing delicate items like bread, pastries, or soft fruits.
6.4 Pulse Mode for Fragile Items
For extremely delicate foods that require precise vacuum control, use the 'Pulse' mode:
- Place the bag in the vacuum channel and close the lid.
- Press and hold the 'Pulse' button to manually control the vacuum.
- Release the 'Pulse' button when the desired vacuum level is reached.
- Immediately press the 'Seal' button to seal the bag.
6.5 Sealing Only (Without Vacuum)
To create a seal without vacuuming, for example, when making a bag from a roll or sealing a bag of chips:
- Place the open end of the bag onto the sealing bar.
- Close the lid firmly.
- Press the 'Seal' button. The machine will heat-seal the bag without removing air.
- Once the indicator light turns off, open the lid and remove the sealed bag.
6.6 External Vacuum for Bottles and Canisters
The accessory hose and bottle stopper allow for vacuum sealing compatible bottles and canisters.
- Connect one end of the accessory hose to the accessory port on the vacuum sealer.
- Attach the other end of the hose to the vacuum bottle stopper or canister lid.
- Place the bottle stopper firmly into the bottle opening or secure the canister lid.
- Press the 'Vac Seal' button. The machine will extract air from the container.
- Once the vacuum process is complete, the indicator light will turn off.
Image: Included accessories for external vacuuming.
Video: Demonstrates the Kenmore Vacuum Sealer Machine in operation, including sealing various food types and using the external vacuum hose for bottles and canisters.
7. Maintenance and Cleaning
7.1 Cleaning the Appliance
- Always unplug the appliance before cleaning.
- Wipe the exterior of the vacuum sealer with a damp cloth and mild soap. Do not use abrasive cleaners.
- Ensure the vacuum channel and sealing bar are clean and free of food debris.
7.2 Cleaning the Removable Drip Tray
The drip tray collects any overflow liquids and should be cleaned regularly.
- Remove the drip tray from the appliance.
- Wash the drip tray with warm, soapy water.
- Rinse thoroughly and dry completely before reinserting.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on. | Power cord not plugged in; no power at outlet. | Ensure power cord is securely plugged in. Check power outlet. |
| Bag does not vacuum properly. | Bag not positioned correctly; lid not fully closed; bag is damaged. | Reposition bag, ensuring it is flat in the vacuum channel. Close lid firmly until it clicks. Use a new bag if damaged. |
| Bag does not seal. | Sealing bar is dirty; bag is wet near seal area; sealing bar is worn. | Clean the sealing bar. Ensure the inside of the bag is dry where it will be sealed. Contact customer support if sealing bar is worn. |
| Vacuum is weak or inconsistent. | Drip tray is full; vacuum gasket is dirty or damaged. | Empty and clean the drip tray. Clean or replace the vacuum gasket. |
9. Specifications
- Model Number: KKFSDC
- Material: Acrylonitrile Butadiene Styrene (ABS), Stainless Steel
- Color: Black
- Product Dimensions (L x W x H): 16.53" x 7.87" x 3.94"
- Item Weight: 4 Pounds
- Power Source: AC
- Operation Mode: Automatic
- Wattage: 110 watts
- Voltage: 240V
Image: Product dimensions.
10. Warranty and Support
The Kenmore Vacuum Sealer Machine Model KKFSDC is backed by a 2-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. For warranty claims, technical support, or to purchase replacement parts and accessories, please contact Kenmore customer service.
Please retain your proof of purchase for warranty validation.
