APOLLO Electric Pallet Jack Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your APOLLO Electric Pallet Jack, Model 44W-E-19-30. Please read this manual thoroughly before operating the equipment to ensure proper usage and to prevent injury or damage.

The APOLLO Electric Pallet Jack is designed for material handling tasks, offering a robust 4400 lbs capacity with 48 x 27 inch forks. It features electric lifting and driving capabilities, powered by a high-capacity battery, and controlled via a multi-functional handle.

Figure 1: APOLLO Electric Pallet Jack, Model 44W-E-19-30. This image shows the overall design of the electric pallet jack with its forks and control handle.

2. Safety Instructions

Operating this equipment requires adherence to strict safety protocols. Failure to follow these instructions may result in serious injury or equipment damage.

2.1 General Safety Precautions

• Always operate the pallet jack on level, stable surfaces.
• Do not exceed the maximum load capacity of 4400 lbs.
• Ensure the load is properly balanced and secured on the forks.
• Keep hands and feet clear of moving parts, especially the forks and wheels.
• Wear appropriate personal protective equipment (PPE), such as safety shoes and gloves.
• Do not operate the pallet jack if you are fatigued or under the influence of substances.
• Regularly inspect the equipment for damage or malfunctions before use.
• Familiarize yourself with all controls and safety features before operation.

2.2 Electrical Safety

• Only use the provided charger or an approved replacement for charging the battery.
• Ensure the charging area is well-ventilated and free from flammable materials.
• Do not operate the pallet jack while it is charging.
• Inspect power cords and plugs for damage before charging.

3. Product Overview

The APOLLO Electric Pallet Jack is designed for efficient and safe material handling. Key features include:

• High Capacity: Supports loads up to 4400 lbs.
• Ergonomic Multi-Functional Handle: Features push-button lift controls and forward/reverse thumb wheels.
• Reverse Safety Switch: Enhances operator safety by preventing accidental backward movement.
• Built-in Charger: Provides convenient charging.
• Polyurethane Wheels: Durable wheels for smooth operation.
• Floating Balance Wheel: Designed to prevent side swing during travel, ensuring stability.
• Compact Design: Facilitates movement in narrow warehouses and retail aisles.

3.1 Key Components

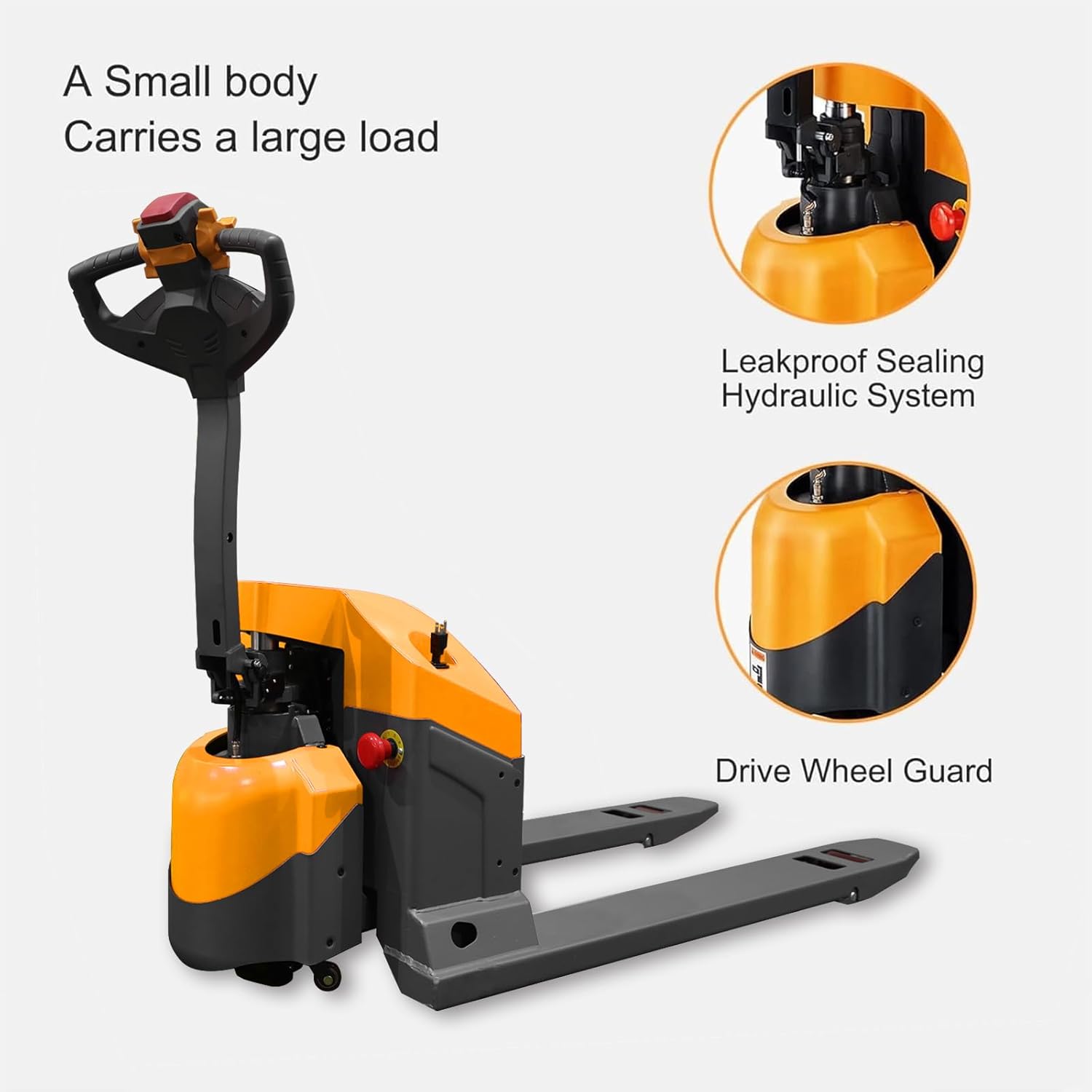

Figure 2: Key components of the pallet jack. This image highlights the leakproof sealing hydraulic system and the drive wheel guard, contributing to the unit's durability and safety.

Figure 3: Close-up view of the multi-functional control handle. This handle integrates push-button lift controls, forward/reverse thumb wheels, and a horn button for intuitive operation.

4. Setup

4.1 Initial Inspection

Upon receiving your APOLLO Electric Pallet Jack, perform a thorough inspection for any signs of shipping damage. Ensure all components are present and securely attached. Verify that the wheels move freely and the handle operates smoothly.

4.2 Initial Charging

Before first use, fully charge the pallet jack's battery. The unit features a built-in charger for convenience.

1. Locate the charging port on the pallet jack.
2. Connect the power cord to the charging port.
3. Plug the other end of the power cord into a suitable power outlet.
4. Allow the battery to charge until the indicator shows a full charge. This typically takes several hours.
5. Disconnect the charger once charging is complete.

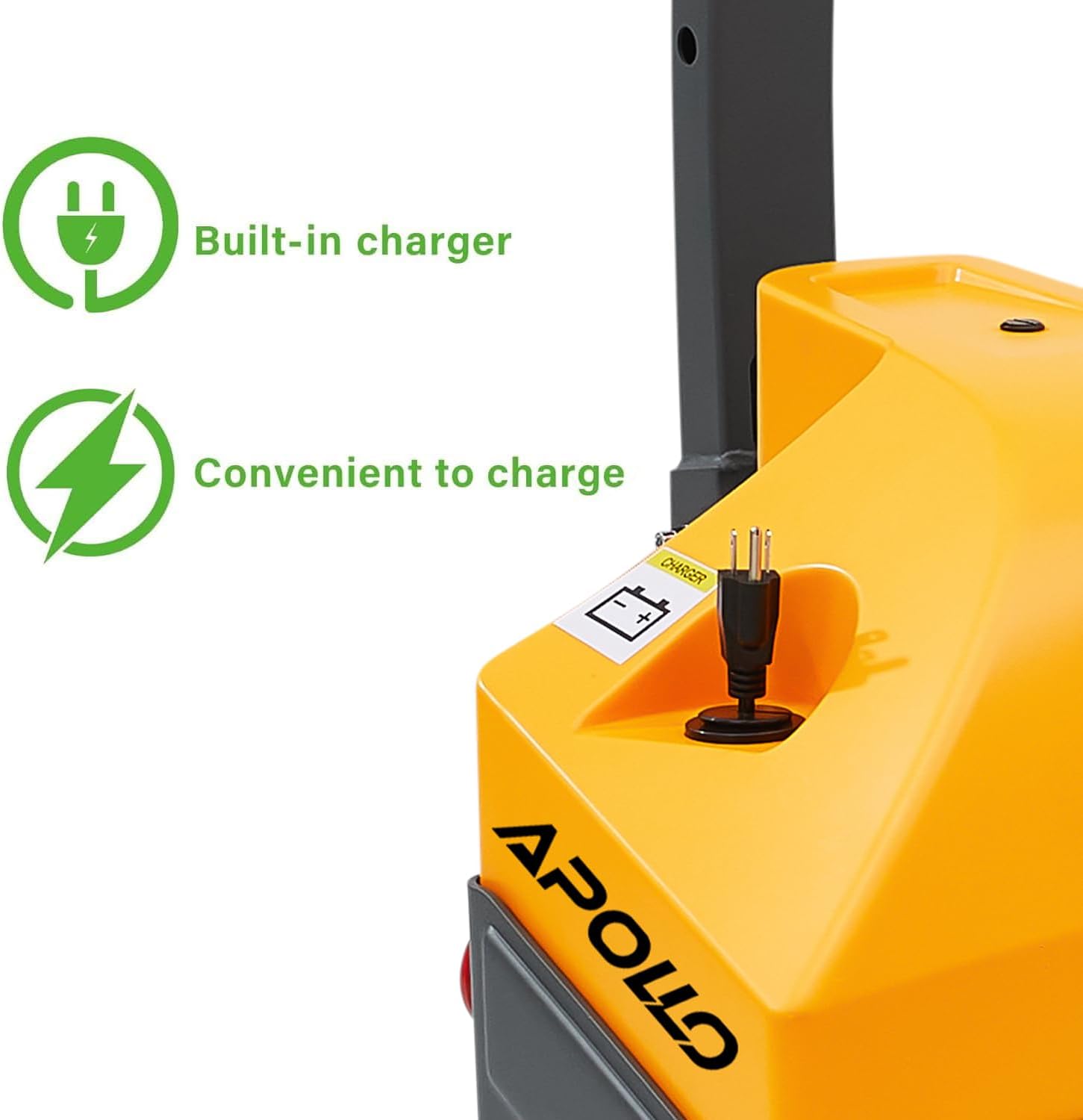

Figure 4: The built-in charger port, designed for convenient and direct charging of the pallet jack's battery.

5. Operating Instructions

5.1 Starting the Pallet Jack

• Ensure the battery is sufficiently charged.
• Turn the key switch to the "ON" position (if applicable).
• The display (if present) should illuminate, indicating the unit is ready for operation.

5.2 Multi-Functional Handle Controls

The ergonomic handle provides all necessary controls for movement and lifting.

• Forward/Reverse Thumb Wheels: Located on the handle, these control the direction and speed of travel. Push forward for forward motion, pull back for reverse.
• Lift Controls: Push-buttons on the handle activate the electric lifting mechanism to raise the forks.
• Lower Controls: Push-buttons on the handle activate the electric lowering mechanism to lower the forks.
• Horn Button: Press to sound the horn for warning purposes.
• Reverse Safety Switch: A safety feature that, when activated (e.g., by pressing against the operator), will immediately stop the pallet jack and move it slightly forward to prevent crushing.

5.3 Lifting and Transporting Loads

1. Position the forks squarely under the pallet or load.
2. Use the lift controls to raise the forks until the load is clear of the ground.
3. Carefully use the thumb wheels to move the pallet jack to the desired location. Maintain a clear view of your path and surroundings.
4. Once at the destination, use the lower controls to gently lower the load to the ground.
5. Withdraw the forks from under the pallet.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your APOLLO Electric Pallet Jack.

6.1 Battery Care

• Charge the battery after each shift or when the battery indicator shows low charge.
• Avoid completely draining the battery, as this can reduce its lifespan.
• Store the pallet jack in a charged state if it will not be used for an extended period.
• Keep the battery and charging port clean and free from debris.

6.2 General Cleaning and Inspection

• Periodically clean the exterior of the pallet jack with a damp cloth. Avoid using harsh chemicals or excessive water.
• Inspect all wheels (drive wheel, load wheels, balance wheel) for wear, damage, or obstructions. Remove any debris that may hinder movement.
• Check the hydraulic system for any signs of leaks. Address any leaks immediately to maintain lifting performance.
• Ensure all bolts and fasteners are tight.

7. Troubleshooting

This section addresses common issues you might encounter with your electric pallet jack.

For issues not listed here or if solutions do not resolve the problem, please contact APOLLO customer support.

8. Specifications

Detailed technical specifications for the APOLLO Electric Pallet Jack, Model 44W-E-19-30.

Figure 5: Overall dimensions including height, length, and width of the pallet jack.

Figure 6: Detailed fork dimensions, showing lowered height, width, thickness, and distance between forks.

Figure 7: Visual summary of key specifications including maximum load capacity, maximum lifting height, and laden travel speed.

Figure 8: Comparison of features and specifications between APOLLO Pallet Jack models A-1030 (44W-E-19-30) and A-1034.

9. Warranty and Support

For warranty information, returns, or technical assistance, please contact APOLLO customer support. Refer to your purchase documentation for specific warranty terms and conditions.

• Customer Support: Contact APOLLOLIFT directly for assistance.
• Returns: 30-day easy returns policy applies.

For further details, you may visit the APOLLO Store on Amazon or refer to the contact information provided with your product packaging.
