VONLUCE CFN-13E2-BK
VONLUCE 52-inch Ceiling Fan with Light Instruction Manual
Model: CFN-13E2-BK
Introduction
Thank you for choosing the VONLUCE 52-inch Ceiling Fan with Light. This modern ceiling fan is designed to provide comfort and style to your living spaces. Featuring a reversible DC motor, 6 adjustable speeds, and a dimmable LED light with three color temperatures, it offers versatile functionality for year-round use. Please read this manual thoroughly before installation and operation to ensure safe and efficient use of your new ceiling fan.
The VONLUCE 52-inch ceiling fan with integrated LED light.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Read all instructions carefully before installing and operating the fan.
- Ensure the installation location is suitable for supporting the fan's weight.
- All wiring must be in accordance with national and local electrical codes. If you are unsure, consult a qualified electrician.
- Disconnect power at the main circuit breaker before installation or servicing.
- Keep hands, clothing, and other objects clear of the fan blades when the fan is operating.
- Do not expose this fan to rain or direct sunlight.
Package Contents
Before beginning installation, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, contact customer service.
- Ceiling Fan Motor Assembly
- Fan Blades (3)
- LED Light Kit
- Remote Control with Wall Mount
- Downrods (13 cm and 25 cm)
- Mounting Bracket and Hardware
- Instruction Manual
Illustration of typical package contents, including the fan unit, remote, and downrods.
Installation Guide
This ceiling fan is designed for easy installation on ceilings with an inclination of up to 10°. Two downrod options (13 cm and 25 cm) are provided to suit different ceiling heights. For detailed visual instructions, refer to the installation video.
Mounting Options:
- Flat Ceiling: Standard mounting for flat surfaces.
- Sloped Ceiling (up to 10°): Adaptable for slightly angled ceilings.
Dimensions and available mounting options for the ceiling fan.
Installation and Feature Overview Video:
Official installation and feature overview video for the VONLUCE ceiling fan. This video demonstrates the fan's silent operation, adjustable light temperatures, 6-speed settings, reversible motor function for summer and winter, and timer options.
Operating Instructions
Your VONLUCE ceiling fan comes with a remote control for convenient operation of all its features.
Remote Control Functions:
Overview of the remote control and its various functions.
- On/Off: Powers the fan and light on or off.
- Fan Direction Reversal: Changes the direction of blade rotation for summer (downward airflow) or winter (upward airflow).
- Timer: Set the fan to turn off automatically after 1, 2, 4, or 8 hours.
- Light On/Off: Controls the LED light.
- Natural Mode: (Hold for 5 seconds) Activates a gentle, varying airflow to simulate a natural breeze.
- Speed Levels (1-6): Adjusts fan speed from a gentle breeze (1-2) to strong airflow (5-6).
Fan Speed Settings:
Visual representation of the 6 adjustable fan speeds and their typical uses.
- Levels 1-2 (Gentle Breeze): Ideal for quiet relaxation or sleeping.
- Levels 3-4 (Natural Wind): Suitable for family gatherings or general comfort.
- Levels 5-6 (Strong Airflow): Provides powerful cooling for hot days.
Reversible DC Motor:
The fan's reversible motor allows for year-round comfort. Use the remote control to switch between modes:

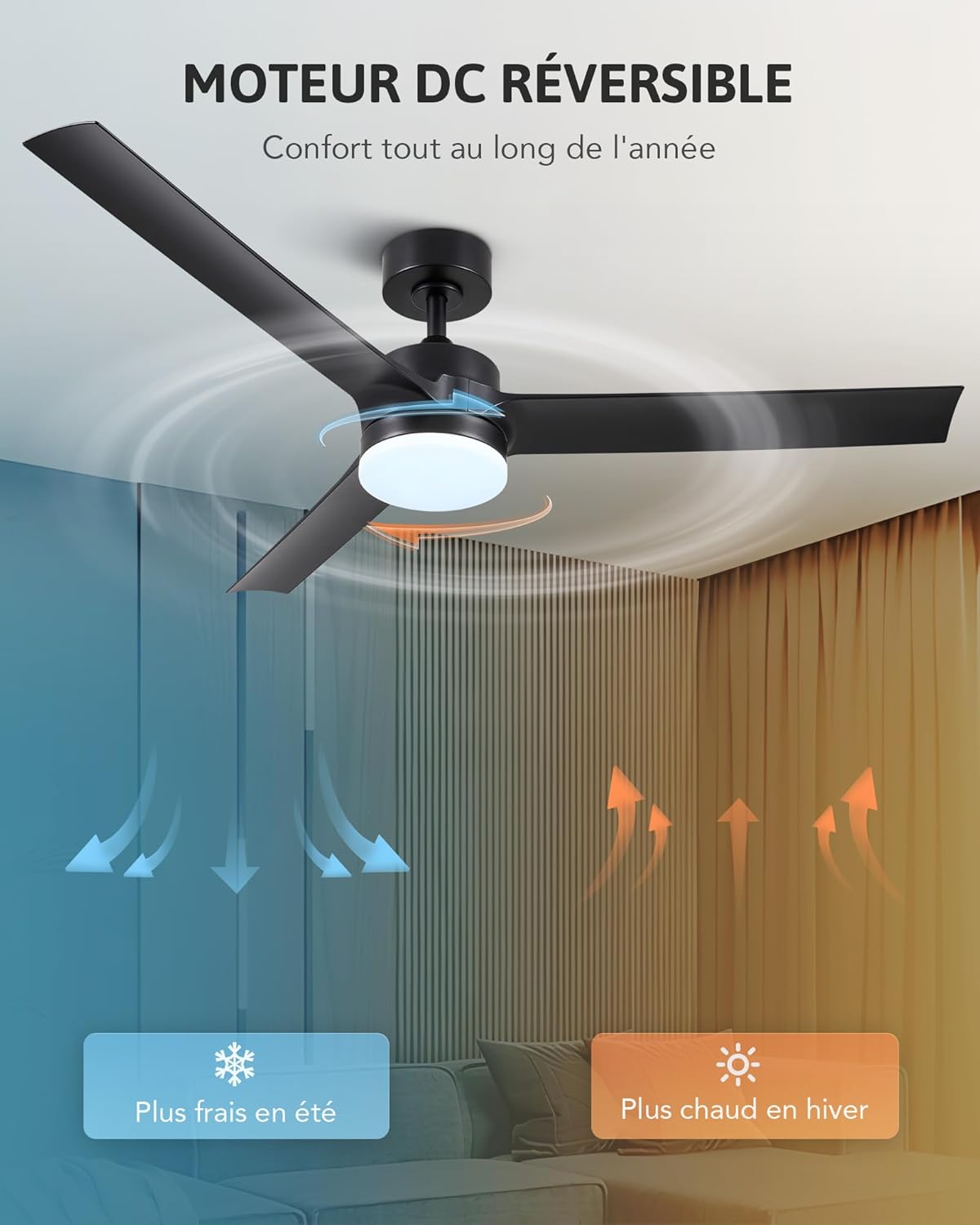

Illustration of the reversible motor function for summer cooling and winter heat circulation.
- Summer Mode: Blades rotate counter-clockwise, pushing cool air downwards.
- Winter Mode: Blades rotate clockwise, drawing cool air up and circulating warm air downwards.
Adjustable LED Light:
The integrated 20W LED light offers three color temperature options to suit your mood or activity:
Demonstration of the three adjustable light color temperatures.
- 3000K (Warm White): For a cozy and inviting atmosphere.
- 4500K (Neutral White): Balanced light for everyday tasks.
- 6500K (Cool White): Bright and energetic light for focused activities.
Silent Operation:
The energy-efficient DC motor operates at a low noise level, ensuring a peaceful environment.

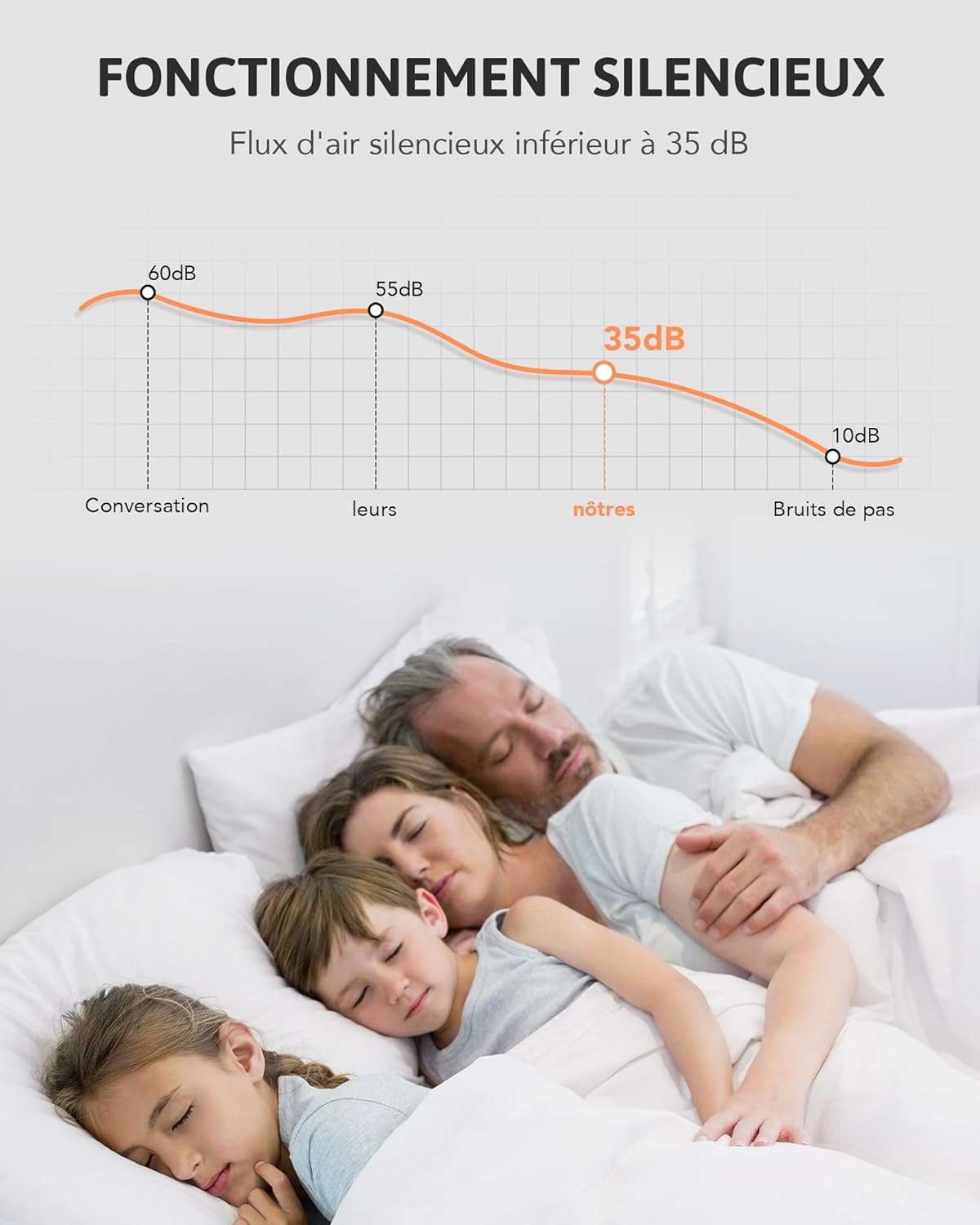

Noise level comparison, highlighting the fan's quiet operation at less than 35 dB.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Dust the fan blades and motor housing regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Tightening: Periodically check all screws and connections to ensure they are secure.
- Lubrication: The DC motor is permanently lubricated and does not require additional oiling.
Troubleshooting
If you encounter any issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power, loose wiring, remote battery dead. | Check circuit breaker, ensure connections are secure, replace remote battery. |
| Fan makes unusual noise | Loose screws, unbalanced blades, motor issue. | Tighten all screws, ensure blades are balanced, contact support if motor noise persists. |
| Light does not work | Loose wiring, LED module failure. | Check light kit wiring, contact support for LED module replacement. |
| Remote control not working | Dead battery, remote not paired. | Replace remote battery, refer to pairing instructions in the full manual (if applicable). |
Specifications
| Feature | Detail |
|---|---|
| Brand | VONLUCE |
| Model Number | CFN-13E2-BK |
| Color | Black |
| Product Dimensions | 132P x 132l x 35H centimeters (52 inches diameter) |
| Power | 45 Watts |
| Voltage | 220 Volts |
| Energy Class | A to G |
| Noise Level | 35 Decibels (max) |
| Special Features | 3 Light Colors, 6 Speeds, LED Light, Silent, Remote Control |
| Item Weight | 5.3 Kilograms |
| Recommended Room Size | 15-30 m² |
| Humidity Level | Dry place, covered and humid place (not exposed to rain/sun) |
| Blade Material | ABS, Metal (FSC certified wood for blades) |
| LED Light Power | 20W |
The fan blades are made from wood sourced from responsibly managed forests, certified by FSC.
Warranty and Support
VONLUCE products are manufactured to high-quality standards. For warranty information, technical support, or to order replacement parts, please contact VONLUCE customer service through your purchase platform or visit the official VONLUCE website. Please have your model number (CFN-13E2-BK) and purchase date ready when contacting support.
