MCombo Model 7222 Power Lift Recliner Chair Instruction Manual

1. Safety Information

Please read and understand all safety instructions before assembling or operating this recliner chair. Failure to follow these instructions may result in injury or damage to the product.

• Weight Capacity: This chair has a maximum weight capacity of 320 pounds (145 kg). Do not exceed this limit.
• Recommended Height: This chair is designed for individuals with a height between 4'6" and 5'2" (137 cm - 158 cm).
• Electrical Safety: The electric lift, recline, massage, and heating functions require power. Ensure the power cord is not pinched or damaged. Use caution to avoid electric shock. Always unplug the chair before cleaning or maintenance.
• Moving Parts: Keep hands, feet, and pets clear of all moving parts, especially the lift and recline mechanisms, to prevent injury.
• Assembly: The product is heavy (approximately 144.4 pounds / 65.5 kg). Two people are recommended for safe assembly and movement.
• USB Ports: The USB ports are designed for low-power devices such as smartphones and tablets. Do not use them for high-power devices.
• Children and Pets: Do not allow children or pets to play on or around the chair, especially when it is in motion.

2. Product Overview

The MCombo Model 7222 is a small-sized triple motor power lift recliner chair designed for comfort and ease of use, particularly for petite individuals. It features independent control for the backrest, footrest, and headrest, along with massage and dual heating functions.

Key Features:

• Triple Motor System: Independent control for backrest, footrest, and headrest.
• Power Lift Function: Assists users in standing up safely.
• Adjustable Headrest: Provides optimal neck support.
• Dual Heating: Lumbar and seat heating for added comfort.
• 8 Vibrating Nodes: Integrated massage function.
• USB Charging Ports: Convenient charging for low-power devices.
• Cup Holders: Two integrated cup holders.
• Side Pockets: For storing remotes or small items.

Dimensions:

• Overall Dimensions (Upright): 36.2"D x 30.3"W x 41.3"H
• Seat Height: 20.1"
• Seat Depth: 20.5"
• Chair Backrest Width: 20.5"
• Arm Height: 26.4"
• Maximum Reclining Angle: 165°

Figure 2.1: MCombo Model 7222 Power Lift Recliner Chair (Beige)

Figure 2.2: Detailed dimensions of the MCombo Model 7222 Recliner Chair.

3. Components List

Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, contact MCombo customer support.

• Backrest
• Armrests (Left and Right)
• Base
• Accessories Box (contains power adapter, remote controls, cables)
• Instruction Manual (this document)

4. Assembly Instructions

Assembly of the MCombo Model 7222 recliner is designed to be straightforward and typically takes about 20 minutes for a novice, with no tools required. It is recommended to have two people for assembly due to the weight of the components.

1. Unpack Components: Carefully remove all parts from the two boxes and place them on a clean, soft surface to prevent scratches.
2. Attach Backrest: Slide the backrest onto the base until it clicks securely into place. Ensure a firm connection.
3. Attach Armrests: Slide the left and right armrests onto the corresponding sides of the base. Verify they are securely attached.
4. Connect Wiring: Locate the electrical cables extending from the backrest, armrests, and base. Connect the color-coded or clearly marked wires according to the labels. Ensure all connections are snug.
5. Connect Power: Plug the power adapter into the chair's power input, then plug the adapter into a wall outlet.
6. Test Functions: Before use, test all functions (lift, recline, headrest, massage, heat) using the remote controls to ensure proper operation.

Figure 4.1: Fully assembled MCombo Model 7222 Recliner Chair.

5. Operating Instructions

The MCombo Model 7222 features a triple motor system for independent control of various functions, along with separate controls for massage and heating.

5.1. Main Remote Control (Lift, Recline, Headrest)

This remote controls the chair's movement and positioning.

Figure 5.1.1: Main remote control for chair movement.

• Lift Up: Press the 'Lift Up' button to gently raise the chair, assisting you to a standing position.
• Lean Back: Press the 'Lean Back' button to recline the backrest and extend the footrest simultaneously.
• Backrest Up/Down: Use the dedicated 'Backrest Up' and 'Backrest Down' buttons for independent adjustment of the backrest.
• Power Headrest (Tilt/Back): Use the 'Power Headrest' buttons to adjust the angle of the headrest for optimal neck support.
• Home Position: Press the 'Home' button to return the chair to its upright, default position.

5.2. Massage and Heating Remote Control

This remote manages the massage and heating functions.

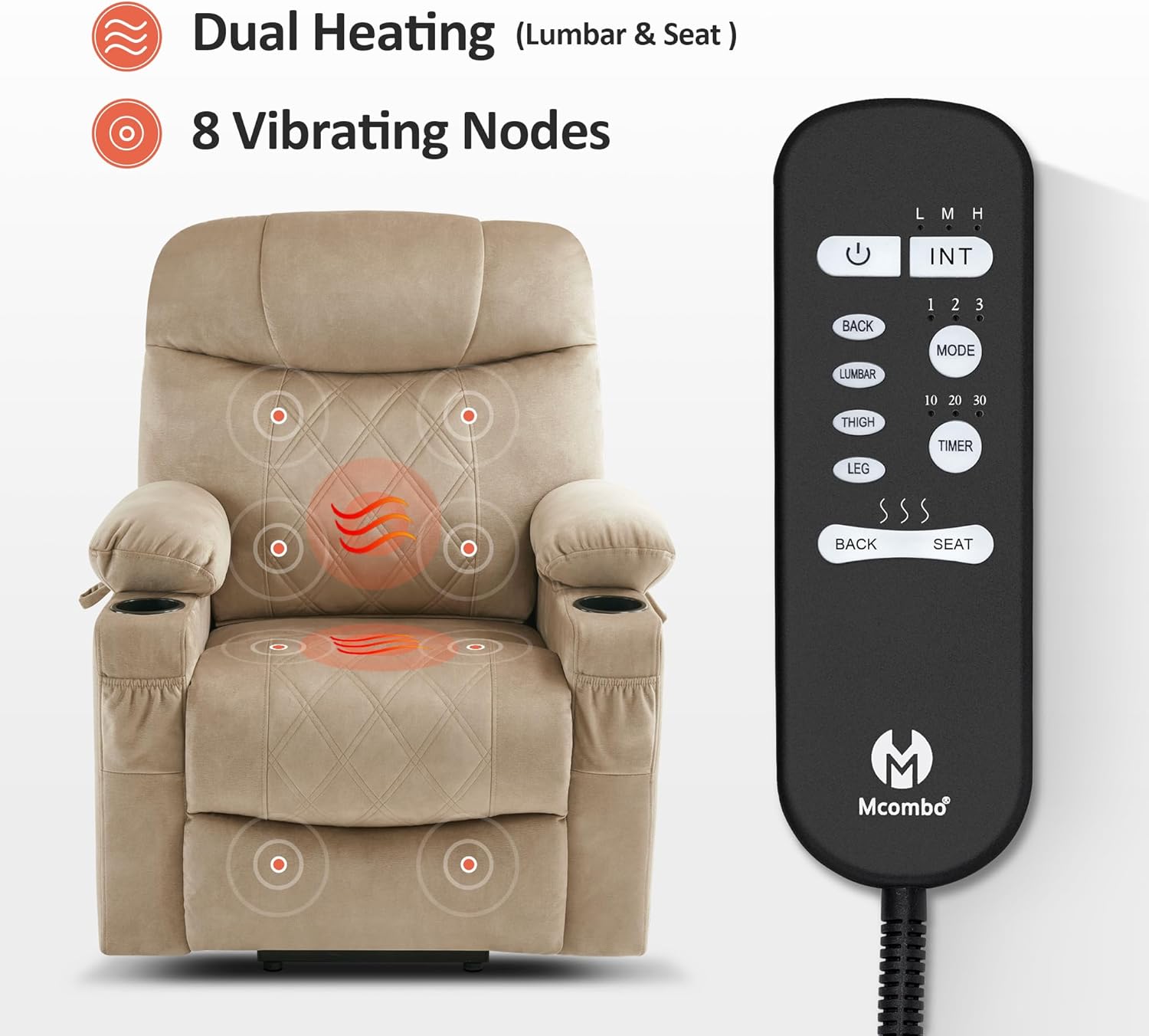

Figure 5.2.1: Remote control for massage and heating functions.

• Power Button: Press to turn the massage and heating functions on/off.
• Mode: Cycle through different massage modes (e.g., pulse, press, wave, auto).
• Intensity (L/M/H): Adjust massage intensity (Low, Medium, High).
• Zone Selection: Select specific massage zones: BACK, LUMBAR, THIGH, LEG.
• Timer: Set a timer for massage duration (e.g., 10, 20, 30 minutes).
• Heat (Back/Seat): Activate heating for the backrest or seat independently.

5.3. USB Charging Ports and Cup Holders

• USB Ports: Located on the side of the chair, these ports allow you to charge low-power electronic devices.
• Cup Holders: Two cup holders are integrated into the armrests for beverages.

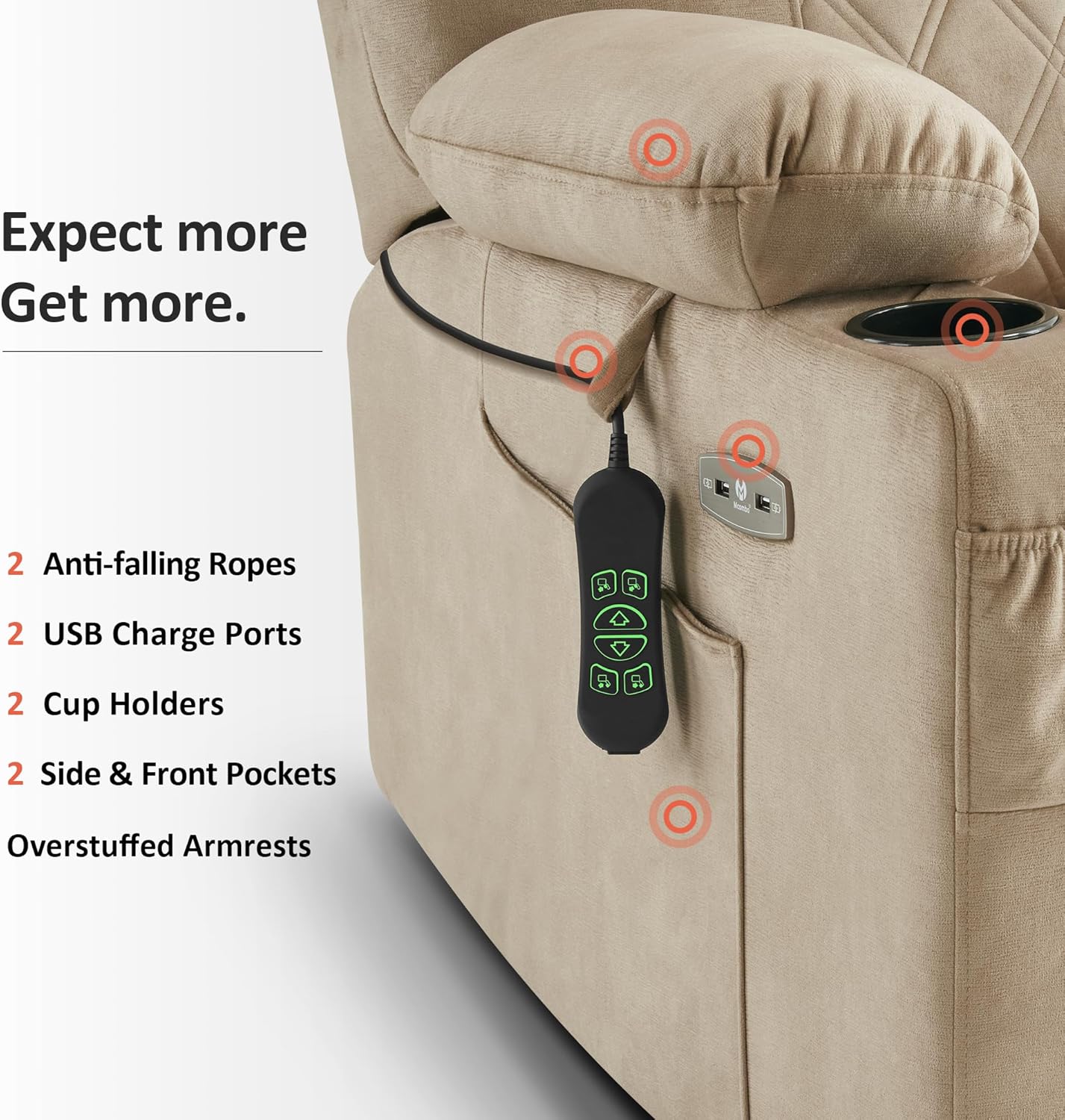

Figure 5.3.1: Armrest detail with USB ports and cup holder.

5.4. Operational Video Guide

6. Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your recliner chair.

• Cleaning: Wipe clean the fabric with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as these can damage the upholstery. For spills, blot immediately with a clean, dry cloth.
• Electrical Components: Periodically check all electrical cords and connections for signs of wear or damage. If any damage is found, discontinue use and contact customer support.
• Moving Parts: Ensure that the lift and recline mechanisms are free from obstructions. Do not apply excessive force to move the chair manually.
• General Inspection: Regularly inspect the chair for any loose screws or components. Tighten as necessary.

7. Troubleshooting

If you encounter issues with your recliner, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact MCombo customer support.

8. Specifications

• Brand: MCombo
• Model Name: 7222
• Product Dimensions: 36.2"D x 30.3"W x 41.3"H
• Size: Small
• Color: Beige
• Material: Textile (Fabric), Foam (Polyurethane or Memory Foam)
• Maximum Weight Recommendation: 320 Pounds
• Recommended Height: 4'6" - 5'2"
• Special Features: Adjustable Backrest, Adjustable Headrest, Cup Holders, Heated, Reclining, Power Lift
• Style: Dual Motor
• Item Weight: 144.4 pounds
• Assembly Time: Approximately 20 minutes (no tools required)

9. Warranty and Support

Your MCombo Model 7222 Power Lift Recliner Chair is covered by a 2-Year Limited Warranty. This warranty covers the reclining and lift mechanism, electrical parts, upholstery material, cushions, and the wood and metal frame.

For warranty claims, technical assistance, or any questions regarding your product, please contact MCombo customer support through the retailer where you purchased the item or visit the official MCombo website for contact information.
