VEGER Portable Charger V0567 User Manual

1. Product Overview

The VEGER V0567 Portable Charger is a compact 5000mAh power bank designed for charging Apple devices and other USB-C compatible electronics. It features a built-in Lightning cable for iPhones, a magnetic charging module for Apple Watches, and a USB-C port for versatile charging.

Key Features:

• Integrated Charging: Built-in Lightning cable for iPhone, magnetic module for Apple Watch, and a Type-C output port.
• Fast Charging: PD 20W fast charging via the built-in cable for compatible iPhones.
• Universal Compatibility: Supports iPhone 15/14/13/12 series, Apple Watch 9/8/7/6/5/4/3/2/1/SE/Ultra, and other Type-C devices.
• Compact Design: 5000mAh capacity in a slim, portable form factor.
• Simultaneous Charging: Capable of charging multiple devices concurrently.

Image 1.1: The VEGER V0567 Portable Charger connected to an iPhone via its built-in cable and an Apple Watch via its magnetic module.

Package Contents:

• VEGER 5000mAh Portable Charger with built-in cable
• User Manual (this document)
• USB-C charging cable

2. Safety Information

• Do not expose the power bank to extreme temperatures (hot or cold), direct sunlight, or fire.
• Avoid dropping, disassembling, or attempting to repair the device yourself.
• Keep away from water and high humidity.
• Use only the provided or certified cables for charging and recharging.
• Keep out of reach of children.
• If the power bank swells, emits an odor, or becomes excessively hot, discontinue use immediately.

3. Setup

Initial Charging of the Power Bank:

1. Before first use, fully charge the VEGER portable charger.
2. Connect the provided USB-C cable to the power bank's USB-C port.
3. Connect the other end of the USB-C cable to a compatible USB wall adapter (not included).
4. The digital display on the power bank will show the charging progress. Charging is complete when the display shows 100%.

Image 3.1: The power bank connected to a wall adapter for recharging. Recharging via Type-C input takes approximately 2.0 hours with a 12V input.

4. Operating Instructions

4.1 Charging an iPhone (via Built-in Cable)

1. Locate the built-in Lightning cable on the side of the power bank.
2. Plug the Lightning connector into your iPhone's charging port.
3. The power bank will automatically begin charging your iPhone. The digital display will show the remaining battery percentage of the power bank.

Image 4.1.1: The built-in Lightning cable, designed for convenience and PD 20W output.

Image 4.1.2: Illustrates the PD 20W fast charging capability, providing 60% charge to an iPhone 14 in 30 minutes.

4.2 Charging an Apple Watch (via Magnetic Module)

1. Place your Apple Watch onto the magnetic charging module located on the top surface of the power bank.
2. Press the power button on the side of the power bank.
3. Wait for 5-16 seconds for the wireless charging to activate and begin charging your Apple Watch.

Image 4.2.1: An Apple Watch charging wirelessly on the integrated magnetic module of the power bank.

4.3 Charging Other Devices (via USB-C Port)

1. Connect a USB-C to USB-C cable (or appropriate cable for your device) to the power bank's USB-C output port.
2. Connect the other end of the cable to your device (e.g., iPhone 15 series, Android phone, tablet, AirPods).
3. The power bank will automatically begin charging the connected device.

4.4 Charging Multiple Devices Simultaneously

The VEGER V0567 can charge an iPhone via the built-in cable, an Apple Watch via the magnetic module, and another device via the USB-C port concurrently.

Image 4.4.1: The power bank charging an iPhone, an Apple Watch, and AirPods at the same time.

4.5 Recharging the Power Bank

To recharge the power bank, connect it to a power source using the provided USB-C cable or a Lightning cable (for iOS input). The digital display will indicate charging status.

• Type-C Input: Approximately 2.0 hours (with 12V input).
• iOS Input: Approximately 3.5 hours (with 5V input).

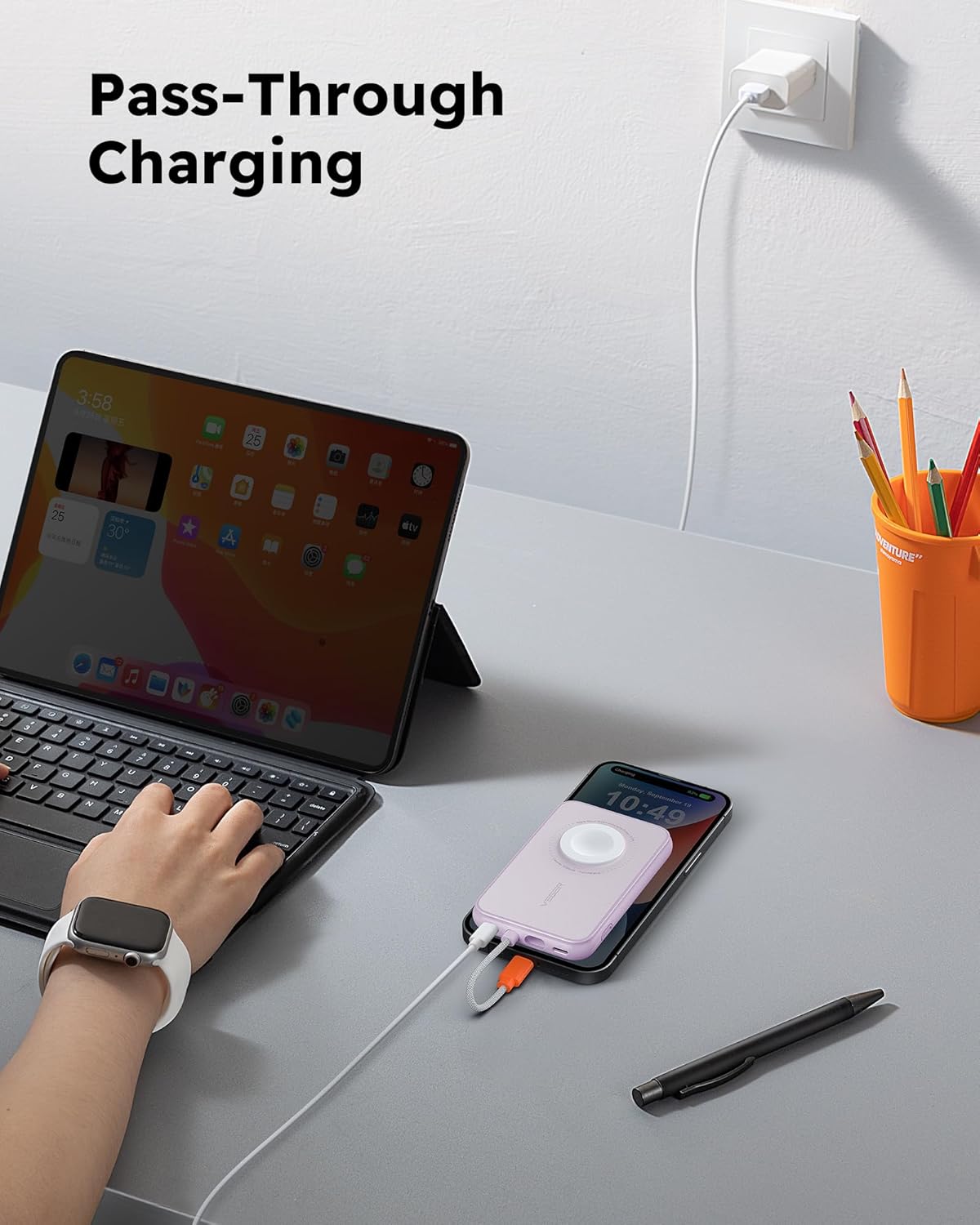

4.6 Pass-Through Charging

The power bank supports pass-through charging, allowing it to be recharged while simultaneously charging other devices. Connect the power bank to a wall adapter and then connect your devices to the power bank.

Image 4.6.1: The power bank is connected to a wall outlet for recharging, while simultaneously charging an iPhone and an Apple Watch.

5. Maintenance

• Cleaning: Use a soft, dry cloth to clean the surface of the power bank. Do not use liquid cleaners or abrasive materials.
• Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the power bank to approximately 50-75% every three months to maintain battery health.
• Battery Care: Avoid fully discharging the power bank frequently, as this can reduce its lifespan.

6. Troubleshooting

7. Specifications

• Model Number: V0567
• Battery Capacity: 5000mAh (Lithium Polymer)
• Built-in Cable Output: PD 20W (Lightning)
• USB-C Port: Input/Output (20W)
• iOS Port: Input (5V)
• Wireless Charging Output: 2.5W (for Apple Watch)
• Product Dimensions: 10.2 x 1.65 x 6.38 inches (approx. 102 x 63.8 x 16.35 mm)
• Item Weight: 5.3 ounces (approx. 150 grams)
• Color: D Purple

Image 7.1: The compact size and weight of the VEGER portable charger, highlighting its portability.

8. Warranty and Support

VEGER provides a 12-month worry-free guarantee for this product. For any issues or inquiries, please contact our customer service team. We aim to resolve problems within 12 hours.

Customer Service: Refer to the contact information provided in your product packaging or on the official VEGER website.
