User Manual

Product Overview

This PLUSPOE 7.5V power cord is designed as a replacement AC adapter charger for various Summer Infant monitor models. It features an extended 6.6-foot cord for flexible placement and is UL Listed for safety.

Image: The PLUSPOE 7.5V power cord, showing the white adapter block with two prongs and the long white cord ending in an angled barrel plug.

Key Features:

• Extended Cord Length: 6.6 feet (2 meters) for convenient placement.
• UL Listed: Certified for safety and reliability.
• Wide Compatibility: Designed for numerous Summer Infant monitor models.
• Safety Protections: Includes over-voltage, over-current, short-circuit, over-temperature, electromagnetic wave, and grounded protection.

Image: A graphic detailing the full safety solution protection features of the power adapter, including over-voltage, over-current, short-circuit, over-temperature, electromagnetic wave, and grounded protection. It also mentions 1382°F fire retardant exterior.

Compatibility

This power cord is specifically designed for Summer Infant devices. Please verify your device's model number and input specifications before use.

Compatible Models:

Summer Infant 02230, 28040, 28450, 2845013, 28450-13, 28456, 28460, 28490, 28490A, 28510, 28513, 28520, 28530, 28560, 28570, 28580, 28590, 28600, 28630, 28630A, 28640, 28650, 28650A, 28680, 28680Z, 28810, 28810A, 28820, 28870, 28920, 28970, 28970A, 28980, 29000A, 29000B, 29030, 29040, 29240, F29240, 29253, 29260, 29270, 29310, 29350, 29580, 29580-13, 29590, 29600, 29610, 29620, 29630, 29650, 29710, 29740, 29790, 29890, 36014, 36034, 36044, 3927003H12.

Compatible Part Numbers:

P507050500, AD0507050500, AD-050750500, ADN050750500.

Important Compatibility Notes:

• Ensure your Summer Infant device input port is a ROUND port.
• The input voltage of your device must be 7.5V.
• The input current of your device must be 1000mA or lower.

This charger WILL NOT fit the following models:

Summer Infant Slim & Secure Baby Monitor 2800, 02800, 02804, 02805, P/N: AD150600550, 02000Z, 02000 Monitor AD050600550, AD05060055, and 28520 (02000 02000Z) & P/N: AD050600550 & 28520 CHARGER BASE STATION.

Image: A visual representation of the power adapter with text indicating its input and output parameters (AC 100-240V/50/60Hz, 7.5VDC 500mA 1000mA) and UL Listed and VI certifications, along with icons for various safety protections.

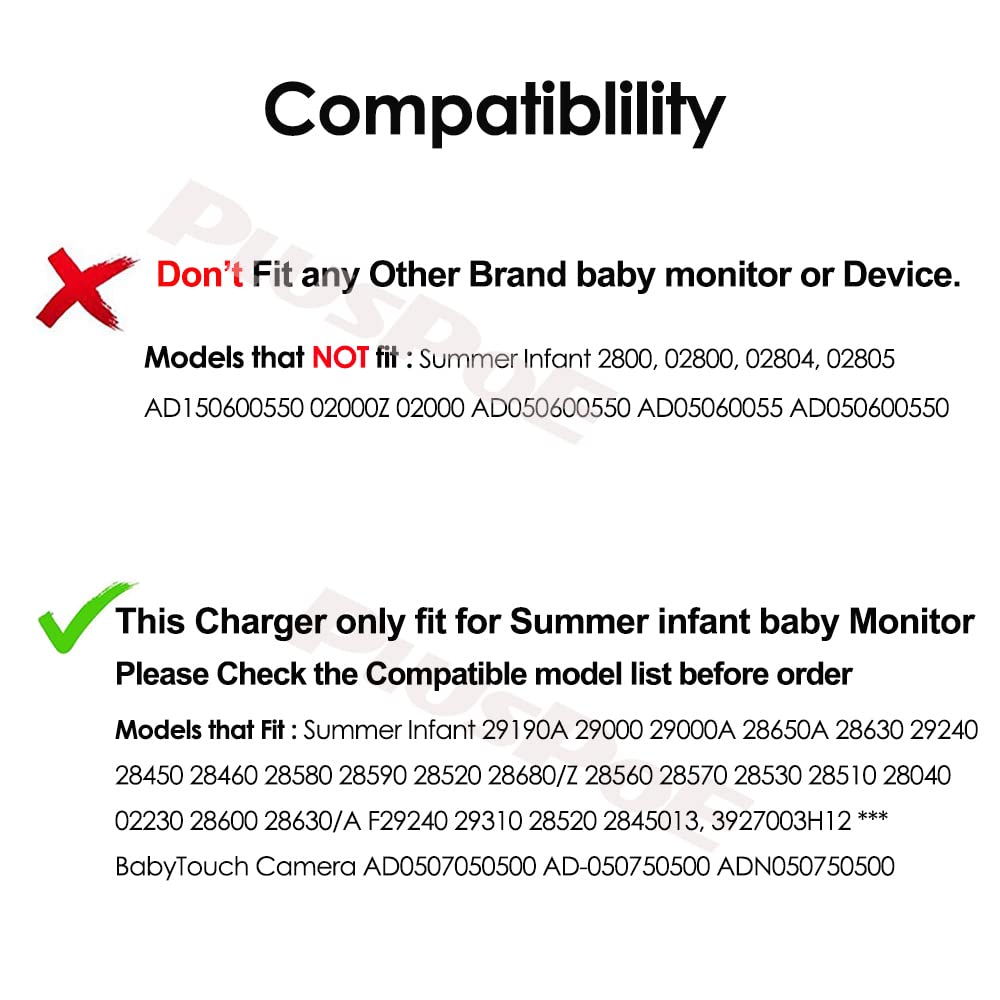

Image: A graphic illustrating compatible and incompatible Summer Infant models for the power cord, with a red 'X' for non-fitting models and a green checkmark for fitting models, emphasizing the need to check the model list.

Setup

1. Verify Compatibility: Before connecting, ensure your Summer Infant device's model number and power requirements (7.5V input, round port, 1000mA or lower current) match the specifications of this power cord. Refer to the "Compatibility" section.
2. Locate Device Power Port: Identify the power input port on your Summer Infant monitor or camera. It should be a round port.
3. Connect Power Cord: Insert the barrel plug of the PLUSPOE power cord firmly into the power input port of your Summer Infant device.
4. Plug into Outlet: Insert the two-prong adapter into a standard AC wall outlet (100-240V, 50/60Hz).
5. Power On Device: Once connected, power on your Summer Infant device as per its own instructions.

Image: The PLUSPOE power adapter with its cord and plug, illustrating its compact design and the connection point. This image helps visualize the product's physical form.

Operating Instructions

This power cord functions as a direct replacement or spare for your original Summer Infant power adapter. No specific operational steps are required for the cord itself beyond proper connection.

• Once connected to a compatible Summer Infant device and a power outlet, the cord will supply the necessary 7.5V DC power.
• The extended 6.6-foot cord allows for greater flexibility in positioning your monitor or camera relative to a power source.

Maintenance

To ensure the longevity and safe operation of your power cord, follow these maintenance guidelines:

• Cleaning: Disconnect the power cord from the wall outlet and the device before cleaning. Wipe the adapter and cord with a dry, soft cloth. Do not use liquid cleaners or abrasive materials.
• Storage: When not in use, store the power cord in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tightly winding the cord to prevent damage.
• Inspection: Periodically inspect the cord and plug for any signs of damage, such as fraying, cuts, or bent prongs. If any damage is observed, discontinue use immediately and replace the cord.
• Handling: Always grasp the plug when inserting or removing the cord from an outlet or device. Do not pull on the cord itself.

Troubleshooting

If your device is not powering on or charging with this adapter, consider the following:

Image: A notice titled "Notice Before you order" with a question "Q: Why this charger don't charge your baby monitor?" followed by four potential reasons: device is not Summer Infant, model not listed, device is defective, or charger is defective (seldom).

Specifications

Image: A coiled white power cord with text indicating its total length of 6.6 feet, highlighting its extended reach. Also mentions high transmission of thick thinned copper wires and benefits like preventing leakage and breakdown.

Warranty and Support

This product comes with a warranty and support from the manufacturer.

• Warranty: 30 Days Refund - 24 Months Exchange.
• Support: For any issues or inquiries, please contact the seller directly through the platform where the purchase was made.
• UL Listing: The product is Tested, Approved, and Certified by UL, ensuring the safety of your equipment.
