1. Product Overview
The Neoperl Slim Coin Slot Faucet Aerator is designed to provide a splash-free, aerated water stream for kitchen and bathroom faucets. This hidden aerator features a patented construction that ensures a soft-to-the-touch flow and is virtually invisible once installed. It is pressure compensating, maintaining a constant flow rate between 20 and 80 psi.
This aerator is available in two main sizes: Standard 15/16" and Junior 13/16" male threads, with various flow rates from 1.0 gpm to 2.2 gpm. The integrated anti-liming honeycomb and anti-clogging dome screen help filter sediment and prevent mineral buildup.
2. Key Features
- Aerated Stream: Introduces air into the water stream for a soft, white, splash-free, and non-splashing flow.
- Pressure Compensating: Maintains a consistent flow rate from 20 to 80 psi.
- Anti-Liming Honeycomb: Replaces conventional wire mesh screens to resist lime buildup.
- Anti-Clogging Dome Screen: Filters sediment and particles to prevent clogs.
- Coin Slot Installation: Designed for easy installation and removal using a coin (quarter recommended).
- Hidden Design: Virtually invisible once installed into the faucet cavity.
- WaterSense Listed: Meets WaterSense efficiency standards.
3. Installation Guide
Before installation, ensure you have selected the correct size aerator for your faucet. The Neoperl Slim Coin Slot Aerator comes in Standard (15/16"-27 male threads) and Junior (13/16"-27 male threads) sizes. This aerator is designed to thread directly into the cavity of a traditional male aerator and does not require an external housing.
Image 3.1: This image illustrates the difference between the Standard (15/16"-27 male threads) and Junior (13/16"-27 male threads) sizes of the Neoperl Slim Coin Slot Aerator. It also shows the visual distinction between "Regular" and "Junior" coin slot designs, often corresponding to the aerator's overall size. Ensure you match the aerator size to your faucet's internal threading.
Image 3.2: A direct comparison of the Junior Size (13/16"-27 male threads) and Standard Size (15/16"-27 male threads) Perlator Coin Slot aerators, showing their top and side profiles. This helps in visually identifying the correct size for your application.
3.1. Important Compatibility Note
The Neoperl Slim Coin Slot Aerator is a Perlator Slim Coin Slot and is NOT a Cache Coin Slot. These two types are not interchangeable. Please verify your faucet requires a Perlator type aerator.
Image 3.3: This image highlights the visual differences between a Slim Perlator and a Cache Hidden Aerator. Note the distinct design features, such as the flat washer on the Perlator Coin Slot versus the O-ring on the Cache Coin Slot. This visual guide is critical for ensuring you have the correct aerator type for your faucet.
3.2. Installation Steps
- Remove Old Aerator: If replacing an existing aerator, unscrew it from the faucet spout. Some aerators may require a wrench or a specialized tool.
- Clean Faucet Spout: Clean any debris or mineral buildup from the inside of the faucet spout threads.
- Insert New Aerator: Place the Neoperl Slim Coin Slot Aerator into the faucet spout opening.
- Tighten with Coin: Use a coin (a quarter is recommended) to turn the aerator clockwise until it is snug. Do not overtighten.
- Test for Leaks: Turn on the water and check for any leaks around the aerator. If leaks occur, gently tighten further with the coin.

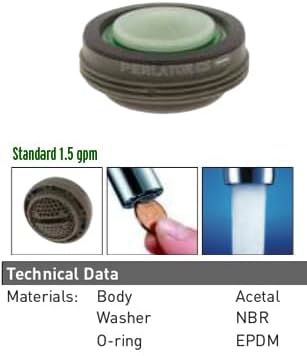

Image 3.4: This image displays the Standard 1.5 gpm aerator, a visual of how a coin is used for installation, and the resulting aerated water stream. It also includes technical data for the aerator's materials.
4. Operation
Once installed, the Neoperl Slim Coin Slot Faucet Aerator operates automatically with the flow of water. It mixes air into the water stream, creating a soft, white, and non-splashing flow. The pressure compensating feature ensures a consistent flow rate regardless of fluctuations in water pressure within the 20 to 80 psi range.
5. Maintenance
The Neoperl Slim Coin Slot Aerator is designed for low maintenance. Its integrated anti-liming honeycomb and anti-clogging dome screen reduce the need for frequent cleaning.
- Regular Cleaning: If you notice a reduction in water flow or an irregular stream, the aerator may need cleaning.
- Cleaning Steps:
- Turn off the water supply to the faucet.
- Use a coin to unscrew the aerator counter-clockwise.
- Rinse the aerator under running water to remove any loose debris.
- For stubborn mineral deposits, soak the aerator in a solution of equal parts white vinegar and water for 30 minutes to an hour.
- Gently scrub the honeycomb screen and dome screen with a soft brush (like an old toothbrush) to remove any remaining buildup.
- Rinse thoroughly and reinstall the aerator as described in the Installation Guide.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced water flow | Clogged aerator screen due to sediment or mineral buildup. | Clean the aerator as described in the Maintenance section. |
| Irregular or spraying water stream | Partial clogging of the aerator screen or damaged components. | Clean the aerator thoroughly. If the problem persists, inspect for damage and consider replacement. |
| Leakage around the aerator | Aerator not tightened sufficiently or incorrect size/type for the faucet. | Gently tighten the aerator with a coin. Ensure the correct size and type of aerator is installed. |
7. Specifications
Image 7.1: This technical drawing provides detailed mounting dimensions and overall dimensions for the Standard Size Neoperl Slim Coin Slot Aerator (15/16"-27 UNS threads). All measurements are in inches and millimeters.
| Attribute | Detail |
|---|---|
| Brand | Neoperl |
| Model Number | 16016xx |
| Material | Acetal (Body), NBR (Washer), EPDM (O-ring) |
| Finish Type | Brushed |
| Specification Met | WaterSense |
| Thread Size (Standard) | 15/16"-27 male |
| Thread Size (Junior) | 13/16"-27 male |
| Maximum Flow Rate | Available in 1.0, 1.5, 1.8, 2.2 Gallons Per Minute (gpm) |
| Item Weight | Approximately 1 ounce |
| Product Dimensions | Approximately 0.75 x 0.75 x 0.75 inches (varies by size) |
| Included Components | Aerator, Insert, Washer |
8. Warranty and Support
Specific warranty information for this product is typically provided at the point of purchase or on the product packaging. For detailed warranty terms and conditions, please refer to the documentation included with your purchase or contact Neoperl customer support directly.
For technical assistance or further inquiries, please visit the official Neoperl website or contact their customer service department. Contact information can usually be found on the manufacturer's website or product packaging.
