ViewSonic Omni VX2416 24-inch FHD IPS Gaming Monitor User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your ViewSonic Omni VX2416 24-inch FHD IPS Gaming Monitor. Please read this manual thoroughly before using your monitor to ensure proper installation and optimal performance. Keep this manual for future reference.

Setup Instructions

1. Package Contents

Verify that all items are present in the package:

• ViewSonic Omni VX2416 Monitor
• Power Cable
• HDMI Cable
• DisplayPort Cable
• Monitor Stand (Base and Neck)
• Quick Start Guide

2. Assembling the Monitor Stand

1. Carefully place the monitor face down on a soft, clean surface to prevent scratches.
2. Attach the stand neck to the back of the monitor until it clicks into place or is secured with screws (refer to the Quick Start Guide for specific screw details).
3. Attach the stand base to the stand neck, ensuring it is firmly secured.

Image: Rear view of the ViewSonic VX2416 monitor with the stand fully assembled and attached. This shows the monitor's back panel and the ergonomic stand.

3. Connecting Cables

Ensure the monitor and your computer are powered off before making any connections.

1. Power Connection: Connect the power cable to the monitor's power input and then to a power outlet.
2. Video Connection:
   • For optimal performance, use the provided DisplayPort cable to connect your computer's DisplayPort output to the monitor's DisplayPort input.
   • Alternatively, use the provided HDMI cable to connect your computer's HDMI output to one of the monitor's HDMI inputs.
3. Audio Connection (Optional): If you are using external speakers or headphones, connect them to the monitor's audio out port. The monitor also has built-in speakers.

Image: Detailed view of the ViewSonic VX2416 monitor's rear connectivity panel, showing the power input, HDMI ports, DisplayPort, and audio output.

4. Initial Power On

1. Plug the power cable into a wall outlet.
2. Press the power button on the monitor.
3. Power on your computer. The monitor should automatically detect the input signal. If not, you may need to manually select the input source using the On-Screen Display (OSD) menu.

Operating Instructions

1. On-Screen Display (OSD) Menu

The OSD menu allows you to adjust various monitor settings. Use the buttons located on the bottom right of the monitor to navigate the menu.

• Power Button: Turns the monitor on/off.
• Menu Button: Opens the OSD menu.
• Navigation Buttons: Used to move through menu options and adjust values.
• Select/Exit Button: Confirms selections or exits the menu.

2. Display Settings

Access the OSD menu to adjust the following display parameters:

• Brightness/Contrast: Adjust the overall luminance and difference between light and dark areas.
• Color Settings: Modify color temperature, gamma, and individual RGB levels.
• Input Select: Manually switch between HDMI and DisplayPort inputs.
• Refresh Rate: Ensure your system is set to 100Hz for optimal gaming performance.
• AMD FreeSync: Enable this feature in the OSD and your graphics card settings for tear-free gaming.

3. Audio Settings

The monitor includes built-in speakers. Adjust the volume through the OSD menu or your computer's sound settings.

4. Ergonomic Adjustments

The VX2416 monitor stand offers various adjustments for comfortable viewing:

• Height Adjustment: Raise or lower the monitor to eye level.
• Tilt Adjustment: Tilt the screen forward or backward to reduce glare and optimize viewing angle.
• Swivel Adjustment: Rotate the monitor horizontally to share your screen or adjust your viewing position.
• Portrait Viewing: Rotate the screen 90 degrees for vertical content.

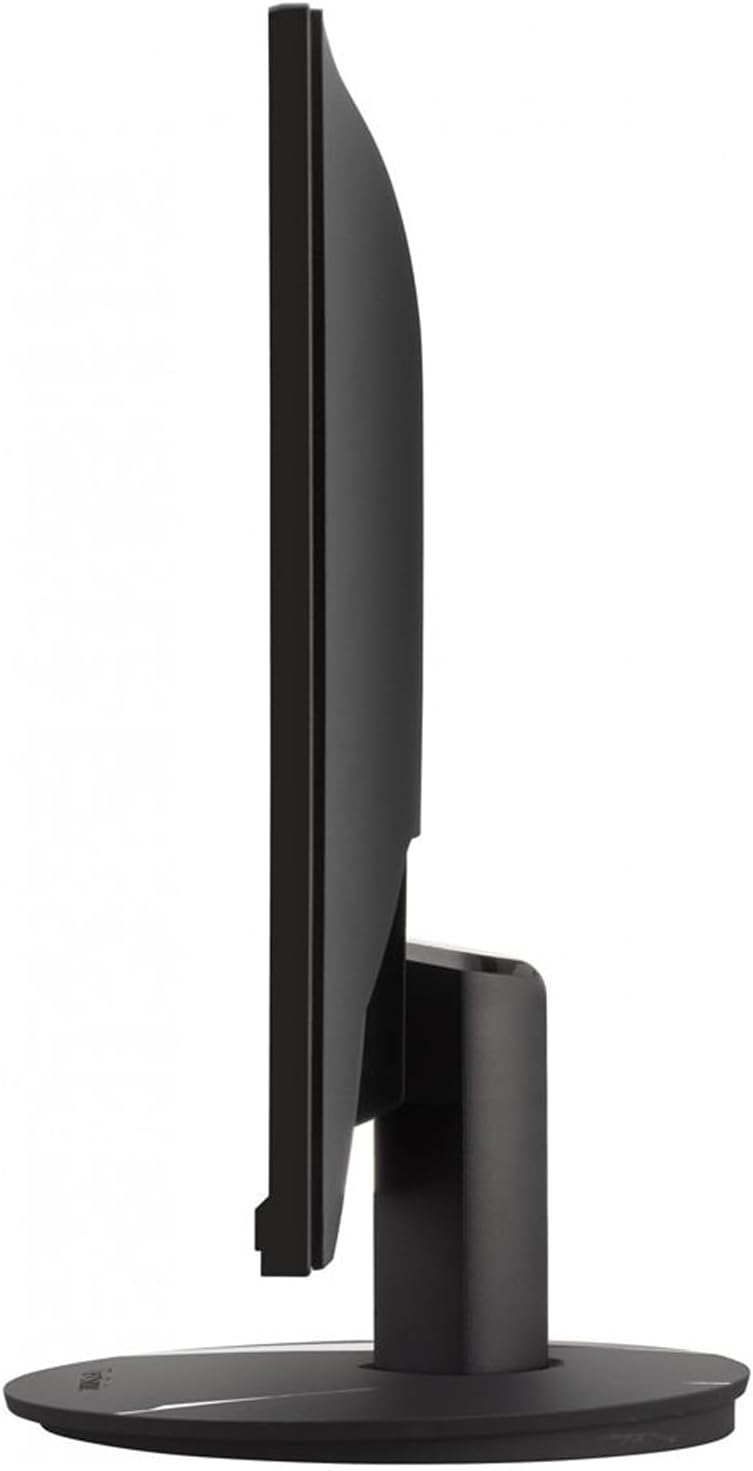

Image: Side profile of the ViewSonic VX2416 monitor, illustrating its ergonomic stand which allows for height, tilt, and swivel adjustments.

5. Eye-Care Features

The monitor includes features designed to reduce eye strain during prolonged use:

• Flicker-Free Technology: Minimizes screen flickering to reduce eye fatigue.
• Blue Light Filter: Reduces harmful blue light emissions. This can be adjusted or enabled/disabled via the OSD menu.

Maintenance

1. Cleaning the Monitor

• Always power off the monitor and unplug the power cord before cleaning.
• Use a soft, lint-free cloth lightly dampened with water or a mild, non-abrasive screen cleaner.
• Do not spray cleaner directly onto the screen. Apply it to the cloth first.
• Avoid using benzene, thinner, ammonia-based cleaners, or abrasive materials, as these can damage the screen surface.

2. General Care

• Avoid placing the monitor in direct sunlight or near heat sources.
• Ensure adequate ventilation around the monitor.
• Do not block ventilation openings.
• Avoid dropping or subjecting the monitor to strong impacts.

Troubleshooting

Specifications

Warranty Information

ViewSonic products are manufactured to the highest standards and deliver high-quality performance. For detailed warranty information specific to your region and product, please refer to the warranty card included in your product packaging or visit the official ViewSonic website.

Typically, ViewSonic monitors come with a limited warranty covering defects in materials and workmanship under normal use. Keep your purchase receipt as proof of purchase for warranty claims.

Customer Support

If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you require further assistance, please contact ViewSonic customer support.

• Online Support: Visit the official ViewSonic support website for FAQs, driver downloads, and contact information. www.viewsonic.com/support
• Telephone Support: Refer to your product's Quick Start Guide or the ViewSonic website for regional telephone support numbers.
