1. Product Overview
The Zanussi Neptune Smart Digital Electric Water Heater, model ZYE05041WN, is designed to provide a convenient and efficient hot water supply. It features simple controls, robust safety mechanisms, and high-quality components for reliable performance. This model includes a clear digital display for precise temperature indication and control, incorporating smart energy consumption features for efficiency.

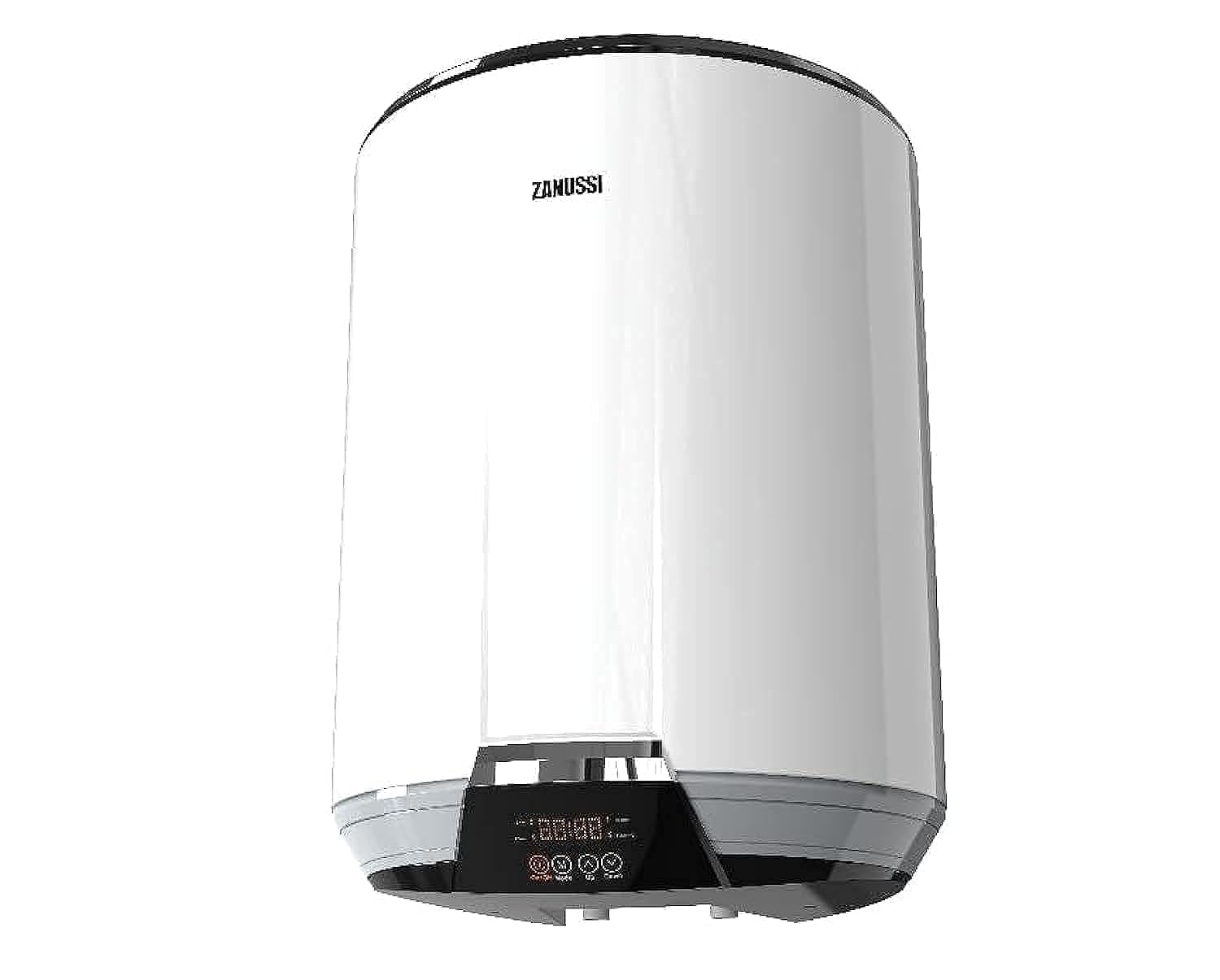

Image 1.1: Front view of the Zanussi Neptune Smart Digital Electric Water Heater, 50 Liter capacity.
Key Features:
- Brand: Zanussi
- Capacity: 50 Liters
- Power: 1500 Watts, Electric
- Display: Digital temperature display
- Installation: Wall-mounted
- Safety: High level of safety features
- Efficiency: Smart energy consumption
2. Safety Information
Read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
General Safety Precautions:
- Electrical Safety: Ensure the water heater is connected to a properly grounded electrical outlet. Do not use extension cords. Disconnect power before any maintenance or service.
- Water Pressure: Do not operate the water heater if the water supply pressure exceeds the maximum specified pressure (8 bar). Install a pressure reducing valve if necessary.
- Temperature: Hot water can cause severe burns. Exercise caution when using hot water. Do not set the temperature excessively high.
- Installation: Installation must be performed by a qualified professional in accordance with local codes and regulations.
- Children and Pets: Keep children and pets away from the water heater, especially during operation.
- Leakage: Regularly inspect for any signs of water leakage. If a leak is detected, immediately turn off the water supply and electrical power.
3. Setup and Installation
This water heater is designed for wall-mounted installation. Professional installation is highly recommended to ensure safety and proper function.
Installation Steps:
- Site Selection: Choose a suitable location on a load-bearing wall, close to water supply lines and an electrical outlet. Ensure adequate clearance for maintenance.
- Mounting: Securely mount the water heater to the wall using appropriate fasteners and brackets (not included, refer to installation guide for specific requirements). Ensure the unit is level.
- Water Connections: Connect the cold water inlet and hot water outlet pipes. Install a pressure relief valve on the cold water inlet line as per local regulations. Ensure all connections are watertight.
- Electrical Connection: Connect the water heater to a dedicated, grounded electrical circuit. Verify that the voltage and amperage match the product specifications. This step must be performed by a licensed electrician.
- Filling the Tank: Before powering on, open a hot water faucet in your home and slowly open the cold water supply valve to the heater. Allow the tank to fill completely and air to escape from the faucet. Close the faucet once water flows steadily.
- Leak Check: Inspect all water connections for leaks. Tighten any leaking connections.
4. Operating Instructions
The Zanussi Neptune water heater features a digital display for easy temperature management.
Basic Operation:
- Power On: After successful installation and filling, switch on the electrical power to the water heater. The digital display will illuminate.
- Set Temperature: Use the control buttons (usually '+' and '-' or up/down arrows) to adjust the desired water temperature. The digital display will show the set temperature.
- Heating Indicator: A heating indicator light or icon on the display will show when the water heater is actively heating the water.
- Smart Energy Mode: This water heater is equipped with smart energy consumption features. Refer to the detailed manual for specific instructions on activating or customizing energy-saving modes.
- Power Off: To turn off the water heater, press the power button or disconnect the electrical supply.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your water heater. Always disconnect electrical power and turn off the water supply before performing any maintenance.
Recommended Maintenance:
- Annual Flushing: Drain and flush the water heater tank annually to remove sediment buildup. This helps maintain efficiency and prevents corrosion.
- Anode Rod Inspection: Inspect the anode rod every 1-2 years and replace it if significantly corroded. The anode rod protects the tank from corrosion.
- Pressure Relief Valve Test: Test the temperature and pressure relief (T&P) valve at least once a year to ensure it is operating correctly. Follow manufacturer guidelines for testing.
- Exterior Cleaning: Clean the exterior of the water heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Leak Checks: Periodically check all water connections and the tank for any signs of leaks.
6. Troubleshooting
This section addresses common issues you might encounter with your water heater. For problems not listed here, contact qualified service personnel.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water | No power; thermostat set too low; heating element failure | Check circuit breaker/fuse; adjust thermostat; contact service for element replacement |
| Water not hot enough | Thermostat set too low; excessive hot water usage; sediment buildup | Increase thermostat setting; reduce hot water demand; flush tank |
| Water too hot | Thermostat set too high | Decrease thermostat setting |
| Leaking water | Loose connections; faulty T&P valve; tank corrosion | Tighten connections; replace T&P valve; contact service for tank inspection |
| Unusual noises (e.g., popping, rumbling) | Sediment buildup in tank | Flush the tank to remove sediment |
7. Specifications
Detailed technical specifications for the Zanussi Neptune Smart Digital Electric Water Heater.
| Specification | Value |
|---|---|
| Manufacturer | Zanussi |
| Part Number | 945105441 |
| Item Weight | 199 grams (Note: This weight seems unusually low for a 50L water heater and may refer to a component. Refer to packaging for actual product weight.) |
| Product Dimensions | 9 x 9 x 9 cm (Note: These dimensions seem unusually small for a 50L water heater and may refer to a component. Refer to packaging for actual product dimensions.) |
| Item Model Number | ZYE05041WN |
| Color | White |
| Style | Internal Installation (Wall-mounted) |
| Power Source Type | Corded Electric |
| Wattage | 1500 Watts |
| Maximum Pressure | 8 Bar |
| Plug Type | Wall |
| Special Features | Smart Energy Consumption, Integrated Storage Shelf (Note: 'Integrated Storage Shelf' might be a mistranslation or refer to a specific internal component, not an external shelf), Digital Temperature Display |
| Batteries Required? | No |
| ASIN | B0CNDG9VJP |
| Capacity | 50 Liters |
| Efficiency | Energy Efficient |
| Date First Available | April 19, 2023 |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your product or visit the official Zanussi website. Warranty terms and conditions may vary by region.
For technical support, service, or to inquire about replacement parts, please contact Zanussi customer service through their official website or the contact details provided in your product packaging.
When contacting support, please have your product model number (ZYE05041WN) and serial number (if applicable) ready.
