1. Introduction
This manual provides essential information for the safe and efficient operation of your new Wonder WL7200FD Front Load Washing Machine. Please read it thoroughly before installation and first use, and keep it for future reference.
Key Features:
- 7 kg washing capacity
- Maximum spin speed of 1200 rpm
- Universal motor with Energy Efficiency Class F
- Low noise level, maximum 76 dB
- White aesthetic with transparent door
- Stainless steel diamond drum for gentle fabric care
- Electronic control system with LED Display
- 12 washing programs for diverse laundry needs
- Stop&Go function for adding items during a cycle
- Ecologic System for effective and environmentally friendly washing
Figure 1.1: Wonder WL7200FD Front Load Washing Machine overview.

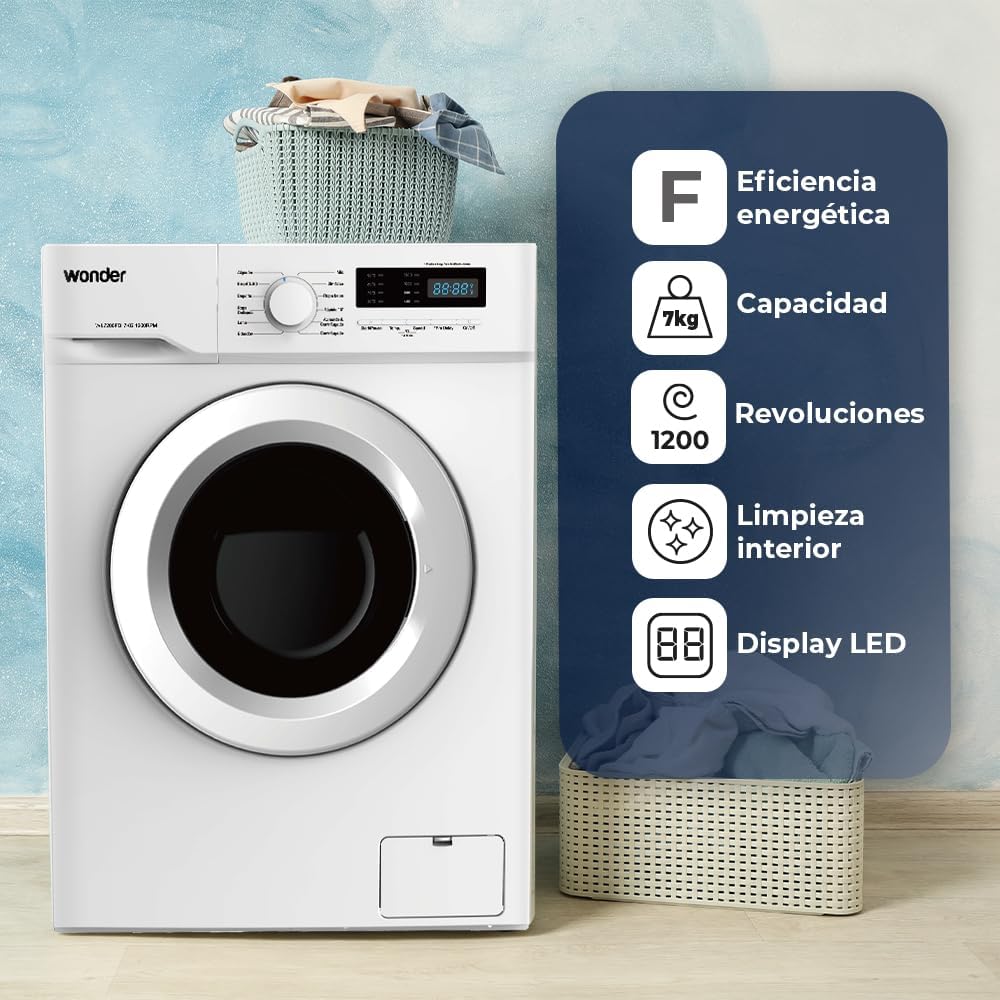

Figure 1.2: Key features of the Wonder WL7200FD, including Energy Class F, 7kg capacity, 1200 RPM, interior cleaning, and LED display.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Ensure the appliance is properly grounded.
- Do not operate the washing machine if it is damaged or malfunctioning.
- Keep children and pets away from the appliance during operation.
- Do not wash items that have been soiled with flammable substances.
- Unplug the appliance before cleaning or performing any maintenance.
- Do not attempt to repair the appliance yourself. Contact qualified service personnel.
3. Installation and Setup
3.1 Unpacking
Carefully remove all packaging materials. Inspect the washing machine for any damage incurred during transit. Keep packaging materials out of reach of children.
3.2 Location and Dimensions
Place the washing machine on a firm, level surface. Ensure there is adequate space around the appliance for ventilation and maintenance.
Figure 3.1: Dimensions of the Wonder WL7200FD washing machine (Height: 850mm, Width: 595mm, Depth: 480mm).
Dimensions (H x W x D): 850 mm x 595 mm x 480 mm
3.3 Water and Power Connections
- Connect the water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks.
- Position the drain hose into a suitable drain or sink, ensuring it is securely fixed to prevent displacement during draining.
- Plug the power cord into a grounded electrical outlet. The washing machine operates on 1750W.
3.4 Leveling the Appliance
Adjust the leveling feet at the bottom of the washing machine to ensure it is perfectly level. A level appliance reduces vibration and noise during operation.
4. Operating Instructions
4.1 Control Panel Overview
Figure 4.1: Detailed view of the control panel with program dial and LED display.
The control panel features a program selection dial, an LED display, and various function buttons (Start/Pause, Temp, Speed, Pre Delay, On/Off).
4.2 Program Selection
Turn the program dial to select one of the 12 available washing programs. The LED display will show the estimated time and default settings for the selected program.
Available Programs:
- Cotton
- Eco 40-60
- Sport
- Delicate
- Wool
- Duvet
- Mix
- Baby Clothes
- Rapid 15'
- Rinse & Spin
- Spin
- Tub Clean
4.3 Loading Laundry
Open the door and load laundry into the drum, ensuring not to overload the machine. The maximum capacity is 7 kg.
4.4 Detergent Dispenser
Add appropriate detergent and fabric softener to the designated compartments in the dispenser drawer.
4.5 Starting a Cycle
After selecting the program and adding detergent, press the "Start/Pause" button to begin the washing cycle.
4.6 Stop&Go Function
The Stop&Go function allows you to pause the cycle and add forgotten items. Press "Start/Pause", wait for the door to unlock, add items, close the door, and press "Start/Pause" again to resume.
5. Maintenance and Care
Regular maintenance ensures the longevity and optimal performance of your washing machine.
5.1 Cleaning the Exterior
Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
5.2 Cleaning the Detergent Dispenser
Remove the dispenser drawer and rinse it under running water to remove any detergent residue. Clean the dispenser housing with a brush.
5.3 Drum Cleaning (Tub Clean)
Utilize the dedicated "Tub Clean" program periodically to clean the washing machine drum and remove any buildup or odors.
5.4 Filter Cleaning
Regularly check and clean the drain pump filter, usually located at the bottom front of the machine. Refer to the diagram near the filter for specific instructions.
6. Troubleshooting
Before contacting service, refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged; Door not closed properly; Program not selected; Start/Pause button not pressed. | Check power connection; Ensure door is latched; Select a program; Press Start/Pause. |
| No water intake | Water tap closed; Water inlet hose kinked; Water supply cut off. | Open water tap; Straighten hose; Check household water supply. |
| Machine vibrates excessively | Machine not level; Transit bolts not removed; Overloaded or unbalanced load. | Adjust leveling feet; Remove transit bolts (if applicable); Redistribute laundry; Reduce load size. |
| Water not draining | Drain hose kinked or blocked; Drain pump filter clogged. | Check and clear drain hose; Clean drain pump filter. |
7. Specifications
Detailed technical specifications for the Wonder WL7200FD washing machine.
| Parameter | Value |
|---|---|
| Model Number | WL7200FD |
| Manufacturer | Wonder |
| Capacity | 7 kg |
| Maximum Spin Speed | 1200 RPM |
| Energy Efficiency Class | F |
| Noise Level (Spin) | 76 dB |
| Dimensions (H x W x D) | 850 x 595 x 480 mm |
| Weight | 57 kg |
| Power Consumption | 1750W |
| Number of Programs | 12 |
| Components Included | Washing Machine, Instruction Manual |
Figure 7.1: Energy Efficiency Label for the Wonder WL7200FD.
For more detailed product information and the official EPREL database entry, please visit: https://eprel.ec.europa.eu/qr/1438784
8. Warranty and Support
8.1 Warranty Information
This product comes with a manufacturer's warranty. Please refer to the separate warranty document included with your purchase for specific terms and conditions, including warranty period and coverage details.
8.2 Customer Support
For technical assistance, spare parts, or any inquiries regarding your Wonder washing machine, please contact our customer support team:
- Brand: Wonder
- Email: info@wonderelectro.com
- Phone: 960 600 034
- Address: Avd. del Este 34, 30100 Murcia, Spain
