LivePure 3 in 1 Clean Heat Air Purifier & Heater User Manual

Introduction

Thank you for choosing the LivePure 3 in 1 Clean Heat Air Purifier & Heater. This versatile unit combines the functions of an air purifier, a fan, and a heater, designed to create a comfortable and healthy environment in your home or office throughout the year. This manual provides important information on the safe operation, installation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

Image: The LivePure 3 in 1 Clean Heat Air Purifier & Heater in its gray color, showcasing its sleek tower design and integrated control panel.

Important Safeguards

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before using this appliance.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug the appliance when not in use or when cleaning.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the appliance.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• This appliance has a built-in safety tip-over switch that automatically shuts off the unit if it is tipped over or on an uneven surface. Ensure the unit is placed on a stable, flat surface.
• Do not use this appliance in bathrooms, laundry areas, or similar indoor locations where it may come into contact with water.

Product Components

Familiarize yourself with the main components of your LivePure 3 in 1 Clean Heat Air Purifier & Heater:

• Main Unit (Tower)
• Control Panel (Top of unit)
• Air Intake Grille
• Air Outlet
• HEPA Filtration System (Internal)
• Power Cord
• Remote Control

Image: Detailed view of the unit's functional touch control panel, showing buttons for Heating Mode, Accent Light, Fan Speed & Sleep Mode, Timer, On/Off Power, Rotation Mode, Fan/Air Purifier Mode, and Filter Indicator Light.

Image: The compact remote control for the LivePure 3 in 1 Clean Heat Air Purifier & Heater, allowing convenient operation from a distance.

Setup

1. Unpacking: Carefully remove the unit from its packaging. Retain packaging for future storage or transport.
2. Placement: Place the air purifier and heater on a firm, level surface. Ensure there is at least 1 foot (30 cm) of clear space around the unit for proper airflow. Do not place it directly against walls or furniture.
3. Power Connection: Plug the power cord into a standard 120V AC electrical outlet.
4. Filter Installation: The HEPA filter is pre-installed. Before first use, ensure it is securely in place. Refer to the Maintenance section for filter access and replacement instructions.

Image: A hand demonstrating the process of removing or installing the air filter within the LivePure unit, highlighting the easy access for maintenance.

Operating Instructions

Your LivePure 3 in 1 Clean Heat Air Purifier & Heater can be operated using the touch control panel on the unit or the included remote control.

Power On/Off

• Ensure the master power switch on the back of the unit is in the 'ON' position.
• Press the Power button on the control panel or remote to turn the unit ON/OFF.

Fan Speed & Air Purification

The unit offers four fan speed options for air purification:

• Low
• Medium
High
• Turbo

Press the Fan Speed button repeatedly to cycle through the speeds. The HEPA filtration system works continuously to capture up to 99.97% of airborne particles.

Image: The LivePure unit surrounded by icons representing various airborne contaminants it helps remove, including smoke, odors, household dust, pollen, mold spores, pet hair & dander, and bacteria.

Heat Modes

The unit features two heat settings:

• Low Heat
• High Heat

Press the Heating Mode button to activate and cycle through the heat settings. The unit also has an auto-heat function that adjusts based on room temperature, typically operating between 65°F and 77°F.

Rotation Mode

Press the Rotation button to activate 60° oscillation, distributing air and heat more widely throughout the room.

Timer Function

Set the unit to automatically turn off after a specified period. Press the Timer button to select desired operating hours.

Accent Light

Press the Accent Light button to turn the decorative light on or off.

Safety Tip-Over Switch

For your safety, the unit is equipped with a built-in tip-over switch. If the appliance is accidentally knocked over or placed on an unstable surface, it will automatically shut off. Place the unit upright on a stable surface to resume operation.

Maintenance

Filter Replacement

The LivePure 3 in 1 Clean Heat Air Purifier & Heater uses a HEPA filtration system. The filter indicator light on the control panel will illuminate when it's time to replace the filter. Filter life varies depending on usage and air quality.

1. Unplug the unit from the power outlet.
2. Locate the filter compartment (typically at the back or side of the unit).
3. Open the filter cover and carefully remove the old filter.
4. Insert the new HEPA filter, ensuring it is correctly oriented.
5. Close the filter cover securely.
6. Plug the unit back in. To reset the filter indicator light, press and hold the Filter Indicator Light button for 3-5 seconds until the light turns off.

General Cleaning

• Always unplug the unit before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Gently vacuum the air intake and outlet grilles to remove dust buildup.
• Do not immerse the unit in water or allow water to drip into the interior.

Storage

If storing the unit for an extended period, unplug it, clean it thoroughly, and store it in a cool, dry place, preferably in its original packaging.

Troubleshooting

If you experience issues with your LivePure 3 in 1 Clean Heat Air Purifier & Heater, please consult the following common problems and solutions:

Specifications

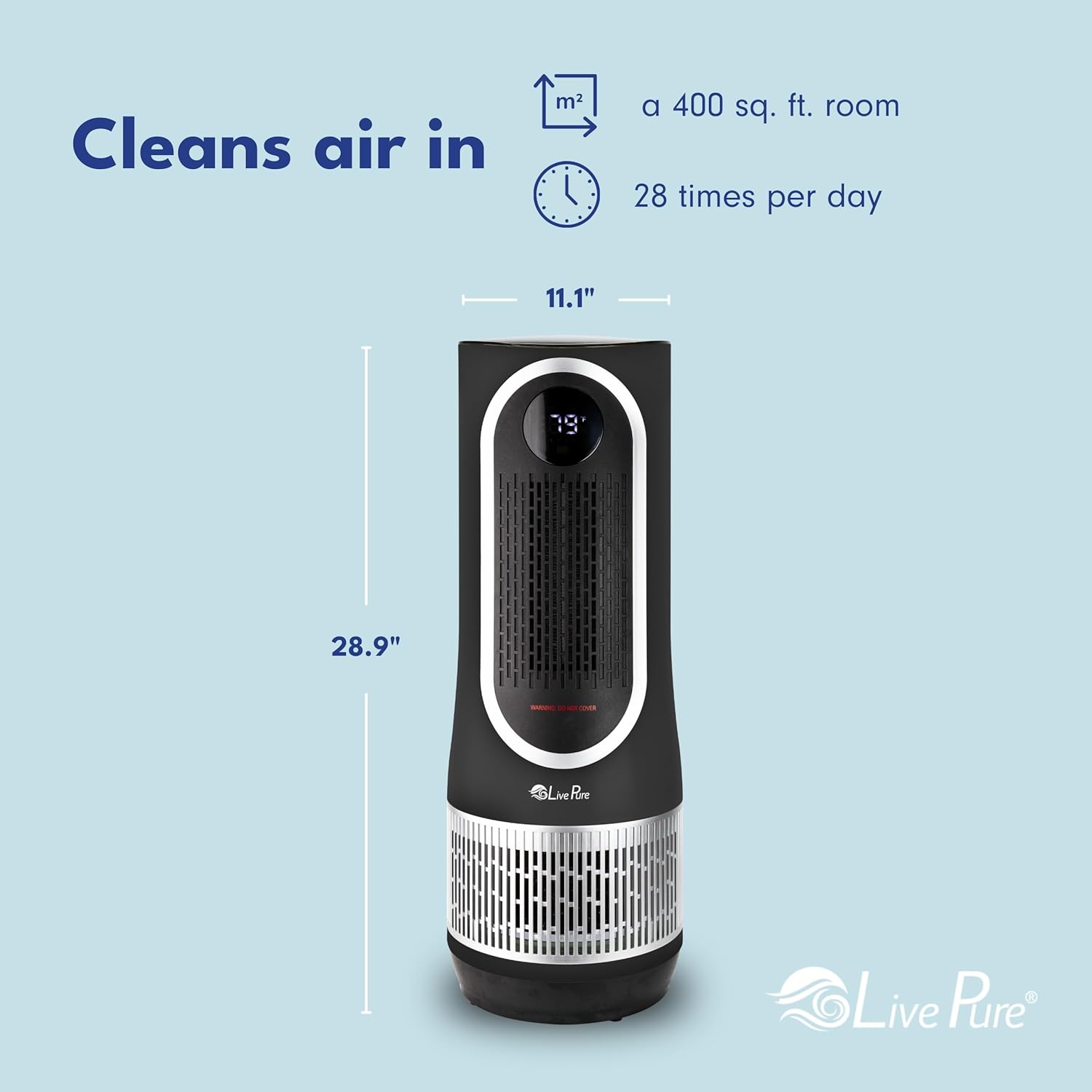

Image: The LivePure unit displaying its key dimensions: 11.1 inches in width and 28.9 inches in height, providing a clear understanding of its size.

Warranty and Support

LivePure products are manufactured to high-quality standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official LivePure website. Please note that warranty policies may require proof of purchase and may not cover damage resulting from improper use or unauthorized repairs.

For technical support, troubleshooting assistance, or to inquire about replacement parts and filters, please contact LivePure Customer Service. Contact information can typically be found on the product packaging, the official LivePure website, or by visiting the LivePure Store on Amazon.
