1. Introduction
The WOLFANG Seeker One is a high-performance action camera designed to capture your adventures in stunning 4K 60FPS Ultra HD. Featuring a robust, waterproof design, dual color screens, and advanced image stabilization, it is suitable for various outdoor activities. This manual provides essential information for setting up, operating, and maintaining your camera.
Image 1.1: The WOLFANG Seeker One Action Camera, showcasing its front lens and the vibrant front display screen.
2. Package Contents
Verify that all items are present in your package:
- WOLFANG Seeker One Action Camera
- Rechargeable Lithium-ion Battery (1200mAh)
- USB-C Charging Cable
- Various Mounting Accessories (e.g., helmet mounts, adhesive mounts, bicycle mount)
- User Manual
Image 2.1: An overview of the WOLFANG Seeker One camera and its comprehensive set of included mounting accessories.
3. Setup
3.1. Battery Installation and Charging
- Locate the battery compartment on the camera.
- Insert the 1200mAh Lithium-ion battery, ensuring correct polarity.
- Close the battery compartment securely.
- Connect the camera to a USB power source using the provided USB-C cable to charge. The charging indicator will illuminate.

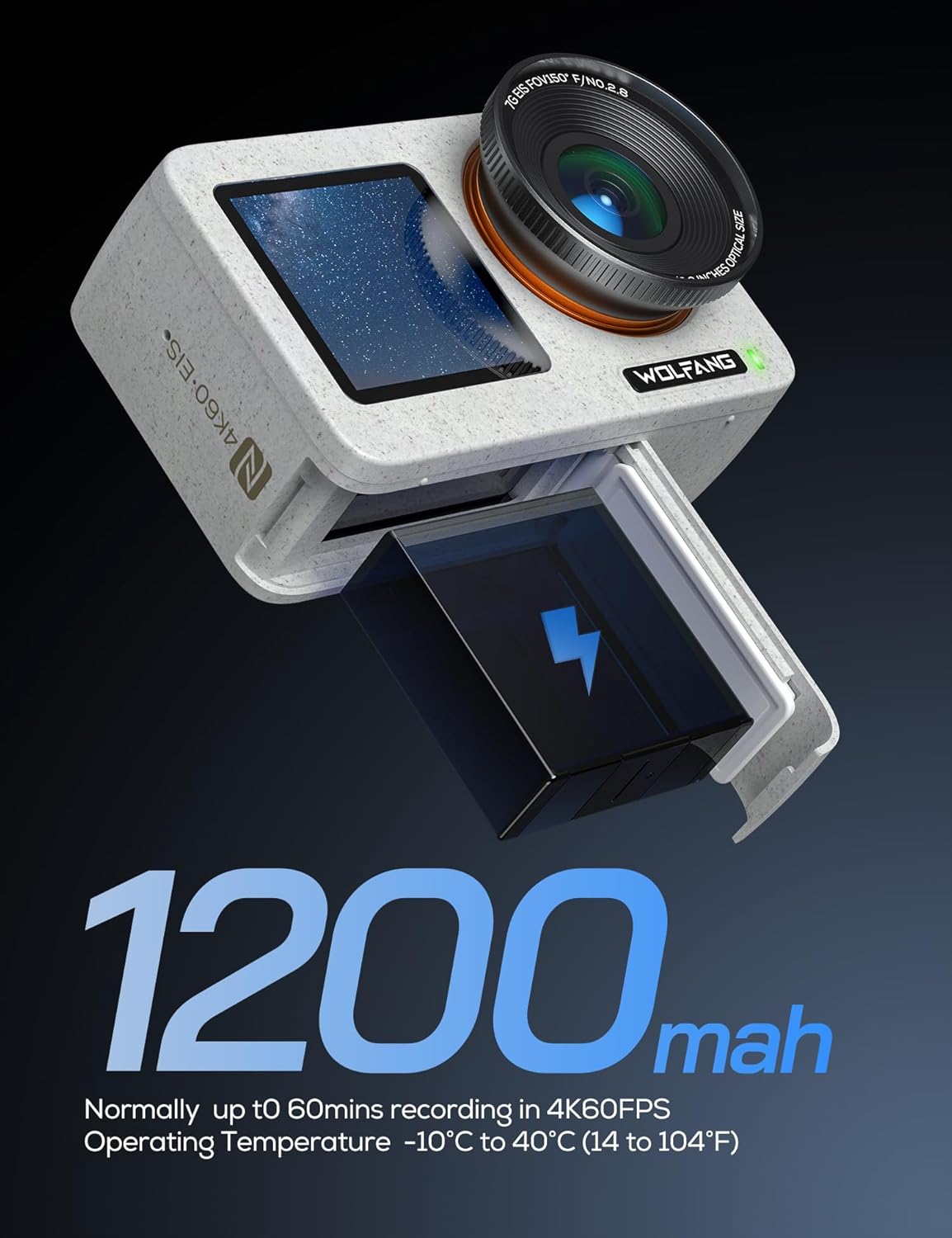

Image 3.1: The WOLFANG Seeker One camera with its 1200mAh battery, illustrating the battery insertion process.
3.2. Micro SD Card Insertion
A Micro SD card (not included) is required for recording. Ensure the card is Class 10 or higher and formatted before first use.
- Open the Micro SD card slot cover.
- Insert the Micro SD card with the contacts facing the correct direction until it clicks into place.
- Close the cover.
3.3. Powering On/Off
- To power on: Press and hold the Power/Mode button.
- To power off: Press and hold the Power/Mode button again.
4. Operating the Camera
4.1. Dual Screen Display
The Seeker One features a 2.45-inch rear IPS touchscreen and a 1.4-inch front screen. The front screen is ideal for vlogging and selfies, while the rear screen provides a larger view for framing and menu navigation.
Image 4.1: The WOLFANG Seeker One camera, illustrating its dual screen functionality, 4K 60FPS video capability, and 1200mAh battery.
4.2. Video Recording
The camera supports native 4K video recording at 60 frames per second (4K/60FPS) with an Ambarella H22 chip, ensuring high-quality footage at 100 Mbps. It also features 4K HDR video mode for enhanced dynamic range.
- Select video mode using the Power/Mode button or touchscreen.
- Press the Shutter button to start recording.
- Press the Shutter button again to stop recording.
Image 4.2: A detailed view of the WOLFANG Seeker One's lens, highlighting its capability for native 4K 60FPS video recording.
4.3. Photo Capture
Capture high-resolution still images with an effective resolution of 8 Megapixels.
- Select photo mode.
- Press the Shutter button to take a photo.
4.4. Image Stabilization (Go APE Stabilization)
The camera incorporates "Go APE Stabilization" technology to reduce motion blur and noise, providing smoother footage even in dynamic environments.

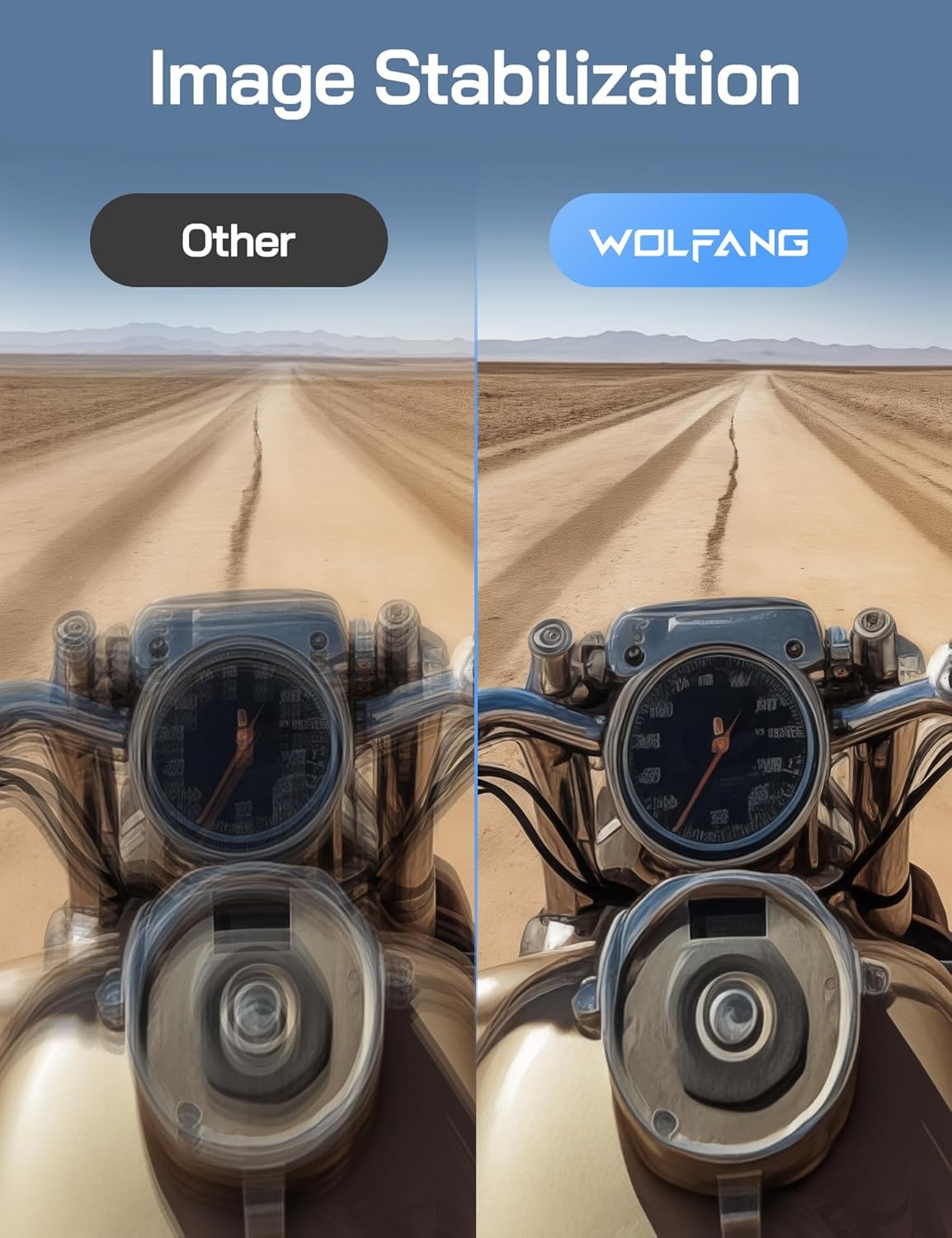

Image 4.3: A visual comparison demonstrating the effectiveness of WOLFANG's Go APE Image Stabilization technology in reducing blur and noise in video recordings.
4.5. Waterproof Capability
The Seeker One is designed to be waterproof up to 16 feet (approximately 5 meters) without an additional housing. For deeper underwater use, a separate protective frame is required (not included).
4.6. Connectivity and Go APE App
The camera supports Wi-Fi and NFC connectivity. Download the Go APE App to your smartphone or tablet to control the camera remotely, access creative modes, utilize AI auto-editing features, and share your content instantly.

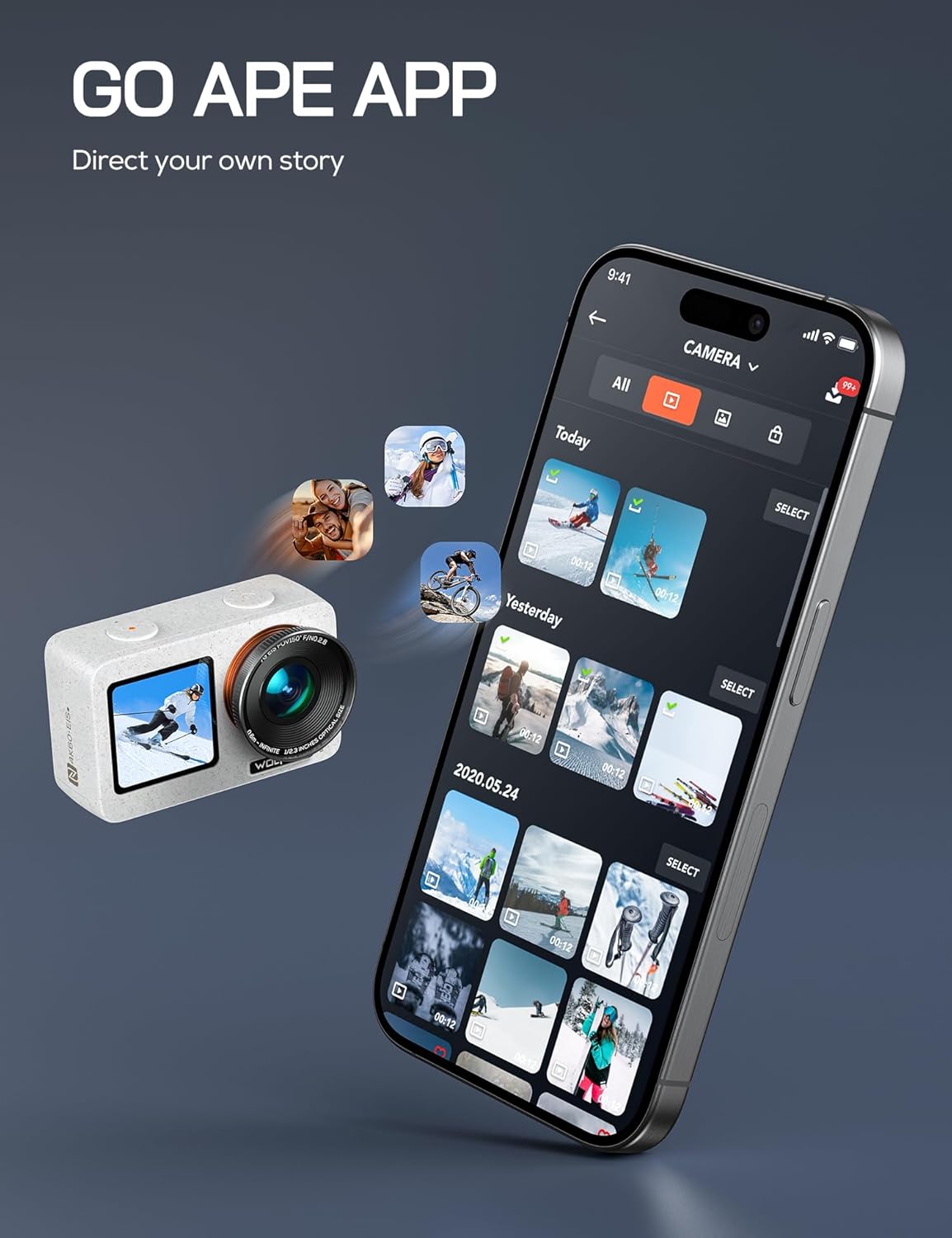

Image 4.4: The WOLFANG Seeker One camera interacting with the Go APE mobile application, showing content management and sharing features.
4.7. Special Features
- Time-lapse: Capture sequences of images over time to create dynamic time-lapse videos.
- Webcam Functionality: Connect the camera to your computer for use as a webcam.
- Live Streaming: Utilize the camera for live streaming capabilities.
5. Maintenance
5.1. Cleaning the Camera
- Use a soft, lint-free cloth to clean the camera body and screens.
- For the lens, use a specialized lens cleaning cloth and solution. Avoid abrasive materials.
- Ensure all ports and covers are clean and free of debris, especially before using in wet conditions.
5.2. Battery Care
- Store batteries in a cool, dry place when not in use.
- Avoid fully discharging the battery frequently to prolong its lifespan.
- Do not expose batteries to extreme temperatures.
5.3. Storage
When storing the camera for extended periods, remove the battery and store the camera in a protective case to prevent dust and damage.
6. Troubleshooting
6.1. Camera Not Powering On
- Ensure the battery is fully charged.
- Check that the battery is inserted correctly.
- Try a different battery if available.
6.2. Recording Issues
- Verify that a Micro SD card is inserted and has sufficient free space.
- Ensure the Micro SD card is formatted correctly (FAT32 for cards up to 32GB, exFAT for cards over 32GB).
- Check the card's speed rating; a Class 10 or UHS-I (U1 or U3) card is recommended for 4K recording.
6.3. Connectivity Problems (Wi-Fi/NFC)
- Ensure Wi-Fi/NFC is enabled on both the camera and your mobile device.
- Restart both devices.
- Make sure your mobile device is within range of the camera's Wi-Fi signal.
6.4. Image Quality Issues
- Clean the camera lens.
- Ensure adequate lighting conditions.
- Check camera settings for resolution, frame rate, and stabilization.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | WOLFANG |
| Model | SEEKER ONE |
| Color | WHITE |
| Video Resolution | 4K (60FPS) |
| Effective Still Resolution | 8 Megapixels |
| Image Stabilization | Go APE Stabilization (True) |
| Screens | Dual (Rear IPS Touchscreen 2.45", Front 1.4") |
| Waterproof Level | Up to 16 feet (5 meters) |
| Connectivity | Wi-Fi, NFC |
| Supported Storage | Micro SD (Class 10 or higher) |
| Battery Type | Lithium-ion (1200mAh) |
| Digital Zoom | 6x |
| Aperture | f/2 |
| Video Capture Format | MP4 |
| Supported Audio Format | AAC |
| Item Weight | 980 Grams |
| Manufacturer Warranty | 1 Year |
8. Warranty and Support
8.1. Manufacturer Warranty
The WOLFANG Seeker One Action Camera comes with a 1-year manufacturer warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
8.2. Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact WOLFANG customer support. You can also find additional resources, firmware updates, and community support through the Go APE App or official WOLFANG online channels.
