ENGWE Engine X Foldable Electric Bicycle User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your ENGWE Engine X Foldable Electric Bicycle. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize the lifespan of your bicycle. Retain this manual for future reference.

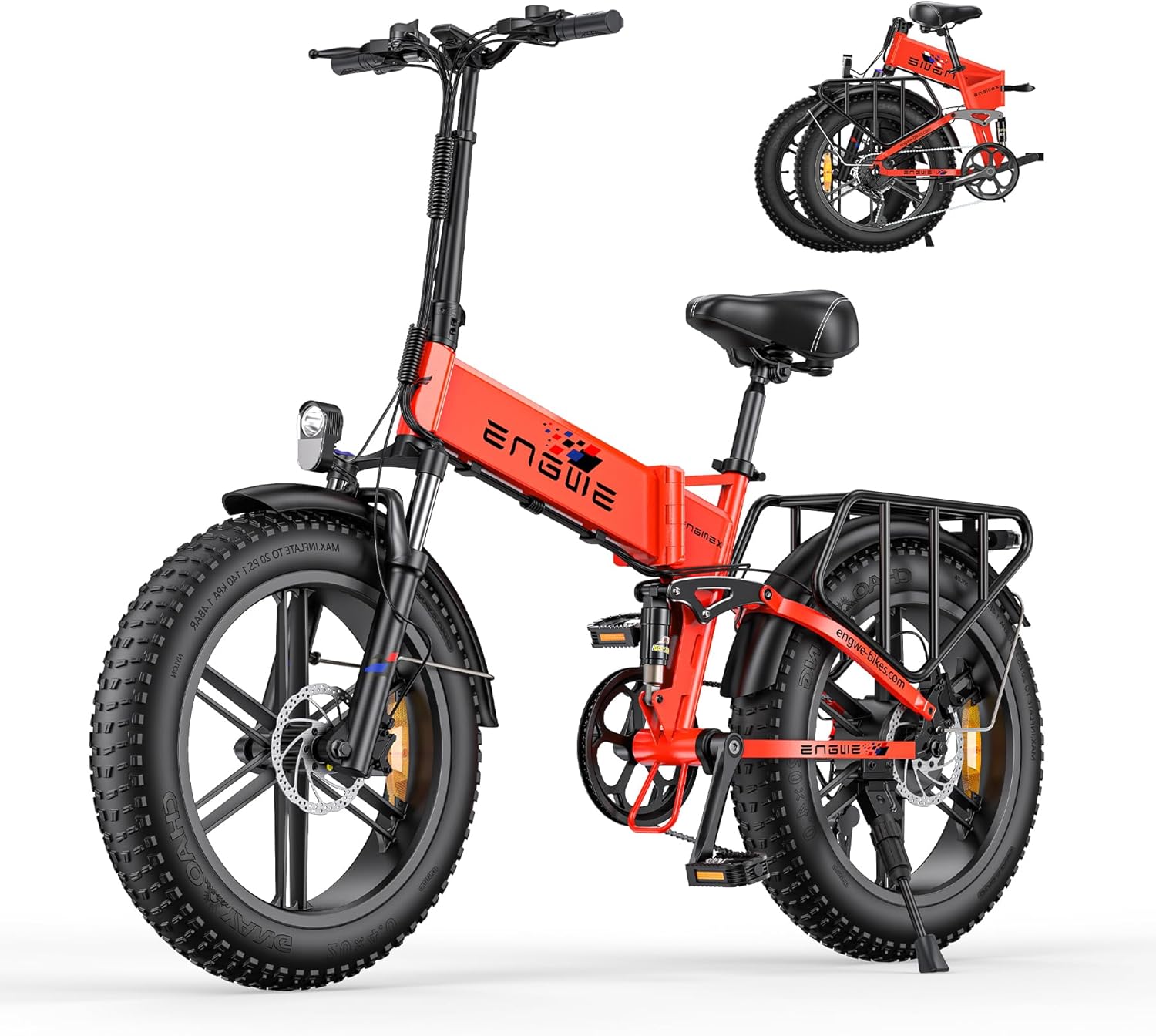

Image 1.1: The ENGWE Engine X Foldable Electric Bicycle in its unfolded state, showcasing its design and components.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Always wear a certified helmet when riding.
• Familiarize yourself with local traffic laws and regulations regarding electric bicycles.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and battery level.
• Do not ride under the influence of alcohol or drugs.
• Avoid riding in adverse weather conditions or on slippery surfaces.
• Ensure all quick releases and folding mechanisms are securely locked before riding.
• The bicycle is designed for adult use.

Image 2.1: The ENGWE Engine X is certified by passing the SGS Test Standard EN15194, ensuring compliance with European safety standards.

3. Assembly and Setup

The ENGWE Engine X requires some assembly upon arrival. Follow these general steps:

1. Unpacking: Carefully remove the bicycle and all components from the packaging.
2. Handlebar Installation: Insert the handlebar stem into the fork tube and tighten the clamping bolts securely. Ensure the handlebar is aligned with the front wheel.
3. Pedal Attachment: Identify the left (L) and right (R) pedals. The left pedal threads counter-clockwise, and the right pedal threads clockwise. Tighten them firmly with a wrench.
4. Seat Post Insertion: Insert the seat post into the frame's seat tube to your desired height and secure it with the quick-release lever. Ensure the minimum insertion mark is not visible.
5. Front Wheel Installation: If the front wheel is not pre-installed, attach it to the front fork, ensuring the disc brake rotor is correctly seated in the caliper. Secure with the quick-release skewer or axle nuts.
6. Battery Installation: Insert the fully charged battery into its compartment and lock it with the key.
7. Pre-Ride Check: Before your first ride, double-check all bolts, quick releases, and connections for tightness. Inflate tires to the recommended pressure.

4. Components Overview

Understanding the key components of your ENGWE Engine X will enhance your riding experience.

• LCD Display: Provides real-time information such as speed, battery level, pedal assist level, and trip distance.
• 250W Brushless Motor: Located in the rear hub, providing electric assistance.
• 48V 13Ah Removable Battery: Powers the motor and lights, located within the frame.
• 20" x 4.0 Fat Tires: Offer enhanced grip and comfort on various terrains.
• Full Suspension: Includes an aluminum shock-absorbing front fork with mechanical lock and a rear shock absorber for a smoother ride.
• 7-Speed Shimano Gears: Allows for manual gear changes to adapt to different riding conditions.
• Disc Brakes: Front and rear disc brakes provide reliable stopping power.
• LED Rear Light with Integrated Brake Light: Enhances visibility and safety.
• Comfort Seat: Designed with prostatic protection for extended comfort.

Image 4.1: Close-up view of the multi-function LCD display, showing speed, battery, and trip information.

Image 4.2: Detail of the LED rear light, which includes an integrated brake light for improved safety.

Image 4.3: View of the aluminum shock-absorbing front fork, featuring a mechanical lock for suspension control.

Image 4.4: Close-up of the bicycle seat, designed with prostatic protection for enhanced rider comfort.

Image 4.5: Detail of the rear shock absorber, contributing to the bike's full suspension system.

5. Operating Instructions

Follow these steps for safe and effective operation of your electric bicycle:

1. Power On: Press and hold the power button on the LCD display to turn on the bicycle's electrical system. The display will illuminate.
2. Pedal Assist Levels: Use the '+' and '-' buttons on the control panel to select your desired pedal assist level (PAS). Level 0 provides no assistance, while higher levels offer more motor power.
3. Gear Shifting: Use the Shimano gear shifter on the handlebar to change mechanical gears according to terrain and desired pedaling effort.
4. Starting to Ride: Begin pedaling. The motor will engage automatically when pedal assist is active.
5. Braking: Apply both front and rear disc brakes smoothly and evenly to slow down or stop. The integrated brake light will activate.
6. Power Off: Press and hold the power button on the LCD display to turn off the electrical system when you finish riding.

Image 5.1: A rider demonstrating the use of the ENGWE Engine X electric bicycle on a paved path.

Image 5.2: A rider navigating an incline, showcasing the benefits of full suspension and fat tires for varied terrain.

6. Battery Charging and Care

Proper battery care ensures optimal performance and longevity.

• Charging: Connect the charger to the charging port on the battery (either on or off the bike), then plug the charger into a standard wall outlet. The indicator light on the charger will show charging status (usually red for charging, green for fully charged).
• Removable Battery: The 48V 13Ah battery is removable for convenient charging indoors or for security. Use the provided key to unlock and remove the battery.
• Storage: Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to 50-70% every 1-2 months.
• Safety: Use only the charger provided by ENGWE. Do not expose the battery to water or extreme heat.

Image 6.1: An infographic illustrating the extended range of the Engine X, capable of up to 120km in PAS mode, which is 40% longer than some other e-bikes.

7. Folding and Unfolding

The ENGWE Engine X features a foldable frame for easy storage and transport.

1. Folding Steps:
   • Lower the seat post.
   • Open the handlebar stem quick-release and fold the handlebar down.
   • Open the frame folding latch and carefully fold the main frame in half.
   • Some models may have foldable pedals; fold them if applicable.
2. Unfolding Steps:
   • Unfold the main frame until the latch clicks into place and secure it.
   • Raise and secure the handlebar stem.
   • Adjust the seat post to your riding height and secure it.
   • Ensure all quick releases and latches are fully engaged and secure before riding.

Image 7.1: The ENGWE Engine X electric bicycle shown in its compact, folded configuration.

8. Maintenance

Regular maintenance is crucial for the performance and safety of your e-bike.

• Tires: Check tire pressure before each ride. Maintain recommended PSI for optimal performance and to prevent punctures. Inspect tires for wear and damage.
• Brakes: Regularly check brake pads for wear and ensure brake levers provide firm and responsive stopping power. Adjust or replace as needed.
• Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent premature wear.
• Fasteners: Periodically check all bolts, nuts, and quick releases for tightness.
• Cleaning: Clean the bicycle with a damp cloth and mild soap. Avoid high-pressure washing directly on electrical components.
• Suspension: Inspect the front fork and rear shock for proper function and any signs of damage.

9. Troubleshooting

Here are solutions to common issues you might encounter:

10. Specifications

Detailed technical specifications for the ENGWE Engine X electric bicycle:

Image 10.1: An infographic summarizing the key features and specifications of the ENGWE Engine X.

Image 10.2: A diagram illustrating the dimensions of the ENGWE Engine X, including rider height and load capacity references.

11. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official ENGWE website. If you encounter any issues or require technical assistance, please contact ENGWE customer support through their official channels. Provide your model number (Engine X) and purchase details for efficient service.
