TUXING TXEDM041 4500Psi Portable PCP Air Compressor Instruction Manual

1. Safety Information

Read and understand all safety warnings and instructions before operating this air compressor. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.

• Electrical Safety: Ensure the power supply matches the compressor's voltage (110V). Always use a grounded outlet.
• Over-pressure Hazard: Never overfill cylinders beyond their rated pressure. The compressor features a manual shut-off for precise control.
• Overheating: The compressor utilizes a water and fan cooling system. Always ensure the water cooling system is properly set up and functioning before operation. Monitor the temperature.
• Oil Level: Check the oil level daily and ensure it is within the recommended range. Replace the oil breather before use.
• Ventilation: Operate the compressor in a well-ventilated area to prevent heat buildup.
• Personal Protective Equipment: Wear appropriate eye and ear protection during operation.
• Children and Pets: Keep children and pets away from the operating compressor.

2. Product Overview

The TUXING TXEDM041 is a portable 4500Psi PCP air compressor designed for efficient and reliable high-pressure air filling. It features a mini-double cylinder design with two-stage compression, ensuring stable performance for various applications. The unit includes a manual shut-off mechanism for precise pressure control and an excellent water and fan cooling system to maintain optimal operating temperatures.

Key Features:

• High Pressure Performance: Achieves 4500Psi (300bar/30Mpa) working pressure.
• Efficient Cooling: Equipped with a water and fan cooling system, monitored by a digital thermometer.
• Two-Stage Compression: Ensures stable and efficient air compression.
• Manual Shut-off: Allows for accurate control and adjustment of desired pressure.
• Wide Application: Suitable for paintball, scuba tank filling, PCP air rifles, and other high-pressure air equipment.

Package Contents:

Upon unpacking, please verify that all components are present and undamaged:

• TUXING TXEDM041 Air Compressor Unit
• Power Cord
• Water Pump
• Blue Oil Water Filter with Hose
• O-ring Seals
• Paper Gasket
• Water Hose
• Pressure Release Valve Screw
• Hose with Female Connector

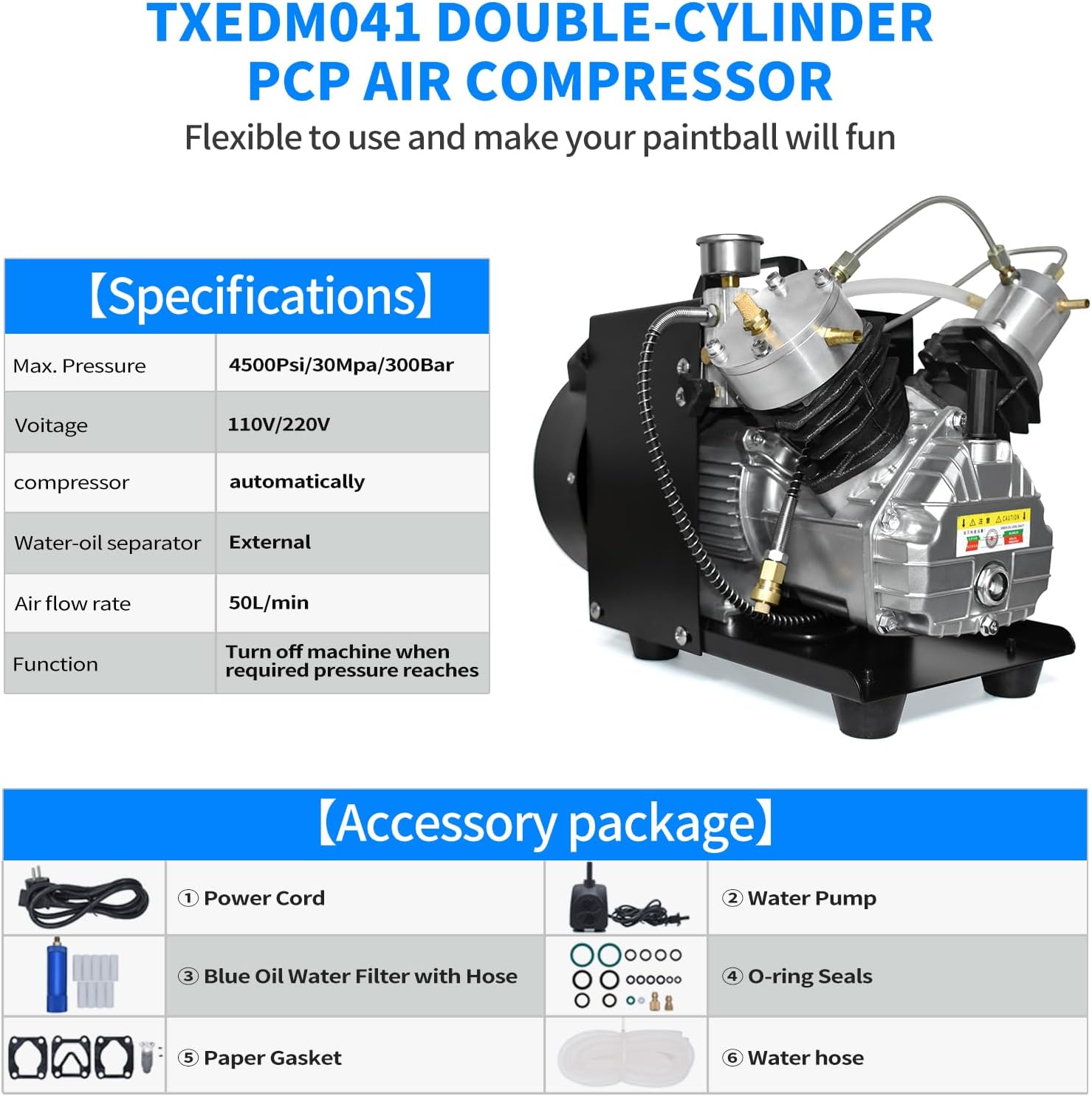

Image: Overview of the TXEDM041 compressor, including its specifications and the accessory package.

3. Setup Instructions

Proper setup is crucial for the safe and efficient operation of your TUXING TXEDM041 air compressor. Follow these steps carefully:

3.1. Oil Filling and Breather Installation

1. Locate the oil fill port on the compressor.
2. Remove the sealing cover (this is for transportation).
3. Thread the crankcase breather (found in the accessory pack) into the oil fill port.
4. Add compressor oil (recommended: 5W-40) until the oil level reaches the red indicator dot on the oil sight glass. Do not overfill.

3.2. Water Cooling System Connection

The water cooling system is essential for preventing overheating. You will need an external water bucket (not included).

1. Connect the water nozzle to the water pump.
2. Connect one end of the water pipe to the water nozzle on the pump.
3. Connect the other end of this water pipe to the water inlet on the compressor head.
4. Connect the second water pipe to the water outlet on the compressor head.
5. Place both the water pump and the open end of the second water pipe into the external water bucket. Ensure the bucket contains sufficient water.
6. Note: It is recommended to place the water bucket at the same level as the compressor for optimal water flow and cooling efficiency.

3.3. Air Hose and Filter Connection

1. Install the pressure release valve screw onto the designated port.
2. Connect the air hose to the compressor's output port. Ensure the gasket is properly seated inside the hose connector and tighten with a wrench to prevent air leaks.
3. Install the oil-water filter: Disconnect the soft hose and female connector. Open the filter, insert the moisture absorber cotton, then reassemble. Ensure one black O-ring is inside and fasten it with a wrench.
4. Connect the filter to the air hose.

Image: Detailed diagram showing the components of the TXEDM041 compressor, including temperature gauge, pressure gauge, high pressure cylinder head, oil-water separator inlet, fan cooling, and oil level line.

3.4. Visual Setup Guide (Video)

Video: A step-by-step guide on setting up the TUXING TXEDM041 mini PCP air compressor, including oil filling, water cooling system connection, and hose attachment.

4. Operating Instructions

Once the compressor is properly set up, follow these steps for safe and effective operation:

4.1. Pre-Operation Check

• Ensure all connections are secure and leak-free.
• Verify the oil level is correct.
• Confirm the water cooling system is correctly installed and the pump is submerged in water.
• Make sure the pressure release valve screw is tightened before starting compression.

4.2. Starting the Compressor

1. Connect the compressor's power cord to a 110V power outlet.
2. Turn on the main power switch on the compressor.
3. Connect the air hose to the cylinder or device you wish to fill.
4. Monitor the pressure gauge on the compressor and the device being filled.
5. The compressor features a manual shut-off. Turn off the compressor when the desired pressure is reached.

Image: Illustrates the high-pressure performance of the compressor (4500 PSI, 2800R/min inflation rate, 2200W high power) and the manual stop switch.

4.3. Releasing Air and Disconnecting

1. After turning off the compressor, slowly open the pressure release valve screw to release any residual air pressure from the system.
2. Once the pressure is fully released, disconnect the air hose from the filled cylinder/device and then from the compressor.

4.4. General Operation Guide (Video)

Video: A general usage guide for a PCP air pump, demonstrating the process of connecting to a gas cylinder, operating the compressor, and monitoring pressure.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your air compressor.

• Oil Change: Regularly check and change the compressor oil according to the manufacturer's recommendations (typically after a certain number of operating hours or periodically).
• Water Cooling System: Keep the water bucket clean and ensure the water pump is free from debris. Replace cooling water regularly.
• Air Filter: Inspect and replace the oil-water filter's cotton regularly to ensure clean, dry air output.
• General Cleaning: Keep the exterior of the compressor clean and free from dust and dirt. Ensure cooling fins and fan vents are unobstructed.

6. Troubleshooting

If you encounter issues with your compressor, refer to the following common troubleshooting tips:

• Compressor Not Starting: Check power connections, ensure the power switch is ON, and verify the power outlet is functional.
• Low Pressure Output: Check for air leaks in all connections. Ensure the pressure release valve is fully closed. Verify the air filter is not clogged.
• Overheating: Ensure the water cooling system is operating correctly, the water pump is submerged, and there is sufficient water flow. Check that fan vents are clear.
• Unusual Noise: Turn off the compressor immediately. Check for loose parts or obstructions. Consult a qualified technician if the noise persists.

For persistent issues, please contact customer support.

7. Specifications

8. Applications

The TUXING TXEDM041 air compressor is versatile and suitable for a wide range of high-pressure air applications:

• Paintball: Quickly and efficiently fill paintball tanks.
• Scuba Diving: Ideal for filling small to medium-sized scuba tanks.
• PCP Air Rifles: Provides consistent high-pressure air for pneumatic air rifles.
• Industrial Use: Suitable for leakage detection, pressure-tight tests, air impermeability tests, and pressure proof tests.
• Automotive: Can be used for tire inflation and other automotive air needs.

Image: Visual representation of the compressor's diverse applications, including diving, paintball, PCP air rifles, and fire fighting.

Image: Highlights the portability of the compressor for carry use in activities like PCP rifle shooting, paintball, and diving.

9. Warranty

No explicit warranty information is provided for this product in the available data. Please refer to the seller or manufacturer for specific warranty terms and conditions.
