1. Product Overview
The FREDORCH 200W Premium Sex Machine is a versatile device designed for various experiences. It features a powerful 200W servo motor, adjustable stroke length, and multiple control options including wired remote, wireless remote, and a mobile application.
Key Features:
- 200W Servo Motor with 1.5 Nm torque for consistent power.
- Adjustable Stroke Length: 1-15 cm (0.39-5.91 inches).
- Adjustable Speed: Up to 30 strokes per second.
- Multiple Control Methods: Wired remote, wireless remote, and mobile APP.
- Dual Rod Design: Allows for two attachments to be used simultaneously.
- Low Noise Operation: 10-60 decibels.
- Durable Construction: Aluminum alloy material with high-density anodizing technology.
2. Package Contents
Upon opening the discreetly packaged box, verify that all components are present and undamaged.
Image: Discreet packaging layers.
The package typically includes:
- Main Machine Unit
- Power Adapter (100-230V universal input, 36V safety voltage output)
- Wired Remote Controller
- Wireless Remote Controller (F21S)
- Sucker Base Attachment
- User Manual (this document)
- Various attachments (dildos, masturbation cups, etc., may vary by package)
3. Setup
Follow these steps to assemble and prepare your FREDORCH Sex Machine for use.
3.1 Machine Assembly
The main unit consists of the motor housing and support rods. Ensure all connections are secure.
Image: Various adjustable angles of the machine.
3.2 Attaching the Sucker Base
For enhanced stability, especially on smooth, flat surfaces, attach the provided sucker base to the machine's support legs.
- Locate the sucker base and ensure the surface is clean.
- Attach the sucker base to the bottom of the machine's support legs.
- Press down firmly on the sucker base's lever to create a vacuum seal with the surface.
Image: Sucker base attachment for stability.
3.3 Connecting Attachments
The machine features a dual-rod design, allowing for the connection of two attachments simultaneously. This enables diverse usage scenarios, including solo or partner play.
Image: Double Rods Design for dual attachments.
- Select your desired attachment (e.g., dildo, masturbation cup).
- Align the attachment with the quick-lock interface on either rod.
- Twist or push to secure the attachment firmly. Ensure it is properly seated before operation.
3.4 Power Connection
Connect the power adapter to the machine and then plug it into a standard electrical outlet (100-230V).
4. Operating Instructions
The FREDORCH Sex Machine offers multiple control options for a customized experience.

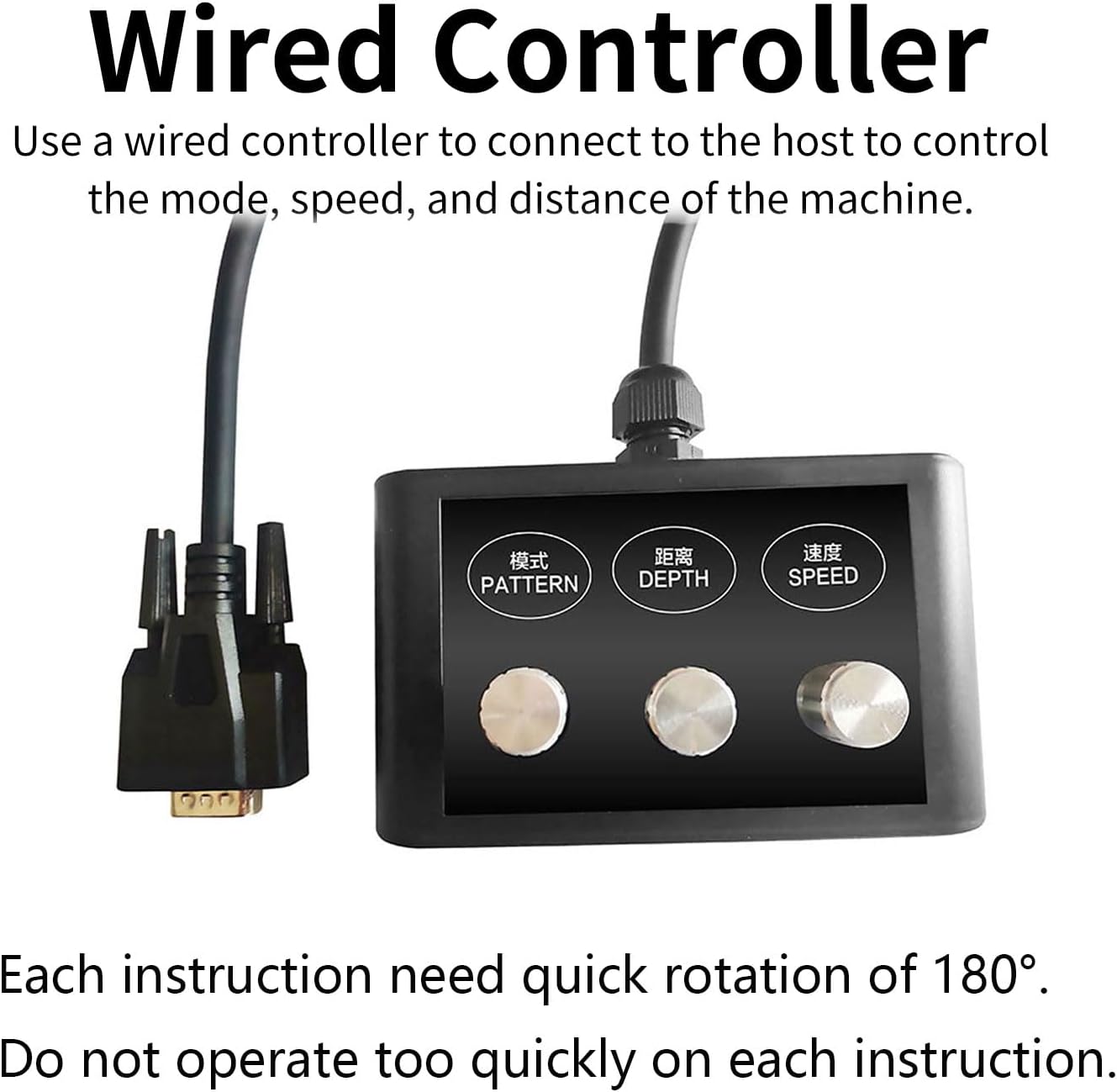

4.1 Wired Remote Control
The wired controller allows direct adjustment of mode, depth, and speed.
Image: Wired Controller with Pattern, Depth, and Speed controls.
- Pattern: Adjusts the operational pattern or mode.
- Depth: Controls the stroke length (1-15 cm).
- Speed: Adjusts the frequency of strokes.
For each adjustment, a quick 180-degree rotation of the knob is typically sufficient. Avoid operating too quickly on each instruction to allow the machine to respond.
4.2 Wireless Remote Control (F21S)
The F21S wireless remote provides convenient control from a distance. Ensure the remote is pointed directly at the machine for optimal signal reception.
Image: F21S Wireless Remote Controller functions.
- ON/OFF: Powers the machine on or off, or pauses operation.
- S+: Accelerates the stroke speed.
- S-: Decelerates the stroke speed.
- D+: Extends the pulling and inserting distance (stroke length).
- D-: Shortens the extraction and insertion distance (stroke length).
- M1 (Free mode): Standard operation.
- M2 (Nine shallow and one deep): Specific pattern.
- M3 (Unexpected misfortune): Specific pattern.
- M4 (Frequency +): Increases frequency.
- M5 (Quick insertion and slow exit): Specific pattern.
- M6 (Fast and slow combination mode): Specific pattern.
- Bottom three buttons (2+6, 3+5, 4+6): Activate various combination modes.
4.3 Mobile APP Control
The machine supports mobile APP remote control and programming. Refer to the included quick start guide or product packaging for QR codes or instructions to download the official FREDORCH APP. The APP allows for advanced programming and customization of stroke, speed, evaluation rate, interval time, and alternation time.
5. Maintenance
Proper maintenance ensures the longevity and hygiene of your FREDORCH Sex Machine.
5.1 Cleaning
- Attachments: Detach all accessories after each use. Clean them thoroughly with warm water and a mild, toy-safe soap, or a specialized toy cleaner. Rinse completely and allow to air dry.
- Machine Unit: Wipe down the main machine unit with a damp cloth. Avoid getting water into the motor or electrical components. Do not use harsh chemicals or abrasive cleaners.
5.2 Storage
Store the machine and its accessories in a clean, dry place, away from direct sunlight and extreme temperatures. The provided carrying bag can be used for discreet storage and transport.
6. Troubleshooting
If you encounter any issues, refer to the following common troubleshooting tips.
- Machine not powering on: Ensure the power adapter is securely connected to both the machine and a working electrical outlet.
- Remote control not responding: For the wireless remote, ensure it is pointed directly at the machine. Check battery levels if applicable (for wireless remote). For wired remote, ensure the connection cable is fully inserted.
- Reduced power or stalling: Ensure the machine is on a stable surface. While the 200W motor is powerful, excessive resistance from very large or heavy attachments may affect performance. Ensure attachments are securely fastened.
- Unusual noise: A noise level of 10-60 decibels is normal during operation. If you hear excessive or unusual grinding noises, discontinue use and contact support.
- Stability issues: Ensure the sucker base is properly engaged on a clean, smooth surface. For uneven surfaces, consider placing the machine against a stable object.
- APP connectivity issues: Ensure your mobile device's Bluetooth is enabled and the APP is updated to the latest version. Refer to the APP's specific troubleshooting guide if available.
7. Specifications
Detailed technical specifications for the FREDORCH 200W Premium Sex Machine.
Image: Machine dimensions and stroke length.
Image: 200W Strong Motor detail.
| Feature | Specification |
|---|---|
| Motor Model | 1.5 Nm Servo Motor |
| Power Output | 200W |
| Stroke Length | 1-15 cm (0.39-5.91 inches) Adjustable |
| Speed | 0-30 strokes per second (Max 20 r/sec) |
| Output Voltage | 36V (Safety Voltage) |
| Input Voltage | 100-230V Universal |
| Noise Level | 10-60 dB |
| Product Weight | 9 KG (15.43 Pounds) |
| Material | Aluminum Alloy |
| Overall Length | 85 cm (33.46 inches) |
| Main Body Length | 60 cm (23.62 inches) |
| Main Body Width | 40 cm (15.75 inches) |
| Height (to top bar) | 35 cm (13.78 inches) |
| Base Width (front) | 21 cm (8.27 inches) |
| Base Width (back) | 26 cm (10.24 inches) |
| Dildo Attachment Diameter | 4 cm (1.57 inches) |
| Sucker Attachment Diameter | 6 cm (2.36 inches) |
8. Warranty and Support
FREDORCH is committed to product quality. If you experience any product quality issues, please contact our customer support team as soon as possible. We will provide a satisfactory solution.
For support, please refer to the contact information provided with your purchase or visit the official FREDORCH website.
