Introduction
Thank you for choosing the AIKE AK1001 Polished Stainless Steel Wall Mount Pump Soap Dispenser. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new soap dispenser. Please read this manual thoroughly before use and retain it for future reference.
Product Overview
The AIKE AK1001 is a durable and functional wall-mounted soap dispenser designed for various environments. It features a polished stainless steel construction and a convenient pump mechanism.
Key Features:
- Highly Durable: Crafted from SUS 304 stainless steel for extensive use and resistance to wear and tear.
- Easy Refill: Features a flip-up cap for convenient liquid addition.
- Visible Window: A transparent window allows monitoring of liquid levels.
- Corrosion Prevention: The outer pump head is connected to an inner plastic component to prevent corrosion.
- Capacity: 17 fl.oz. (500 ml) capacity.
- One-Handed Operation: Designed for easy, single-handed dispensing.

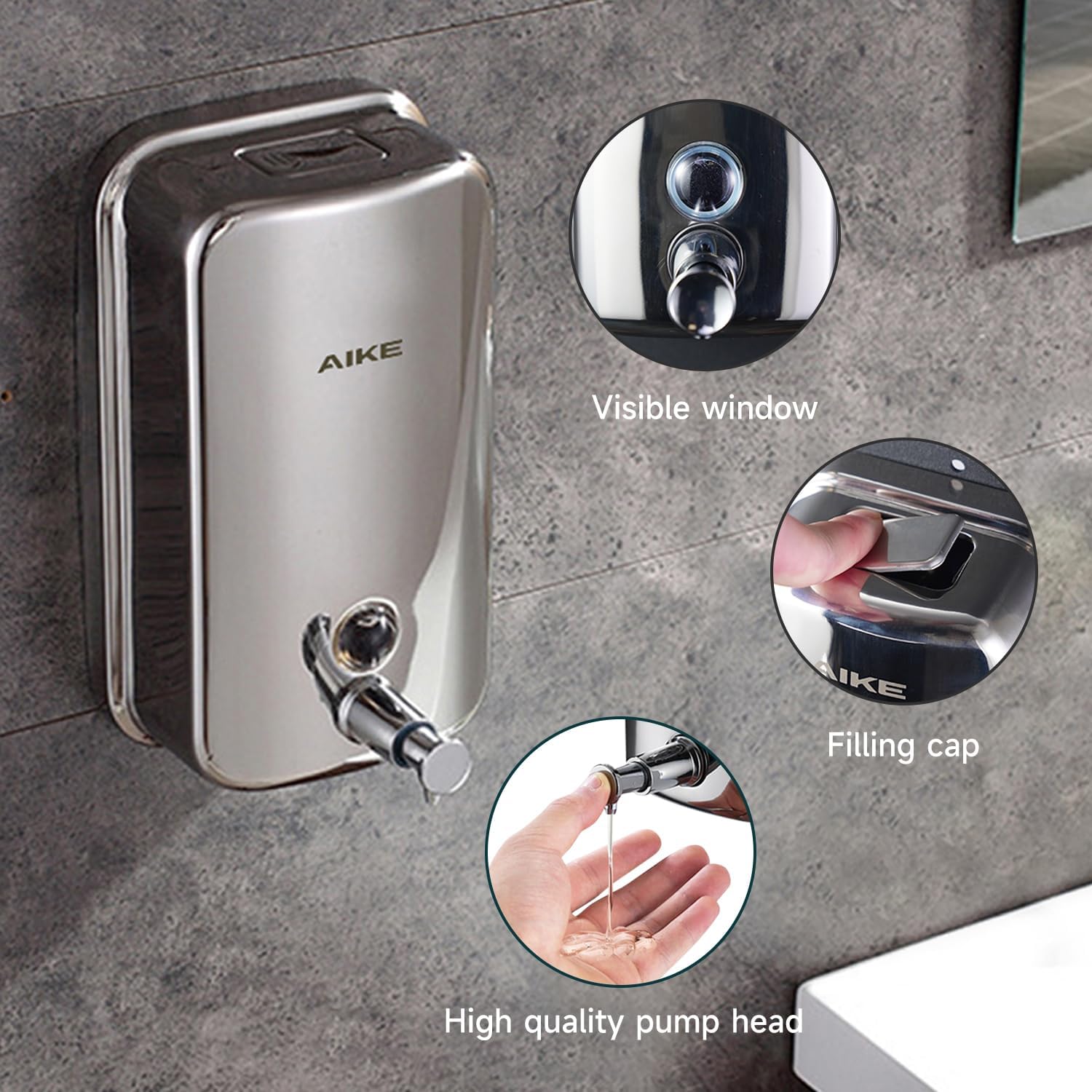

Image: Close-up view of the AIKE AK1001 soap dispenser highlighting the visible window for liquid level, the flip-up filling cap, and the high-quality pump head for dispensing soap.
Package Contents
Please verify that all items are included in your package:
- Dispenser x 1
- User Guide x 1 (This document)
- Mounting Plate x 1
- Screw x 3
- Hollow Wall Anchor x 3
Image: All components included in the AIKE AK1001 package: the soap dispenser, a mounting plate, three screws, and three hollow wall anchors.
Installation Instructions
Follow these steps to properly install your AIKE AK1001 soap dispenser:
- Prepare the Dispenser: Open the flip cover on top of the dispenser. This will reveal the screw holes for mounting.
- Mounting Plate Installation: Choose a suitable location on the wall. Mark the positions for the three screw holes using the mounting plate as a template. Drill pilot holes. Insert the hollow wall anchors if installing into drywall. Secure the mounting plate to the wall using one bottom screw first.
- Attach Dispenser: Hang the dispenser onto the installed mounting plate. Align it vertically for aesthetic appeal. Carefully remove the dispenser, then install the remaining two screws into the mounting plate. Re-attach the dispenser and insert all screws to secure it firmly to the wall.
Image: A hand using a drill to open the flip cover and access the internal mounting points of the dispenser.
Image: A hand holding the mounting plate against a wall, with a drill bit indicating where to make a hole for installation.
Image: A gloved hand attaching the soap dispenser to the wall, demonstrating how it connects to the mounting plate and is secured with screws.
Note: For optimal alignment, it is recommended to secure the mounting plate with one bottom screw, then hang the dispenser to check vertical alignment before securing the remaining screws. This helps prevent misalignment.
Operating Instructions
- Filling the Dispenser: Lift the flip-up cap on the top of the dispenser. Pour your desired liquid soap or sanitizer into the reservoir. The visible window on the front allows you to monitor the fill level. Close the cap securely after filling.
- Dispensing Soap: Place your hand under the pump nozzle. Press the pump button firmly with one hand to dispense the liquid soap. Release the button to stop dispensing.
Image: A close-up showing the flip-up cap for refilling and the visible window to check soap levels.
Image: A hand pressing the pump head to dispense liquid soap, demonstrating the one-handed operation.
Maintenance
- Regular Cleaning: Clean the exterior of the dispenser regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners or scouring pads, which can damage the polished stainless steel finish.
- Pump Cleaning: If the pump becomes stiff or clogged, remove the dispenser from the wall (if necessary) and flush the pump mechanism with warm water. Pump several times until water flows freely.
- Refill Promptly: Do not allow the dispenser to run completely dry for extended periods, as this can lead to air pockets in the pump and affect dispensing.
- Liquid Type: Use liquid soaps or sanitizers of appropriate viscosity. Thick liquids may require dilution or may not dispense effectively.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Soap not dispensing or dispensing poorly. |
|
|
| Dispenser leaks. |
|
|
| Dispenser feels loose on the wall. |
|
|
Specifications
| Feature | Detail |
|---|---|
| Model Number | AK1001 |
| Material | SUS 304 Stainless Steel |
| Color | Polished Stainless Steel |
| Capacity | 17 fl.oz. (500 Milliliters) |
| Product Dimensions (L x W x H) | 3.9" x 2.5" x 6" (98mm x 64mm x 153mm) |
| Item Weight | 0.36 Kilograms |
| Material Type Free | Nickel Free |
| Manufacturer | Zhejiang AIKE Appliances Co., Ltd. |
Image: Technical drawing showing the dimensions of the AIKE AK1001 soap dispenser: 3.9 inches (98mm) width, 6 inches (153mm) height, and 2.5 inches (64mm) depth, with a maximum pumping depth of 0.3 inches (7.6mm).
Warranty and Support
AIKE is committed to the quality of its products. If you experience any dissatisfaction or issues with your purchase, please do not hesitate to contact AIKE Support. We are dedicated to providing assistance and resolving any concerns you may have.
For support, please visit the official AIKE website or contact their customer service directly. Contact information can typically be found on the product packaging or the AIKE brand store on Amazon: AIKE Store.
