1. Product Overview
The JINGEDD Salt Water Pool Chlorinator System is an advanced device designed for efficient and automatic chlorine production in swimming pools, hydrotherapy pools, SPAs, and swimming tanks. It converts sodium chloride (salt) in water into chlorine gas, which then dissolves to form sodium hypochlorite, providing effective water treatment and sanitation.
This system offers various chlorine production rates to suit different pool sizes, ensuring optimal water quality and reducing the need for manual chlorine addition.

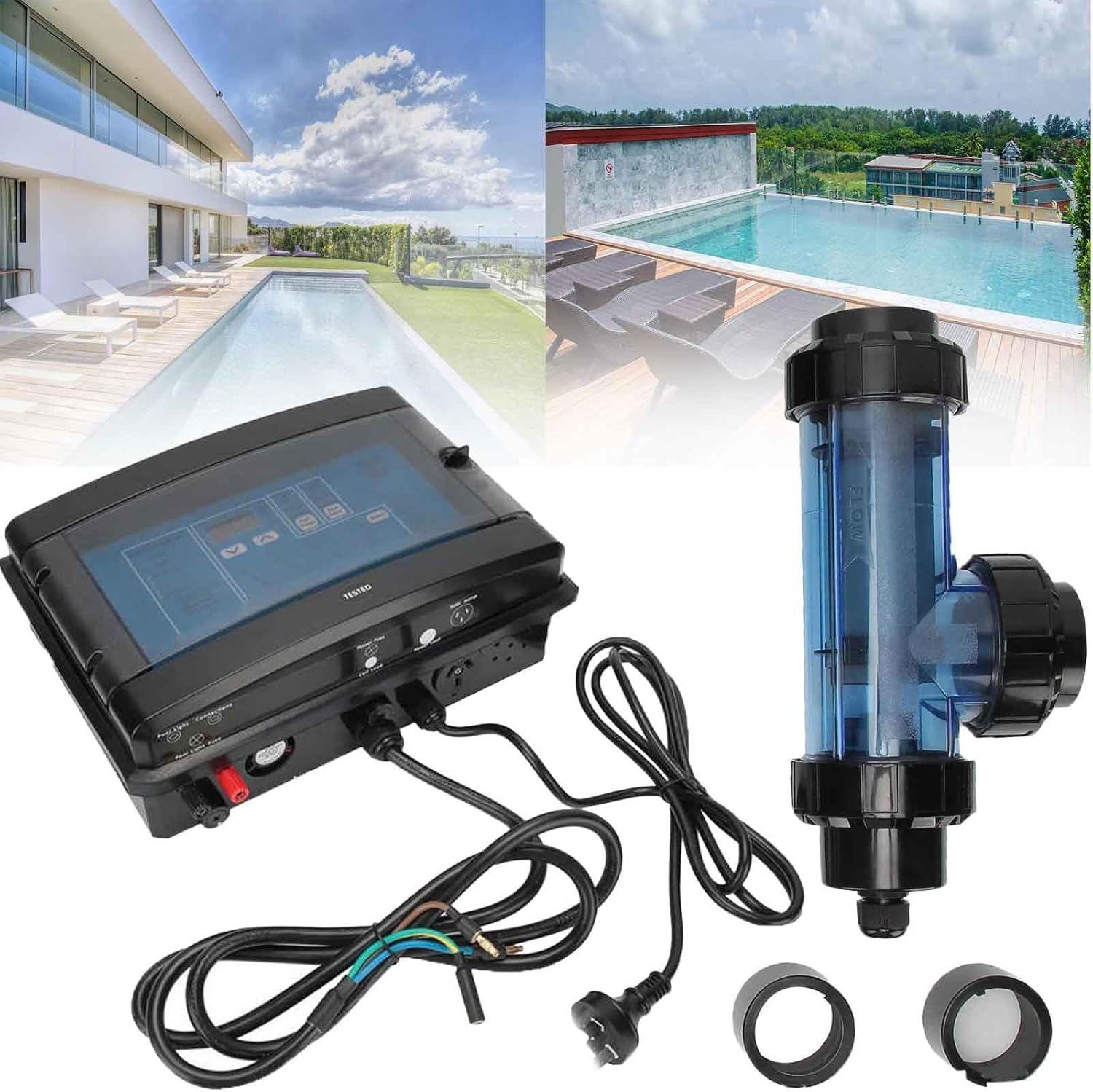

Image: The JINGEDD Salt Water Pool Chlorinator System, showing the main control unit and the electrolytic cell, set against a backdrop of a modern swimming pool environment.
2. Key Features
- Electrolytic Salt Chlorine Production: The electrolysis process converts salt in water into chlorine gas, which then forms sodium hypochlorite for effective sanitation.
- Comprehensive Functions: Offers automatic, manual, and standby operating modes for versatile control.
- Safety and Protection: Includes salt high/low tips, fault alarm, water temperature protection (10-40°C), and water shortage protection to extend device lifespan.
- Automatic Cleaning Function: Self-cleaning capability for the electrolytic cell to maintain optimal performance and reduce manual maintenance.
- Water Level Detection: Ensures operation only when sufficient water is detected, preventing dry running.
- Memory Function: Automatically powers on and recalls the last working status.
- Customizable Settings: Supports time setting, chlorination box backwash time, chlorine output adjustment, and pool pump/light start settings.
Image: Illustration highlighting the automatic cleaning function of the chlorinator, suitable for various aquatic environments such as hydrotherapy pools, SPAs, swimming tanks, and infinity pools.
3. Specifications
| Parameter | Value |
|---|---|
| Item Type | Salt Chlorine Machine |
| Material | Plastic |
| Voltage | 230-240V, 50-60Hz |
| Chlorine Production (Model 15g/h) | 15g/h |
| Recommended Pool Volume (15g/h) | Approx. 35m³ |
| Product Use | Swimming pools, hydrotherapy pools, SPAs, swimming tanks |
| Package Dimensions | 3.94 x 3.94 x 3.94 inches (approximate) |
| Item Weight | 15.4 pounds |
| Country of Origin | China |
Image: Diagram illustrating the physical dimensions of both the main control unit and the electrolytic cell of the JINGEDD Salt Water Pool Chlorinator System.
4. Package Contents
Upon opening the package, please verify that all components are present and undamaged:
- 1 x Salt Chlorine Machine (Main Control Unit)
- 3 x Accessories (likely including the electrolytic cell and connectors)
- 1 x English Manual (this document)
5. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your chlorinator. It is recommended that installation be performed by a qualified professional.
5.1 Installation Diagram

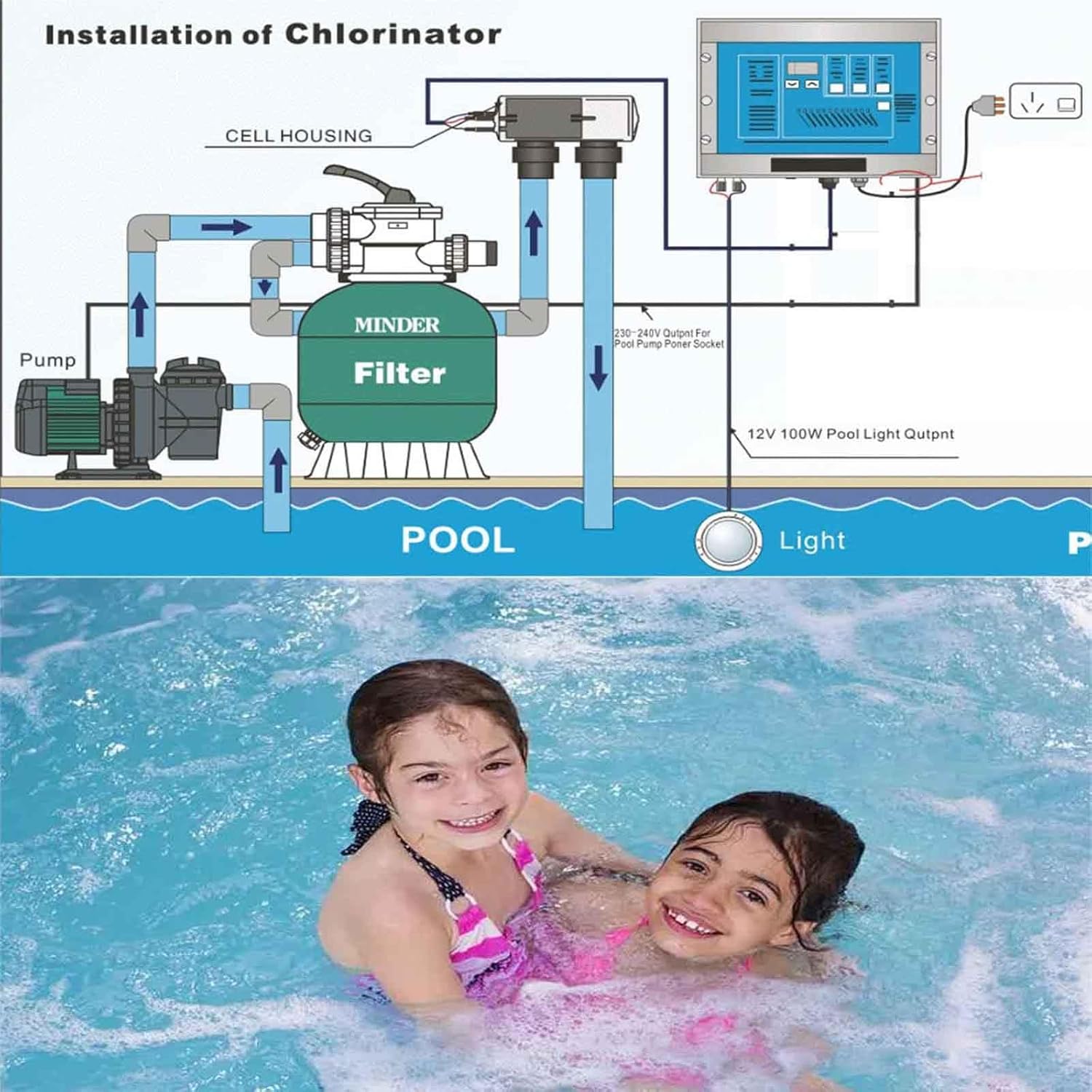

Image: Detailed diagram showing the typical installation of the chlorinator system within a swimming pool's filtration circuit, including connections to the pump, filter, cell housing, and power supply, as well as an optional pool light connection.
5.2 General Installation Steps (Refer to diagram)
- Placement: Choose a dry, well-ventilated area for the main control unit, away from direct sunlight and excessive moisture.
- Cell Housing Installation: Install the electrolytic cell housing in the pool's return line, after the filter and heater (if applicable), ensuring proper water flow direction as indicated by the arrows on the cell.
- Electrical Connections:
- Connect the electrolytic cell to the main control unit.
- Connect the main control unit to a dedicated 230-240V, 50-60Hz power supply.
- If applicable, connect the 230-240V output for the pool pump power socket.
- If applicable, connect the 12V 100W pool light output.
- Water Flow: Ensure the pool pump is operational and water is flowing through the electrolytic cell before activating the chlorinator.
- Salt Level: Before initial operation, ensure the pool water has the correct salt concentration as specified in the pool chemistry guidelines (typically 3000-4000 ppm).
6. Operating Instructions
The JINGEDD Chlorinator System is designed for user-friendly operation with various modes and settings.

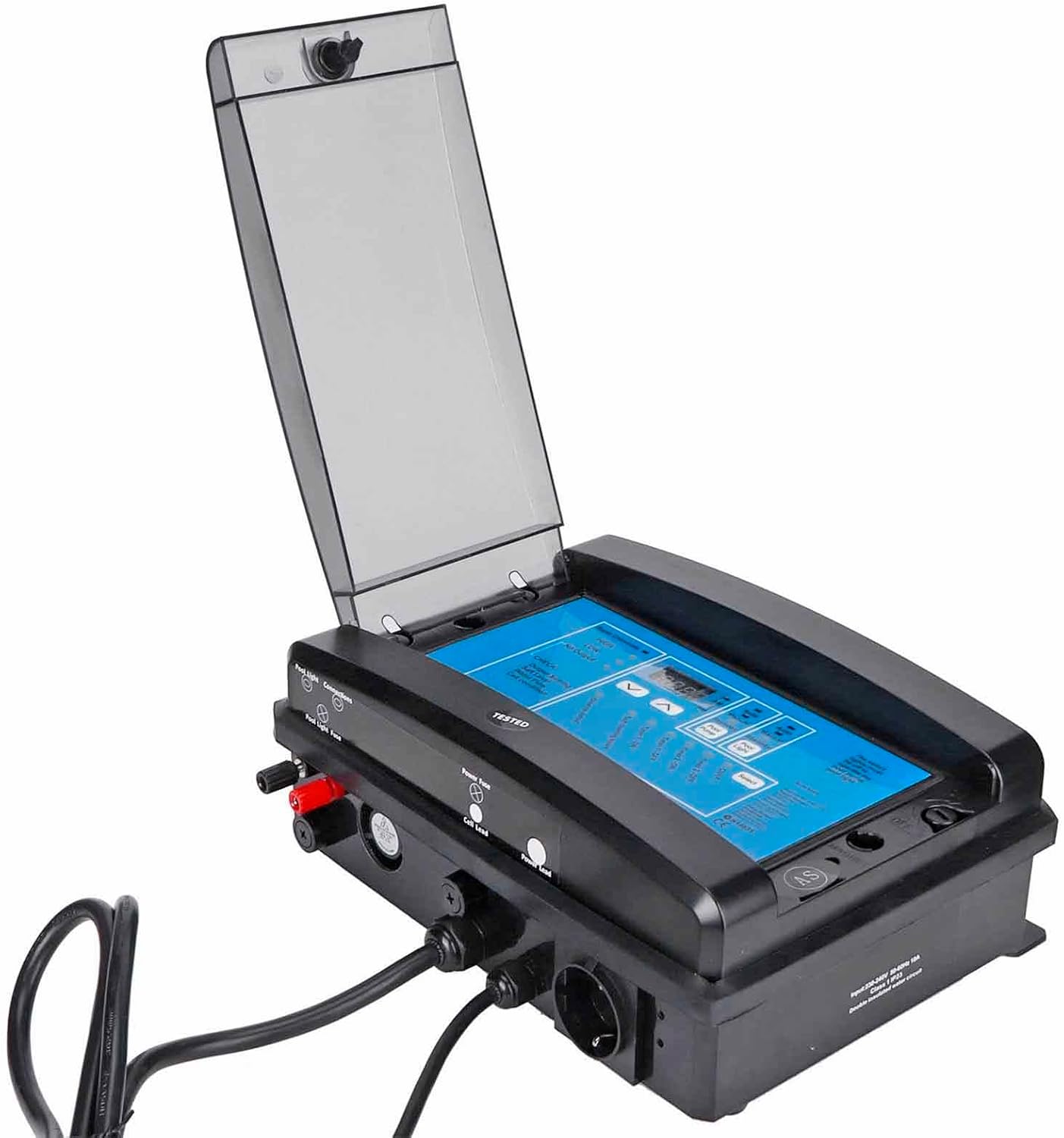

Image: The main control unit of the JINGEDD Salt Chlorinator with its protective cover open, revealing the control panel and display for operation and settings.
6.1 Initial Power On
Once installed and connected, power on the unit. The system will perform a self-check and display the current status. It will automatically recall the last working status.
6.2 Operating Modes
- Automatic Mode: The system operates based on programmed settings, including time schedules and chlorine output levels. This is the recommended mode for daily use.
- Manual Mode: Allows for direct control over chlorine production, bypassing programmed schedules. Use this for temporary adjustments or specific needs.
- Standby Mode: Puts the unit into a low-power state, pausing chlorine production.
6.3 Setting Adjustments
Refer to the control panel and display for navigation and setting adjustments. Common settings include:
- Time Setting: Program daily operating hours for chlorine production.
- Chlorine Output: Adjust the percentage or level of chlorine generation based on pool size, bather load, and water testing results.
- Backwash Time: Set the duration for the chlorination box backwash cycle (if applicable).
- Pool Pump/Light Start: Configure the system to control the operation of your pool pump and/or pool lights.
Always consult the on-screen menu and specific button functions on your unit for precise instructions on setting adjustments.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your JINGEDD Chlorinator System.
7.1 Automatic Cleaning Function
The system is equipped with an automatic cleaning function for the electrolytic cell. This process reverses the polarity of the cell plates, dislodging scale and mineral buildup. Ensure this function is enabled and operating regularly as per the system's default or your customized settings.
7.2 Manual Cell Inspection and Cleaning
Periodically inspect the electrolytic cell for excessive scale buildup, even with the automatic cleaning function. If significant buildup is observed, the cell may require manual cleaning. Consult a pool professional or refer to advanced maintenance guides for safe manual cleaning procedures, typically involving a mild acid solution.
7.3 Water Chemistry Monitoring
Regularly test your pool water for:
- Salt Level: Maintain the recommended salt concentration (e.g., 3000-4000 ppm). Low salt levels will reduce chlorine production, while excessively high levels can damage the cell.
- Chlorine Level: Ensure free chlorine levels are within the recommended range for safe swimming.
- pH Level: Maintain proper pH to ensure chlorine effectiveness and prevent equipment corrosion.
- Cyanuric Acid (CYA): If using stabilized salt, monitor CYA levels.
The system will provide salt high/low tips and fault alarms to assist with monitoring.
8. Troubleshooting
This section provides guidance for common issues. For complex problems, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No Chlorine Production | Low salt level; dirty cell; low water flow; system in standby; power issue. | Test salt level and add salt if needed; inspect and clean cell; ensure pump is running and flow is adequate; switch to automatic/manual mode; check power connections. |
| "Salt High/Low" Alarm | Incorrect salt concentration in pool water. | Test pool water salt level. Add salt if low, or dilute water if too high. |
| "Water Shortage" Alarm | Insufficient water flow through the cell. | Check pool pump operation, filter cleanliness, and ensure water level in pool is adequate. |
| System Not Powering On | No power supply; tripped breaker. | Verify power connection; check circuit breaker. |
9. Warranty and Support
JINGEDD products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official JINGEDD website.
Please retain your proof of purchase for warranty claims.
