vidaXL Reclining Armchair Instruction Manual

1. Introduction

Thank you for choosing the vidaXL Reclining Armchair. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new armchair. Please read all instructions carefully before use and retain this manual for future reference.

Image 1.1: The vidaXL Reclining Armchair, showcasing its sleek black synthetic leather finish and comfortable design.

2. Important Safety Information

WARNING: Failure to follow these safety instructions could result in injury or damage to the product.

• Assembly required. Read and follow all assembly instructions carefully. Do not attempt to assemble or operate the chair until fully understood.
• Always use the manual recline function with caution to avoid injury. Ensure no obstructions are present behind or in front of the chair when reclining.
• Do not allow children to play on or around the recliner without adult supervision.
• Ensure all bolts and fasteners are securely tightened before use and periodically check for looseness.
• Do not exceed the maximum load capacity of 110 kg (approximately 242 lbs).
• Keep hands and feet clear of the reclining mechanism during operation.
• This product is intended for indoor use only.

3. Package Contents

Upon opening the package, please verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Reclining Armchair (main body)
• Backrest component
• Legs (typically 4)
• Assembly hardware (screws, bolts, washers, Allen key)
• Instruction Manual

4. Setup & Assembly

Assembly of the vidaXL Reclining Armchair is required. Follow these general steps. Refer to the specific assembly diagram included in your package for detailed instructions.

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a soft, clean surface to prevent scratches.
2. Attach Legs: Securely attach the chair legs to the base of the armchair using the provided hardware. Ensure they are tightened firmly.
3. Assemble Backrest: Slide the backrest component onto the main chair body. Ensure the connection points align and click into place or are secured with the provided bolts/screws.
4. Check Connections: Once assembled, gently rock the chair to ensure all connections are stable and secure.
5. Position Chair: Place the armchair in its desired location, ensuring there is sufficient space behind it for full recline (up to 135 degrees).

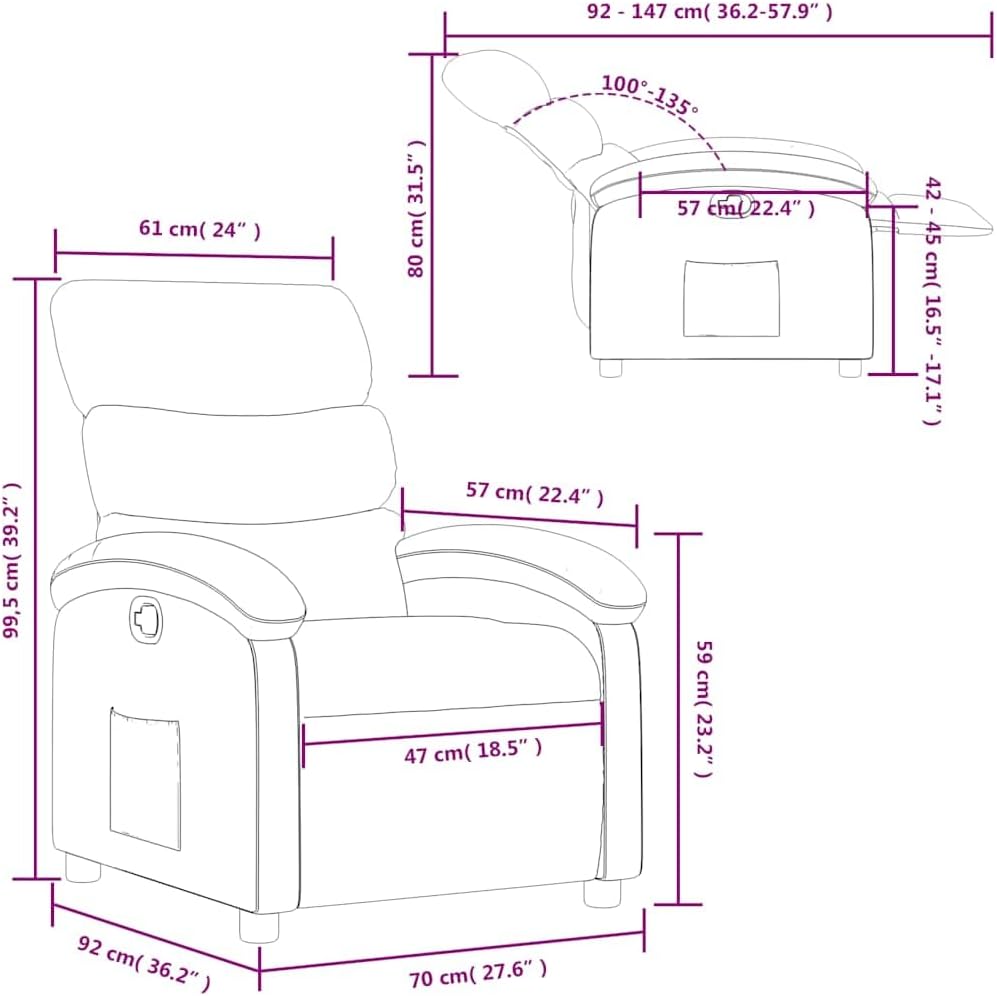

Image 4.1: Dimensional diagram of the armchair, illustrating its size and reclining range for proper placement and assembly.

5. Operating Instructions

The vidaXL Reclining Armchair features a manual recline function and a convenient side pocket.

5.1 Manual Recline Function

To recline the armchair:

1. Locate the handle on the right side of the armchair.
2. Pull the handle to release the footrest and backrest mechanism.
3. Lean back gently to adjust the backrest and footrest to your desired position. The chair allows for a maximum tilt of 135 degrees.
4. To return to the upright position, push the footrest down with your legs and lean forward. The backrest will return to its original position with a pull of the handle.

Image 5.1: Visual demonstration of the armchair's reclining capabilities, showing the smooth transition from upright to a fully relaxed position.

5.2 Side Pocket

The armchair is equipped with a side pocket, located on the left side, allowing you to keep small items such as remote controls, magazines, or books within easy reach.

Image 5.2: Detailed view highlighting key features such as the manual recline handle and the practical side storage pocket.

6. Maintenance & Care

Proper care will extend the life and appearance of your vidaXL Reclining Armchair.

• Cleaning: The synthetic leather upholstery is stain resistant and easy to clean. Wipe spills immediately with a clean, damp cloth. For general cleaning, use a mild soap solution and a soft cloth, then wipe dry. Avoid harsh chemicals or abrasive cleaners.
• Mechanism Care: Periodically check the reclining mechanism for any debris or obstructions. If the mechanism becomes stiff, a small amount of silicone-based lubricant can be applied to moving parts (avoiding upholstery).
• Frame & Legs: Regularly check all bolts and screws for tightness and re-tighten as necessary to maintain stability.
• Sunlight Exposure: Avoid prolonged exposure to direct sunlight, which can cause the synthetic leather to fade or crack over time.
• Heat Sources: Keep the armchair away from direct heat sources like radiators or fireplaces.

7. Troubleshooting

If you encounter issues with your recliner, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact vidaXL customer support for further assistance.

8. Specifications

Detailed specifications for the vidaXL Reclining Armchair:

• Brand: vidaXL
• Model: Système inclinaison manuel
• Color: Black
• Material: Synthetic leather (60% polyurethane, 30% polyester, 10% cotton), plywood, metal
• Filling Material: Foam, PP fiber
• Sitting Dimensions (W x D x H): 70 x 92 x 99.5 cm (27.6" x 36.2" x 39.2")
• Lying Dimensions (W x D x H): 70 x 147 x 80 cm (27.6" x 57.9" x 31.5")
• Seat Width: 47 cm (18.5")
• Seat Depth: 57 cm (22.4")
• Seat Height from Floor: 42-45 cm (16.5"-17.7")
• Armrest Height from Floor: 59 cm (23.2")
• Maximum Load Capacity: 110 kg (242 lbs)
• Reclining Position Count: Infinite (up to 135 degrees)
• Special Feature: Stain Resistant
• Assembly Required: Yes

9. Warranty & Support

For information regarding warranty coverage, returns, or technical support for your vidaXL Reclining Armchair, please refer to the purchase documentation or contact the retailer directly. You may also visit the official vidaXL store on Amazon for more product information and support options:

Visit the vidaXL Store on Amazon
