1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Cata TFH 6830 X telescopic extractor hood. Please read these instructions carefully before using the appliance and retain them for future reference.
The Cata TFH 6830 X is a high-performance telescopic extractor hood designed for under-cabinet mounting, featuring a brushless motor, LED lighting, and touch controls for effective kitchen ventilation.
2. Safety Information
WARNING: Please read all safety warnings and instructions before installing or using this appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the electrical installation complies with local regulations.
- Do not operate the hood if the power cord is damaged. Contact qualified service personnel.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Always disconnect the appliance from the power supply before cleaning or maintenance.
- Maintain adequate ventilation in the room when the hood is used simultaneously with appliances burning gas or other fuels.
- Do not flambé under the range hood.
- Clean grease filters regularly to prevent fire hazards.
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
3. Product Components
The package for your Cata TFH 6830 X telescopic extractor hood typically includes:
- Cata TFH 6830 X Telescopic Extractor Hood unit
- Metallic grease filters (pre-installed)
- Installation hardware (screws, brackets, etc.)
- User Manual (this document)
Please check all components upon unpacking. If any parts are missing or damaged, contact your retailer.
4. Setup and Installation
The Cata TFH 6830 X is designed for easy installation under a kitchen cabinet. Proper installation is crucial for optimal performance and safety.
4.1 Pre-Installation Checks
- Verify that the installation area has sufficient space. The hood dimensions are approximately 66 cm (width) x 27 cm (depth) x 38.5 cm (height).
- Ensure the cabinet structure can support the hood's weight (approx. 7.5 kg).
- Confirm access to a suitable power outlet (220V).
- Prepare the ducting system for air extraction.
4.2 Mounting the Hood
The hood features an easy installation system. Follow these general steps:
- Mark the drilling points on the underside of the cabinet according to the hood's mounting template (if provided) or the hood's dimensions.
- Drill the necessary holes for mounting screws and the power cable.
- Secure the hood to the cabinet using appropriate screws and brackets.
- Connect the ducting to the hood's outlet.
- Connect the power cable to the electrical supply.
For detailed installation diagrams, please refer to the separate installation guide or consult a qualified technician.
Image: Side view of the Cata TFH 6830 X hood, illustrating its telescopic design and potential mounting points for under-cabinet installation.
5. Operating Instructions
Your Cata TFH 6830 X hood is equipped with a touch control panel for intuitive operation.

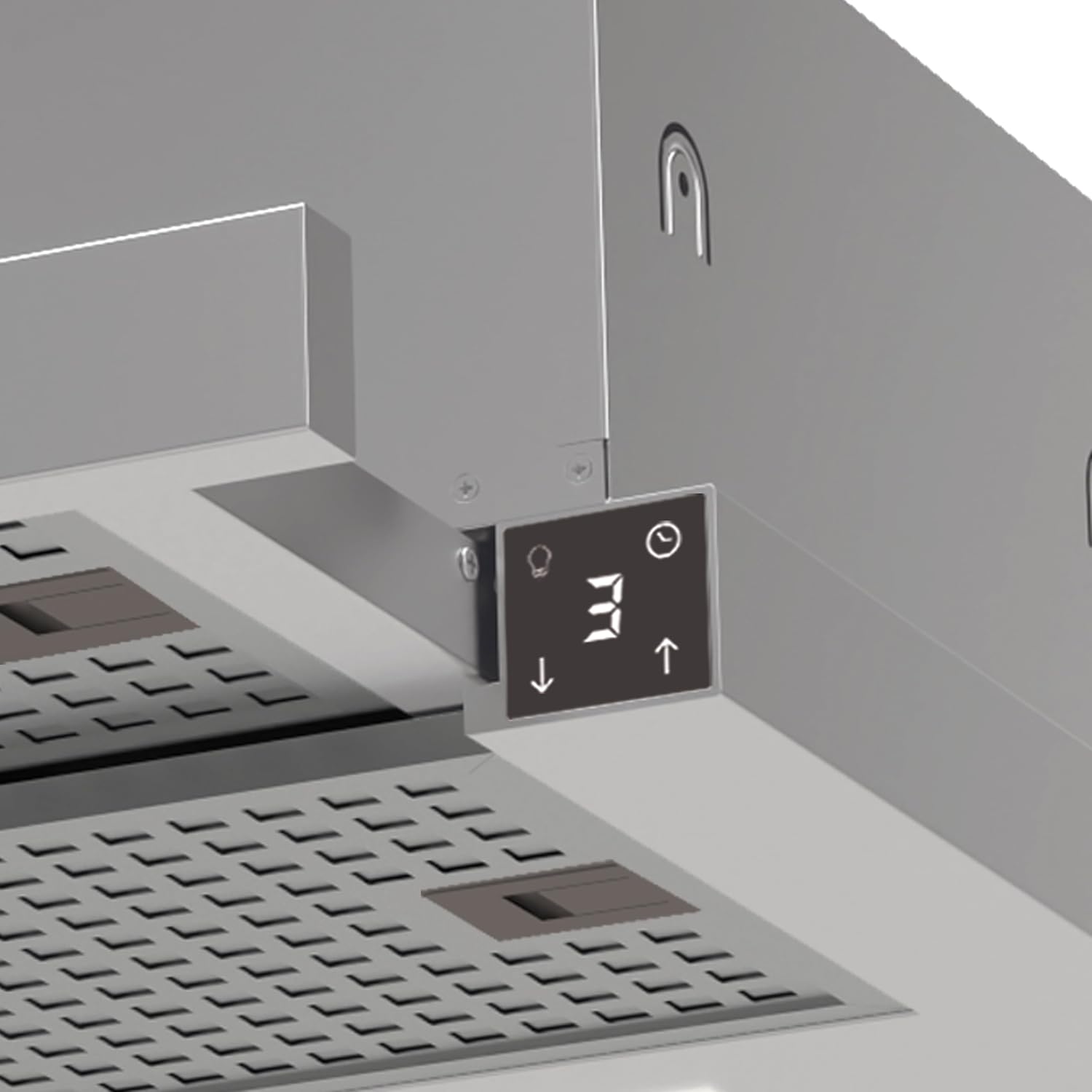

Image: Close-up of the touch control panel on the Cata TFH 6830 X, showing buttons for power adjustment, light control, and timer.
5.1 Power On/Off and Speed Selection
- To turn on the hood, gently pull out the telescopic panel. The hood will activate at the last used speed or a default low speed.
- Use the '+' and '-' buttons on the touch panel to cycle through the 6 available power levels (5 standard + 1 TURBO).
- The TURBO function provides maximum extraction for intense cooking fumes. It typically operates for a limited time before returning to a lower speed.
- To turn off the hood, push the telescopic panel back in, or press the power button on the control panel.
5.2 Lighting Control
- Press the light bulb icon button to turn the high-efficiency LED lighting on or off.
- Some models allow intensity adjustment by pressing and holding the light button.
5.3 Automatic Shut-off Timer
- The hood features an automatic shut-off timer. Press the timer icon button to activate it.
- The timer will keep the hood running for a set period (e.g., 5-20 minutes depending on the selected power level) after cooking to ensure complete air purification, then automatically switch off.
- Refer to the specific timer settings in the full manual for exact durations.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your extractor hood.
6.1 Cleaning Grease Filters
- The hood is equipped with a filter cleaning indicator that will alert you when the metallic grease filters require cleaning.
- The metallic grease filters are dishwasher-safe. Remove them by releasing the latches and place them in your dishwasher.
- Alternatively, wash them by hand using hot water and a mild detergent. Ensure they are completely dry before re-installing.
- Clean filters every 2-4 weeks depending on usage.
6.2 Cleaning the Hood Surface
- Clean the stainless steel and glass surfaces with a soft cloth and a non-abrasive cleaner specifically designed for these materials.
- Do not use abrasive pads, corrosive detergents, or harsh chemicals.

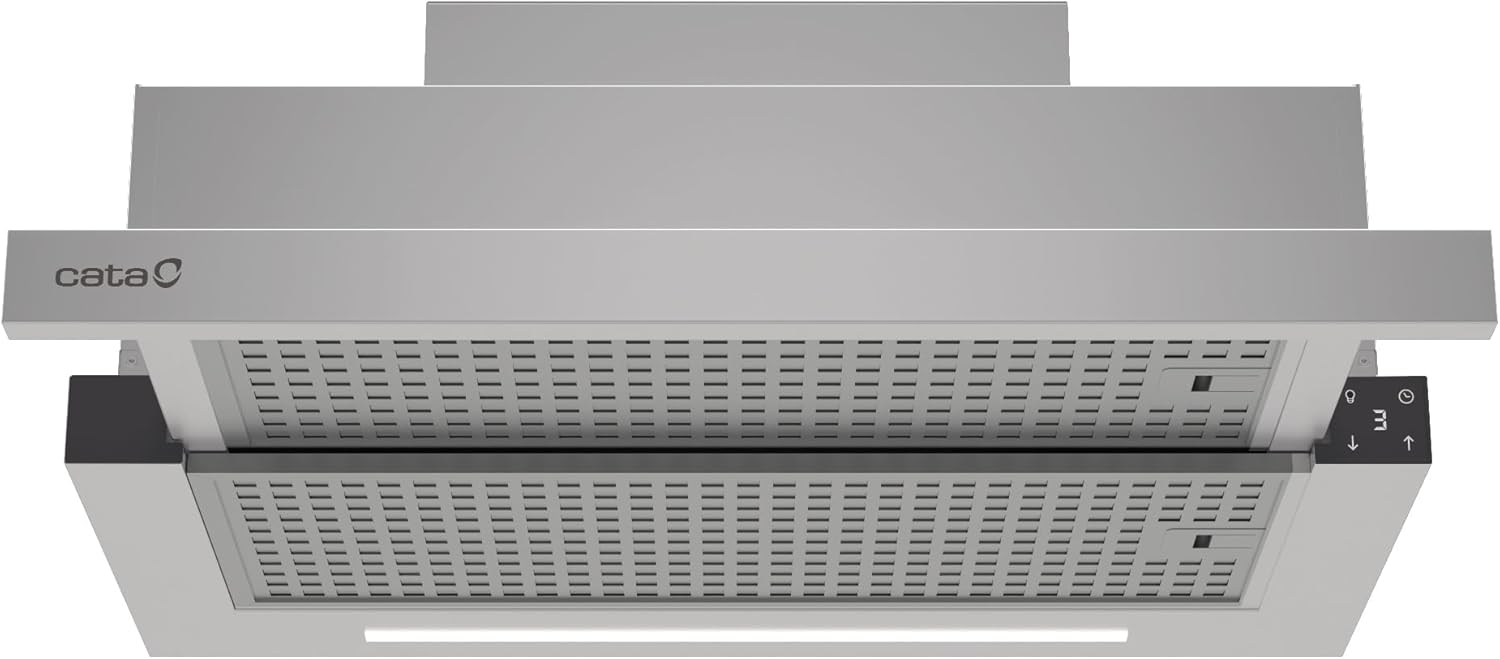

Image: Front view of the Cata TFH 6830 X hood, showing the metallic grease filters that require regular cleaning.
7. Troubleshooting
If you encounter issues with your extractor hood, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on. | No power supply, telescopic panel not fully extended, or power button not pressed. | Check power connection, ensure telescopic panel is fully extended, press power button. |
| Poor extraction performance. | Clogged grease filters, obstructed ducting, or insufficient room ventilation. | Clean or replace grease filters, check ducting for obstructions, ensure adequate room ventilation. |
| Lights not working. | LEDs faulty or power issue. | Check power supply. If LEDs are faulty, contact customer support for replacement. |
| Unusual noise during operation. | Loose components, foreign object in fan, or motor issue. | Inspect for loose parts. If noise persists, contact customer support. |
If the problem persists after attempting these solutions, please contact Cata customer support or a qualified service technician.
8. Specifications
- Model Number:
- TFH 6830 X (2010601)
- Dimensions (D x W x H):
- 66 cm x 27 cm x 38.5 cm
- Weight:
- 7.5 kg
- Material:
- Stainless Steel and Glass
- Airflow Capacity:
- Up to 820 m³/h
- Power Levels:
- 6 (5 + 1 TURBO)
- Noise Level:
- 46 dB (minimum)
- Controls:
- Touch Control Panel
- Lighting:
- High-efficiency LED strip, adjustable intensity
- Special Features:
- Dishwasher-safe metallic grease filters, Filter cleaning indicator, Automatic shut-off timer, Easy installation system
- Energy Efficiency Class:
- A+++
- Voltage:
- 220 Kilovolts (Note: Typically Volts for household appliances. Please verify with product labeling.)
- Power:
- 138 watts
9. Warranty and Support
Your Cata TFH 6830 X extractor hood comes with a 3-year product warranty.
For warranty claims, technical assistance, or spare parts, please contact your retailer or Cata customer service. Ensure you have your proof of purchase and the product model number (TFH 6830 X or 2010601) available.
You can find more information and contact details on the official Cata website: Cata Official Store
