AFNZTME 3.6V Cordless Electric Screwdriver Set

Product Overview

The AFNZTME Cordless Electric Screwdriver Set is a versatile tool designed for various fastening and drilling applications. It features a 3.6V lithium battery, a powerful 3.5 N.m torque, and comes with a comprehensive set of 46 drill bits. Its ergonomic design includes an adjustable handle for both in-line and pistol-grip operation, and an integrated LED light for improved visibility in work areas. The entire kit is conveniently stored in a portable carrying case.

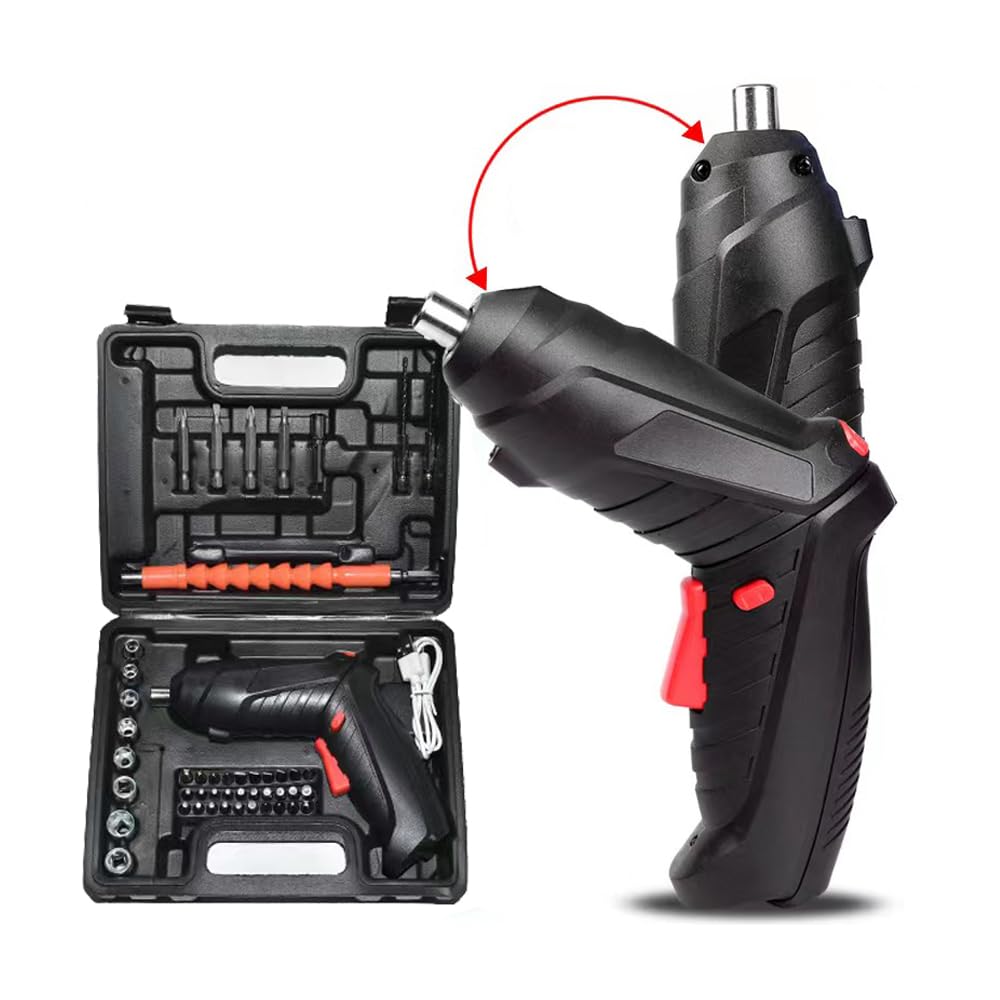

Image: The AFNZTME Cordless Electric Screwdriver Set, showcasing the screwdriver's adjustable handle and the included carrying case with 46 bits.

Package Contents

• 1 x AFNZTME 3.6V Cordless Electric Screwdriver
• 1 x 1500mAh Lithium Battery (integrated)
• 1 x Charging Cable
• 46 x Assorted Drill Bits and Screwdriver Bits
• 1 x Flexible Shaft Extension
• 1 x Portable Carrying Case
• 1 x User Manual (this document)

Safety Information

Always read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Electrical Safety: Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Personal Safety: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
• Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Battery Use and Care: Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Setup

Charging the Battery

1. Locate the charging port on the screwdriver handle.
2. Connect the provided charging cable to the screwdriver and a suitable USB power adapter (not included).
3. The LED indicator will illuminate during charging and change color or turn off when fully charged.
4. Allow approximately 3-5 hours for a full charge before first use.

Installing/Changing Bits

1. Ensure the screwdriver is turned off and the trigger is not pressed.
2. Insert the desired screwdriver bit or drill bit into the magnetic chuck until it is securely seated.
3. To remove, simply pull the bit out of the chuck.

Adjusting the Handle Position

The screwdriver features a pivoting handle for dual-position operation:

1. To switch from pistol-grip to in-line, gently pivot the handle until it locks into the desired straight (in-line) or angled (pistol-grip) position.
2. Ensure the handle is securely locked before operation.

Operating Instructions

Basic Operation

1. Select the appropriate bit for your task and install it securely.
2. Adjust the handle to your preferred position (pistol-grip or in-line).
3. To activate the screwdriver, press the trigger. The front LED light will illuminate the work surface.
4. To reverse the rotation direction, use the forward/reverse switch located near the trigger.
5. Release the trigger to stop the screwdriver.

Using the Flexible Shaft Extension

The flexible shaft extension allows access to screws in tight or awkward spaces.

1. Insert the hexagonal end of the flexible shaft into the screwdriver's chuck.
2. Insert the desired bit into the other end of the flexible shaft.
3. Operate the screwdriver as usual, guiding the flexible shaft to the desired location.

Maintenance

• Cleaning: Regularly clean the tool's exterior with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Storage: Store the screwdriver and all accessories in the provided carrying case in a dry, cool place, away from direct sunlight and moisture.
• Battery Care: For optimal battery life, avoid fully discharging the battery frequently. Recharge the battery before storing for extended periods.
• Bit Inspection: Periodically inspect all bits for wear or damage. Replace worn bits to ensure efficient and safe operation.

Troubleshooting

Specifications

• Model: B0CMLYJ5Q2
• Brand: AFNZTME
• Voltage: 3.6 Volts
• Battery Type: 1500mAh Lithium Ion (integrated)
• Max Torque: 3.5 Newton Meters
• Power Source: Battery Powered
• Material: Metal, Plastic
• Item Weight: 1.79 pounds (approx. 0.81 kg)
• Package Dimensions: 8.23 x 6.54 x 2.32 inches (approx. 20.9 x 16.6 x 5.9 cm)
• Included Accessories: 46pcs Bits, Flexible Shaft, Carrying Case
• Date First Available: November 4, 2023

Warranty and Support

AFNZTME is committed to providing reliable products and trustworthy after-sale service. While specific warranty terms are not detailed in this manual, for any questions, concerns, or support needs regarding your AFNZTME Cordless Electric Screwdriver Set, please contact our customer service team.

Please refer to your purchase documentation or the official AFNZTME website for the most current warranty information and contact details.

Note: Keep your purchase receipt as proof of purchase for any warranty claims.
