LEXMAN H05VV-F 3G2.5 Power Cable User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your LEXMAN H05VV-F 3G2.5 Power Cable. Designed for indoor and household applications, this flexible cable is suitable for repairing and new installations of Class 1 electrical appliances equipped with a protective conductor connection. Please read this manual thoroughly before use to ensure proper installation and operation.

2. Safety Information

Always prioritize safety when working with electrical components. Failure to follow these instructions may result in electric shock, fire, or personal injury.

Electrical Safety: Ensure power is disconnected before handling or installing the cable. Only qualified personnel should perform electrical work.
Intended Use: This cable is designed for indoor and household use only. It is suitable for Class 1 electrical appliances. Always verify the appliance class before use.
Installation Environment: DO NOT lay this cable under plasterwork. It is not designed for concealed installation.
Damage Inspection: Before each use, inspect the cable for any signs of damage, cuts, or fraying. Do not use a damaged cable.
Voltage Rating: Ensure the voltage of your application does not exceed the cable's rated voltage of 500V.

3. Product Overview

The LEXMAN H05VV-F 3G2.5 Power Cable is a flexible, white PVC-sheathed cable featuring three copper conductors. It is designed for optimal electrical conductivity and durability in various household applications.

Key Features:

Versatile Use: Ideal for repair and new installations of Class 1 electrical appliances with earthed terminals.
Household Applications: Suitable for powering household appliances like washing machines, refrigerators, and office equipment.
High-Quality Materials: Composed of 3G2.5 mm² copper conductors ensuring reliable electrical conduction.
Flexible and Easy to Handle: Features a soft PVC sheath for ease of installation and maintenance.
Safety Compliant: Manufactured in Spain, adhering to current standards and NF EN-50575.

LEXMAN H05VV-F 3G2.5 Power Cable with exposed conductors

Image 1: The LEXMAN H05VV-F 3G2.5 Power Cable, showing its white outer sheath and the three internal conductors (blue, brown, and green/yellow). The copper strands are visible at the ends of the insulated wires.

LEXMAN H05VV-F 3G2.5 Power Cable with 10m length indicator

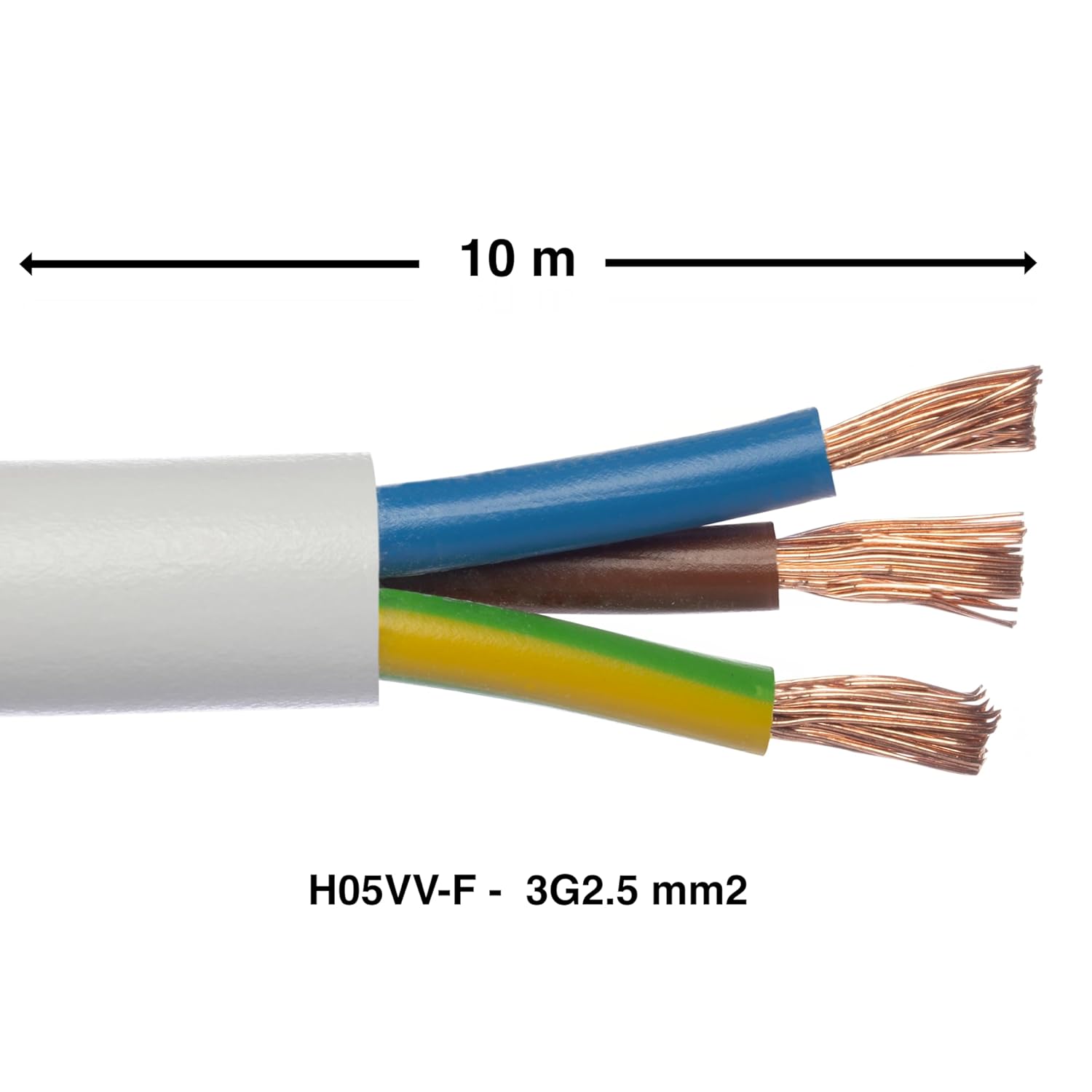

Image 2: A segment of the LEXMAN H05VV-F 3G2.5 Power Cable, indicating a length of 10 meters and the cable specification H05VV-F - 3G2.5 mm². The three internal conductors are visible.

LEXMAN H05VV-F 3G2.5 Power Cable with appliance icons

Image 3: The LEXMAN H05VV-F 3G2.5 Power Cable shown against a concrete background, accompanied by icons representing a washing machine and a refrigerator, illustrating common household appliance applications.

4. Setup and Installation

This cable is intended for use in electrical installations and appliance repairs. Proper installation is crucial for safety and performance.

Preparation: Before beginning any work, ensure the power supply to the circuit or appliance is completely disconnected. Use appropriate tools for stripping and connecting wires.
Conductor Identification: The cable contains three conductors:
- Blue: Neutral
- Brown: Live (Phase)
- Green/Yellow: Earth (Protective Conductor)
Ensure correct connection to the corresponding terminals of your appliance or electrical system.
Connection: Connect the stripped ends of the conductors securely to the appropriate terminals. Ensure no stray wire strands are exposed that could cause a short circuit.
Securing the Cable: If replacing an existing cable, ensure the new cable is routed and secured in a manner that prevents strain or damage.
Verification: After installation, double-check all connections for tightness and correctness before restoring power.

5. Operating Instructions

Once properly installed, the LEXMAN H05VV-F 3G2.5 Power Cable functions as a reliable electrical conductor for your Class 1 appliances and indoor electrical needs.

Appliance Connection: Use the cable to connect compatible electrical appliances to a power source.
Indoor Use: This cable is specifically designed for indoor environments. Avoid exposure to direct sunlight, extreme temperatures, or moisture unless specifically protected.
Load Capacity: Ensure the total electrical load of the connected appliance does not exceed the cable's capacity (refer to specifications). Overloading can lead to overheating and fire hazards.

6. Maintenance

The LEXMAN H05VV-F 3G2.5 Power Cable requires minimal maintenance. Regular inspection is recommended to ensure its longevity and safe operation.

Regular Inspection: Periodically check the cable for any signs of physical damage, such as cuts, abrasions, or kinks, especially near connection points.
Cleaning: If necessary, wipe the cable with a dry, soft cloth. Do not use harsh chemicals or abrasive cleaners.
Storage: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid tight coiling that could damage the internal conductors.
Avoid Strain: Do not pull or yank the cable from outlets or appliances by the cord itself. Always grasp the plug or connector.

7. Troubleshooting

If you encounter issues with your electrical connection, consider the following common troubleshooting steps:

No Power to Appliance:
- Check if the power outlet is functional by plugging in another device.
- Inspect the cable for visible damage.
- Ensure all connections are secure and correctly wired.
- Verify that the circuit breaker has not tripped.
Overheating:
- If the cable feels warm, immediately disconnect power.
- Ensure the connected appliance's power requirements do not exceed the cable's specifications.
- Check for proper ventilation around the cable and appliance.
Flickering Lights/Intermittent Power:
- This could indicate a loose connection. Disconnect power and re-secure all terminals.
- Inspect the cable for internal damage (e.g., from being pinched or bent sharply).

If problems persist after troubleshooting, consult a qualified electrician or contact customer support.

8. Specifications

Attribute	Value
Model	H05VV-F 3G2.5
Type	Flexible Power Cable
Conductor Configuration	3G2.5 mm² (3 conductors, 2.5 mm² cross-section each)
Conductor Material	Copper
Insulation Material	Polyvinyl Chloride (PVC)
Rated Voltage	500 V
Outer Diameter	Approximately 10 mm
Length	10 m
Color	White
Product Dimensions	18 x 17 x 6 cm (packaging)
Weight	2.2 kg
Manufacturer	ADEO
Manufacturer Reference	3276007599138
ASIN	B0CMK81DKS

9. Warranty and Support

This LEXMAN product is manufactured by ADEO and is designed to meet high-quality standards. For specific warranty information, please refer to the terms and conditions provided at the point of purchase or contact your retailer.

For technical support or inquiries regarding your LEXMAN H05VV-F 3G2.5 Power Cable, please contact the manufacturer or your local distributor. When contacting support, please have your product model (H05VV-F 3G2.5) and manufacturer reference number (3276007599138) ready.

You can also visit the official LEXMAN or ADEO website for further information and resources. Visit LEXMAN on Amazon.nl
